55A 1800V Rectifier Diode Module M220.58 – Anti-Reverse High Power
55A 1800V Rectifier Diode Module M220.58 – Anti-Reverse High Power
55A 1800V High Power Rectifier Diode Module M220.58 – Photovoltaic Anti-Reverse

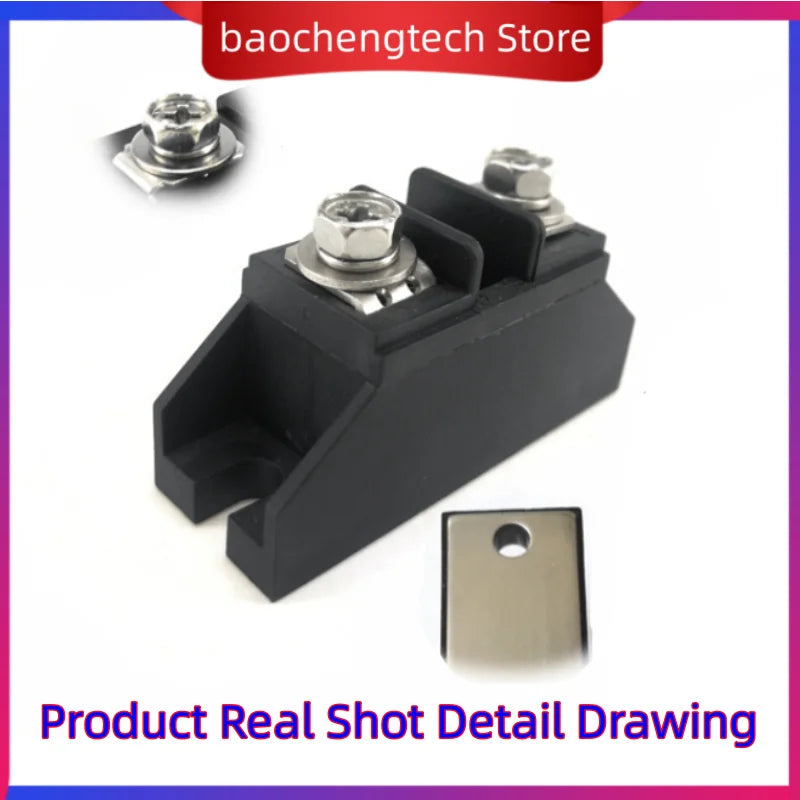

The M220.58 High Power Rectifier Diode Module is a compact, robust solution engineered for photovoltaic systems, power conversion circuits, and industrial electronics. Rated at 55A and up to 1800V, this spiral diode module prevents reverse current flow, protecting your solar panels, battery banks, and power supplies from backfeed damage. Available in a wide range of voltage configurations — 12V, 24V, 48V, 600V, 800V, 1000V, 1200V, and 1600V — it is an ideal fit for diverse applications.
Made in Mainland China.
Key Specifications
- Model: M220.58
- Type: Rectifier / Anti-Reverse Diode Module
- Max. Forward Current: 55A (rated average on-state)
- Max. Reverse Voltage: 1800V
- Available Voltage Configurations: 12V, 24V, 48V, 600V, 800V, 1000V, 1200V, 1600V
- Package: Small M220.58 Module
- Condition: Brand New
- Customization: Available for bulk/custom orders
Product Features
- Anti-Reverse Protection: Effectively blocks reverse current, safeguarding solar arrays and power systems from potential backfeed damage.
- High Voltage & Current Handling: Supports up to 1800V reverse voltage and 55A forward current for demanding power applications.
- Compact Module Design: Small M220.58 package allows easy integration into space-constrained enclosures and PCB assemblies.
- Wide Voltage Range: Suitable for 12V through 1600V systems, offering exceptional versatility across residential and industrial solar, UPS, and rectifier circuits.
- Spiral Diode Construction: Optimized for stable performance under continuous load conditions.
Selection & Installation Guidelines
1. Current Margin Selection
The rated current value represents the average on-state value, not the continuous RMS operating value. Always leave adequate margin based on your actual load:
- Resistive loads: Actual current (A) × 2 to 2.5 = Required module nominal current (A)
- Inductive loads: Actual current (A) × 6 to 7 = Required module nominal current (A)
2. Heat Sink Requirement
When operating above 5A continuous load, a suitable heat sink must be fitted to the module to ensure safe and stable long-term performance. Failure to use a heat sink under high-current conditions may result in thermal degradation.
3. Stock & Bulk Orders
Standard models are held in stock and available for immediate dispatch. For bulk or custom volume orders, please contact our customer service team to confirm quantities and delivery scheduling.
Applications
- Photovoltaic (solar panel) systems — anti-reverse protection
- Battery charging and management circuits
- Industrial rectifier and power conversion systems
- UPS and backup power supplies
- Motor drive and inductive load circuits
Learn More
For guidance on safe electrical component handling and standards, visit the OSHA Electrical Safety Resource Center.
Frequently Asked Questions
Q: What is the difference between the 55A rated current and my actual operating current?
A: The 55A rating is the average on-state forward current. For safe, reliable operation, you should apply a derating factor — multiply your actual operating current by 2–2.5× for resistive loads, or 6–7× for inductive loads, and select a module rated at or above that value. This ensures sufficient thermal and electrical margin.
Q: Do I need a heat sink with the M220.58 diode module?
A: Yes. For any application where the continuous operating current exceeds 5A, a properly sized heat sink is required. This maintains safe junction temperatures and ensures long-term module reliability.
Q: What voltage configurations are available for the M220.58 module?
A: The M220.58 rectifier diode module is available in 12V, 24V, 48V, 600V, 800V, 1000V, 1200V, and 1600V configurations, making it suitable for a wide range of photovoltaic, industrial, and power electronics applications up to 1800V reverse voltage.
Q: Can I order this diode module in bulk or with custom specifications?
A: Yes. Standard models are available in stock for immediate purchase. For bulk orders or custom configurations, please reach out to our customer service team with your required quantities and specifications to confirm availability and lead times.
