532nm 50mW Green Laser Diode Module with Heatsink | Elubor

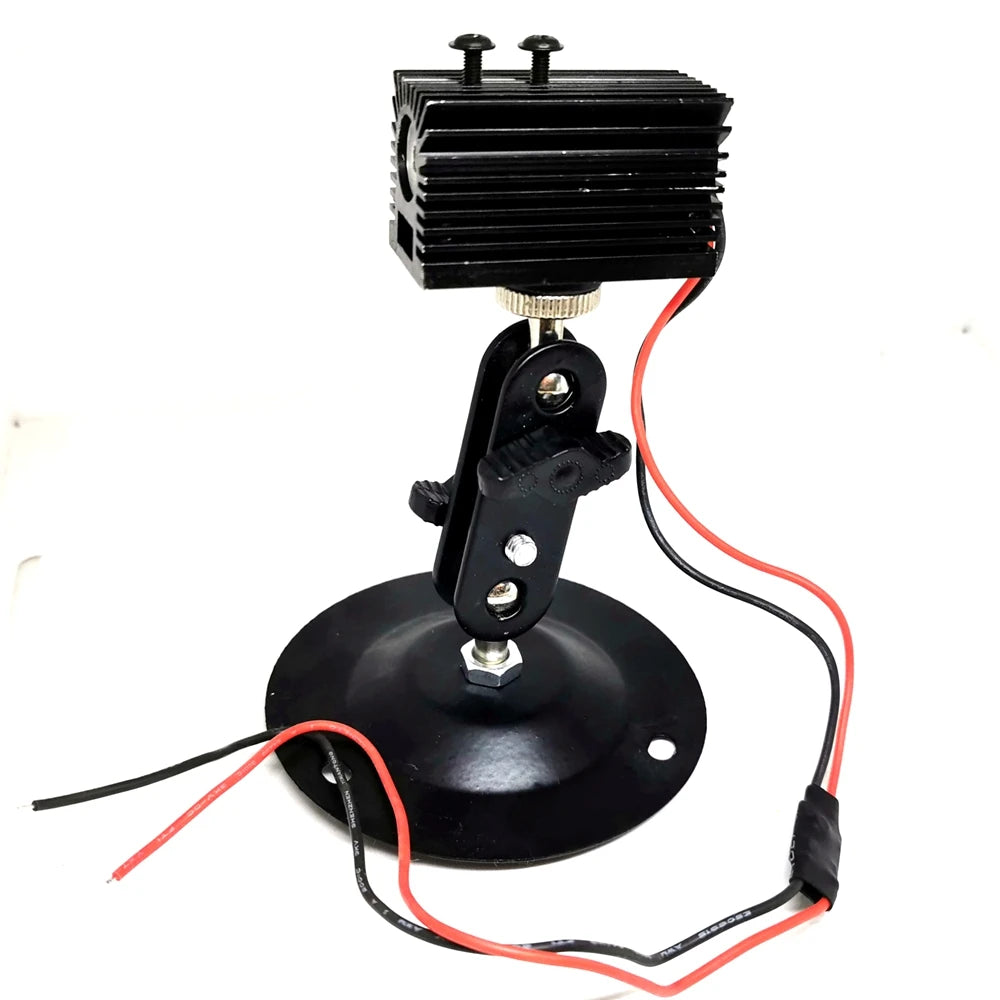

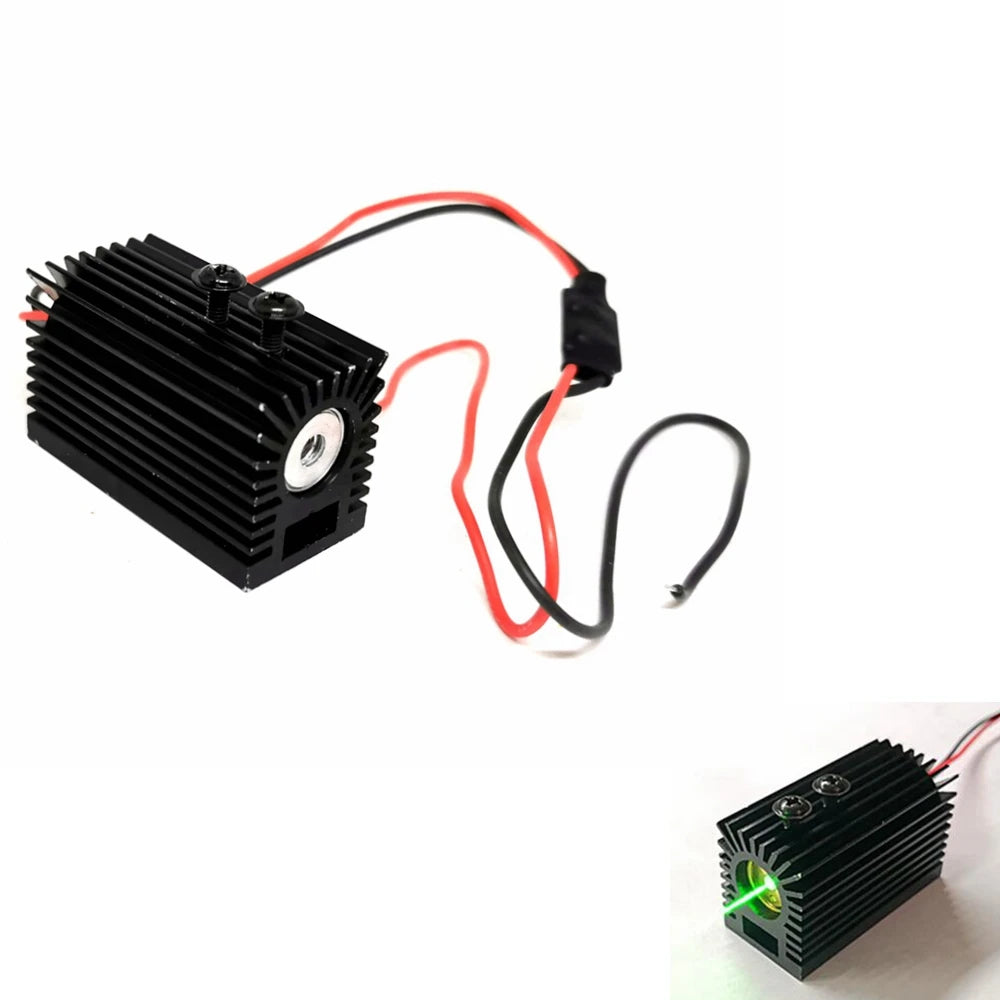

Elubor 532nm 50mW Green Laser Dot Module with Heatsink

Deliver pinpoint precision with the Elubor 532nm 50mW Green Laser Diode Module. Engineered for industrial and stage lighting applications, this compact dot laser module produces a vivid, tightly focused green beam at the classic 532nm wavelength. Whether you're building a custom lighting rig, integrating it into a stage or DJ setup, or using it for industrial alignment tasks, this module combines reliable performance with built-in thermal management.

Key Features

• 532nm Green Wavelength: Produces a bright, highly visible green dot beam — ideal for alignment, targeting, and lighting effects.
• 50mW Constant Output Power: Stable, consistent laser output (≤50mW) for dependable performance across sessions.

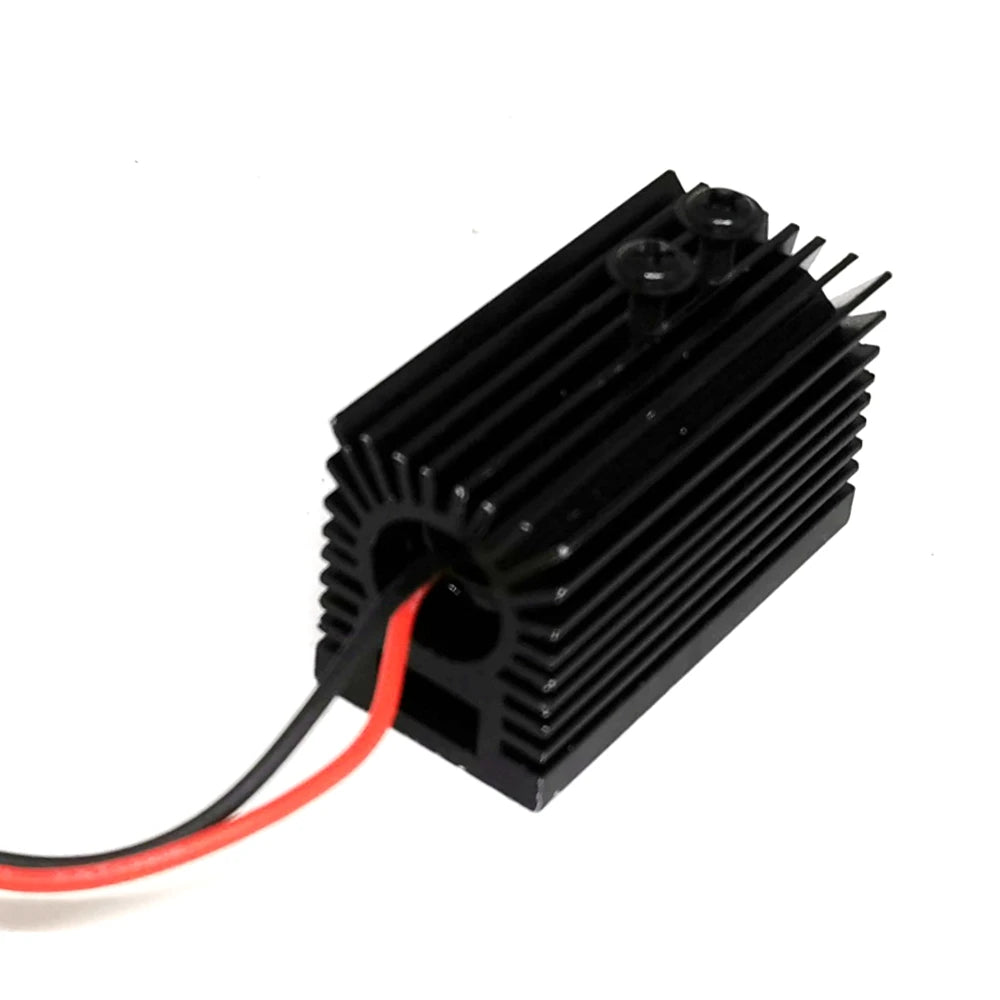

• Integrated Heatsink Design: Built-in heatsink dissipates heat efficiently, extending module lifespan and maintaining stable output during continuous operation.
• Wide Input Voltage Range: Operates on DC 3V–5V, making it compatible with a variety of power sources and microcontroller projects.
• Long Working Life: Rated for more than 6,000 hours of laser operating life — a dependable long-term component.
• Mini Compact Form Factor: Dimensions of φ45mm × 27mm × 22mm make it easy to mount and integrate into tight spaces.
• Precision Dot Mode: Focused light spot of less than 15mm at 5 meters for accurate dot projection.
• Low Current Draw: Works at less than 350mA — energy-efficient for continuous use.

Specifications

• Laser Wavelength: 532nm
• Laser Power: ≤50mW (constant power)
• Working Voltage: DC 3V–5V
• Working Current: <350mA
• Laser Mode: Dot
• Light Spot Size: <15mm at 5m
• Working Temperature: +10°C to +35°C
• Storage Temperature: -36°C to +65°C
• Laser Working Life: >6,000 hours
• Dimensions: φ45mm × 27mm × 22mm
• Power Source: DC
• Model: 532MD-50-222745

What's in the Box

• 1 × 532nm 50mW Green Laser Dot Module with Heatsink

Note: Batteries and bulbs are not included. This module requires an external DC power supply (3V–5V). Always follow appropriate laser safety guidelines when operating this device.

Made in Mainland China.

For guidance on laser safety standards, visit the FDA's Laser Products & Instruments page for important safety information.

Frequently Asked Questions

Q: What is the operating voltage for the 532nm 50mW green laser diode module?

A: This green laser diode module operates on a DC voltage range of 3V to 5V, with a working current of less than 350mA. It is compatible with a wide range of DC power supplies and microcontroller outputs, making it versatile for both industrial and hobbyist applications.

Q: Does the 532nm green laser module come with a heatsink, and why does it matter?

A: Yes, the module includes an integrated heatsink. The heatsink is essential for managing the thermal output of the laser diode during continuous operation, helping to maintain consistent beam output and significantly extending the working life of the module — rated at over 6,000 hours.

Q: What is the focused dot size of this green laser at a distance?

A: In dot mode, this 532nm laser module produces a focused light spot of less than 15mm in diameter at a distance of 5 meters, making it well-suited for precision alignment and focused dot lighting effects on stage or in industrial settings.

Q: Is this laser module safe to use for stage and DJ lighting setups?

A: This module is designed for professional stage and DJ lighting applications. However, as with all laser devices, proper laser safety precautions should always be followed. Never direct the beam toward eyes or reflective surfaces. Refer to the FDA's laser safety guidelines for best practices when using laser products.
