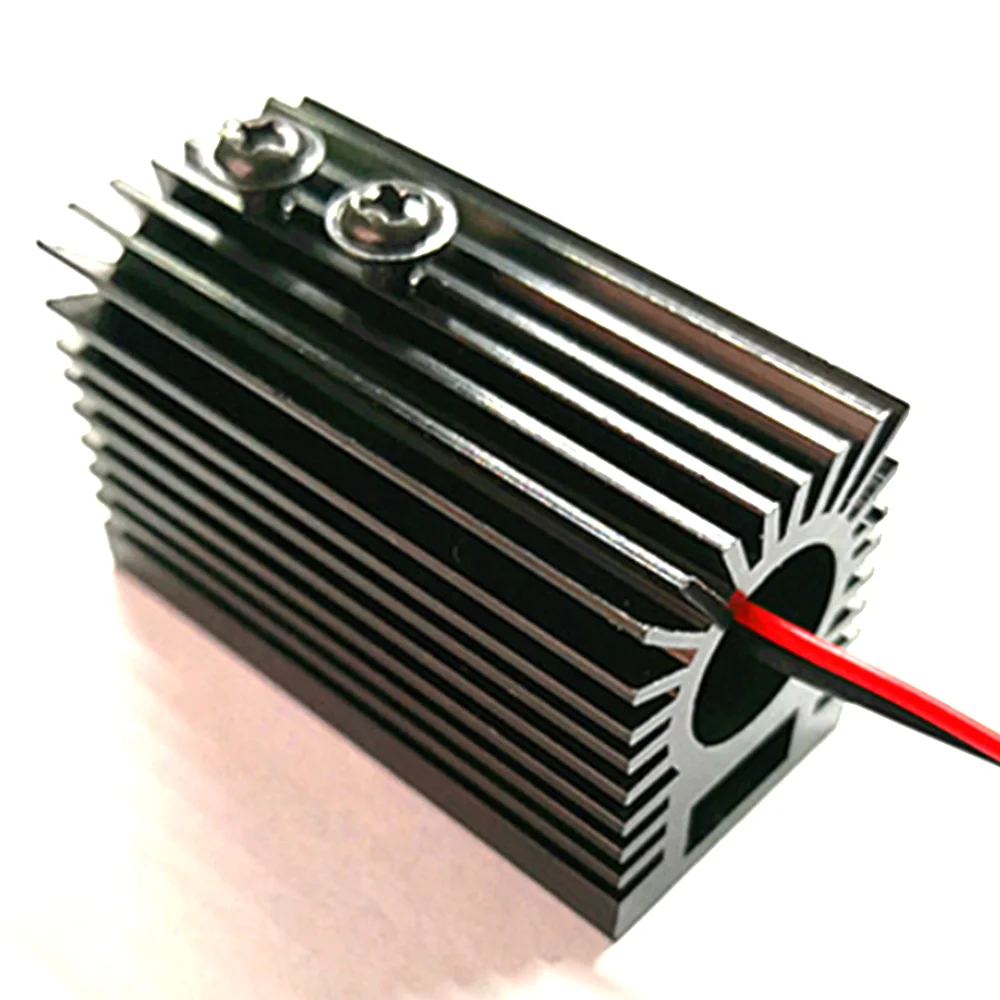

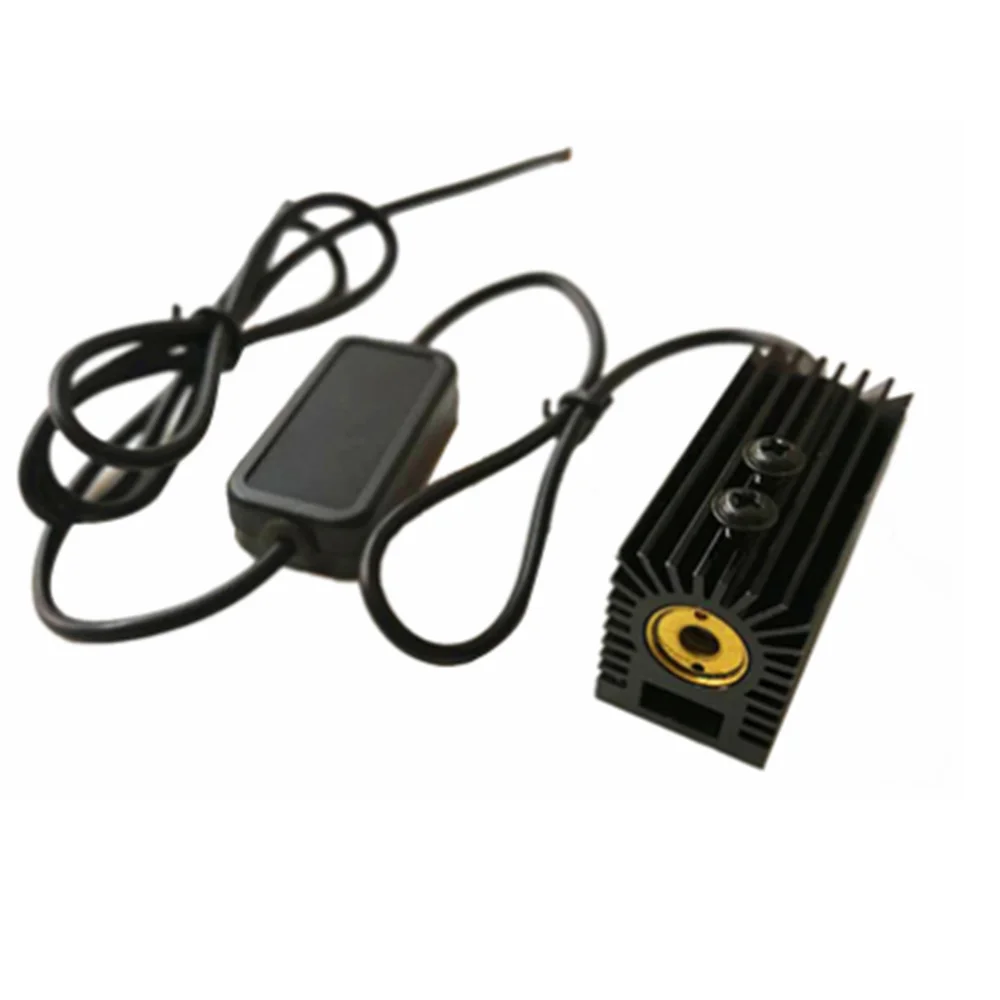

532nm 50mW Fan-Shaped Green Laser Module with Heat Sink
532nm 50mW Fan-Shaped Green Laser Module with Heat Sink
532nm 50mW Fan-Shaped Green Laser Module – Vivid Green Light for Stage & DJ Setups
Transform any stage, event, or professional lighting rig with the Elubor 532nm 50mW Fan-Shaped Green Laser Module. Engineered for reliability and visual impact, this compact mini laser module produces a brilliant fan-shaped green beam, creating stunning multi-point spot effects that captivate audiences. With a robust aluminum heat sink design and a rated working life of over 6,000 hours, this module is built for demanding professional environments.
Whether you're a DJ, lighting technician, or stage designer, this green laser module delivers consistent, eye-catching performance night after night. Its compact 45mm × 27mm × 22mm form factor makes it easy to integrate into custom lighting rigs, and dimensions can be customized to meet specific project requirements.
Key Features
- Wavelength: 532nm pure green laser output
- Power: Constant power ≤ 50mW for stable, consistent output
- Fan-Shaped Beam: Multi-point spot pattern creates dramatic visual effects
- Heat Sink Included: Aluminum heat sink keeps the module cool during extended use
- Long Working Life: Over 6,000 hours of reliable operation
- Wide Voltage Range: DC 12V–24V input for flexible installation
- Low Current Draw: Less than 350mA — energy efficient for continuous use
- Compact Mini Design: 45mm × 27mm × 22mm; customizable to your specs
- Self-Contained Unit: Easy integration into existing stage lighting setups
- Spot Size: <15mm at 5 meters for precise, defined beam patterns
Specifications
| Model | 532MD-50-222745 / QS-4527MTX |
| Laser Wavelength | 532nm (Green) |
| Laser Power | ≤ 50mW (Constant Power) |
| Working Voltage | DC 12V – 24V |
| Working Current | < 350mA |
| Working Mode | Multi-point spot, Continuous laser |
| Working Temperature | +10°C to +35°C |
| Storage Temperature | -36°C to +65°C |
| Dimensions | 45mm × 27mm × 22mm (Customizable) |
| Laser Working Life | Over 6,000 hours |
| Spot Size at 5m | < 15mm |
| Power Source | DC (Batteries not included) |
| Country of Origin | Made in Mainland China |
Safety Information
This is a laser product. Always follow proper laser safety guidelines during installation and operation. Avoid direct eye exposure to the beam. For professional and qualified use only. For guidance on laser safety standards, refer to the U.S. Consumer Product Safety Commission (CPSC) laser safety resources.
Perfect For
- Professional Stage Lighting
- DJ Booths & Live Performances
- Evening Events & Entertainment Venues
- Custom Lighting Rig Integration
- Architectural & Decorative Laser Displays
Frequently Asked Questions
Q: What power supply does the 532nm 50mW green laser module require?
A: The laser module operates on a DC power supply ranging from 12V to 24V, drawing less than 350mA. Batteries are not included and a dedicated DC power adapter is needed for operation.
Q: Can the dimensions of this green laser module be customized?
A: Yes! The standard dimensions are 45mm × 27mm × 22mm, but the module can be customized to meet specific installation or project requirements. Please contact us with your specifications.
Q: What kind of beam pattern does this fan-shaped laser module produce?
A: The module produces a fan-shaped, multi-point spot pattern using a continuous 532nm green laser beam. At 5 meters, the spot size is less than 15mm, providing a crisp, well-defined visual effect ideal for stage and DJ lighting applications.
Q: How long will this laser module last?
A: The Elubor green laser module is rated for over 6,000 hours of working life, making it a durable and cost-effective choice for frequent professional use.
