532nm 200mW Green Laser Module with TTL Control
Precision-engineered for industrial, scientific, and DIY electronics applications, this 532nm green laser module delivers a stable 200mW optical output with TTL modulation support. Whether you need a focused point beam or a broader illumination pattern, this Class 4 laser module is built for reliable, continuous-duty performance in your system integration projects.
Housed in a robust copper and aluminum body with an optical-grade glass lens, this module is designed to handle demanding environments while maintaining consistent beam quality. The XH2.54 2P interface makes wiring straightforward, and the included PCB driver, power adapter, and DC cable mean you can get up and running quickly.
Made in Mainland China.
Key Features
- Wavelength: 532nm (Green)
- Optical Power: 200mW
- Laser Class: Class 4
- Beam / Spot Shape: Round, 17mm diameter
- Focus / Spot Adjustable: No (fixed focus)
- Input Parameters: 12V @ 210mA (AC powered)
- TTL Power Adjustment: 0–5V TTL, 0–30 KHz modulation frequency
- Working Mode: Continuous operation
- Lens Material: Optical glass
- Housing Material: Copper & Aluminum
- Interface: XH2.54 2P

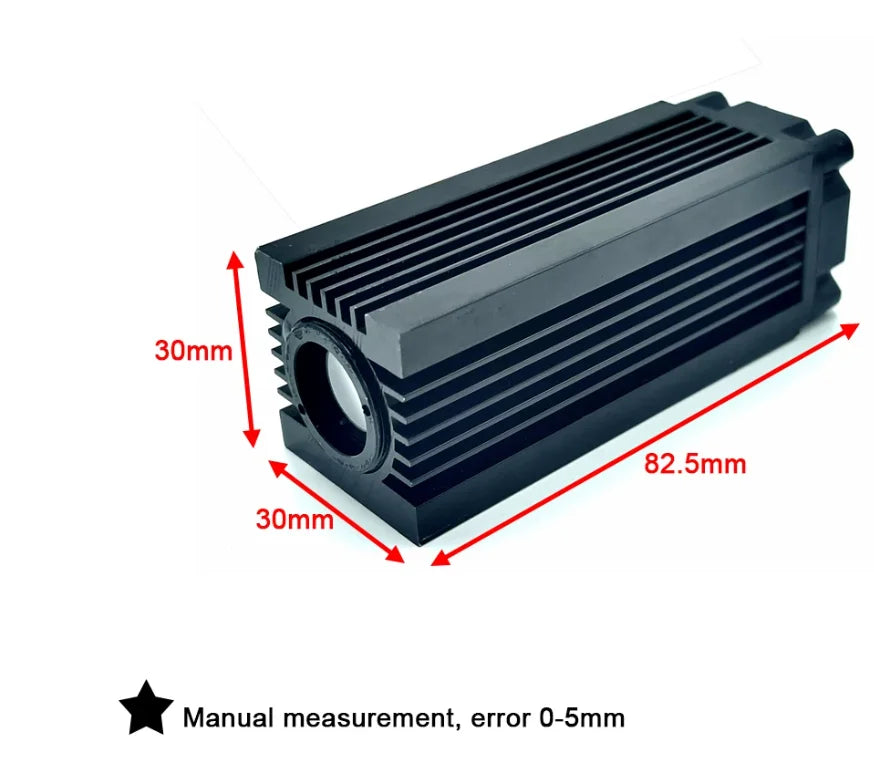

- Module Dimensions: 30mm × 30mm × 82.5mm
- Rated Lifetime: 1,000 hours
- Working Temperature: -10°C to 40°C
- Storage Temperature: -20°C to 60°C
- Batteries Required: No

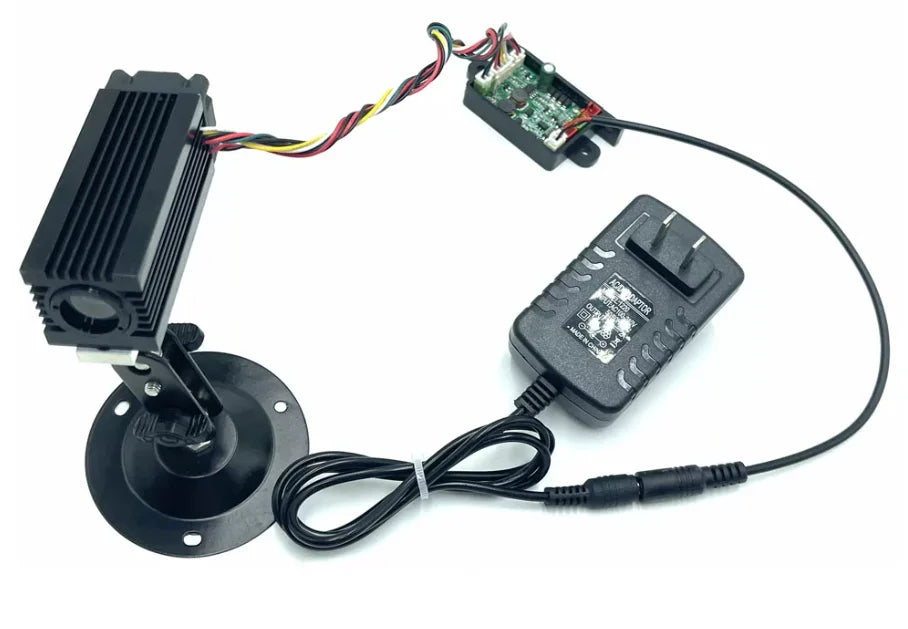

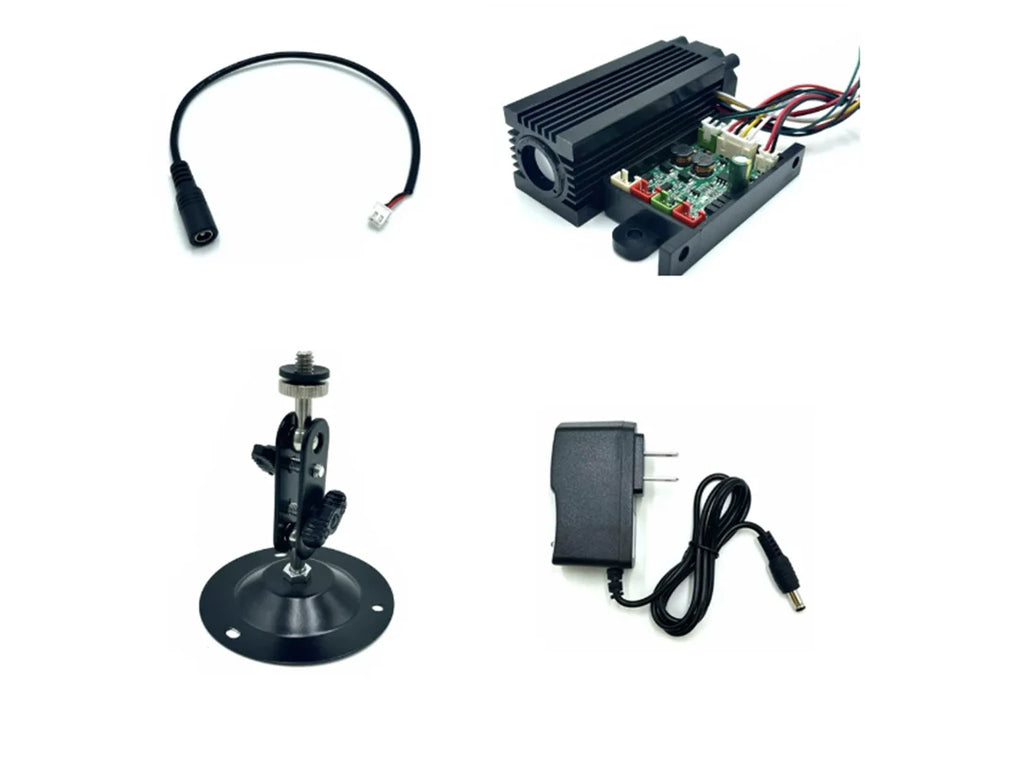

What's in the Box
- 1× Laser Module with PCB Driver
- 1× Power Adapter
- 1× DC-2P Cable
Laser Safety Notice
⚠️ Class 4 Laser Warning: This is a Class 4 laser product. Direct or indirect exposure to the beam can cause serious eye and skin injury. Always use appropriate laser safety eyewear rated for 532nm when operating this module. Keep away from children. For professional and industrial use only. For guidance on laser safety standards, visit OSHA's Laser Hazards Resource Page.
Frequently Asked Questions
Q: What does TTL modulation mean on this 532nm green laser module?
A: TTL (Transistor-Transistor Logic) modulation allows you to control the laser's on/off state and power output via a digital signal. This module supports 0–5V TTL signals at frequencies up to 30 KHz, making it compatible with microcontrollers, CNC systems, laser engravers, and other digital control platforms.
Q: Is this green laser module suitable for laser engraving or cutting applications?
A: This 200mW, 532nm green laser module is well-suited for marking, alignment, scientific instrumentation, and light-duty engraving on sensitive materials. For heavy-duty cutting, higher-wattage modules are typically recommended. Its TTL interface makes it easy to integrate into CNC or laser engraving controllers.
Q: Does the beam spot size adjust on this module?
A: No, this module has a fixed focus with a round beam spot of approximately 17mm. The focus is not adjustable, so it is designed for applications where a consistent, fixed beam pattern is required.
Q: What power supply does this laser module require?
A: The module operates on 12V AC power, drawing approximately 210mA. A compatible power adapter is included in the package, so no additional power supply purchases are necessary.
