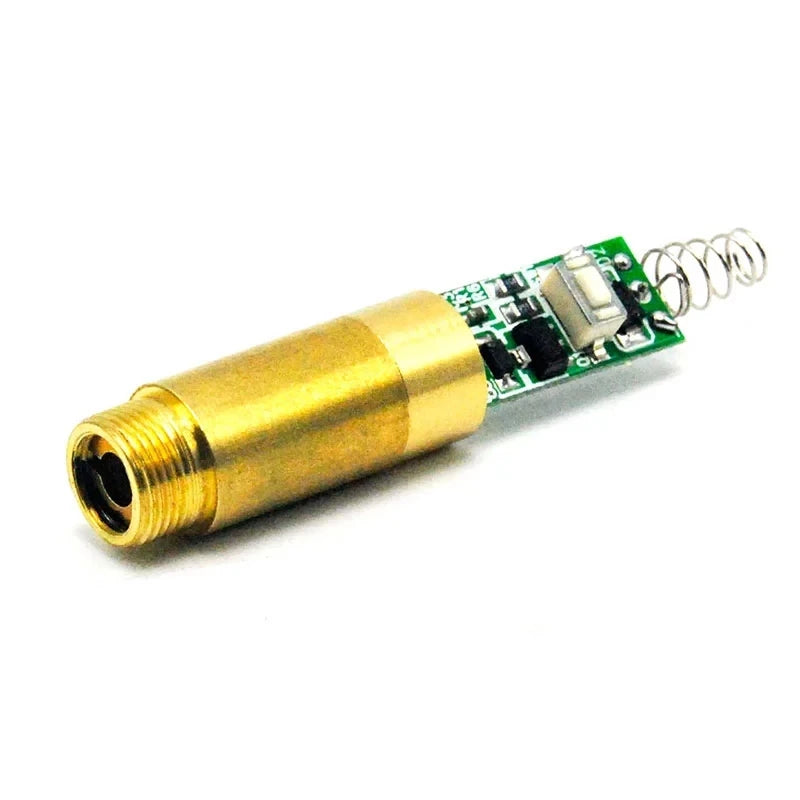

Elubor 532nm 10mW Green Laser Dot Module with Integrated Driver

Take your DIY electronics, stage lighting, or lab projects to the next level with the Elubor 532nm 10mW Green Laser Dot Module. Featuring a vivid, precisely focused green dot beam at 532nm wavelength, this compact brass-bodied module comes with a built-in driver PCB — making it ready to integrate into custom laser pointers, light displays, alignment systems, and more. Made in Mainland China.

Key Specifications

• Wavelength: 532nm (green)
• Output Power: 10mW
• Laser Shape: Dot
• Working Voltage: DC 3V – 3.7V
• Nominal Voltage: 5V
• Power Source: DC
• Working Temperature: +15°C ~ +35°C
• Duty Cycle: 45 seconds ON / 15 seconds OFF
• Dimensions: Ø12mm × 50mm (including PCB)
• Material: Brass
• Model: 532MD-10-1235B-SPR/TL

Features & Highlights

• Integrated Driver PCB: No external driver circuitry needed — plug in and go.
• DIY-Ready Design: Includes onboard switch and spring; the spring serves as the negative (–) terminal and the bronze casing as the positive (+) terminal for easy wiring.
• Compact Mini Form Factor: At just 12mm × 50mm, this module fits into tight enclosures, custom laser pointer builds, and compact stage lighting rigs.
• Vivid 532nm Green Beam: The 532nm wavelength produces one of the most visually striking and easily visible green laser dots available.
• Suitable for Stage & Professional Use: Ideal for professional stage lighting setups, DJ effects, alignment tools, and electronics experimentation.
• Brass Construction: Durable, heat-dissipating brass housing for long-lasting performance.

⚠️ Safety Notice

This is a precision laser instrument. Never direct the laser beam at eyes or reflective surfaces. Always use appropriate laser safety eyewear when working with laser modules. Read all technical documentation before beginning any laser DIY project and be fully aware of potential hazards associated with laser use. Keep away from children.

For more information on laser product safety standards, visit the U.S. Consumer Product Safety Commission – Laser Pointer Safety.

Package Contents

• 1× Elubor 532nm 10mW Green Laser Dot Module with Driver (3.7V)

Note: Batteries are not included.

Frequently Asked Questions

Q: What voltage does the 532nm 10mW green laser dot module require?

A: The module operates on DC 3V to 3.7V. It is compatible with standard single-cell lithium batteries and similar DC power sources within that voltage range, making it convenient for DIY laser pointer builds and compact electronics projects.

Q: Does the green laser dot module come with a built-in driver?

A: Yes! The Elubor 532nm laser module includes an integrated driver PCB with a built-in switch and spring, so no external driver components are required. Simply connect power according to the polarity markings and you're ready to go.

Q: What are the best applications for this 532nm laser module?

A: This module is well-suited for a wide range of uses including DIY laser pointer construction, professional stage and DJ lighting effects, optical alignment, electronics prototyping, lab experiments, and hobby projects requiring a precise green dot laser beam.

Q: Is the laser beam focusable?

A: This particular model produces a fixed-focus dot beam and is not adjustable/focusable. The 532nm green dot is emitted at a fixed output, optimized for consistent performance across its supported voltage range.
