Elubor 532nm 10mW Green Laser Dot Module with Driver 3.7V
Elubor 532nm 10mW Green Laser Dot Module with Driver 3.7V
Elubor 532nm 10mW Green Laser Dot Module with Integrated Driver

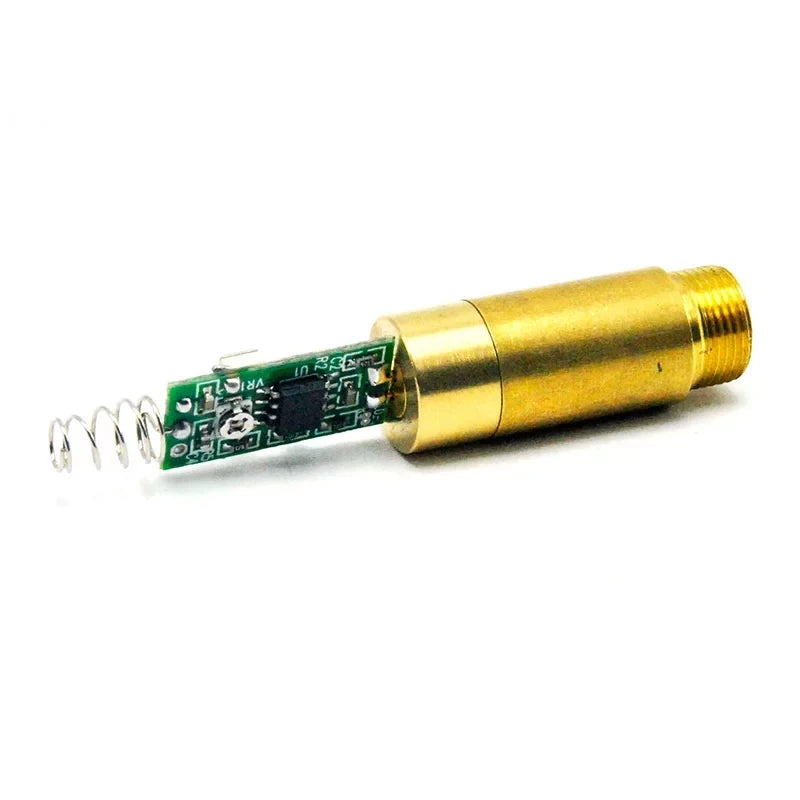

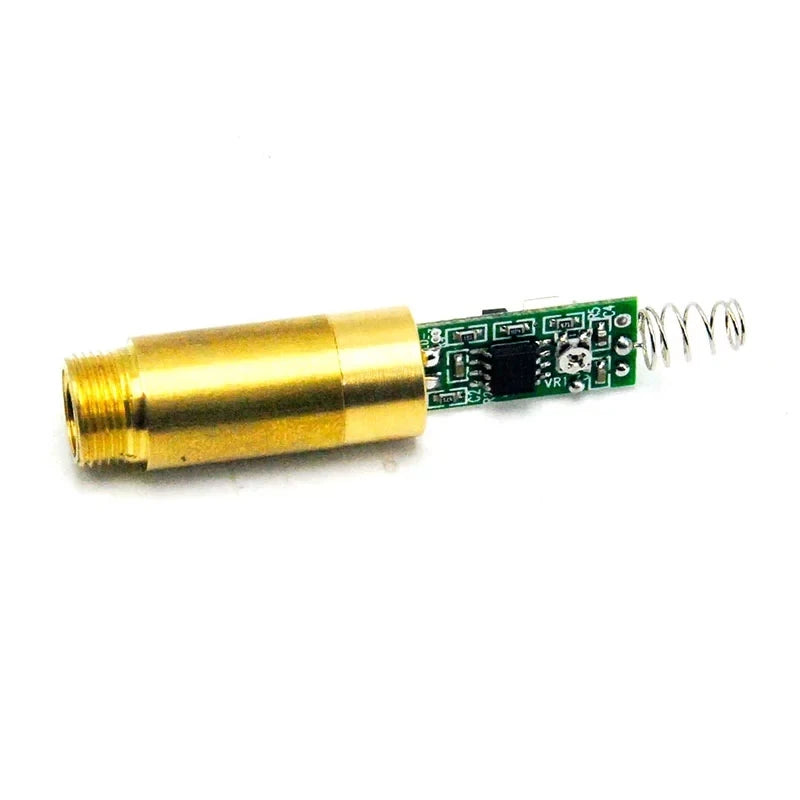

Bring precision and reliability to your DIY laser projects, stage lighting setups, and lab experiments with this compact 532nm 10mW Green Laser Dot Module by Elubor. Housed in a durable brass casing and measuring just Ø12mm × 50mm, this mini module packs impressive performance into a self-contained unit complete with an onboard driver PCB — no external driver circuit required.
Key Features
- 532nm Wavelength — Produces a vivid, highly visible green laser dot ideal for DIY pointers, alignment tools, and stage/DJ lighting effects
- Integrated Driver PCB — Onboard driver with built-in switch and spring contact; ready to use straight out of the box
- Brass Construction — Sturdy, heat-dissipating brass body for lasting durability and stable performance
- Wide Voltage Compatibility — Operates on DC 3V–3.7V, compatible with standard lithium cells and small battery packs
- DIY-Friendly Design — Spring contact is negative (–), bronze casing is positive (+); easy to integrate into custom builds and DIY laser pointer projects
- Compact Mini Form Factor — Ø12mm × 50mm dimensions fit neatly into tight enclosures and custom housings
- Professional-Grade Output — 10mW output power suited for professional stage, DJ, and lab applications
Technical Specifications
| Wavelength | 532nm |
| Output Power | 10mW |
| Working Voltage | DC 3V – 3.7V |
| Nominal Voltage | 5V (system) |
| Laser Shape | Dot |
| Material | Brass |
| Dimensions | Ø12mm × 50mm (including PCB) |
| Working Temperature | +15°C ~ +35°C |
| Duty Cycle | 45 seconds ON / 15 seconds OFF |
| Power Source | DC |
| Model Number | 532MD-10-1235B-SPR/TL |
What's in the Box
- 1× Elubor 532nm 10mW Green Laser Dot Module with Integrated Driver (DC 3V–3.7V)
Note: Batteries are NOT included.
Made in Mainland China.
⚠ Laser Safety Notice: This module emits a 10mW laser beam. Always avoid direct eye contact with the laser beam. Read all technical information before beginning any DIY laser project. Use appropriate eye protection when working near laser output. Keep away from children.
For authoritative information on laser product safety standards, please refer to the U.S. Consumer Product Safety Commission – Laser Safety.
Frequently Asked Questions
Q: What voltage does the 532nm green laser dot module require?
A: This green laser dot module operates on DC 3V to 3.7V, making it compatible with standard single lithium-ion or lithium-polymer cells. It does NOT include batteries — please source an appropriate DC power supply or battery for your build.
Q: Does this laser module include a driver circuit?
A: Yes! The Elubor 532nm laser module comes with an onboard integrated driver PCB, complete with a built-in switch and spring contact. This makes it straightforward to wire up directly for DIY laser pointer builds or custom stage lighting projects without needing a separate external driver.
Q: Is this module suitable for DIY laser pointer projects?
A: Absolutely. The module's spring (negative –) and brass casing (positive +) contacts are designed for easy integration into DIY housings and custom enclosures. The compact Ø12mm × 50mm form factor fits standard laser pointer tubes and most hobbyist project enclosures. Always observe safe laser handling practices during any DIY assembly.
Q: What is the duty cycle of this laser module?
A: The recommended duty cycle is 45 seconds ON followed by 15 seconds OFF. Adhering to this cycle helps maintain stable performance and prolongs the life of the laser diode by allowing it to cool between use intervals.
