520nm 360° Green LED Laser Module — Precision Conical Beam for Stage & DJ Lighting
Elevate your stage, DJ booth, or professional lighting setup with the Elubor 520nm 360° Green LED Module (Model: 650ML-360). Engineered for continuous high-output performance, this compact yet powerful mini laser module projects a full 360° conical green beam at a precise 520nm wavelength, delivering a vivid, consistent ring of green light perfect for immersive stage effects, DJ performances, escape rooms, laser shows, and more.
Made in Mainland China.
Key Features

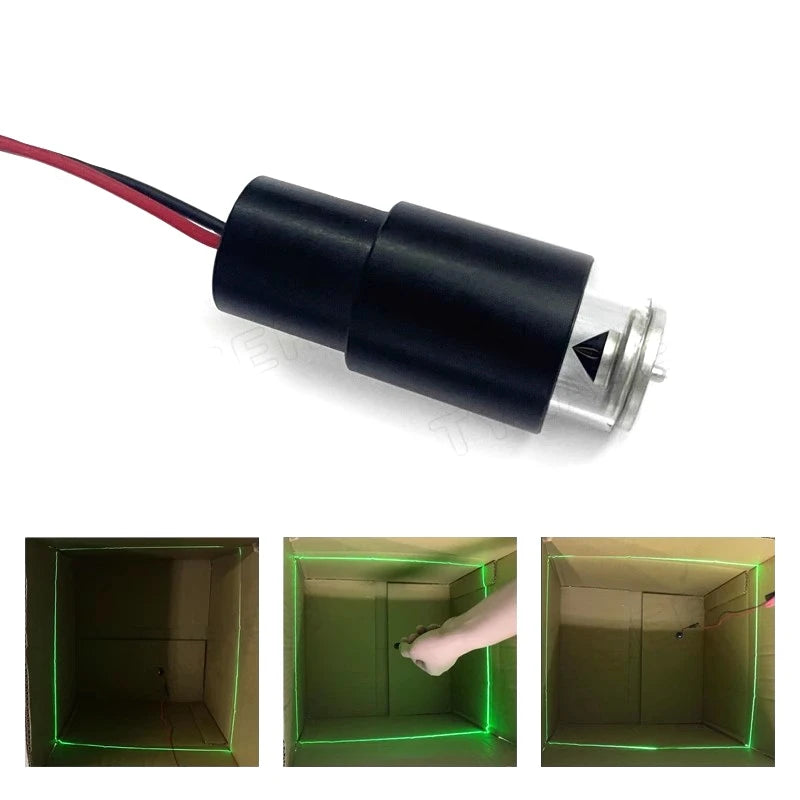

- 360° Conical Lens: Projects a uniform full-circle green beam for dramatic stage coverage
- 520nm Output Wavelength: Pure, vibrant green light ideal for professional lighting effects
- Adjustable Output Power: 10mW–135mW range to suit low-key ambiance or high-impact shows
- ACC Circuit (Automatic Constant Current Control): Maintains stable output and protects the diode for long service life
- Compact Mini Design: Small 12 × 29.5mm PCB footprint integrates easily into custom builds and rigs
- Durable Anodized Aluminum Housing: Matte black anodized aluminum body for heat dissipation and a sleek professional look
- Flexible Voltage Options: Works at 3V or 5V DC — ideal for USB-powered and microcontroller projects
- Extended Service Life: Rated for over 8,000 hours of continuous output
Technical Specifications
| Brand | Elubor |
| Model | 650ML-360 |
| Output Wavelength | 520nm (Green) |
| Output Power | 10mW – 135mW |
| Beam Angle | 360° Conical |
| Working Voltage | 3V / 5V DC (optional) |
| Nominal Voltage | 5V |
| Working Current | <200mA |
| Power | 100mW |
| Circuit Control | ACC (Automatic Constant Current) |

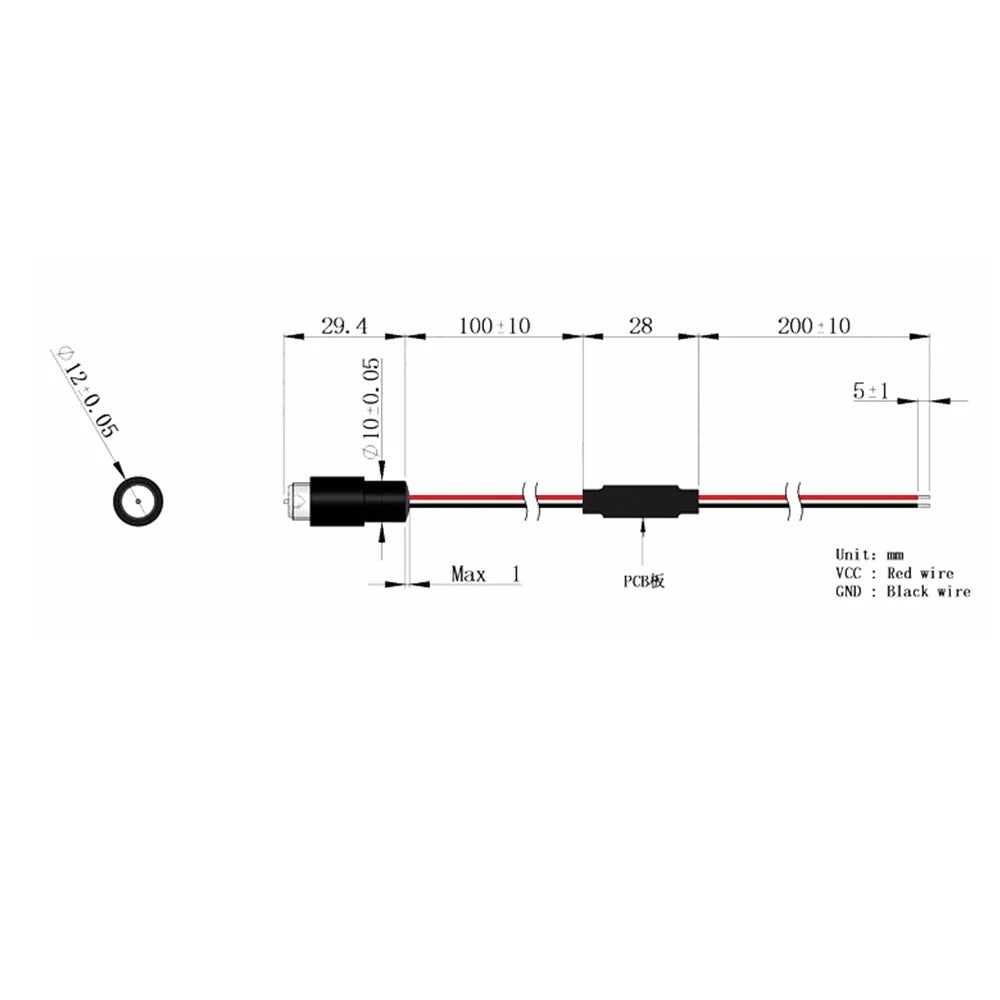

| Dimensions | 12 × 29.5mm (external PCB board) |
| Material | Aluminum (anodized matte black) |
| Working Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Service Life | >8,000 hours continuous output |
| Power Source | DC |
| Installation | Self-contained |
| Occasion | Professional Stage & DJ |
| Country of Origin | Mainland China |
Ideal Applications
- Professional stage and theater lighting rigs
- DJ booths and nightclub lighting effects
- Escape room and immersive experience installations
- Laser show prototyping and custom light builds
- DIY electronics and microcontroller (Arduino/Raspberry Pi) projects
- Photography and video light effect backgrounds
For important laser safety guidelines and best practices when using laser modules, refer to the U.S. Consumer Product Safety Commission (CPSC) Laser Safety Resource.
Frequently Asked Questions
Q: What wavelength does this green LED laser module emit, and what does 520nm mean?
A: This module emits green light at precisely 520nm, which falls squarely in the pure green portion of the visible spectrum. 520nm produces a vivid, eye-catching green color that is commonly used in professional stage lighting and laser effects for maximum visual impact.
Q: Can I use this 360° green laser module with a USB power supply or an Arduino?
A: Yes! The Elubor 650ML-360 supports both 3V and 5V DC operation, making it fully compatible with USB power supplies (5V), Arduino boards, Raspberry Pi, and other standard microcontroller platforms. Just ensure your power source can supply the required current (under 200mA).
Q: What does the ACC (Automatic Constant Current) circuit do?
A: The built-in ACC (Automatic Constant Current Control) circuit continuously regulates the electrical current delivered to the laser diode, regardless of minor voltage fluctuations. This protects the diode from power surges, ensures a stable and consistent beam output, and significantly extends the module's operational lifespan beyond 8,000 hours.
Q: Is this module safe to use for indoor stage events?
A: This is a professional-grade laser module intended for use by qualified technicians in stage and DJ environments. Always follow laser safety protocols, ensure the beam is directed appropriately, and never aim it at eyes or unprotected skin. Refer to local laser safety regulations and the CPSC guidelines for proper use.
