Elubor 520nm 15mW Green Laser Module – Dot Line Cross Adjustable
Elubor 520nm 15mW Green Laser Module – Dot Line Cross Adjustable

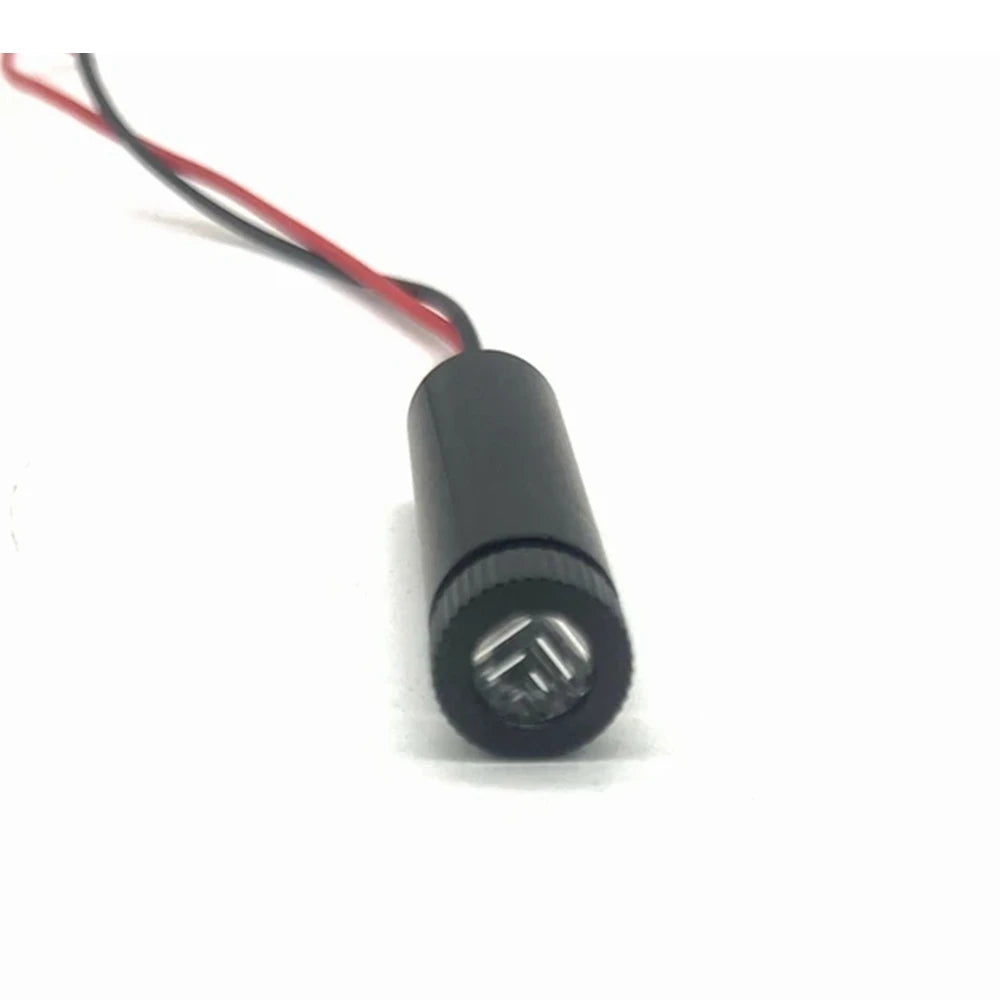

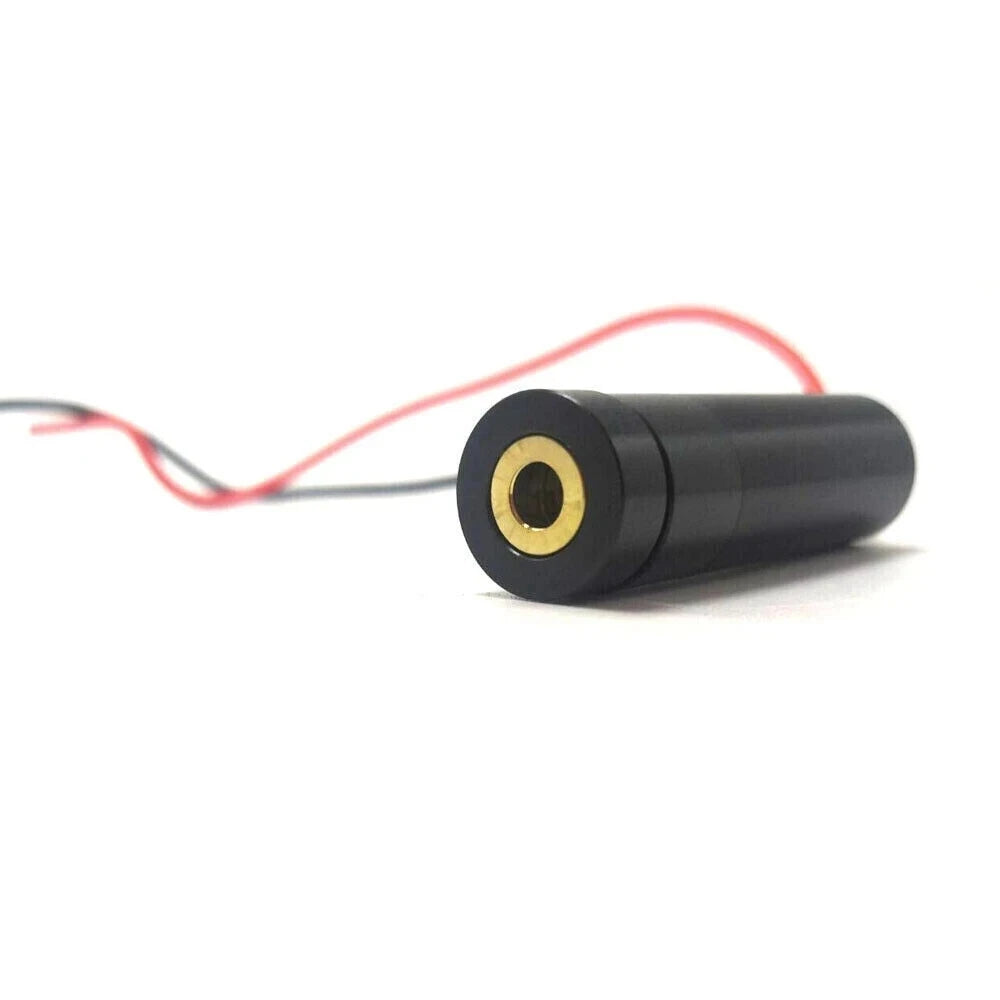

Elubor Industrial-Grade 520nm 15mW Green Laser Module
Engineered for precision and reliability, this Elubor 520nm Green Laser Module delivers a pure, stable green beam with exceptional monochromaticity, coherence, and directionality. Using an imported laser diode (LD) that directly generates green light at 520nm, this compact module is designed for demanding industrial, scientific, and professional applications — including alignment, positioning, leveling instruments, measuring equipment, stage lighting setups, and more.
With its adjustable focus, you can switch effortlessly between Dot, Line, and Cross beam patterns, making it one of the most versatile laser modules available in this power class. Its self-contained, mini form factor (φ12mm × 40mm) allows easy integration into a wide range of devices and equipment.
Made in Mainland China.
Key Features
- Pure 520nm Green Wavelength – Directly generated green laser light for a vivid, true-color beam with high visibility

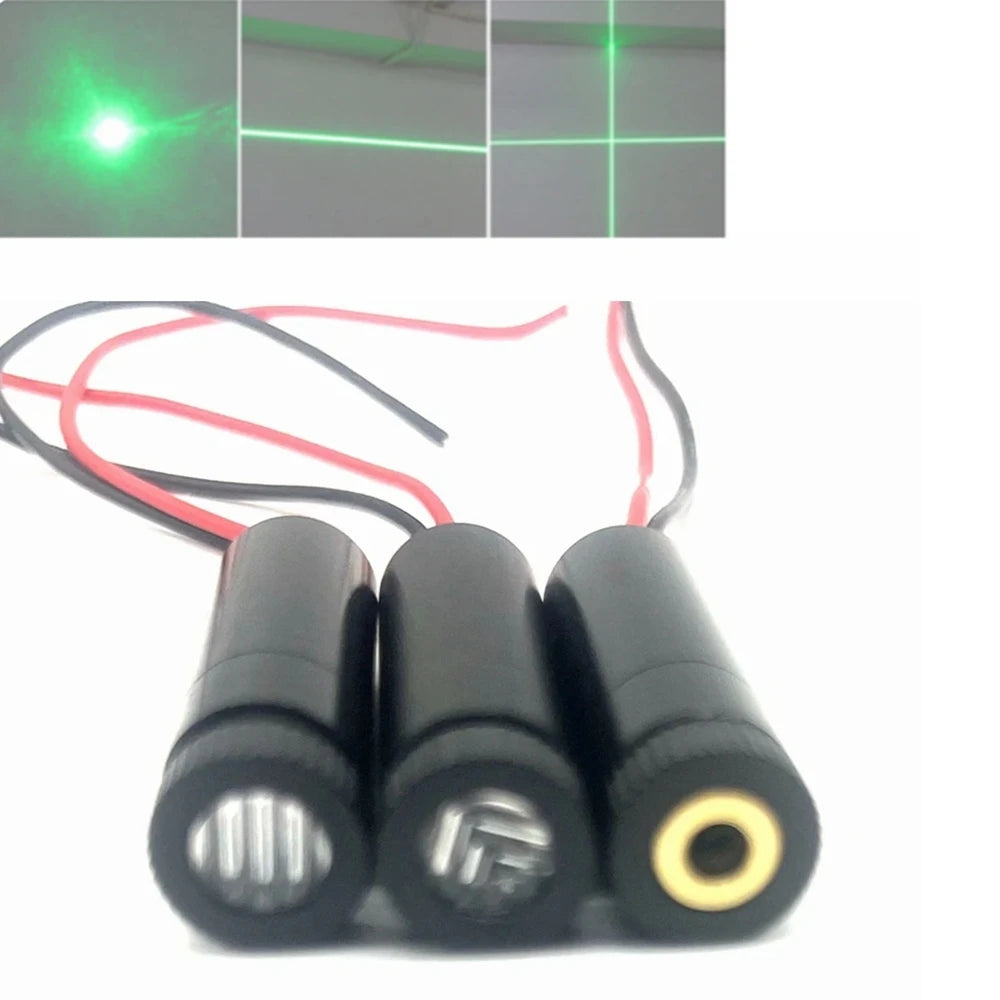

- Three Beam Modes – Switchable Dot, Line, and Cross patterns for maximum application flexibility
- Stable Constant-Current Control – Maintains consistent output power (≤15mW) for dependable performance
- Long Service Life – Rated for more than 10,000 hours of continuous laser operation
- Wide Operating Voltage – Accepts DC 2.8V–5V, adaptable to a variety of power setups
- Compact Mini Design – Small φ12mm × 40mm body integrates easily into tools, instruments, and devices
- Broad Temperature Range – Operates from -10°C to 60°C; stores from -40°C to 85°C
Product Specifications
| Model | QS-1240A |
| Dimensions | φ12mm × 40mm |
| Laser Wavelength | 520nm (515nm–520nm range) |
| Output Power | ≤15mW (constant current control) |
| Working Voltage | DC 2.8V–5V |
| LD Working Current | <200mA |
| Laser Working Mode | Continuous laser |
| Working Life | >10,000 hours |
| Beam Spot at 5m | <15mm |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Power Source | DC (batteries not included) |
| Brand | Elubor |
| Origin | Made in Mainland China |
Typical Applications
- Industrial alignment and leveling instruments
- Distance meters and measuring tools
- Mobile positioning and targeting systems
- Stage and DJ lighting effects
- Security and counterfeit detection equipment
- Laser marking and line-casting instruments
- Power tools, electronic measuring instruments
- Scientific research and optical experiments
⚠ Laser Safety Notice: This module emits a Class 3B laser beam. Never point the beam at eyes or skin. Always follow appropriate laser safety protocols. For more information on laser product safety standards, visit the FDA Laser Products and Instruments safety page.
Frequently Asked Questions
Q: What beam patterns does this 520nm green laser module support?
A: This adjustable laser module supports three beam output modes: Dot, Line, and Cross. The focus can be adjusted to switch between these patterns, making it suitable for a wide range of alignment, positioning, and measurement applications.
Q: What power supply does the Elubor 520nm laser module require?
A: The module operates on DC 2.8V to 5V with a working current of less than 200mA. Batteries are not included; you will need to supply your own DC power source compatible with this voltage range.
Q: How long does this green laser module last?
A: The Elubor QS-1240A is rated for more than 10,000 hours of continuous laser operation, making it a durable and cost-effective choice for long-term industrial or professional use.
Q: What is the difference between 515nm and 520nm laser wavelengths?
A: Both 515nm and 520nm fall within the green visible spectrum. The 520nm wavelength produces a pure, vivid green color that is highly visible to the human eye, which is why it is favored for alignment, stage lighting, and precision measurement applications. This module operates within the 515nm–520nm range for optimal beam clarity and color purity.
