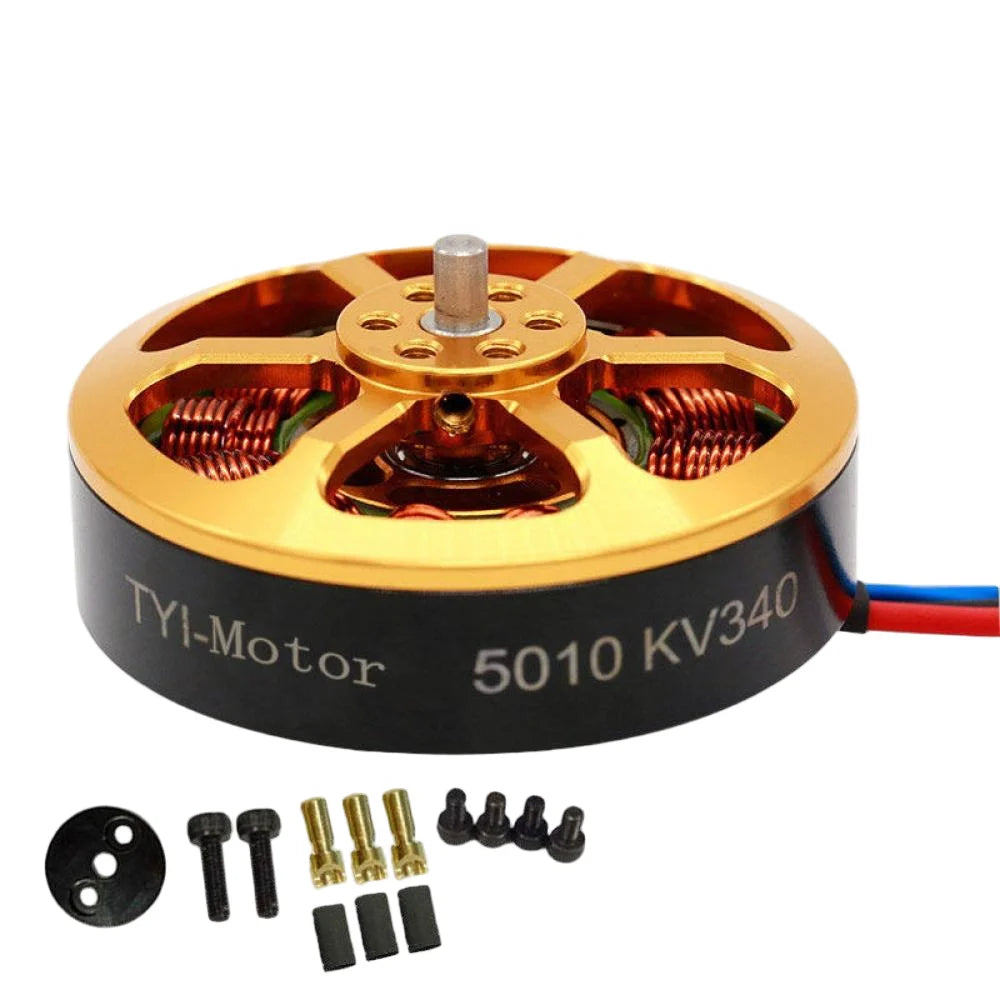

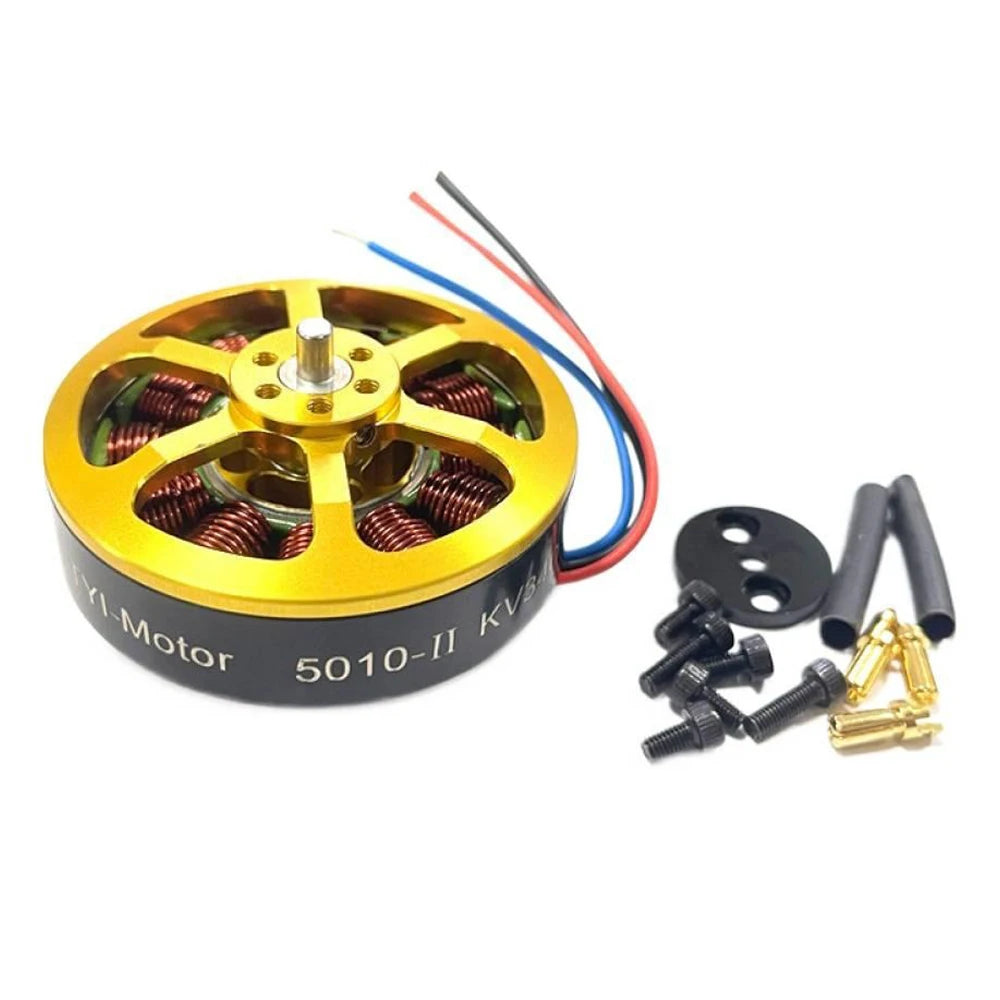

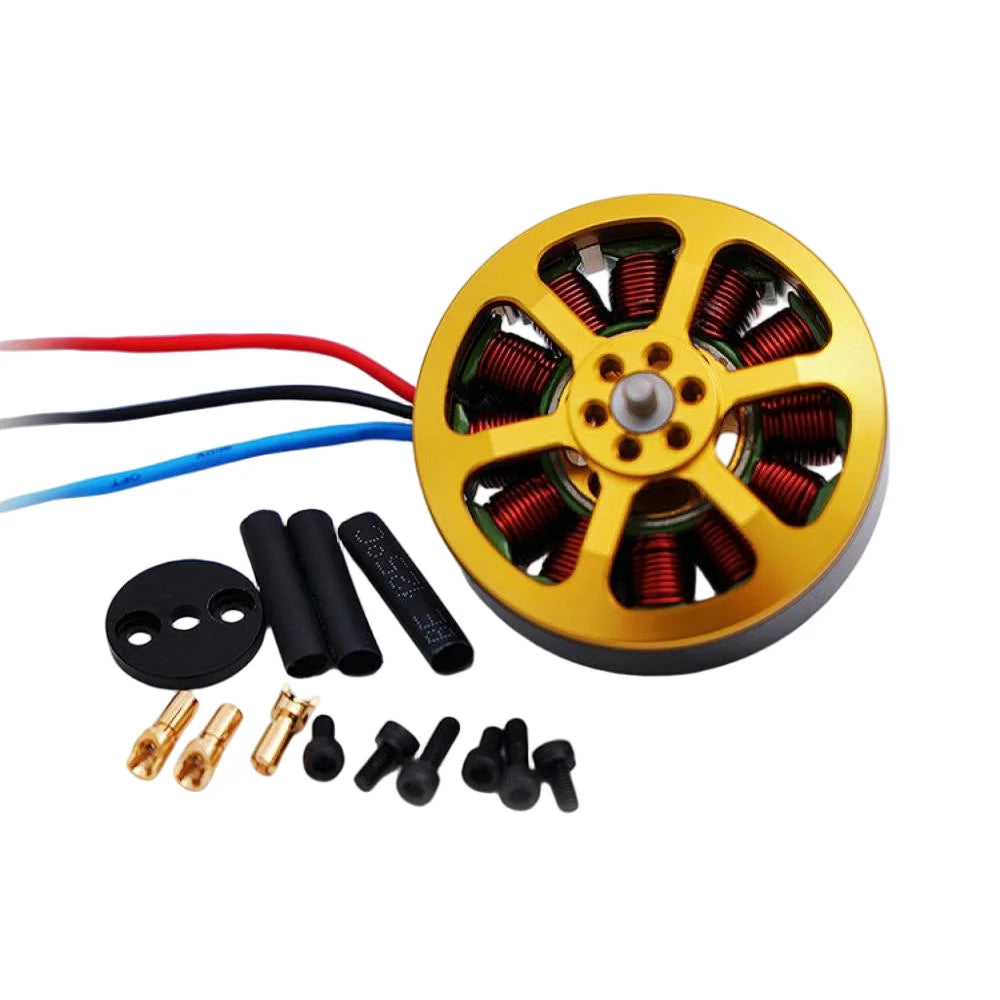

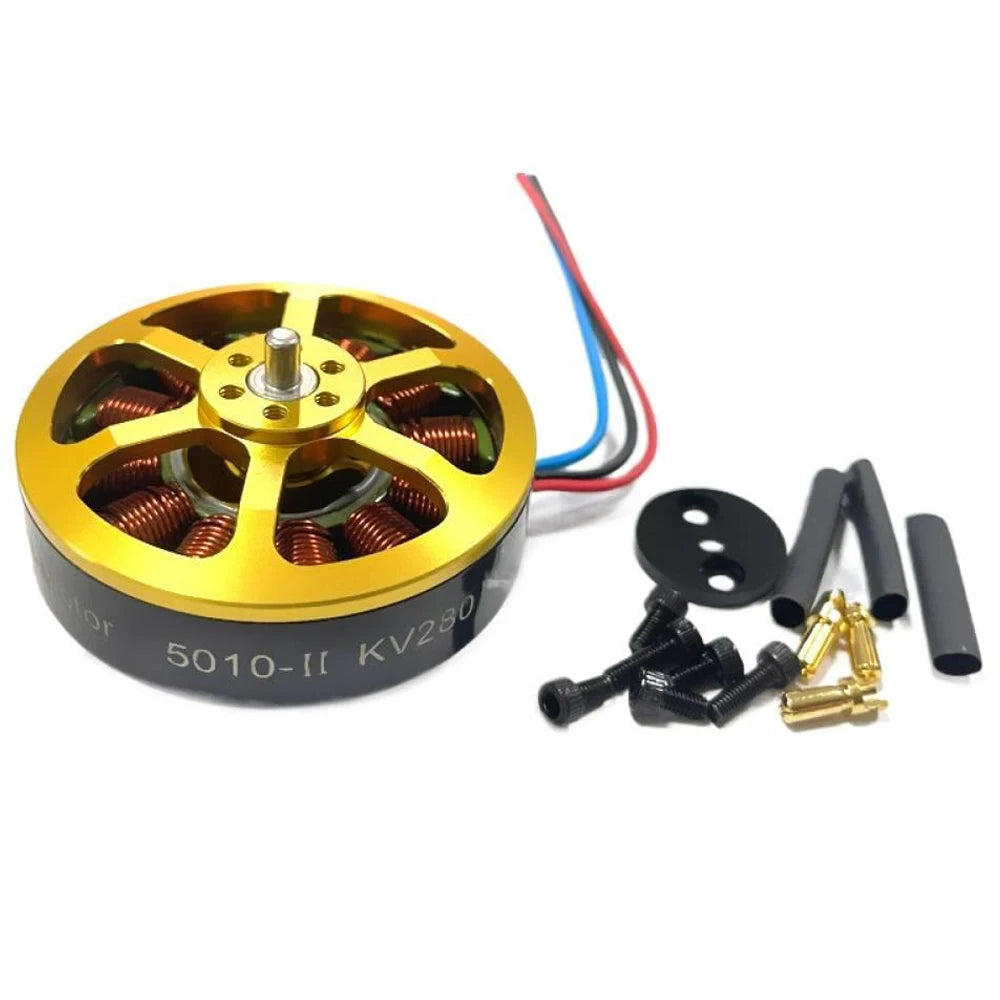

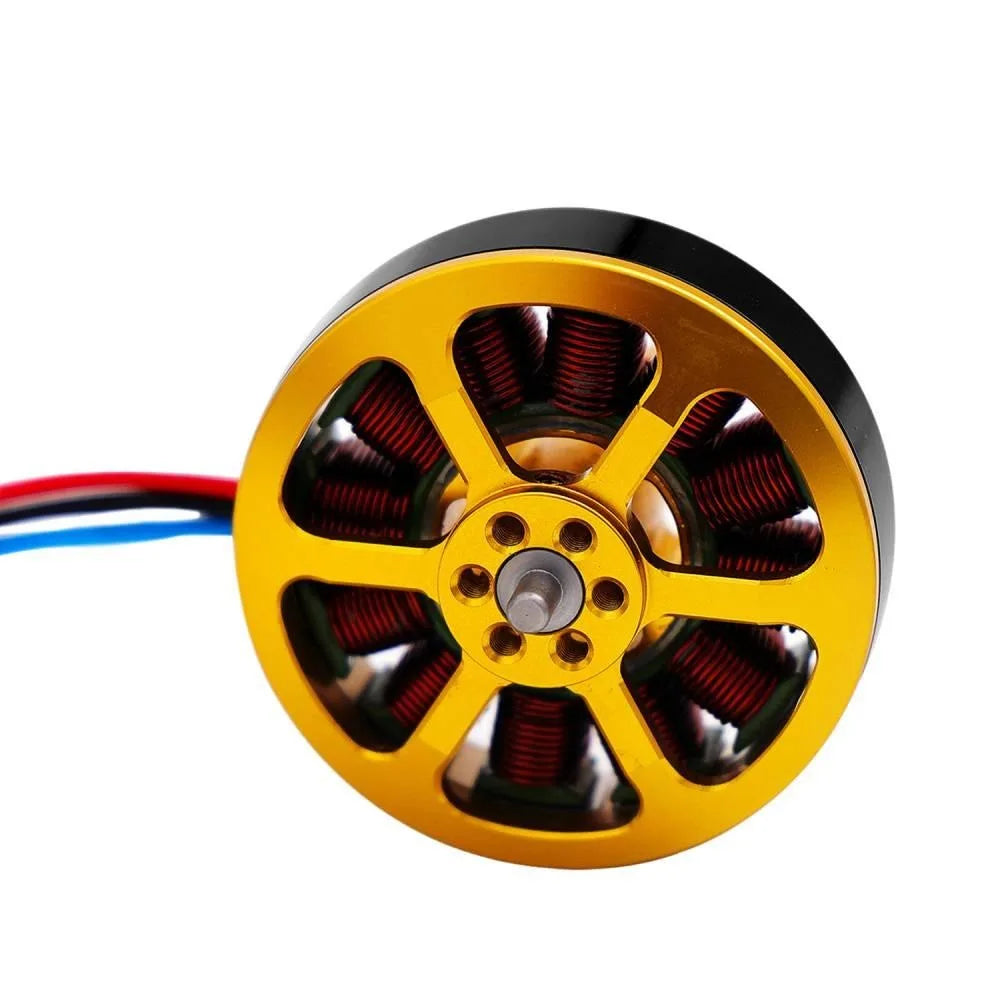

5010 Brushless Motor — 50mm Stator, 12N14P, 280/340KV, 730W, 6S with Optional 40A ESC
Upgrade your agricultural sprayer or aerial photography multi-rotor drone with this high-performance 5010 Brushless Motor. Featuring a robust 50mm stator, 12N14P configuration, and available in 280KV or 340KV variants, this motor delivers up to 730W of continuous power on a 6S lithium battery setup — providing the thrust and efficiency serious drone pilots demand. Available with or without a matched 40A ESC for a complete, ready-to-install drive system.
Made in Mainland China.
Key Features
- High-Output Power: Up to 730W maximum continuous power for heavy-lift and long-endurance applications
- Two KV Options: 280KV for larger props and maximum efficiency; 340KV for higher RPM and increased thrust
- 12N14P Configuration: 12 stator slots and 14 rotor poles for smooth, efficient torque delivery
- 6S Compatible: Designed for 6S (22.2V) lithium battery packs — ideal for agriculture drones and heavy-lift multirotors
- Optional 40A ESC Bundle: Choose the motor-only version or add a matched 40A ESC for a seamless combo
- Folding Prop Ready: Compatible with 1755/1855 carbon fiber or 17–18 inch folding propellers
- Proven Thrust Data: Up to 4,300g of pull force at full throttle with a 1855 prop (KV340)
Specifications
| Stator Outer Diameter | 50mm |
| Stator Thickness | 10mm |
| Stator Slots | 12 |
| Rotor Pole Number | 14 |
| Motor KV Value | 280KV / 340KV |
| Maximum Continuous Current | 33A |
| Maximum Continuous Power | 730W |
| Rotor Diameter | 58.5mm |
| Supported Battery | 6S Lithium |
| Recommended ESC | 40–50A |
| Recommended Propellers | 1755 / 1855 or 17–18 inch folding propellers |
Performance Test Data (22.2V)
5010 KV280 — 1855 Carbon Fiber Propeller (Full Throttle Temp: 40°C)
| Throttle | Current | Power | Thrust | Efficiency |
|---|---|---|---|---|
| 50% | 4.1A | 91.02W | 1050g | 11.54 g/W |
| 60% | 6.5A | 144.3W | 1480g | 10.26 g/W |
| 70% | 9.7A | 215.34W | 1960g | 9.10 g/W |
| 80% | 13.4A | 297.48W | 2420g | 8.14 g/W |
| 90% | 18A | 399.6W | 2900g | 7.26 g/W |
| 100% | 23.3A | 517.26W | 3460g | 6.69 g/W |
5010 KV340 — 1755 Carbon Fiber Propeller (Full Throttle Temp: 41°C)
| Throttle | Current | Power | Thrust | Efficiency |
|---|---|---|---|---|
| 50% | 4.4A | 97.68W | 1269g | 12.99 g/W |
| 60% | 6.6A | 146.52W | 1723g | 11.76 g/W |
| 70% | 10.6A | 235.32W | 2316g | 9.84 g/W |
| 80% | 15.4A | 341.88W | 2650g | 7.75 g/W |
| 90% | 22A | 488.4W | 3215g | 6.58 g/W |
| 100% | 26.5A | 588.3W | 3600g | 6.12 g/W |
5010 KV340 — 1855 Carbon Fiber Propeller (Full Throttle Temp: 42°C)
| Throttle | Current | Power | Thrust | Efficiency |
|---|---|---|---|---|
| 50% | 6.5A | 144.3W | 1728g | 11.98 g/W |
| 60% | 10A | 222W | 2340g | 10.54 g/W |
| 70% | 15.9A | 352.98W | 2675g | 7.58 g/W |
| 80% | 20.6A | 457.32W | 3240g | 7.08 g/W |
| 90% | 27.7A | 614.94W | 3855g | 6.27 g/W |
| 100% | 33A | 732.6W | 4300g | 5.87 g/W |
What's in the Box
- 1x 5010 Brushless Motor
- Optional: 1x 40A ESC (select "With ESC" variant)
Important Notes
- Color may vary slightly from product images due to screen differences.
- Please allow 1mm–1cm dimensional tolerance due to manual measurement.
Learn More About Drone Technology
For guidance on safe and responsible drone operation, visit the FAA's UAS (Drone) resources or consult CPSC.gov for product safety information.
Frequently Asked Questions
Q: What is the difference between the 280KV and 340KV versions of the 5010 brushless motor?
A: The 280KV motor spins at a lower RPM per volt, making it ideal for larger 1855 propellers where efficiency and thrust at moderate speeds are priorities — generating up to 3,460g of thrust. The 340KV motor spins faster, which pairs well with both 1755 and 1855 propellers and can achieve up to 4,300g of thrust at full throttle on 6S. Choose 280KV for maximum flight time and 340KV for maximum lift capacity.
Q: Does this brushless motor come with an ESC included?
A: The 5010 brushless motor is available in two bundle options: motor-only, or a motor + 40A ESC combo. The recommended ESC rating is 40–50A. If your drone build already includes ESCs, the motor-only option is the most economical choice.
Q: What propellers are compatible with the 5010 brushless motor?
A: This motor is compatible with 1755 and 1855 carbon fiber propellers, as well as 17–18 inch folding propellers — making it well-suited for agricultural spray drones and aerial photography multirotors that require large, efficient props.
Q: What battery configuration is required for the 5010 drone motor?
A: The 5010 brushless motor is designed to run on a 6S (22.2V) lithium battery pack. All performance test data in this listing was recorded at 22.2V to give you accurate, real-world reference values for your build.
