5-in-1 Stud & Metal Detector Wall Scanner | LCD Display
5-in-1 Stud & Metal Detector Wall Scanner | LCD Display
5-in-1 Stud, Metal & AC Wire Wall Scanner with HD LCD Display

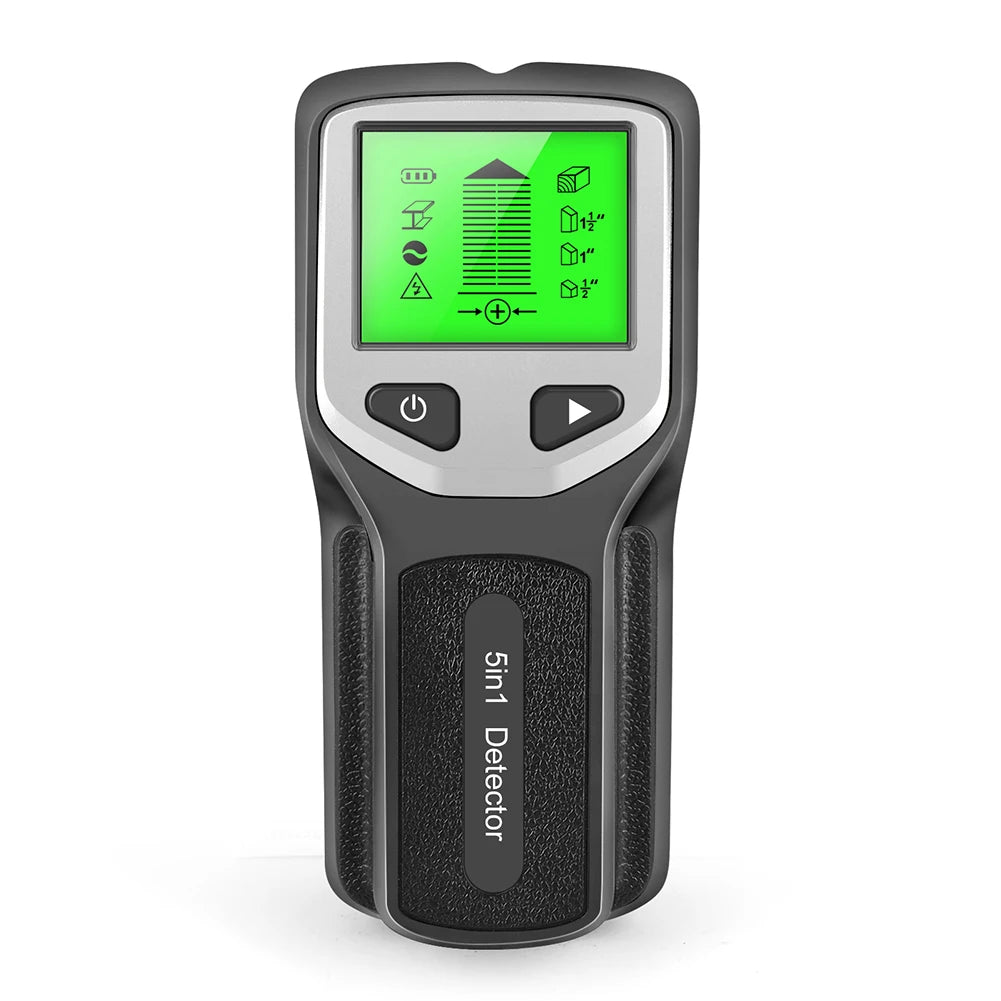

Take the guesswork out of your next home improvement project with the ALLOET HW430 5-in-1 Wall Scanner. This compact, easy-to-use detector quickly locates wood studs, metal objects, and live AC wires hidden behind walls, floors, and ceilings — so you can drill, mount, and install with total confidence.
Whether you're hanging a flat-screen TV, installing garage shelving, or mounting kitchen cabinets, this wall scanner helps you work smarter and safer. Made in Mainland China.
5 Powerful Scanning Modes
- Stud ½ in. Mode: Locates the center and edges of wood and metal studs up to ½ in. (13 mm) deep
- Stud 1 in. Mode: Locates the center and edges of wood and metal studs up to 1 in. (25 mm) deep
- Stud 1½ in. Mode: Locates the center and edges of wood and metal studs up to 1½ in. (38 mm) deep
- Metal Scan Mode: Detects metal objects up to 2.36 in. (60 mm) deep
- AC Scan Mode: Detects live, unshielded AC wires up to 2 in. (51 mm) deep

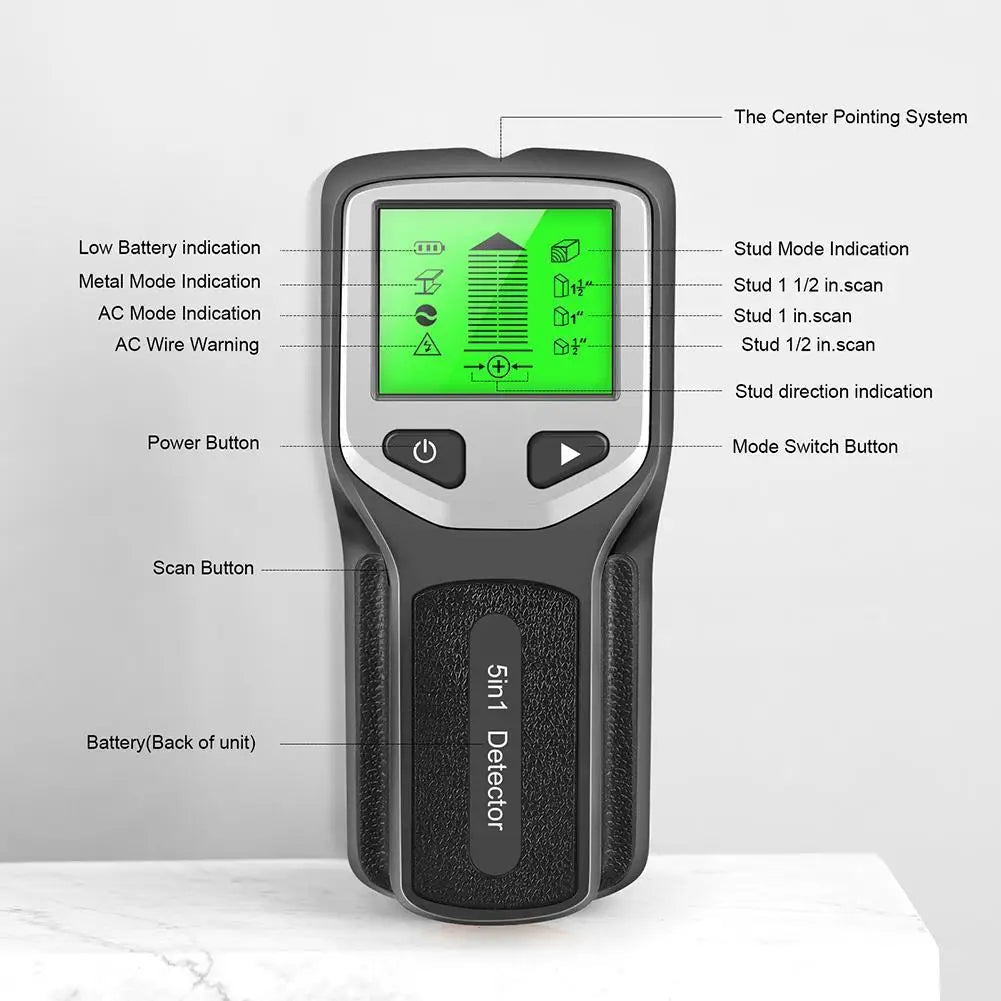

Key Features
- HD LCD Display: Clear, easy-to-read screen shows scan mode and detection results at a glance
- Wide Compatibility: Works on drywall, slats, wallpaper, wood floors, acoustic ceilings, painted walls, and more
- Lightweight & Ergonomic: Weighs only 168 g — comfortable to hold and easy to maneuver
- Compact Design: Measures 152 × 62 × 28 mm — fits easily in a tool belt or toolbox
- CE Certified for safety and reliability
Specifications
| Model | HW430 |
| Scanning Modes | 5 (Stud ½", Stud 1", Stud 1½", Metal, AC Wire) |
| Max Metal Detection Depth | 2.36 in. (60 mm) |
| Max AC Wire Detection Depth | 2 in. (51 mm) |
| Display | HD LCD |
| Battery | 9V (6F22) — NOT included |
| Weight | 168 g |
| Dimensions | 152 × 62 × 28 mm |
| Certification | CE |
| Origin | Made in Mainland China |

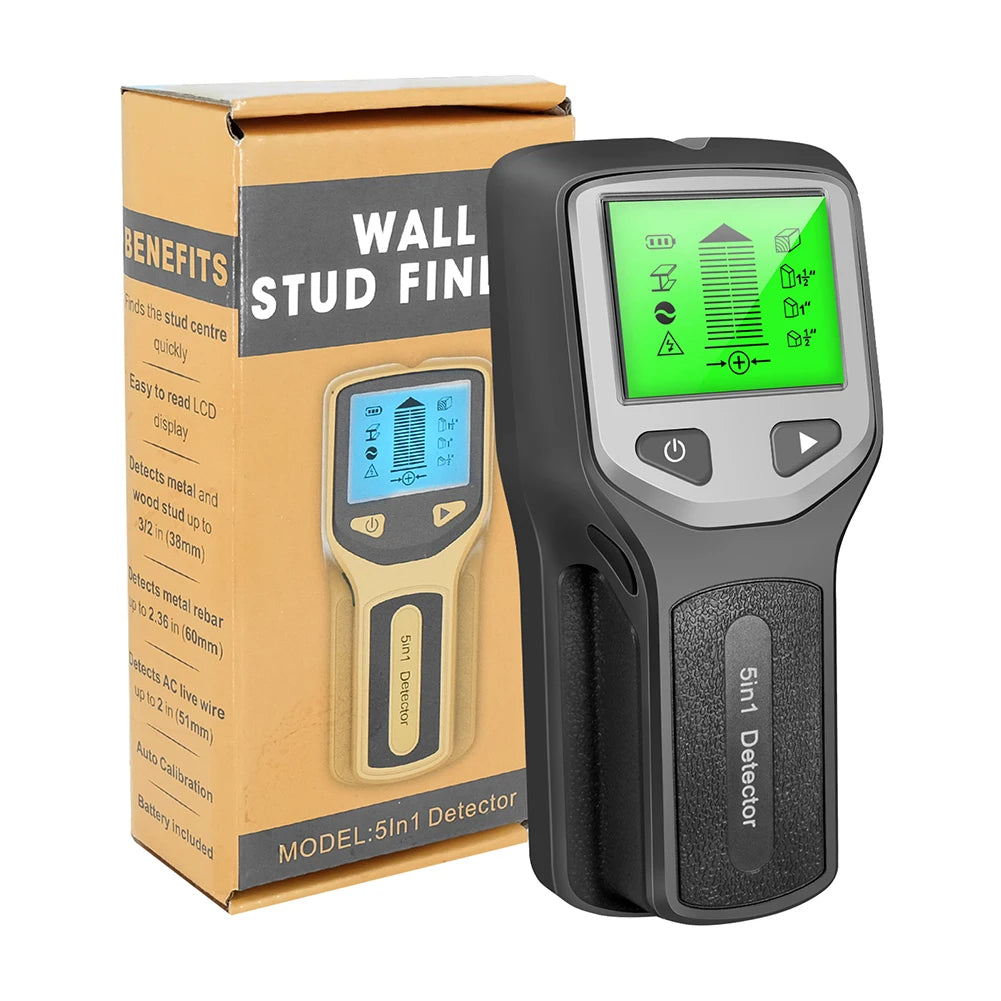

What's in the Box
- 1 × ALLOET HW430 Stud / Metal / AC Wire Wall Scanner
- Note: 9V battery not included
Safety Resource
Working around live electrical wires? The U.S. Consumer Product Safety Commission offers helpful guidance on home electrical safety: CPSC Electrical Safety.
Frequently Asked Questions
Q: What surfaces is the ALLOET HW430 wall scanner compatible with?
A: The HW430 stud and metal detector works on a wide variety of surfaces, including drywall, slats, wallpaper, wood floors, acoustic ceilings, and painted walls — making it a versatile tool for virtually any home or workshop setting.
Q: Does the wall scanner detect live AC wires?
A: Yes! The dedicated AC Scan mode detects live, unshielded AC wires up to 2 inches (51 mm) deep, helping you identify electrical hazards before drilling or cutting into walls.
Q: What battery does the HW430 wall scanner use?
A: It requires a single 9V battery (model 6F22). Please note the battery is not included in the package.
Q: How deep can this scanner detect metal objects?
A: In Metal Scan mode, the HW430 can detect metal objects up to 2.36 inches (60 mm) deep — ideal for locating pipes, rebar, or fasteners hidden behind walls and floors.
