5/16-Inch Sliding Mounting Gauge — Faster, More Accurate Wall Panel Installation
Get perfectly aligned wall panels every time with this 5/16-inch Sliding Mounting Gauge. Designed for contractors, craftsmen, and DIY enthusiasts alike, this 2-piece set eliminates guesswork during siding installation — no labeling, no manual adjustments, no wasted time.
Why You'll Love It
- Saves Time: Speeds up your installation workflow by providing instant, accurate overlap positioning for 5/16-inch thick wall panels.

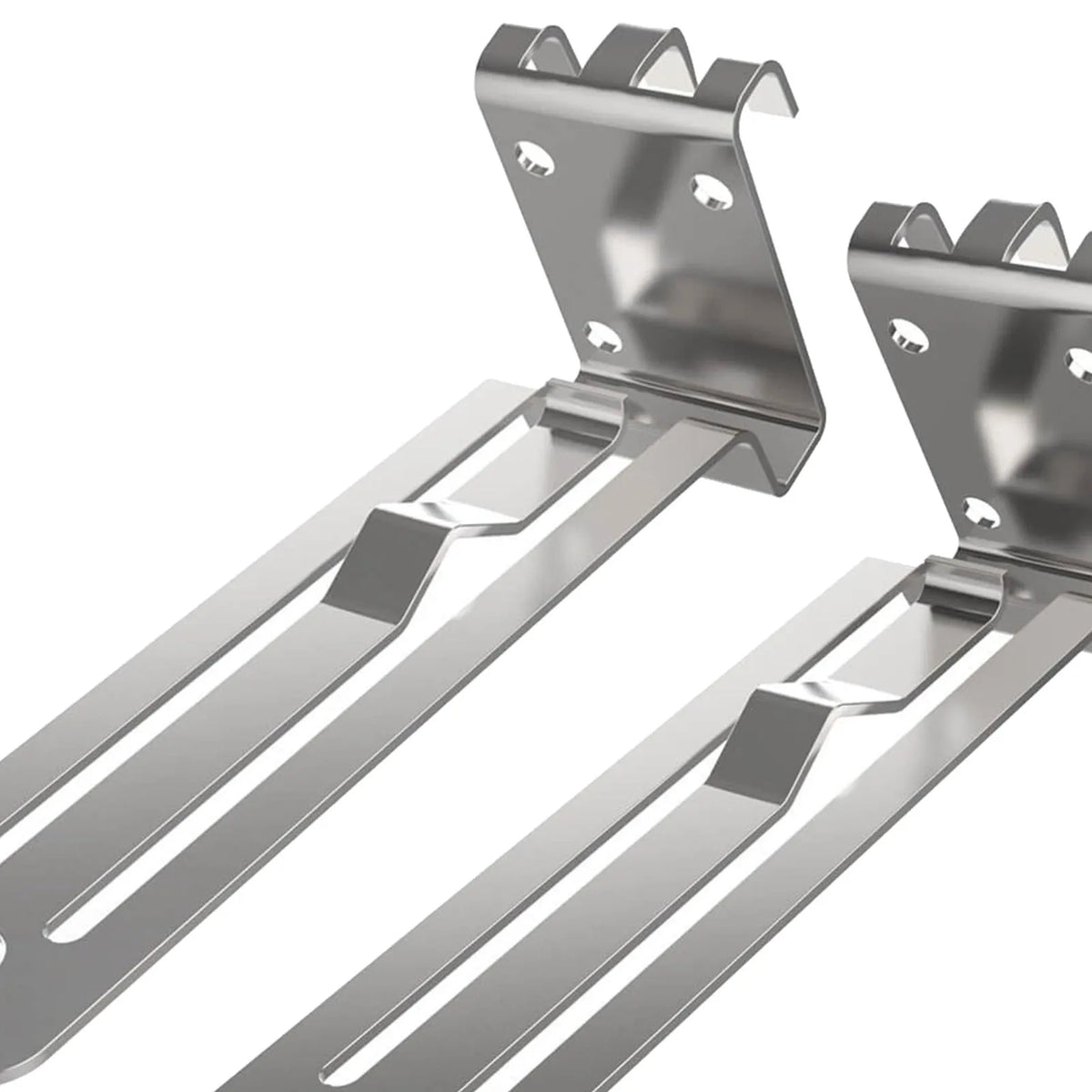

- Durable One-Piece Construction: Crafted from tempered high carbon steel, this gauge is built to last and won't scratch or damage pre-coated panel surfaces.
- Quick Positioning: Simply hook and slide — no extra measurements or markings required. Keep your project moving efficiently from start to finish.
- Easy to Use: Ready straight out of the box. No assembly, no calibration — just consistent, reliable overlap spacing every time.

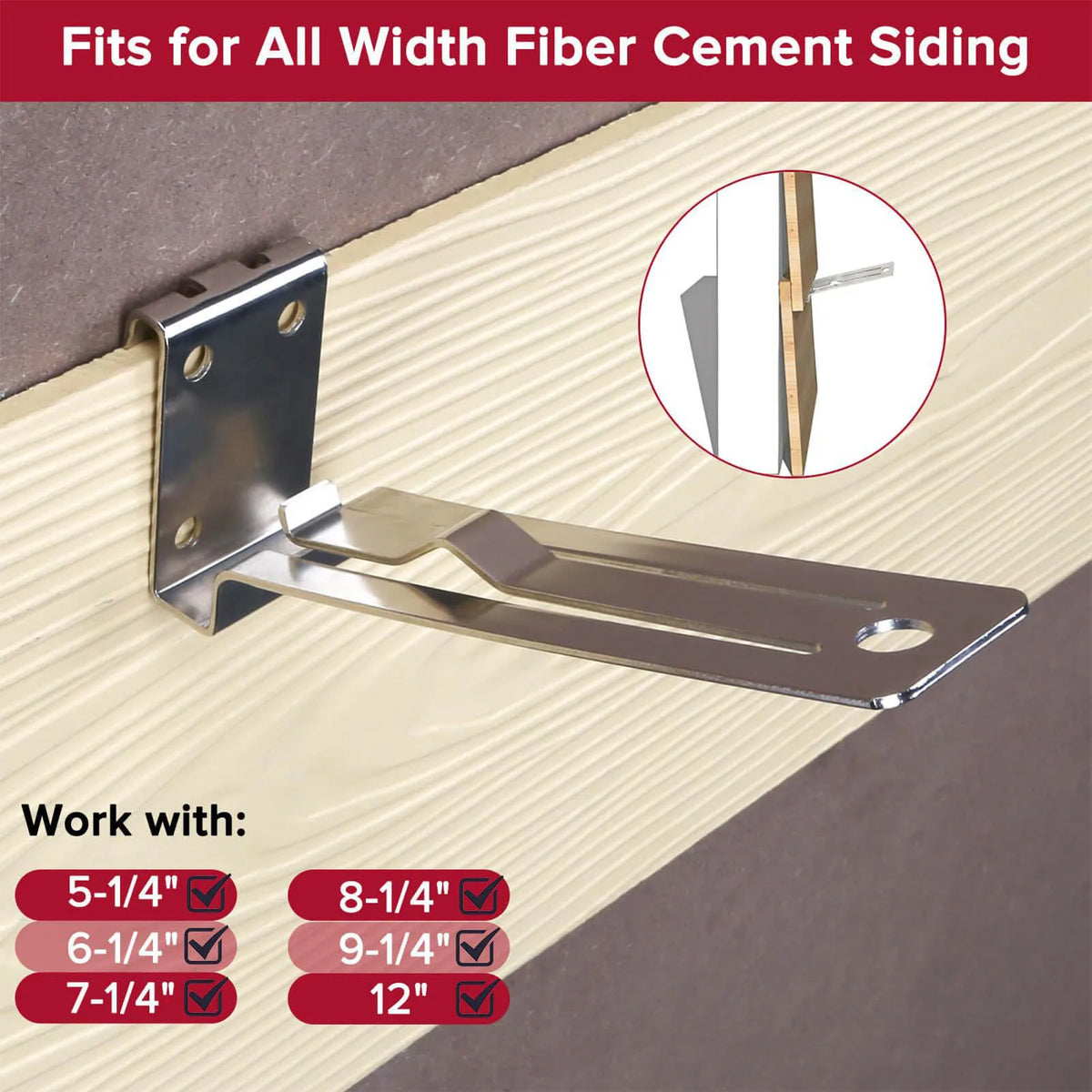

- Wide Compatibility: Works with all standard 5/16-inch thick wall panels including fiber cement, vinyl, and wood siding in widths of 5.25 in, 6.25 in, 7.25 in, 12 in, and more. Note: Not intended for use with rear-mounted wall panels.
Product Specifications
| Item Type | Sliding Mounting Gauge |
| Material | Tempered High Carbon Steel |
| Compatible Panel Thickness | 5/16 inch (≈ 8 mm) |
| Measurement Range | 0 – 100 mm |
| Certification | CE Certified |
| Battery Required | No |
| Country of Origin | Made in China |
What's in the Box

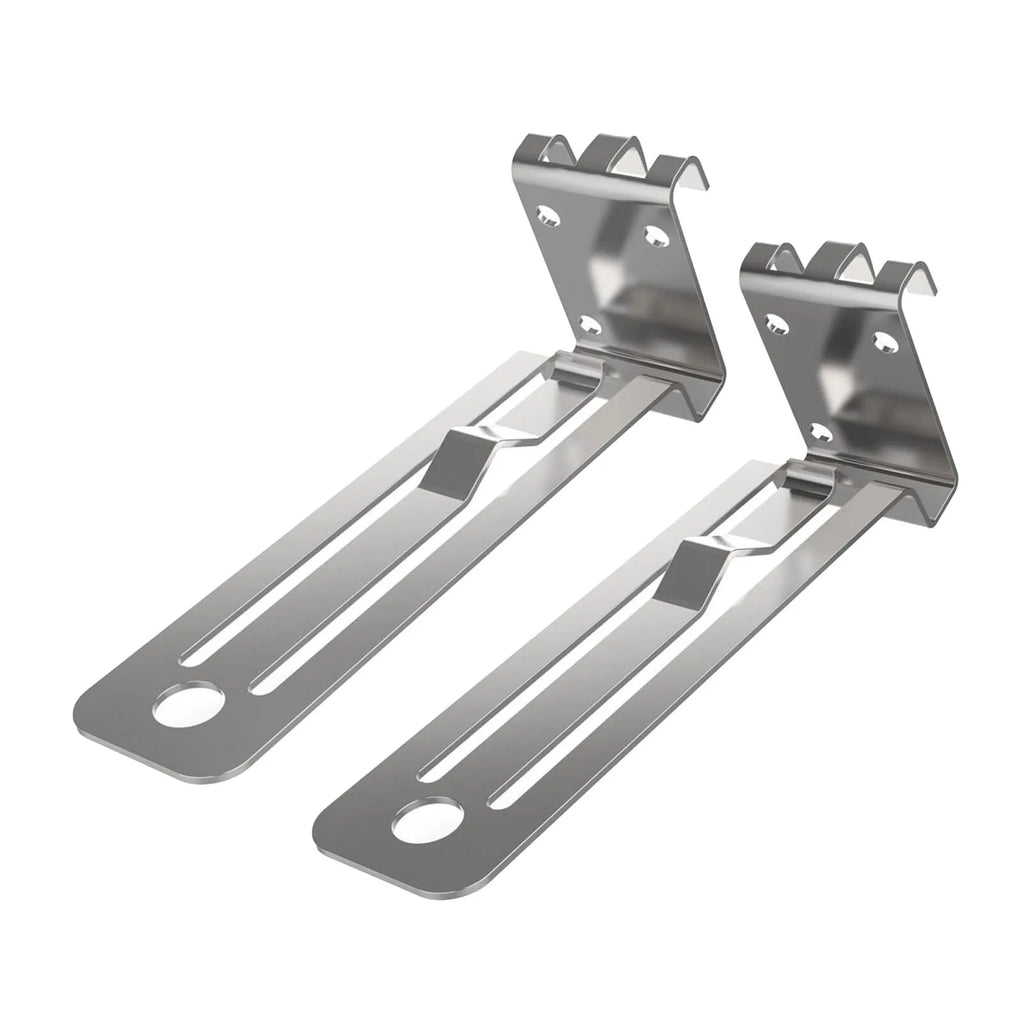

- 2 × 5/16-inch Sliding Mounting Gauge
How to Use
Hook the gauge over the bottom edge of the previously installed panel. Slide the next panel up until it contacts the gauge — your overlap is set. Fasten the panel and repeat. That's it!
Safety & Standards
For guidance on safe use of hand tools and DIY hardware on residential projects, visit the U.S. Consumer Product Safety Commission (CPSC) for general tool safety tips, and the OSHA Hand & Power Tools page for best practices in construction environments.
Learn more: Installation (computer programs)
Frequently Asked Questions
Q: What panel types is the 5/16-inch sliding mounting gauge compatible with?
A: This sliding mounting gauge is compatible with all standard 5/16-inch thick wall panels, including fiber cement siding, vinyl siding, and wood siding panels in widths of 5.25 in, 6.25 in, 7.25 in, 12 in, and more. It is not designed for rear-mounted wall panels.
Q: How many gauges come in the package?
A: Each package includes 2 sliding mounting gauges, so you can work on two panels simultaneously or have a backup on hand during your installation project.
Q: Will this tool scratch my pre-coated wall panels?
A: No. The gauge is made from one-piece tempered high carbon steel with a smooth surface finish, specifically designed to contact pre-coated panels without causing scratches or surface damage.
Q: Do I need any additional tools or adjustments to use this gauge?
A: No. This overlap gauge is ready to use directly out of the box with no assembly, calibration, or labeling required. Simply hook it onto your existing panel and position the next panel against it for a consistent 5/16-inch overlap every time.
