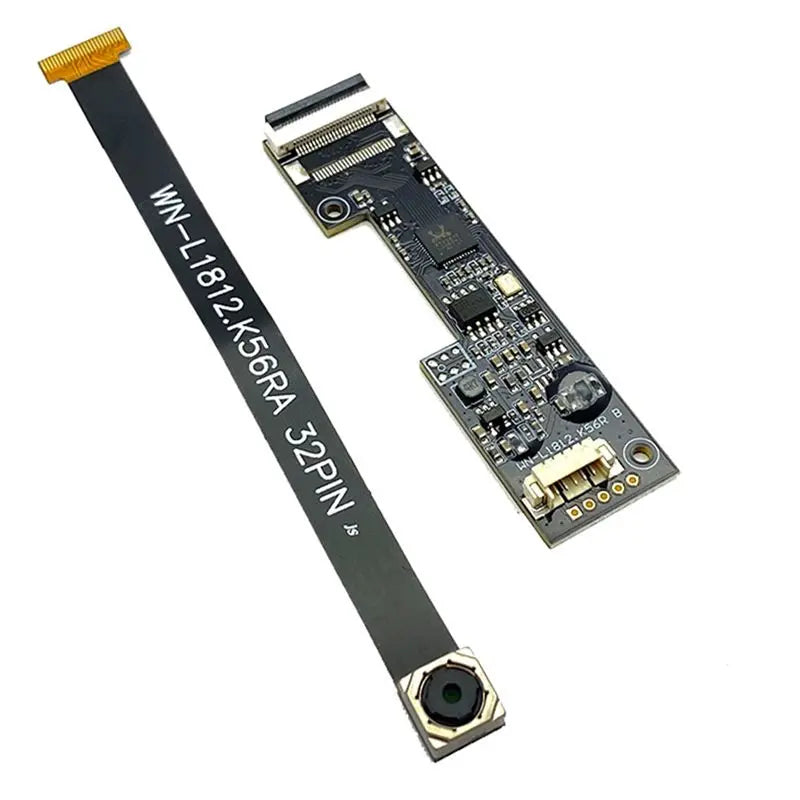

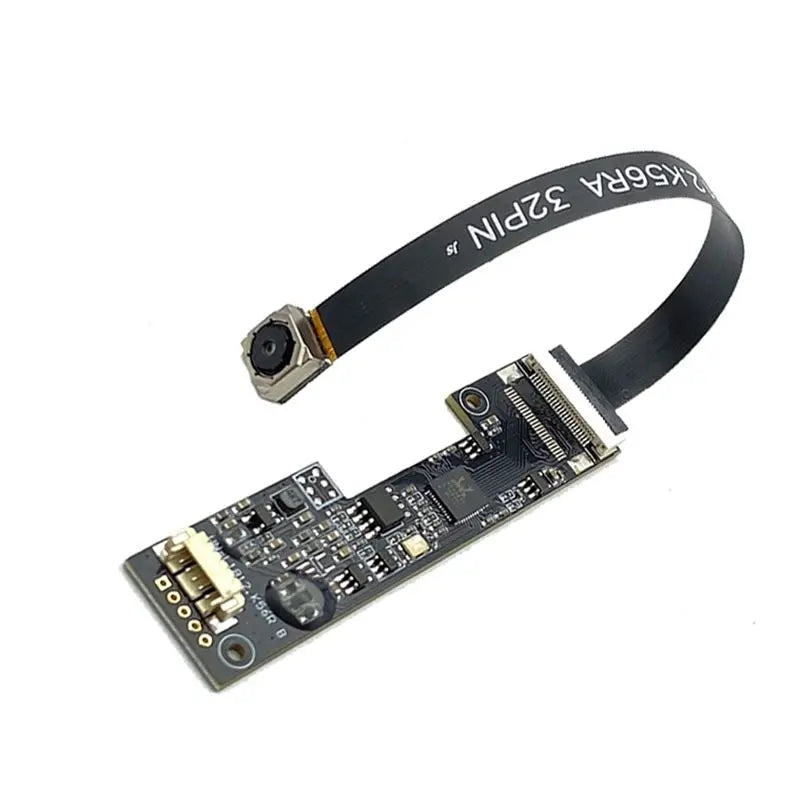

4K 8MP IMX179 USB Camera Module — Auto Focus, 75° Field of View, Plug & Play
Capture crisp, high-resolution imagery with this professional-grade 8MP IMX179 USB Camera Module. Engineered around Sony's trusted IMX179 1/3.2-inch CMOS sensor, this module delivers stunning 4K-class image output at 3264 × 2448 pixels with a smooth 15FPS capture rate — ideal for embedded systems, machine vision setups, video conferencing rigs, IoT devices, robotics, and DIY imaging projects.
Its plug-and-play USB 2.0 interface means zero driver headaches on Windows, Android, Linux, WinCE, and macOS. Simply connect and start capturing in seconds.
Made in Mainland China.
Key Features
- Sony IMX179 CMOS Sensor — 1/3.2-inch sensor with 1.4µm × 1.4µm pixel size for excellent low-light clarity
- 8MP Resolution — 3264 H × 2448 V for detailed, sharp imagery
- Auto Focus (AF) & Fixed Focus (FF) — 75° wide field of view captures more of the scene
- MJPEG & YUV2 Output Formats — Flexible format support for a wide range of host applications
- Up to 72.5dB Dynamic Range — Handles challenging lighting conditions with ease
- Electronic Rolling Shutter — Clean, distortion-minimized captures for moving subjects
- Digital One-Way Audio Input — Built-in audio capture capability
- USB 2.0 High-Speed Interface — Reliable, fast data transfer; powered directly via USB DC 5V
- Broad OS Compatibility — Windows, Android, Linux, WinCE, Mac OS — no extra drivers needed
- Wide Operating Temperature — -20°C to 70°C for demanding environments
Full Technical Specifications
| Module Size | 180 × 70 mm |
| Sensor | 1/3.2-inch CMOS IMX179 |
| Pixel Size | 1.4µm × 1.4µm |
| Resolution | 3264 H × 2448 V (8MP) |
| Output Format | MJPEG, YUV2 |
| Field of View | 75° (Auto Focus / Fixed Focus) |
| Dynamic Range | Up to 72.5dB |
| Shutter Type | Electronic Rolling Shutter |
| Audio | Digital One-Way Audio Input |
| Interface | 5 PIN 1.0mm Socket |
| Connectivity | High-Speed USB 2.0 |
| Adjustable Parameters | Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
| Supported OS | Windows, Android, Linux, WinCE, Mac OS |
| Cable Length | 1.0 metre USB cable |
| Operating Voltage | USB DC 5V |
| Operating Current | 110mA |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -20°C to 85°C |
| Humidity | 80–85% |
| Materials | Metal + Plastic, Black |
| Package Contents | 1 × IMX179 USB Camera Module Set (Cable + Board / FPC Cable) |
What's in the Box
- 1 × IMX179 8MP USB Camera Module Set (includes USB cable and board/FPC cable)
For further reading on USB camera standards and imaging sensor technologies, visit the NIST Imaging Technology resources.
Frequently Asked Questions
Q: Is this IMX179 USB camera module truly plug-and-play on Windows and Mac?
A: Yes. The IMX179 USB camera module uses the standard UVC (USB Video Class) protocol, which is natively supported by Windows, Mac OS, Linux, Android, and WinCE. Simply connect it via USB 2.0 and your operating system will recognize it automatically — no additional drivers or software installation required.
Q: What is the maximum resolution and frame rate this camera module supports?
A: This module captures at a full 8MP resolution (3264 × 2448 pixels) at up to 15 frames per second. It outputs in both MJPEG and YUV2 formats, giving you flexibility depending on your application's processing and bandwidth requirements.
Q: Can I use this camera module for embedded systems, robotics, or machine vision projects?
A: Absolutely. The compact 180 × 70 mm form factor, wide -20°C to 70°C operating temperature range, and USB 2.0 interface make this module well-suited for embedded computing boards (such as Raspberry Pi or Jetson Nano), robotics platforms, machine vision setups, and custom IoT devices. The adjustable parameters (brightness, contrast, white balance, exposure, etc.) provide fine control for demanding imaging environments.
Q: What is the field of view and focus capability of this module?
A: The module features a 75° field of view and supports both Auto Focus (AF) and Fixed Focus (FF) modes, giving you the flexibility to capture wide-angle scenes or lock focus at a specific distance based on your use case.
