433MHz Wireless Wiegand Access Control Reader & Receiver

433MHz Rolling Code Wireless Access Control Wiegand Reader & Receiver System

Upgrade your home or business security with the Asia-Teco WK1 Wireless Access Control System — a reliable, easy-to-install solution featuring 433MHz rolling code technology, dual-frequency card support (13.56MHz & 125KHz), and seamless Wiegand integration. Whether you're securing a front door, gate, or office entry, this wireless reader and receiver combo delivers professional-grade access control without complicated wiring.

How Does the Wireless Reader System Work?

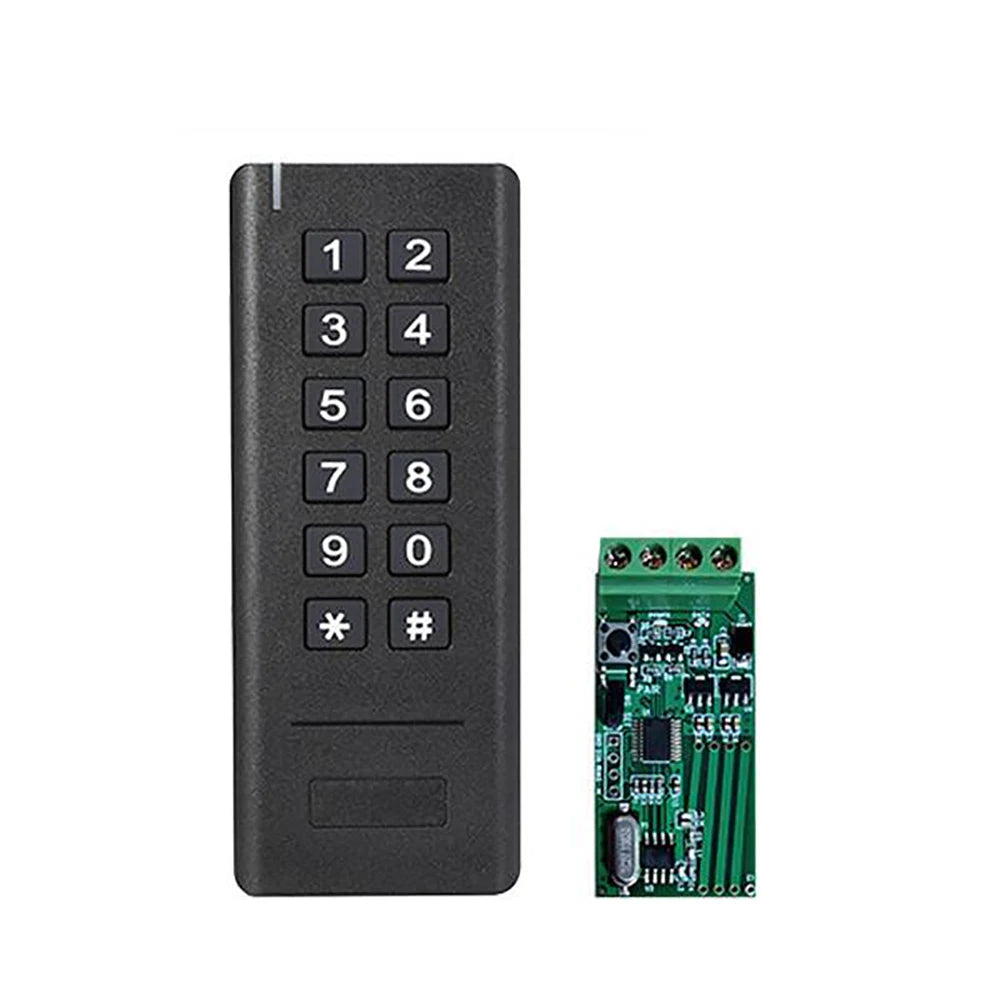

The system consists of two components: an outdoor wireless reader and an indoor receiver. The reader is mounted at the entry point, while the receiver can be placed anywhere indoors within a 30-meter range. The receiver then connects to your existing access control board via standard Wiegand wiring (26-bit or 36-bit programmable output), making it fully compatible with most access control panels on the market.

Key Features

• 433MHz Rolling Code Technology — Prevents code grabbing and replay attacks for enhanced security
• Dual Frequency Card Support — Compatible with 13.56MHz Mifare and 125KHz cards
• Wireless & Battery-Powered — Runs on 3x AAA batteries; lasts approximately 6 months at 30 uses/day
• Up to 30 Meters Communication Range — Flexible placement for receiver inside the building
• Programmable Wiegand Output — Selectable 26-bit or 36-bit output to suit your controller
• IP65 Waterproof Rating — Suitable for outdoor use in rain and dust environments
• Tool-Free Installation — Mounts in under 2 minutes using included 3M adhesive stickers; no drilling required
• Compact Design — Reader: 120 x 50 x 20mm | Receiver: 25 x 50mm; available in black or white

Technical Specifications

Who Is This For?

The Asia-Teco WK1 is ideal for homeowners, small businesses, property managers, and security installers who need a flexible, wire-free reader upgrade for existing Wiegand-based access control systems. Its simple setup and robust outdoor rating make it a top choice for gates, garages, offices, and residential entries.

For more information on physical access control best practices, visit the Cybersecurity & Infrastructure Security Agency. You can also review consumer security device standards at the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Is the 433MHz Wireless Wiegand Reader compatible with my existing access control panel?

A: Yes — the Asia-Teco WK1 supports programmable Wiegand output in both 26-bit and 36-bit formats, which are the two most common standards used by access control boards worldwide. Simply connect the receiver's Wiegand wires to your controller as you would with any standard card reader.

Q: Can the wireless reader be used outdoors in wet conditions?

A: Absolutely. The reader unit carries an IP65 waterproof rating, meaning it is fully protected against dust ingress and water jets from any direction, making it suitable for outdoor installation on gates, exterior walls, and entry points exposed to rain.

Q: How long do the batteries last in the wireless reader?

A: The reader is powered by 3x AAA batteries and is designed for energy-efficient operation. Under typical usage of approximately 30 card/key reads per day, the batteries will last around 6 months before needing replacement.

Q: What is rolling code technology and why does it matter for access control security?

A: Rolling code (also called hopping code) technology generates a new unique code with every authentication event. This means that even if someone intercepts the 433MHz transmission, they cannot reuse the captured code to gain access — significantly improving the security of the system compared to fixed-code readers.
