433MHz Wireless Relay Switch 30A Remote Control – Fan & Lamp

433MHz Smart Wireless Relay Switch with Remote Keyfob

Take full control of your home's lights, ceiling fans, and other appliances without ever touching a wall switch. This 433MHz wireless relay switch module pairs with an included keyfob transmitter to give you effortless ON/OFF control from up to 50–100 meters away. Rated for up to 30A / 3000W at AC 90–265V, it's built for a wide range of household loads and works with wide-voltage systems around the world.

Made in Mainland China.

Key Features

• Wide Voltage Compatibility: Works with AC 90V–265V power systems — no adapters needed in most countries.
• High Load Capacity: 30A relay rated for up to 3000W — suitable for ceiling fans, lamps, and other home appliances.
• 433MHz RF Frequency: Reliable signal transmission with a receive sensitivity of -112 dBm for stable, interference-resistant operation.
• Long Wireless Range: Keyfob transmitter reaches 50–100 meters in open environments.
• Multiple Working Modes: Inching, self-locking, interlocking, and delay modes give you flexible control options for different applications.
• Learning Code (1527): Easy pairing between the relay module and the included remote transmitter.
• Wide Temperature Range: Operates reliably from -40°C to +80°C — suitable for indoor and enclosed outdoor installations.
• Alloy Construction: Durable alloy housing for long-lasting performance.
• Flexible Bundle Options: Choose from 1 to 5 remote controls to suit single-user or multi-user setups.

Specifications

Relay Switch Module

• Working Voltage: AC 90V–265V
• Working Frequency: 433MHz
• Working Modes: Inching, Self-locking, Interlocking, Delay
• Static Current: ≤10mA
• Load Power: 3000W (30A)
• Receive Sensitivity: -112 dBm
• Working Temperature: -40°C to +80°C
• Material: Alloy

2-Button Keyfob Remote Control

• Working Voltage: DC 6V
• Working Frequency: 433MHz
• Coding Method: Learning Code 1527
• Transmission Distance: 50–100 meters
• Modulation Method: ASK
• Receiving Sensitivity: -103 dBm
• Common Resistance: 270K
• Working Temperature: -40°C to +80°C

What's in the Box

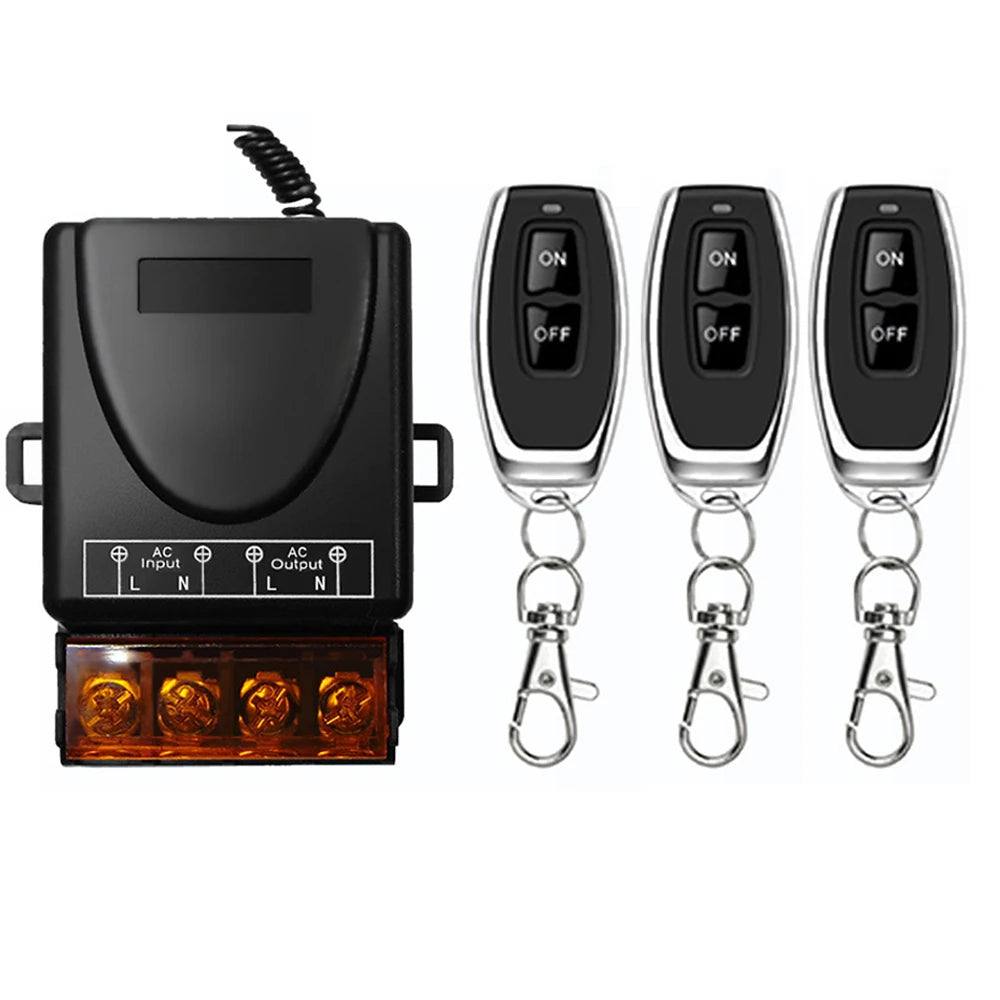

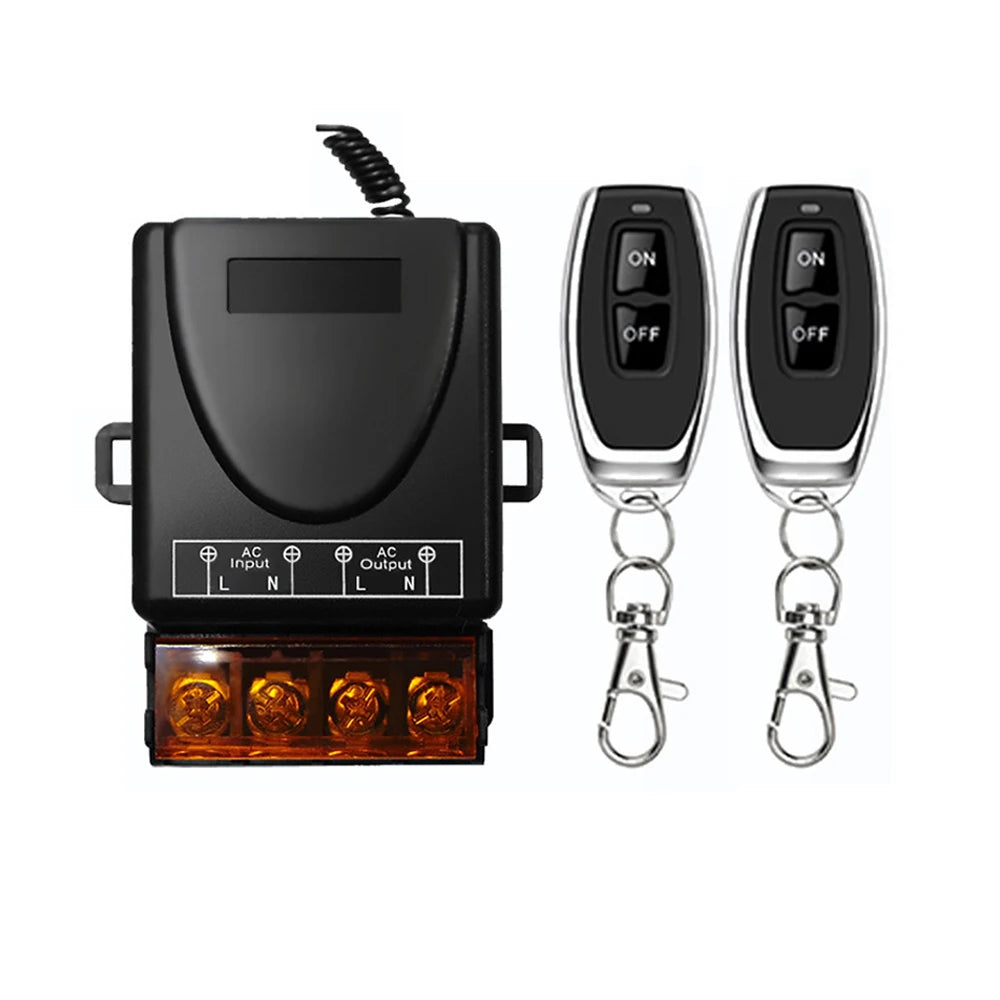

• 1× Smart Wireless Relay Switch Module
• 1×, 2×, 3×, 4×, or 5× Remote Control (depending on selected bundle)

Important Notes

• Colors may vary slightly from product images due to monitor and lighting differences.

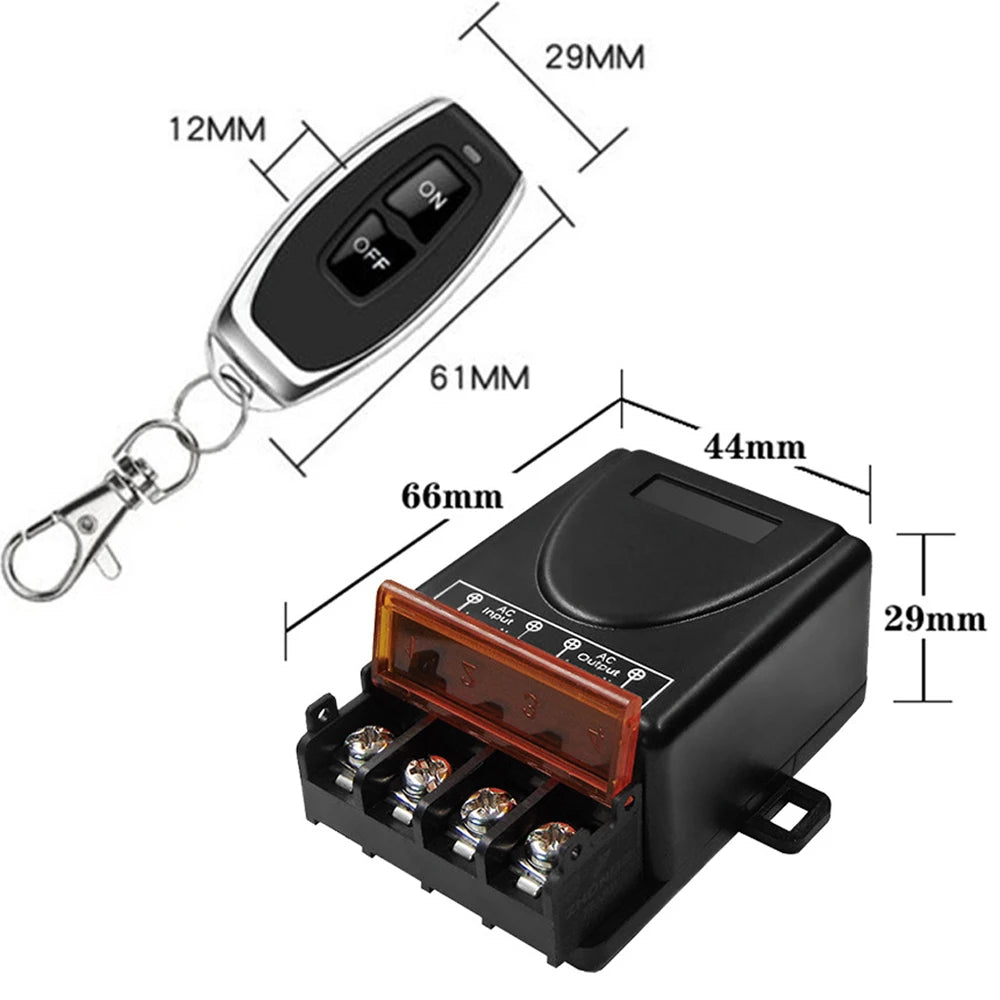

• Please allow ±1–3cm tolerance due to manual measurement.
• Always follow local electrical codes and safety guidelines when installing relay modules. If you are unsure, consult a qualified electrician.

Safety Resources

For electrical safety guidance, refer to the U.S. Consumer Product Safety Commission – Electrical Safety and OSHA Electrical Safety Guidelines.

Frequently Asked Questions

Q: What devices can I control with this 433MHz wireless relay switch module?

A: This relay switch is compatible with a wide range of AC-powered devices, including ceiling fans, lamps, light strips, exhaust fans, and other household appliances that operate within the AC 90–265V range and draw up to 3000W (30A). It is not intended for motors or inductive loads without proper protection circuits.

Q: How do I pair the keyfob remote control with the relay module?

A: The relay module uses a Learning Code 1527 system. To pair, briefly press the learning/pairing button on the relay module until the indicator light activates, then press the button on your keyfob within a few seconds. The indicator light will confirm successful pairing. You can pair up to the number of remotes included in your selected bundle.

Q: What are the different working modes and when should I use them?

A: The module supports four working modes: Inching (output activates briefly then resets — great for momentary triggers), Self-locking (toggle ON/OFF with each press — ideal for lights), Interlocking (one button ON, another button OFF — useful for two-circuit setups), and Delay (output stays ON for a set duration). Select the mode that best suits your application.

Q: Can I use multiple remote controls with the same relay switch module?

A: Yes. Depending on the bundle you choose, you can pair up to 5 keyfob remotes to a single relay module. This is ideal for households where multiple family members need independent control of the same device.

Q: Is this relay switch compatible with both US and European voltage systems?

A: Yes. The module supports AC 90V–265V, making it compatible with standard electrical systems in the US (110V/120V), Europe (220V/230V), and most other regions worldwide.
