433MHz Wireless DC Motor Driver 5V-60V Forward Reverse Controller
433MHz Wireless DC Motor Driver 5V-60V Forward Reverse Controller
433MHz Wireless Remote Control DC Brushed Motor Driver
Take full wireless control of your smart curtains, motorized doors, windows, and reciprocating motion systems with this compact and powerful 433MHz DC Brushed Motor Driver. Designed for makers, DIY enthusiasts, and home automation builders, this module delivers high-efficiency motor driving in a simple, easy-to-configure package — no complex wiring or programming required.
Why Choose This Motor Driver?
- Wide Voltage Range: Operates from 5V to 60V DC, compatible with a broad range of brushed motors and power supplies.
- High Output Current: Handles up to 20A output current, making it suitable for demanding motor loads.
- Dual Control Modes: Switch between Self-Locking and Jog (momentary) operation modes for maximum flexibility.
- 4-Button Remote: Intuitive remote with forward, reverse, stop, and automatic return functions — all at your fingertips.
- 433MHz RF Communication: Reliable wireless control with strong signal penetration through walls and obstructions.

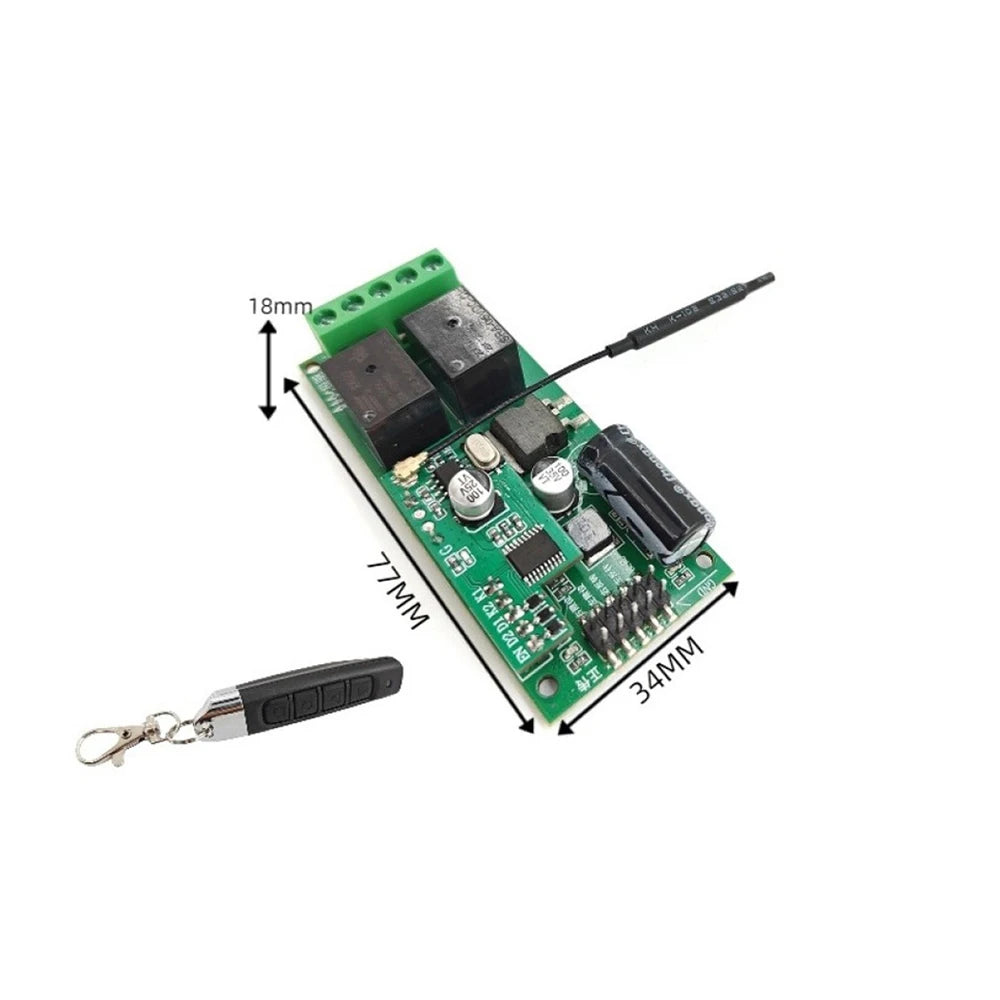

- Compact Design: Small 77mm × 34mm × 18mm footprint fits neatly into enclosures and project boxes.
- Automatic Return Cycle: Built-in auto-return function rotates forward for 3 seconds, then reverses for 3 seconds, repeating continuously — ideal for oscillating or reciprocating mechanisms.
Technical Specifications
- Working Voltage: 5V – 60V DC
- Control Method: 433MHz RF Remote Control
- Output Current: 20A
- Dimensions: 77mm × 34mm × 18mm
- Application Fields: Smart curtains, motorized doors & windows, reciprocating motion control systems
Control Modes Explained
Self-Locking Mode
- Forward: Press Button 1 once — motor runs forward continuously
- Reverse: Press Button 2 once — motor runs in reverse continuously
- Stop: Press Button 3 once — motor stops immediately
- Auto Return: Press Button 4 — motor cycles forward 3s then reverse 3s, repeating

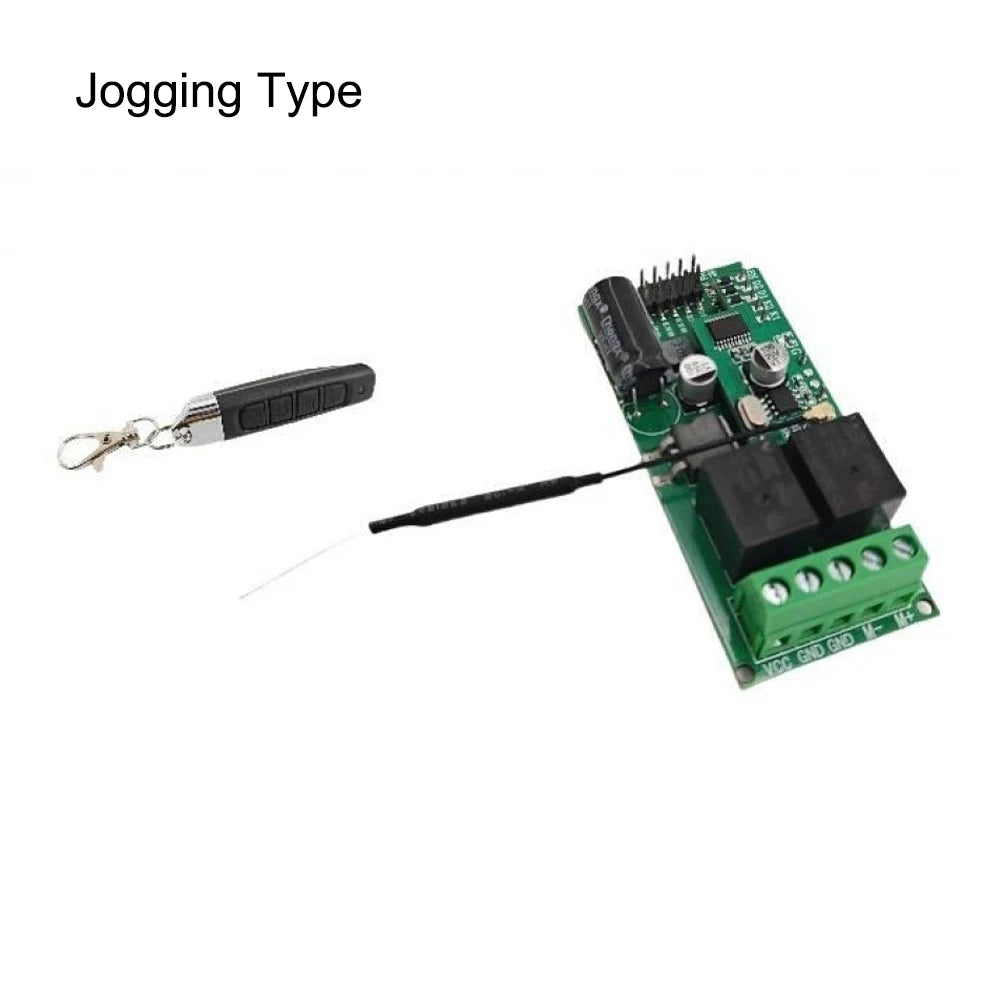

Jog (Momentary) Mode
- Forward: Hold Button 1 — motor runs; release to stop
- Reverse: Hold Button 2 — motor runs in reverse; release to stop
- Stop: Press Button 3 once — motor stops
- Auto Return: Press Button 4 — same auto-cycle as Self-Locking mode
What's in the Box?
- 1× DC Brushed Motor Driver Module
- 1× 433MHz RF Remote Control
Made in Mainland China.
Note: Due to differences in lighting and display settings, the item's color may vary slightly from the images shown. Please allow 1mm–1cm measurement tolerance due to manual measuring.
For more information on safe electrical wiring practices and low-voltage electronics, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of motors is this 433MHz DC motor driver compatible with?
A: This driver is designed for DC brushed motors operating between 5V and 60V with a maximum output current of 20A. It is ideal for smart curtain motors, motorized door and window actuators, and other reciprocating-motion brushed DC motors.
Q: What is the difference between Self-Locking mode and Jog mode on this wireless motor controller?
A: In Self-Locking mode, a single press of the remote button causes the motor to run continuously until you press Stop. In Jog mode, the motor only runs while you hold the button down — releasing the button stops the motor immediately. Jog mode is useful for precise, incremental positioning.
Q: Does the 433MHz remote control require batteries, and are they included?
A: The remote control requires batteries to operate; however, batteries are NOT included in the package. Please check your remote's battery compartment for the required battery type (typically a standard coin cell or AA battery) before first use.
Q: How far is the wireless range of the 433MHz remote controller?
A: The 433MHz frequency provides reliable signal penetration through walls and typical home materials. Effective range depends on environment, but the 433MHz RF band is well-suited for in-home automation applications such as controlling smart curtains and motorized windows from across a room or through a wall.
