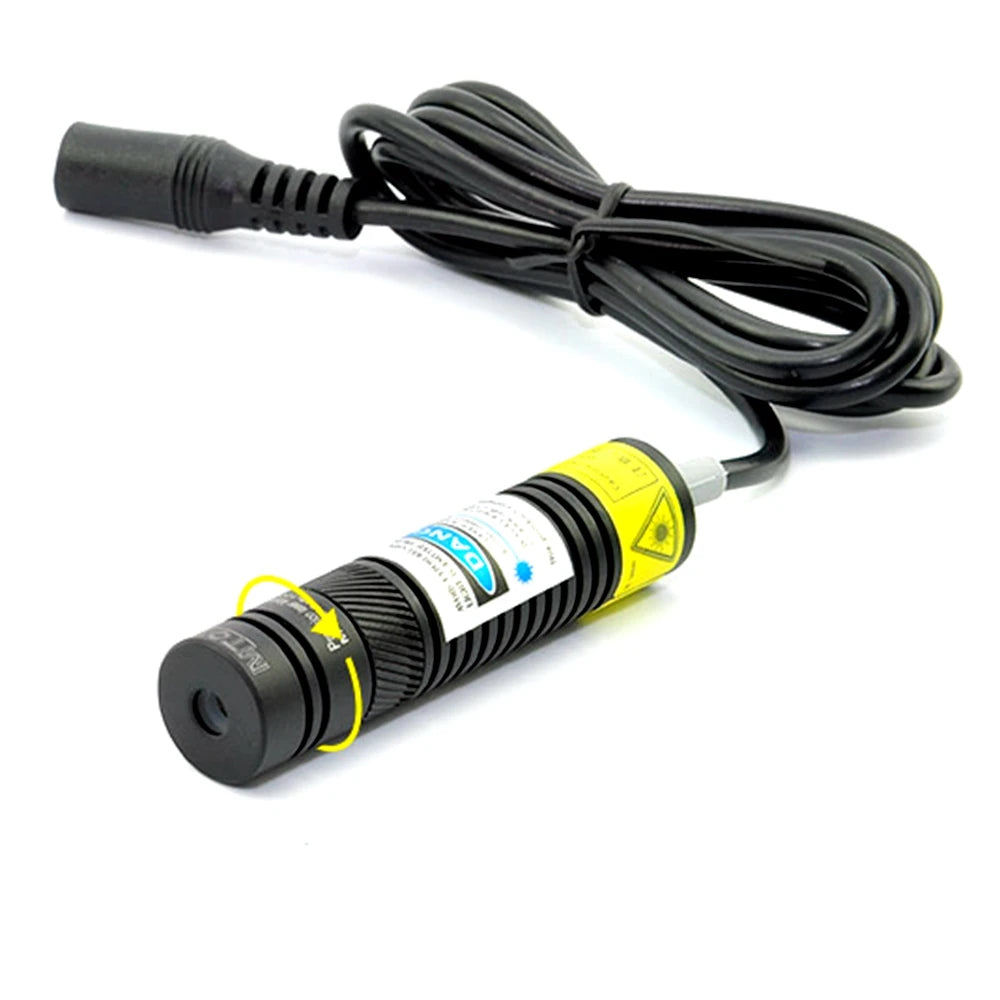

405nm Focusable Violet Blue Laser Diode Module — Dot, Line & Cross Patterns
Precision meets versatility with this compact 405nm violet blue laser diode module. Whether you need a sharp dot, a crisp line, or a precise cross pattern, this focusable laser module delivers consistent, accurate output for alignment marking, industrial positioning, stage setups, and DIY projects. Available in 100mW, 200mW, and 300mW output options to match your specific application requirements.
Built with a rugged aviation-grade aluminum alloy housing and fitted with a high-quality K9 glass lens, this module is engineered for durability and optical clarity. The adjustable focus mechanism lets you fine-tune the beam for your exact working distance, while the constant current driver board ensures stable, reliable performance.
Key Features
- Wavelength: 405nm violet blue visible light output
- Power Options: 100mW / 200mW / 300mW (select your preferred output)
- Beam Patterns: Dot, Line, or Cross — optional at time of purchase
- Supply Voltage: DC 5V (5V adapter included)
- Working Current: 110mA – 210mA
- Focusable: Yes — adjustable focus with optical lens
- Lens: K9 glass + wavy glass optics for beam precision
- Housing: Aviation aluminum alloy — compact & heat-resistant
- Operating Temperature: ±50°C
- Working Life: Up to 1,000 hours
- Module Size: ∅16mm × 68mm
- Cable Length: 1.2m DC power cable

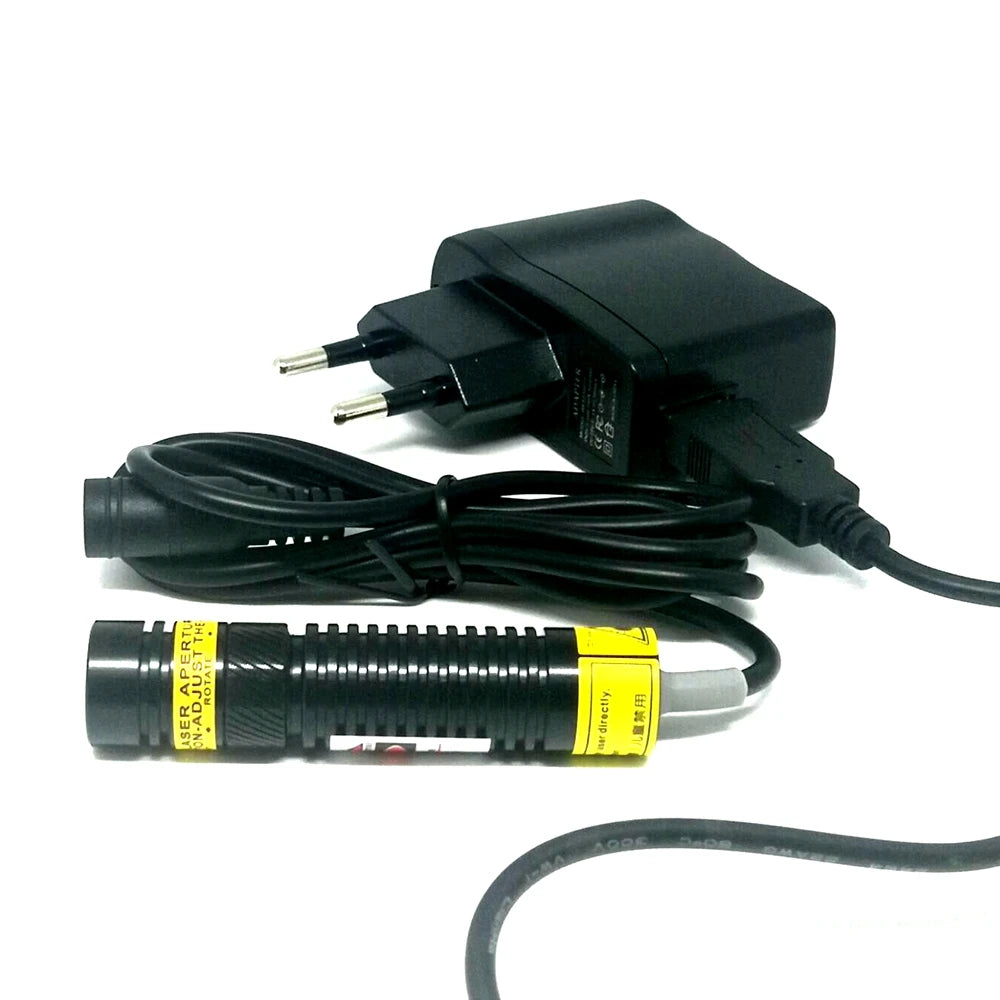

What's in the Box
- 1× 405nm Laser Diode Module (100mW / 200mW / 300mW)
- 1× 5V Power Adapter

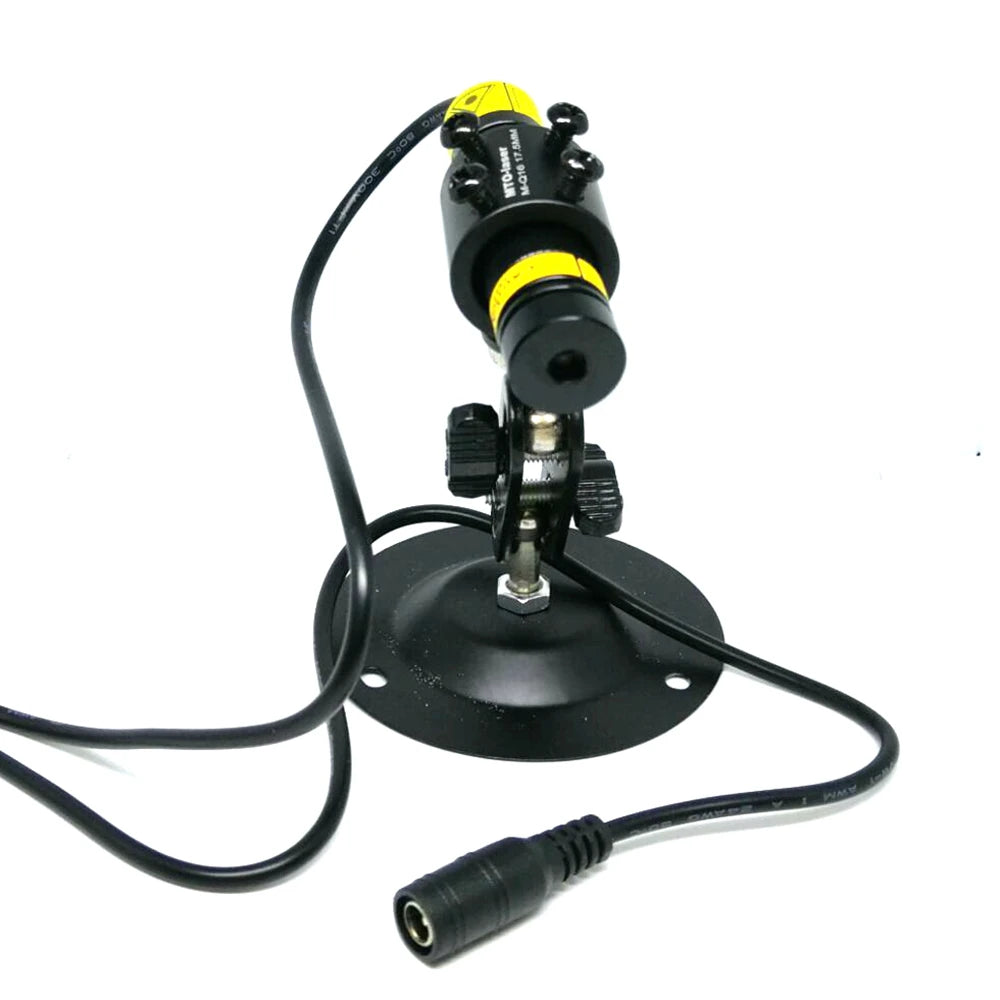

- 1× Mounting Holder
Common Applications
- Alignment marking & positioning in industrial or workshop settings
- Stage lighting and DJ effect setups
- Laser engraving machine positioning
- DIY electronics and maker projects
- Scientific and educational demonstrations
⚠️ Laser Safety Notice: This module emits a 405nm violet blue laser beam. Never point the laser at eyes or skin. Always use appropriate laser safety eyewear when operating. Keep out of reach of children. For more information on laser safety, refer to the FDA's laser product safety guidance.
Made in Mainland China.
Frequently Asked Questions
Q: What beam patterns does the 405nm laser diode module support?
A: This focusable laser module supports three beam patterns — Dot, Line, and Cross. You choose your preferred pattern at the time of purchase. Each pattern uses precision K9 glass and wavy glass optics for a sharp, well-defined output.
Q: What power output options are available for this violet blue laser module?
A: The module is available in 100mW, 200mW, and 300mW output levels. Select the power level that best suits your application — lower power for fine alignment tasks and higher power for more demanding positioning or stage lighting uses.
Q: What voltage does this laser diode module require, and is a power adapter included?
A: The module operates at DC 5V and draws between 110mA and 210mA depending on the selected power level. A 5V power adapter and mounting holder are included in the package, so you can get started right out of the box.
Q: Is the focus of this laser module adjustable?
A: Yes. The module features an adjustable focus mechanism, allowing you to fine-tune the beam sharpness and spread for your specific working distance. This makes it suitable for a wide range of alignment and marking applications.
