4006 Brushless Motor 360KV 450W Disk Type RC Drone Motor
4006 Brushless Motor 360KV 450W Disk Type RC Drone Motor
4006 Brushless Motor 360KV Disk Type – 450W High-Power RC Motor
Upgrade your RC drone or fixed-wing aircraft with this high-performance 4006 Brushless Motor. Featuring a compact disk-type design, 360KV rating, and a maximum continuous power of 450W, this motor delivers smooth, efficient thrust for a wide range of RC builds. Compatible with 4–6S LiPo battery configurations and designed to pair seamlessly with 20–30A ESCs, it's an ideal replacement or upgrade part for multi-rotor drones and RC airplanes.
Made in China.
Key Features
- 360KV Rating – Optimized for high-torque, low-speed applications ideal for larger propellers
- 450W Maximum Continuous Power – Delivers robust, reliable performance for demanding RC builds
- Disk-Type Design – Low-profile stator (40mm diameter, 6mm thickness) keeps your build lightweight and aerodynamic
- 4–6S LiPo Compatible – Versatile voltage range gives you flexibility across different battery setups
- 12-Slot / 14-Pole Configuration – Engineered for smooth, efficient power delivery and reduced vibration
- Ultra-Low No-Load Current (0.3A) – Maximizes flight time efficiency
- Pairs with 20–30A ESC – Easy integration into standard RC electronics setups
- Drop-In Replacement – Perfect for repairing or upgrading existing RC aircraft and drones
Full Specifications
| Specification | Value |
|---|---|
| Stator Outer Diameter | 40mm |
| Stator Thickness | 6mm |
| Stator Slots | 12 |
| Rotor Pole Number | 14 |
| Motor KV Value | 360KV |
| No-Load Current | 0.3A |
| Motor Resistance | 170mΩ |
| Max Continuous Current | 18A / 60s |
| Max Continuous Power | 450W |

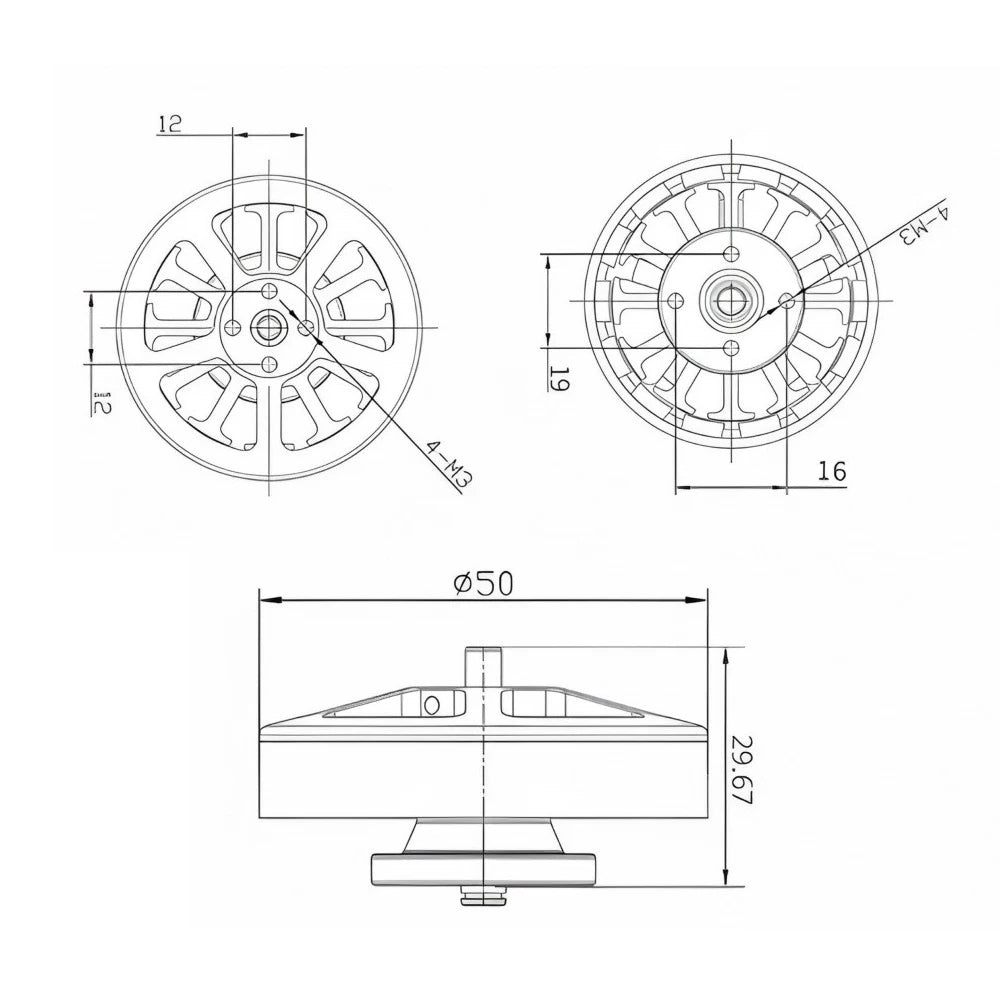

| Rotor Diameter | 50mm |
| Motor Length | 18mm |
| Battery Compatibility | 4–6S LiPo |
| Recommended ESC | 20–30A |
What's in the Box
- 1× 4006 Brushless Motor (360KV)
Please Note: Due to differences in lighting and screen calibration, the item color may vary slightly from the images shown. Please allow a measurement tolerance of 1mm–1cm due to manual measurement.
For general RC safety guidelines and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the KV rating of this brushless motor and what does it mean for my RC build?
A: This 4006 brushless motor has a KV rating of 360KV, meaning it spins at approximately 360 RPM per volt of input. A lower KV rating like 360KV is ideal for larger, slower-spinning propellers that generate more torque and lift — perfect for heavy-lift drones and large RC airplanes running on 4–6S LiPo batteries.
Q: Which ESC should I pair with this 4006 360KV brushless motor?
A: The recommended ESC rating for this motor is 20–30A. Using an ESC within this range ensures safe, stable operation and protects both the motor and your electronics from overload during flight.
Q: Is this motor compatible with both RC drones and fixed-wing RC airplanes?
A: Yes. This 4006 disk-type brushless motor is designed as a versatile replacement and upgrade part suitable for multi-rotor drones as well as fixed-wing RC aircraft. Its compact profile and high-efficiency design make it adaptable to a wide range of RC platforms.
Q: What battery configuration does this motor support?
A: This motor supports 4S to 6S LiPo battery packs, giving you flexibility to tune your power output and flight characteristics depending on your specific RC build requirements.
