4000W Solar Inverter Kit – 50W Panel, 50A Controller & USB

4000W Solar Power Inverter Kit – 50W Mono Panel, 50A Controller & USB Output

Power your devices anywhere with this all-in-one solar generator kit. Whether you're camping off-grid, preparing for emergencies, or need a reliable mobile power source, this kit combines a peak 4000W modified sine wave inverter, a 50W monocrystalline solar panel, and a smart 50A solar charge controller — everything you need to harvest solar energy and convert it to usable AC and USB power.

Made in China.

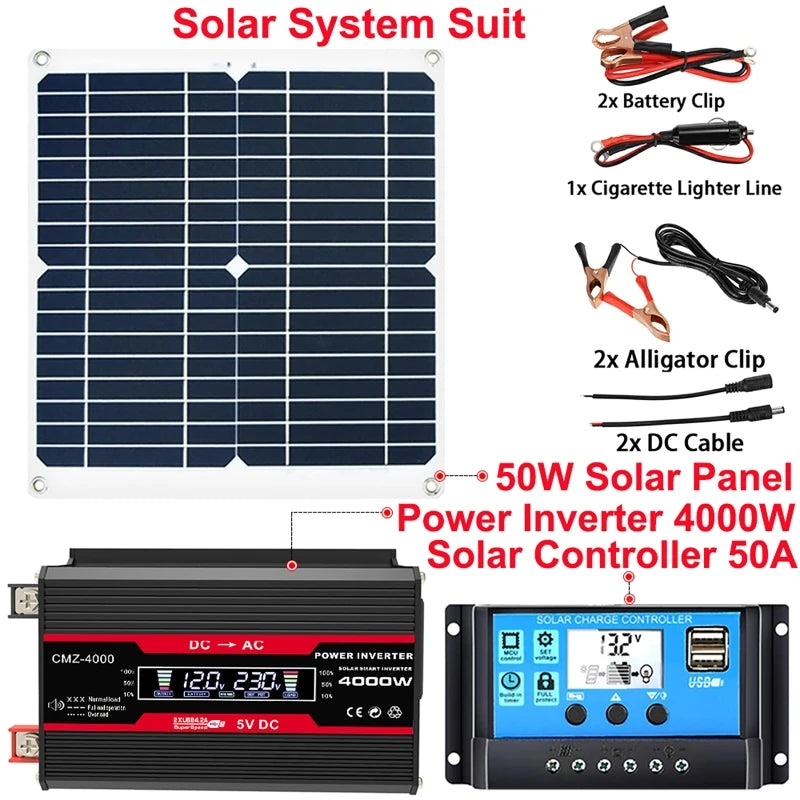

What's Included

• 1 × Peak 4000W / 300W Rated Car Power Inverter (12V DC → 110V/220V AC)
• 1 × 50W / 18V Monocrystalline Solar Panel (IP65-rated)
• 1 × 50A Solar Charge Controller (12V/24V auto-detect, CE & RoHS certified)
• 2 × Battery Clips
• 1 × Cigarette Lighter Plug
• 2 × DC Alligator Clips
• 2 × DC Cables
• 1 × English Manual

Key Features

⚡ High-Output Car Power Inverter

• Peak Power: 4000W | Rated Continuous Power: 300W
• Input: DC 12V (range: 10.5V–15V) | Output: AC 110V or 220V (modified sine wave)
• Output Frequency: 50Hz (220V model) / 60Hz (110V model)
• Dual USB Ports: Max 4.2A combined — fast-charge smartphones, tablets, and more
• 1 × AC Outlet for standard appliances up to 300W rated load

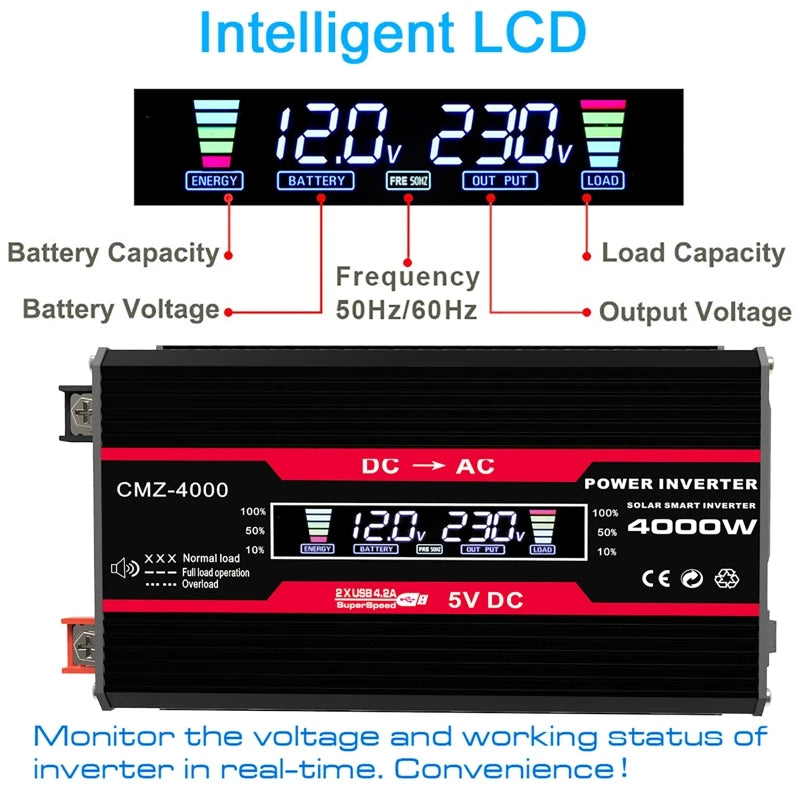

• Intelligent LCD Display: Real-time readout of input voltage, output voltage, battery capacity, load, and frequency
• LED Status Indicators: Green = normal operation | Red = protection mode active
• Compact Size: 20 × 11.2 × 5.6 cm | Color: Red

☀️ 50W Monocrystalline Solar Panel

• Power: 50W ± 5% | DC Output: 12V / 1.5A
• USB Output: 5V / 2.1A (direct device charging from the panel)
• Material: Aluminum substrate + high-efficiency chip + PET laminate
• Protection Rating: IP65 — weather-resistant for outdoor use
• Operating Temperature: -20°C to 60°C
• Size: 360 × 330 × 2.5 mm | Weight: 0.8 kg

🔋 50A Smart Solar Charge Controller

• Voltage: 12V / 24V automatic identification
• Rated Charging Current: 50A | Rated Discharge Current: 20A
• Dual USB Output: 5V / 2A (×2 ports)
• Standby Current: <10mA
• Working Temperature: -35°C to +60°C
• Certifications: CE, RoHS
• Material: PVC | Size: 180 × 90 × 45 mm

8 Built-In Safety Protections

1. Reverse polarity protection
2. Low input voltage protection
3. High input voltage protection
4. Over-current protection
5. Short circuit protection
6. Over-temperature protection
7. Overload protection
8. Internal fuses

Compatible Devices (Rated Load ≤ 300W)

This inverter kit is ideal for powering or charging:

• Smartphones & tablets (5–10W)
• Laptops (50–100W)
• LED lamps (20W)
• TV sets (60–150W)
• Desktop computers (up to 180W)
• Game consoles, digital cameras, car navigation (10W)
• Compact fluorescent or incandescent bulbs (60W)
• Electric fans (60W)
• Small emergency & communication devices

⚠️ Important Usage Notes

• This is a modified sine wave inverter — NOT suitable for motor-driven appliances (hair dryers, air conditioners, refrigerators, microwave ovens, water pumps, induction cookers, coffee machines).
• Total rated load of connected devices must be ≤ 300W.
• When using the cigarette lighter cable, keep output under 150W. For loads over 150W, connect using the included battery crocodile clips.
• For DC 12V vehicle use only — not compatible with DC 24V systems or aircraft.
• Always connect to the battery before switching the inverter on.
• Keep the inverter dry, in a cool environment (0°C–40°C), and away from direct sunlight and heat sources.

Battery Runtime Estimate

Use this formula to estimate how long your battery will last:

Working Time (hours) = Battery Capacity (Ah) × Battery Voltage (V) × 0.8 × 0.9 ÷ Load Power (W)

Example: A 12V / 60Ah battery powering a 100W load: 12 × 60 × 0.8 × 0.9 ÷ 100 = ~5.2 hours

Full Specifications at a Glance

For more information on solar energy and off-grid power systems, visit the U.S. Department of Energy – Homeowner's Guide to Solar.

Frequently Asked Questions

Q: What is the difference between peak power (4000W) and rated power (300W) on this solar inverter kit?

A: The rated power (300W) is the continuous load the inverter can safely handle for extended periods. The peak power (4000W) refers to the brief surge capacity needed when certain devices start up. For everyday use, ensure all connected appliances total 300W or less in rated power consumption.

Q: Can I use this solar inverter kit to run a refrigerator or air conditioner?

A: No. This is a modified sine wave inverter, which is not compatible with motor-driven or compressor-based appliances such as refrigerators, air conditioners, microwave ovens, or water pumps. It is best suited for electronics, LED lighting, laptops, smartphones, and similar loads under 300W.

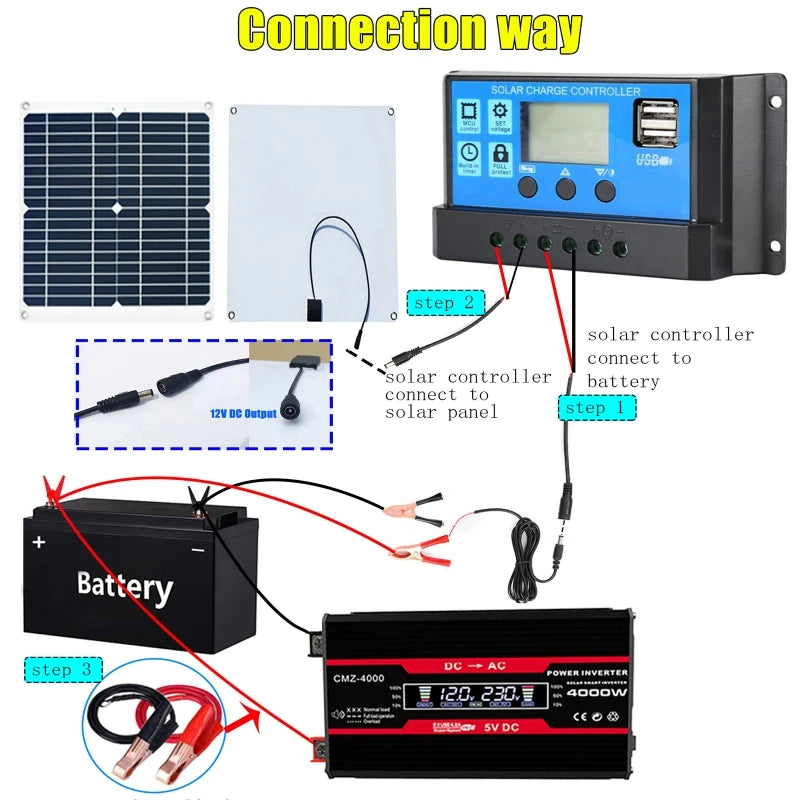

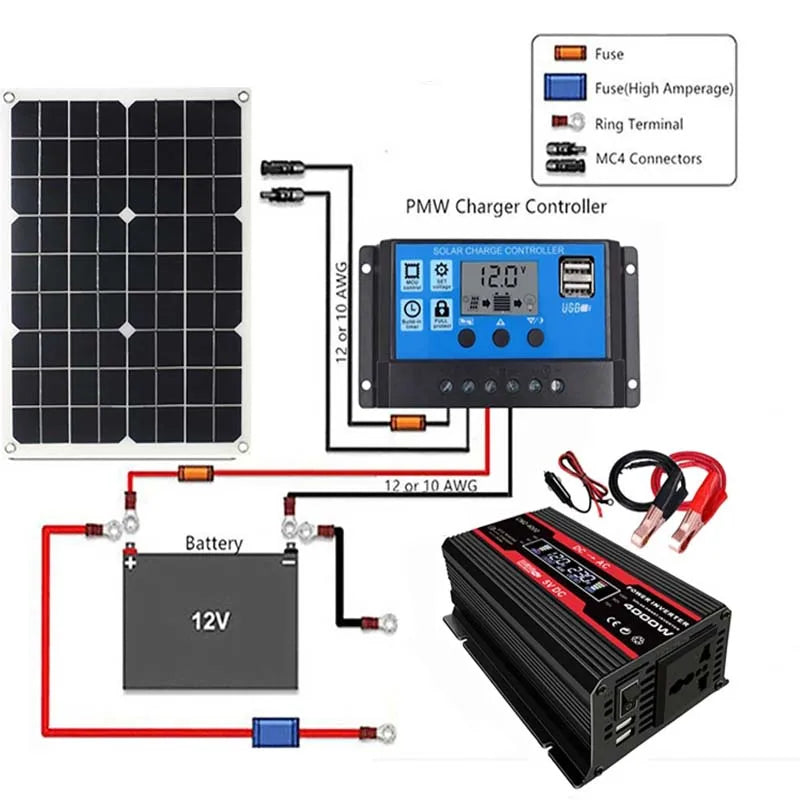

Q: How do I connect the 50W solar panel, charge controller, and inverter together?

A: Connect the 50W solar panel's DC output to the solar input terminals of the 50A charge controller. Then connect the controller's battery terminals to your 12V battery. Finally, connect the power inverter's battery clips or cigarette lighter plug to the 12V battery. The controller will regulate charging automatically and protect the battery from over- and under-charge.

Q: Is this kit suitable for camping and off-grid emergency use?

A: Yes — the kit is designed for exactly these scenarios. The lightweight 50W solar panel (0.8 kg) gathers solar energy during the day to charge a 12V battery via the 50A controller, which you can then draw on through the inverter for AC power or USB charging at any time, making it ideal for camping trips, road travel, or emergency preparedness.
