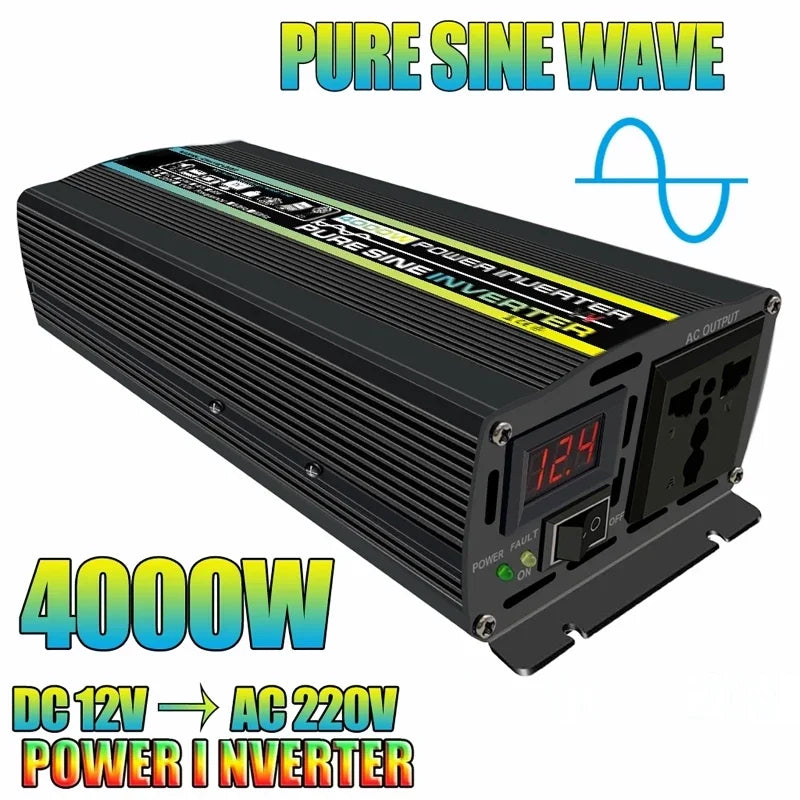

4000W Pure Sine Wave Power Inverter – DC 12V to AC 220V
Power your home appliances anywhere — in your car, on a camping trip, or off-grid with solar — using this high-performance Pure Sine Wave Power Inverter. Delivering a continuous 800W rated output with a 4000W surge capability, it produces clean, stable AC power that's safe for even your most sensitive electronics. Made in Mainland China and CE certified for quality assurance.
Key Specifications
- Input Voltage: DC 12V (9.8V – 15V)
- Output Voltage: AC 220V (210V – 230V)
- Output Frequency: 60Hz
- Rated Power: 800W continuous (ensure connected devices ≤ 800W total)
- Peak / Surge Power: 4000W (for less than 1 second)
- Output Waveform: True / Pure Sine Wave (<3% THD)
- Efficiency: ≥90%
- No-Load Current Draw: <0.6A (DC side)
- Max AC Current per Socket: 8.33A
- Product Size: 21 × 10.3 × 6 cm
- Weight: 1.4 kg
- Certification: CE
Why Choose a Pure Sine Wave Inverter?
Unlike modified sine wave inverters, a true pure sine wave inverter produces power virtually identical to the electricity from your home wall outlet. This makes it ideal for sensitive appliances such as refrigerators, air conditioners, coffee machines, induction cookers, and medical equipment — devices that can be damaged or run poorly on modified sine wave output.
Standout Features
- 🔋 Pure Sine Wave Output: Less than 3% Total Harmonic Distortion (THD) — clean power for all your devices.
- 💡 LED Status Indicator Lights: Dual green LEDs signal normal operation; red LED activates during protection mode for instant visual alerts.
- 📊 LED Voltage Display: Real-time battery input voltage readout keeps you informed and helps prevent over-discharge.

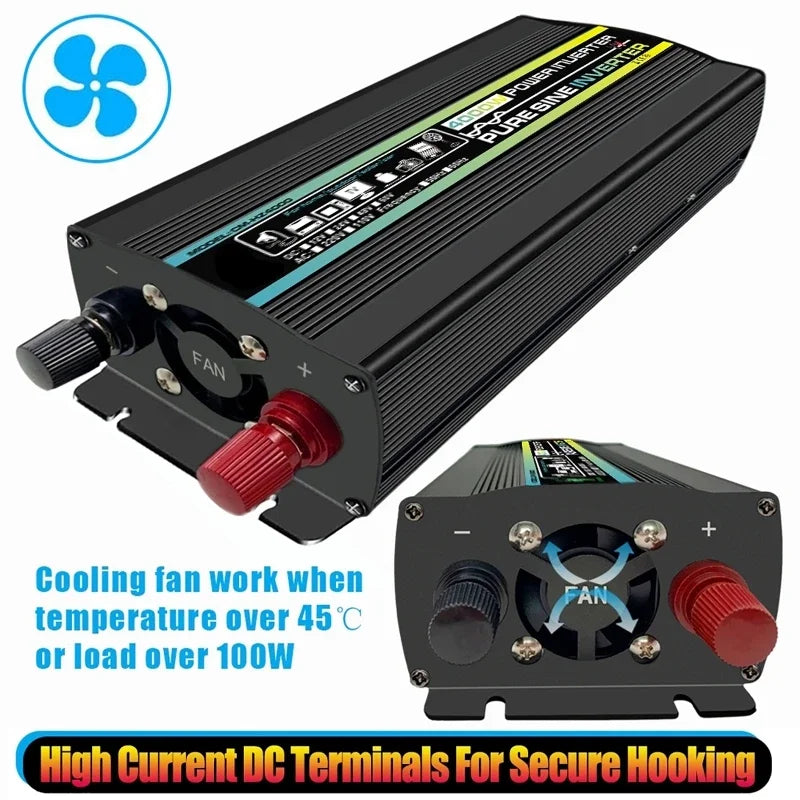

- 🌡️ Silent Intelligent Cooling Fan: Automatically adjusts fan speed based on load and temperature. Activates at >45°C and triggers protection mode at >75–80°C.
- 🛡️ 8-Layer Safety Protection: Reverse polarity, low/high input voltage, over-current, short circuit, over-temperature, overload protection, and internal fuses.
- 🚗 Turn Your Car into an RV: Run TVs, gaming consoles, small appliances, and more directly from your vehicle's 12V battery.
- 💪 Durable Build: Rugged plastic housing protects against drops and impacts for reliable use in tough environments.
Wide Range of Applications
This inverter is perfect for:
- Car, truck, and van travel power
- Camping, overlanding, and outdoor adventures
- Solar energy storage systems
- Emergency home backup power
- Running TVs, refrigerators, microwave ovens, washing machines, and more
Important Usage Notes
- Always securely tighten the positive (+) and negative (−) terminals before use.
- If connecting via the cigarette lighter socket, keep load under 150W. For higher loads (up to 800W), connect directly to the battery using the included crocodile clips.
- This 12V inverter is compatible with DC 12V systems (cars) only. Do NOT use with 24V truck systems.
- Always connect the inverter to the battery before turning it on — do not switch it on prior to connecting.
- Operate in a dry location, away from heat sources, moisture, and direct sunlight. Ideal operating temperature: 0°C to 40°C.
Battery Runtime Calculator
Estimate how long your battery will power your load:
Working Time (hours) = Battery Capacity (Ah) × Battery Voltage (V) × 0.8 × 0.9 ÷ Load Power (W)
Example: A 12V 60Ah battery powering a 100W load: 12 × 60 × 0.8 × 0.9 ÷ 100 = ~5.2 hours
What's in the Box?
- 1 × Pure Sine Wave Power Inverter
- 2 × Battery Clips (Crocodile Clips)
- 1 × User Manual
Learn More About Electrical Safety
For guidance on safe use of electrical equipment and power devices, visit the U.S. Consumer Product Safety Commission (CPSC) for helpful consumer safety resources.
Frequently Asked Questions
Q: What is the difference between rated power (800W) and peak power (4000W) on this inverter?
A: The rated power (800W) is the continuous power the inverter can safely deliver for extended periods. The peak/surge power (4000W) is the maximum power it can handle for a very short burst (less than 1 second), which is needed to start motor-driven appliances like refrigerators or air conditioners that draw extra current on startup. Always ensure your total connected load does not exceed 800W continuously.
Q: Can I use this 4000W pure sine wave inverter with solar panels?
A: Yes! This inverter is compatible with solar battery storage systems. As long as your solar battery bank provides a stable DC 12V output (between 9.8V and 15V), you can connect this inverter to power AC 220V appliances off-grid.
Q: Why should I choose a pure sine wave inverter over a modified sine wave inverter?
A: A pure sine wave inverter produces AC power that closely mirrors what comes from a standard wall outlet (<3% THD). This makes it safe and efficient for sensitive electronics like laptops, refrigerators, air conditioners, induction cookers, and audio equipment. Modified sine wave inverters can cause humming, overheating, or damage in such devices.
Q: How do I connect this power inverter to my car battery?
A: For loads up to 150W, you can plug into the car's cigarette lighter socket. For loads between 150W and 800W, use the included crocodile/battery clips to connect directly to the positive (+) and negative (−) terminals of your car battery. Always connect the clips to the battery before switching the inverter on.
Q: What does the red LED indicator light mean?
A: The red LED activates when the inverter enters protection mode — this can be triggered by over-temperature, overload, short circuit, or voltage issues. When the red light comes on, turn off or disconnect your load, allow the unit to cool down, and check your connections before restarting.
