4-Way Ultrasonic Atomizer Drive Board – DIY Humidifier Module

4-Way Ultrasonic Atomizer Drive Board – DIY Humidifier Module

$11.99 $12.99
Color

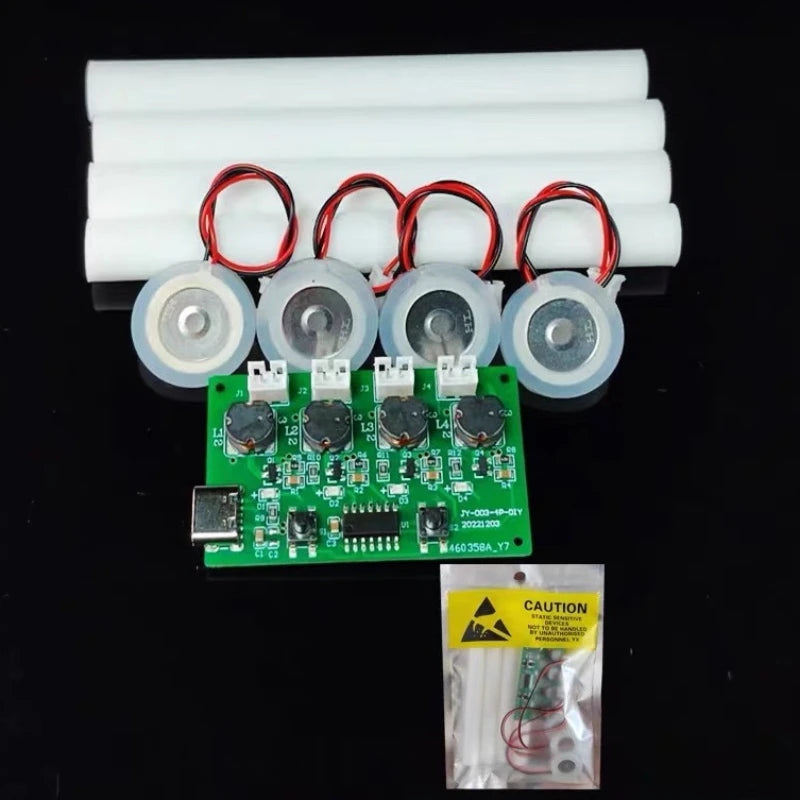

4-Way Ultrasonic Atomizer Drive Board – DIY Humidifier Control Module

Build your own custom humidification system with this versatile 4-way ultrasonic atomizer drive board. Designed for makers, hobbyists, and electronics enthusiasts, this DIY humidifier control board gives you precise, programmable control over four independent spray nozzles — all in one compact module. Made in Mainland China.

Key Features

  • Four Independent Nozzle Channels — Drive up to 4 ultrasonic atomizer heads simultaneously or individually for maximum flexibility in your DIY build.
  • Multiple Spray Modes — Switch between Continuous Four-Spray, Dynamic Cycling Spray, and Incremental Multi-Nozzle Spray modes with ease.
  • LED Status Indicators — Each active nozzle channel has a corresponding LED so you always know which outputs are running at a glance.
  • 2-Hour Auto Shutoff — Built-in protection timer automatically cuts power after 2 hours of operation, preventing dry-running and extending component life.
  • Dual Button Control (S1 & S2) — Intuitive two-button interface cycles through all modes without any programming required.
  • DIY-Friendly Design — Perfect for custom humidifiers, fog machines, terrariums, hydroponics setups, or any project requiring precise mist output control.

Spray Modes Explained

  1. Continuous Four-Spray Mode — Press S1 once: all four nozzles spray continuously with all four LEDs lit. Auto-shuts off after 2 hours.
  2. Dynamic Cycling Mode — Press S1 to power on, then press S2 once: nozzles 1→2→3→4 each spray for 3 seconds in a continuous cycle, with corresponding LEDs lighting in sequence.
  3. Incremental Spray Mode — Press S2 repeatedly (while powered on) to incrementally add active nozzles: 1 nozzle → 1+2 → 1+2+3 → 1+2+3+4, then cycles back. LEDs indicate active channels.
  4. Shutdown — Press S1 at any time to power off all channels immediately.

All modes auto-shutdown after 2 hours of continuous operation for safety and protection.

Specifications

  • Channels: 4 independent ultrasonic drive outputs
  • Spray Modes: Continuous, Dynamic Cycling, Incremental Multi-Nozzle
  • Controls: S1 (Power/Mode), S2 (Sub-Mode)
  • Auto Protection: 2-hour auto shutoff on all modes
  • LED Indicators: 4 (one per channel)
  • Application: DIY humidifiers, foggers, terrariums, hydroponics, misting projects
  • Country of Origin: Made in Mainland China

Who Is This For?

This drive board is ideal for electronics hobbyists, makers, and DIY enthusiasts who want full control over ultrasonic atomizer output in custom-built humidifiers, plant terrariums, decorative fog displays, or hydroponic growing systems. No coding required — just connect your atomizer heads, power the board, and start spraying.

For general electronics safety guidance and best practices when working with DIY electronic modules, visit CPSC.gov – U.S. Consumer Product Safety Commission.

Frequently Asked Questions

Q: How many ultrasonic atomizer heads can this drive board support?

A: This 4-way ultrasonic atomizer drive board supports up to four independent spray nozzle channels, which can be operated simultaneously (all four at once), sequentially (one at a time in dynamic mode), or in any incremental combination using the S2 button.

Q: Does the 4-way humidifier control board require any programming or coding?

A: No programming or coding is required. The board is controlled entirely via two physical buttons — S1 for power and primary mode selection, and S2 for cycling through sub-modes. Simply connect your atomizer heads, power the board, and use the buttons to select your preferred spray pattern.

Q: What is the 2-hour auto shutoff feature and why is it important?

A: The built-in 2-hour auto shutoff is a protection feature that automatically cuts power to all nozzle channels after 2 hours of continuous operation. This prevents the atomizer components from running dry, reduces the risk of overheating, and helps extend the overall lifespan of your DIY humidifier build.

Q: What projects is this ultrasonic drive board best suited for?

A: This board is an excellent choice for DIY humidifiers, decorative fog or mist displays, plant terrariums, hydroponic misting systems, aquarium humidity control, and any maker or electronics project that requires programmable multi-channel ultrasonic mist output.
