4-Port 10/100M Mini Embedded Ethernet Switch Module 5-12V

4-Port Mini Embedded Ethernet Switch Module (5–12V DC)

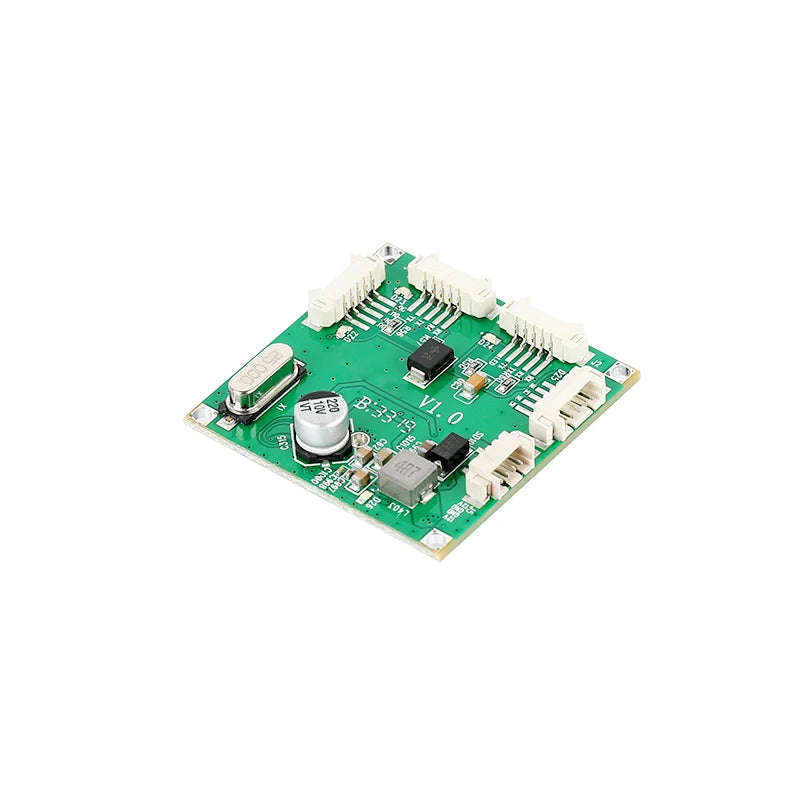

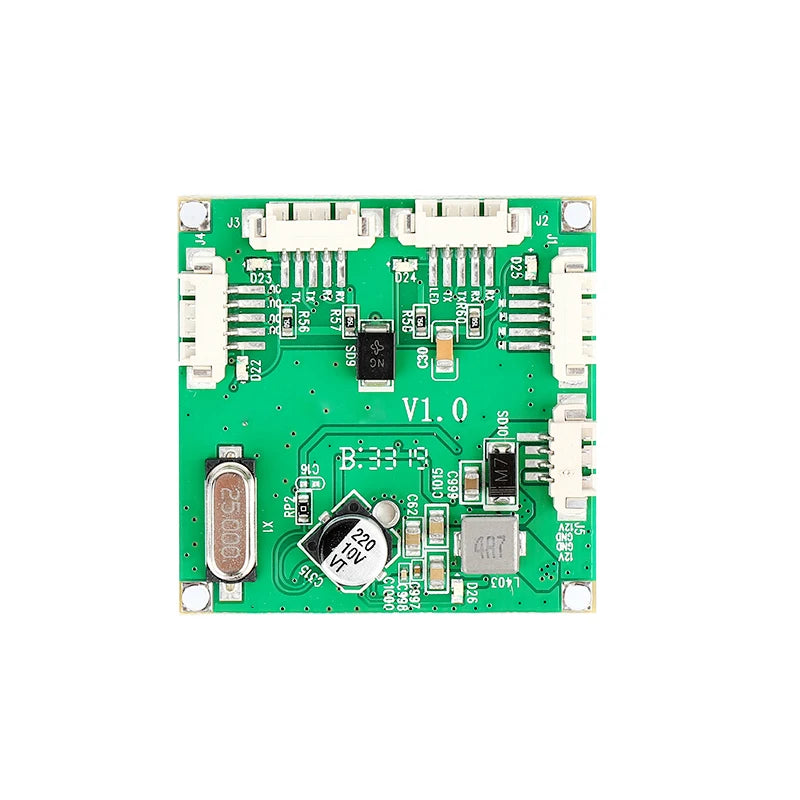

Expand your network with ease using this compact 4-port 10/100Mbps embedded Ethernet switch module. Designed for integration into custom enclosures, IoT devices, industrial equipment, and DIY networking projects, the LIHTNE SWF501 (Model: LX-SWF501-2) delivers reliable wired connectivity in a remarkably small footprint — just 50 × 45 × 11 mm.

Whether you're building a smart home hub, an embedded computing system, or a custom networking appliance, this mini switch module offers the performance and flexibility to connect multiple devices over a star topology network with full IEEE 802.3 compliance.

Key Features

• 4 × 10/100 Mbps Ports — 4-pin 2.5mm pitch connectors for seamless embedded integration
• Wide Voltage Input: DC 5V–12V / 1A — compatible with most embedded and IoT power supplies
• IEEE Standards Compliant: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3X (flow control)
• Store-and-Forward Switching — ensures reliable, error-free packet delivery
• 1G Backplane Bandwidth — handles high-throughput network traffic without bottlenecks
• Full & Half Duplex Support: Up to 200 Mbps (full duplex) per Fast Ethernet port
• Universal Uplink: All ports function as UP-LINK ports for flexible cascading
• CSMA/CD Protocol — standard collision detection for smooth network operation
• LED Indicators: 1× Power (red) + 4× Link/Activity (green) for at-a-glance status monitoring

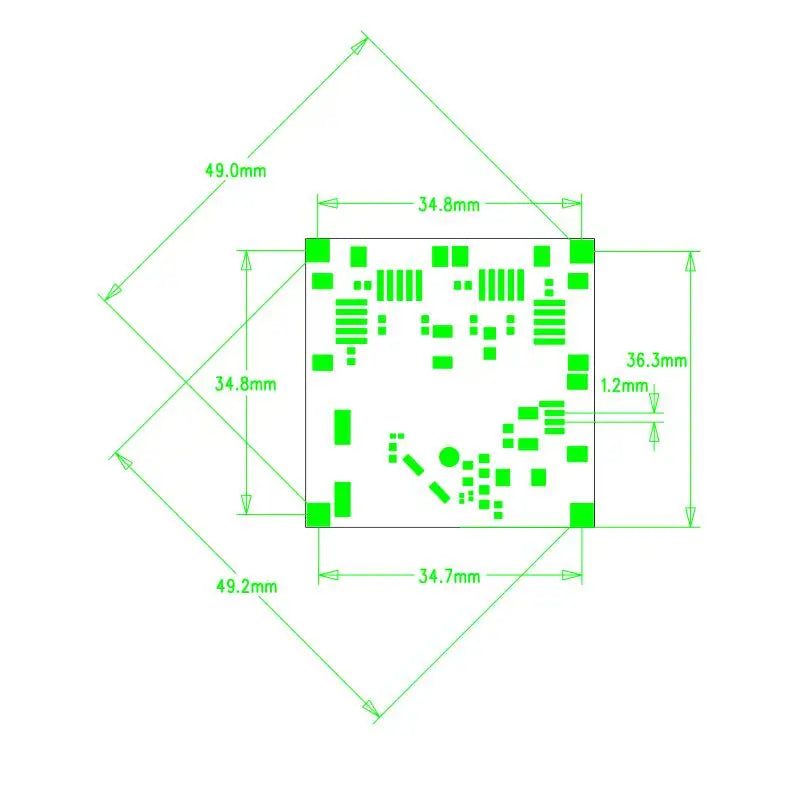

• Ultra-Compact Size: 50 × 45 × 11 mm — fits easily into tight enclosures
• Wide Operating Temperature: -20°C to 40°C (storage: -40°C to 70°C)

Technical Specifications

Made in Mainland China.

Who Is This For?

This module is ideal for electronics engineers, makers, and hobbyists who need a reliable, low-profile Ethernet switch for embedded systems, Raspberry Pi clusters, industrial automation panels, network appliances, and custom router builds. Its wide input voltage range and pin-type power input make it plug-and-play for most embedded platforms.

For more information on network interface standards, visit the National Institute of Standards and Technology (NIST), which maintains guidelines relevant to networking and electronics compliance.

Frequently Asked Questions

Q: What power supply does the 4-port embedded Ethernet switch module require?

A: The module accepts a wide DC input voltage of 5V to 12V at 1A, delivered via a 2-pin terminal with 2.5mm pin spacing. This makes it compatible with a wide range of embedded system power supplies, USB power converters, and standard DC adapters.

Q: Can I use this mini Ethernet switch module with a Raspberry Pi or Arduino-based project?

A: Yes. Its compact 50 × 45 × 11 mm form factor, low power requirement (DC 5–12V), and 4-pin 2.5mm pitch connectors make it well-suited for integration with Raspberry Pi setups, Arduino shields, and other single-board computer projects that require multiple wired Ethernet connections.

Q: Does this switch support full duplex operation?

A: Yes. Each port supports both half and full duplex operation. Fast Ethernet ports operate at up to 100 Mbps half duplex or 200 Mbps full duplex, and the module complies with IEEE 802.3X flow control for reliable data transmission.

Q: What cable type is required for this embedded switch module?

A: For 10Base-T connections, use UTP Cat 3 or higher cables (up to 100m). For 100Base-TX Fast Ethernet connections, use UTP Cat 5 or higher cables (up to 100m).
