4-Pin Optocoupler Tester – Fast, Reliable Circuit Diagnostics

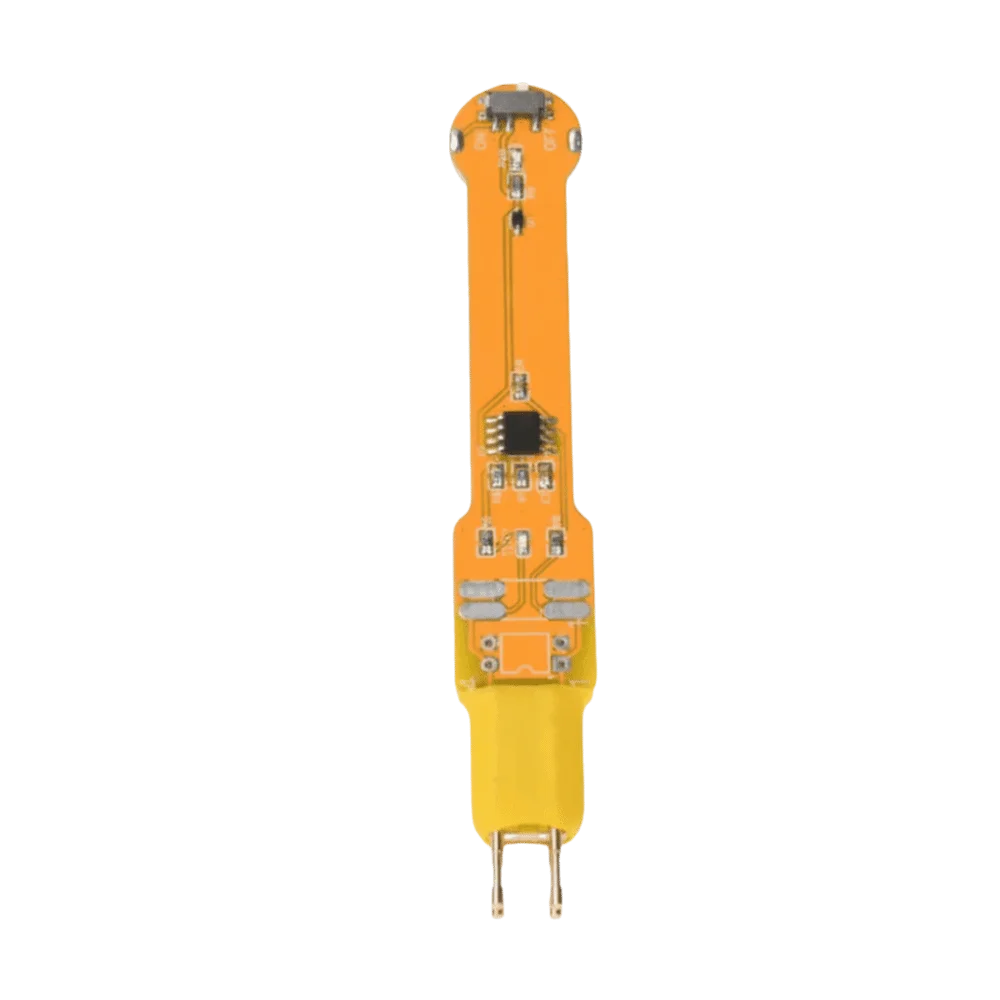

This compact 4-Pin Optocoupler Tester is an essential tool for electronics technicians, hobbyists, and repair professionals who need a quick, accurate way to verify optocoupler function directly on a circuit board. Lightweight at just 17g and designed for everyday bench use, this tester makes component verification straightforward and efficient — no complex setup required.
Key Features
- Rapid Online Testing: Test most 4-pin optocouplers directly on the board without full disassembly — saving valuable troubleshooting time.
- Instant Visual Indicator: A built-in indicator light gives you an immediate pass/fail result — flashing means the optocoupler is functioning normally; steady on or off signals a fault.
- Wide Compatibility: Works with popular 4-pin optocoupler types including 817, 781, 521, and other through-hole and surface-mount variants.
- Safe Input Voltage Range: Rated for <50VAC / 75VDC — always test with the board powered off for safe operation.
- Durable Construction: Built from plastic and brass for a balance of lightweight portability and long-term durability.

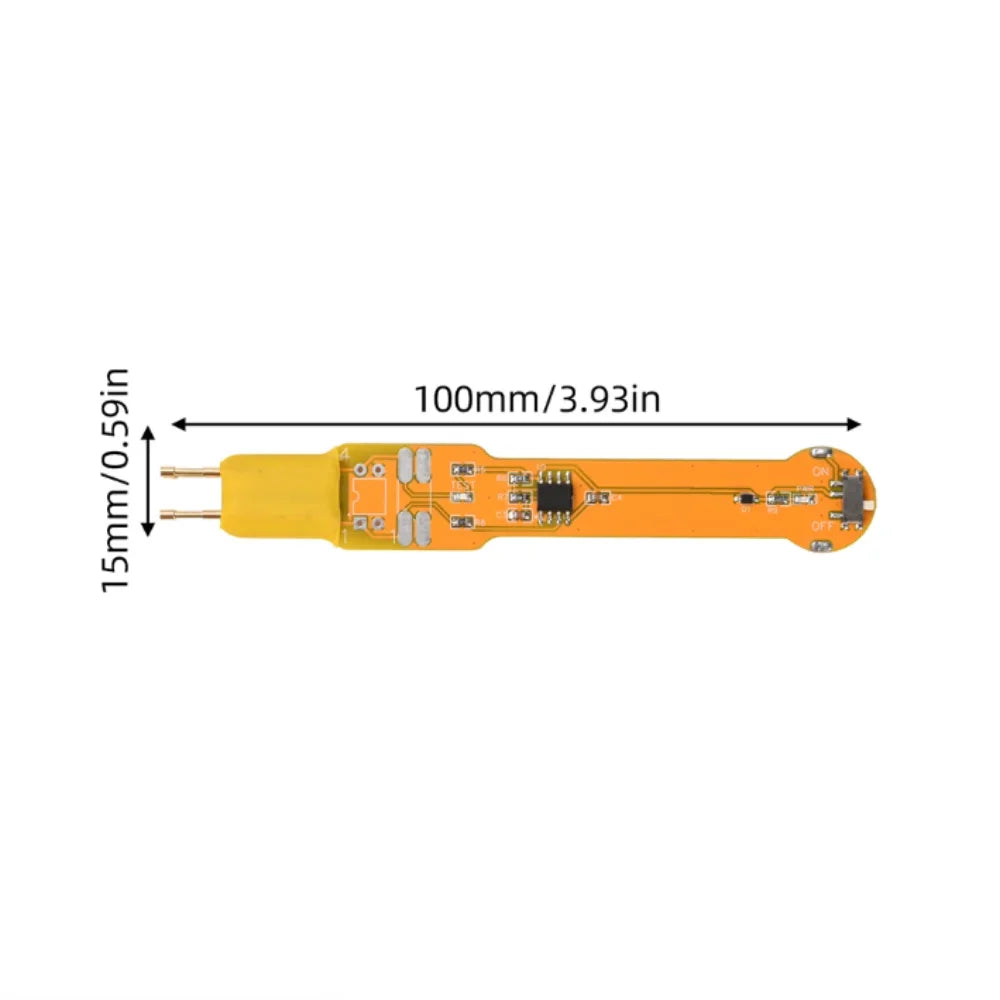

- Slim Profile: Measures just 10 × 1.5 × 0.15 cm (approx. 3.94 × 0.59 × 0.06 in), fitting easily in any toolkit or pocket.
How to Use

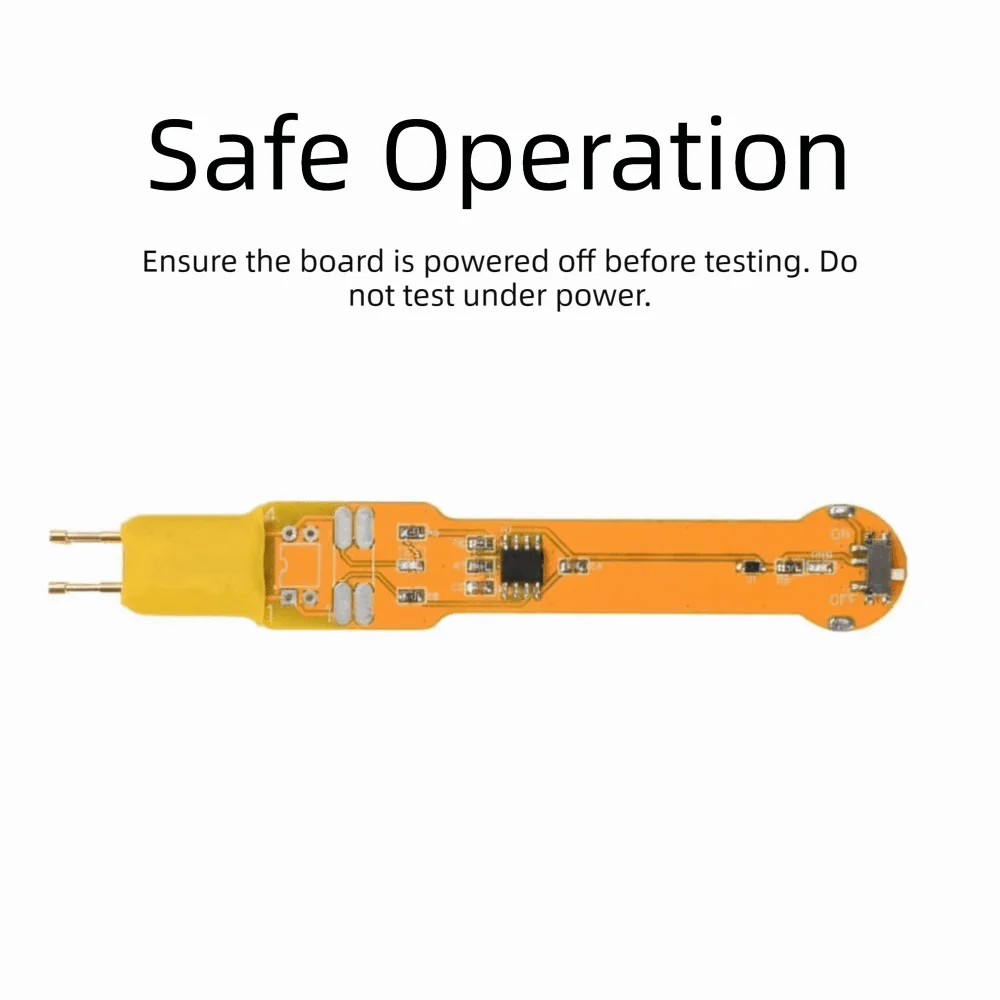

- Power Off: Ensure the board under test is completely powered off before beginning. Testing on a powered board is strictly prohibited.
- Identify Pin 1: Locate pin 1 of the optocoupler — typically marked with a small dot on the component body.
- Apply the Probe: Place the probe tip in contact with the optocoupler pins as directed.
- Read the Indicator: If the indicator light flashes, the optocoupler is working normally. If the light stays on or remains off, remove the component and retest separately.
Specifications
- Product Name: Maintenance Tester / Optocoupler Test Board
- Color: Yellow
- Dimensions: 10 × 1.5 × 0.15 cm (3.94 × 0.59 × 0.06 in)
- Weight: 17g
- Material: Plastic, Brass
- Input Voltage: <50VAC / 75VDC
- Battery Included: No
- Compatible Types: 817, 781, 521, and most 4-pin through-hole & SMD optocouplers
- Package Includes: 1 × Optocoupler Tester
- Made in China
Why Every Electronics Bench Needs This Tool
Optocouplers are widely used in power supplies, motor drives, and control circuits for electrical isolation. When a board fails, tracking down a faulty optocoupler manually can be tedious. This tester streamlines that process with a single-touch probe test, helping you diagnose and resolve faults faster. Whether you're servicing consumer electronics, industrial equipment, or DIY projects, this tool delivers professional-level results in a pocket-sized package.
For further guidance on safe electrical testing practices, refer to OSHA's Electrical Safety Guidelines.
Frequently Asked Questions
Q: Can I use this optocoupler tester while the circuit board is powered on?
A: No. The 4-Pin Optocoupler Tester must only be used on a completely powered-off board. Testing on a live board is strictly prohibited and may damage the tester or the component under test.
Q: Which optocoupler types are compatible with this tester?
A: This tester is compatible with most 4-pin optocouplers, including popular models such as the 817, 781, and 521 series, in both through-hole and surface-mount (SMD) configurations.
Q: What does it mean if the indicator light stays on or stays off during testing?
A: If the indicator light remains solid on or stays off (rather than flashing), it indicates a potential fault with the optocoupler. Remove the component from the board and retest it individually to confirm whether it needs replacement.
Q: Does the tester come with a battery?
A: No, a battery is not included with the optocoupler tester. Please check the product specifications for power requirements before use.
