4-Pin Optocoupler Tester LED Display | Type-C Powered Board

4-Pin Optocoupler Tester with LED Display | Type-C Powered Testing Board

Diagnose and verify 4-pin optocouplers quickly and accurately with this compact, portable testing board. Powered via a standard Type-C connection, it requires no external power supply — making it ideal for workbench use and on-the-go electronic repairs. Whether you're a seasoned electronics technician or an enthusiastic hobbyist, this tester gives you fast, reliable pass/fail readings via intuitive LED indicators.

Made in Mainland China.

Key Features

• Online Testing Without Desoldering: Test four-legged optocouplers directly on the circuit board — no need to remove components before testing.
• Automatic Pin & Type Identification: The board automatically identifies component orientation and pin layout, eliminating guesswork.

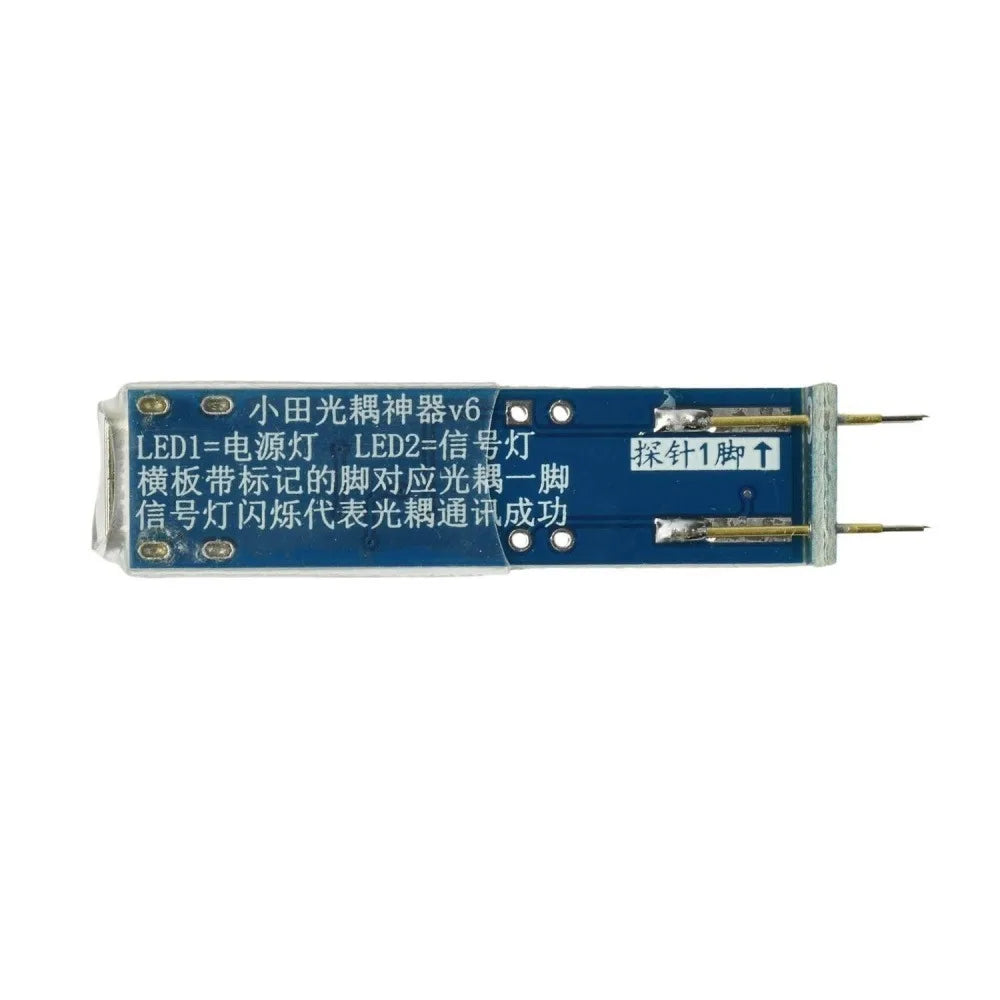

• Clear LED Status Indicators: LED1 stays lit during operation; a regularly flashing LED2 confirms the optocoupler is functioning correctly — instant, easy-to-read results.
• Supports Multiple Component Sizes: Compatible with large, medium, and small four-corner through-hole optocouplers, including popular models such as 817, 781, and 521.

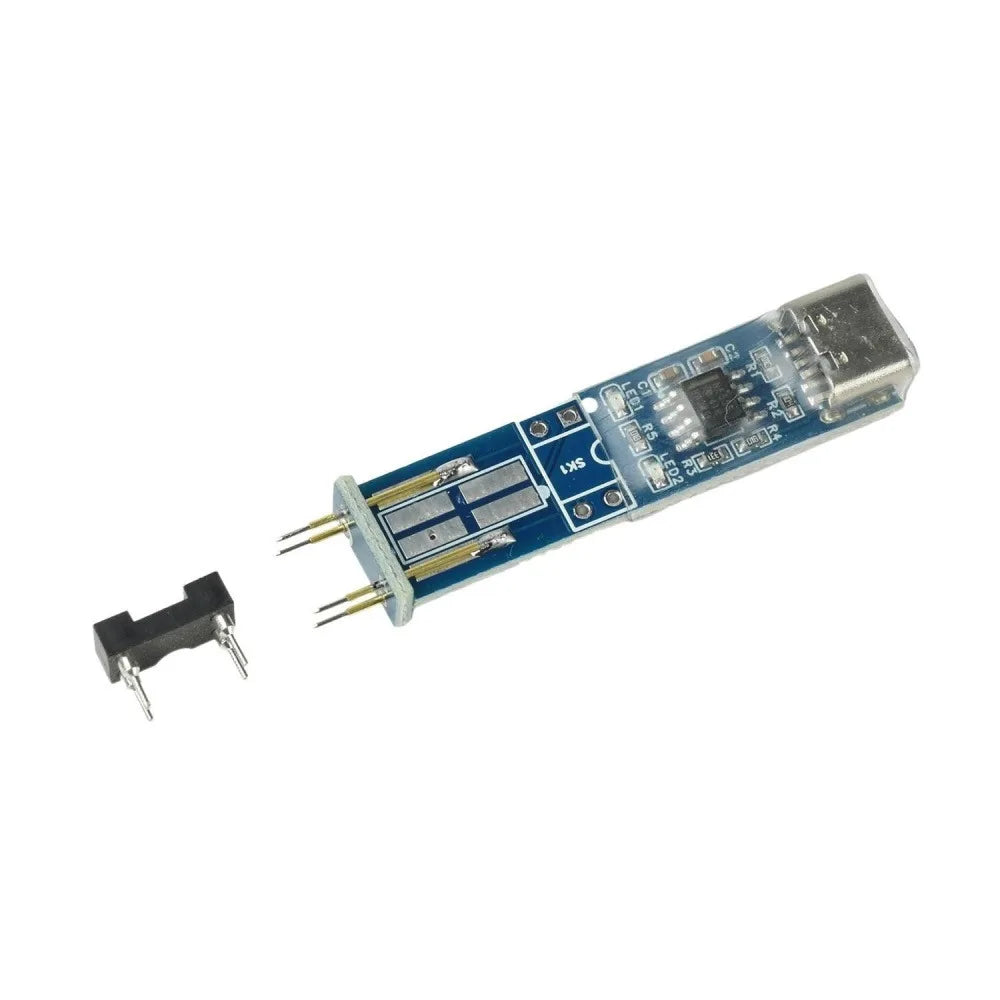

• Dual Test Pads: Includes one through-hole test pad and one surface-mount test pad for versatile offline testing. Simply place the component and gently press with tweezers — no soldering required.
• Reinforced Pin Stability: Horizontal plate reinforcement keeps component pins stable during testing, ensuring consistent and repeatable readings.
• Type-C Powered: Uses a standard Type-C interface for convenient, universal power input. No proprietary cables or external power adapters needed.
• Portable & Durable: Compact form factor makes it easy to carry in a tool bag or keep at your workstation.

How to Use

1. Connect power via the Type-C port and power on the device. LED1 will light up steadily and LED2 will be off.
2. For online testing: Ensure the circuit is powered OFF and any residual charge in capacitors is fully discharged before placing the tester on the target optocoupler. The pin marked with a white circular dot on the crossbar is Pin 1.
3. For offline testing: Place the optocoupler on the appropriate test pad (through-hole or surface-mount) and gently press with tweezers to make contact.
4. If LED2 flashes regularly, the optocoupler is in good working condition. A constant on or constant off indicates the component may be faulty — remove and re-test offline to confirm.
5. If optocoupler pins show rust or oxidation, clean them before testing for best results.

Specifications

• Input Interface: Type-C
• Compatible Components: 4-pin through-hole optocouplers (large/medium/small sizes); compatible models include 817, 781, 521, and most standard 4-pin inline optocouplers
• Test Modes: Online (in-circuit) and Offline (out-of-circuit)
• Test Pads: Through-hole pad + Surface-mount pad
• Status Display: Dual LED (LED1 power indicator, LED2 pass/fail indicator)
• Power Supply: Via Type-C (no external supply required)

Package Includes

• 1× Optocoupler Tester Board

Important Notes

• Always power off the circuit and discharge any residual capacitor charge before performing online tests.
• Do not solder directly onto the test pads.
• Due to lighting and display differences, the product color may vary slightly from images.
• Please allow 1–10 mm variance due to manual measurement.

For general guidance on electronic component testing and safe electronics repair practices, visit the U.S. Consumer Product Safety Commission (CPSC) for safety standards and best practices when working with electronic equipment.

Frequently Asked Questions

Q: What optocoupler models is this tester compatible with?

A: This optocoupler tester is compatible with most standard 4-pin through-hole optocouplers, including widely used models such as the PC817, PC781, and PC521. It supports large, medium, and small four-corner package sizes, making it suitable for a broad range of electronics repair and testing applications.

Q: Can I test optocouplers while the circuit is still powered on?

A: No — for safety and accuracy, you must power off the circuit before performing an online test. Additionally, ensure that any residual charge stored in capacitors within the circuit has been fully discharged before connecting the tester. Failing to do so may damage the tester or produce inaccurate results.

Q: How do I interpret the LED indicators during testing?

A: LED1 remains constantly lit as long as the tester is powered on. During a test, if LED2 flashes regularly, the optocoupler is functioning correctly. If LED2 remains constantly on or off, the component may be defective. Note that a slight or intermittent flicker of LED2 can also indicate the component is within acceptable operating range — remove and re-test offline to confirm borderline results.

Q: What power source does this tester use?

A: The tester is powered via a standard Type-C USB connection. Any USB power source — such as a laptop, power bank, or USB charger — can be used. No proprietary adapter or external power supply is required.

Q: Is this tester suitable for surface-mount optocouplers as well?

A: Yes. In addition to the through-hole test pad for standard inline components, the board includes a surface-mount test pad for offline testing of SMD-package optocouplers. Simply place the component on the appropriate pad and apply gentle pressure with tweezers to achieve contact during testing.
