4-Door TCP/IP Wiegand Access Control Board RFID Panel DC12V

4-Door TCP/IP Wiegand Access Control Board Panel with RFID Entry System

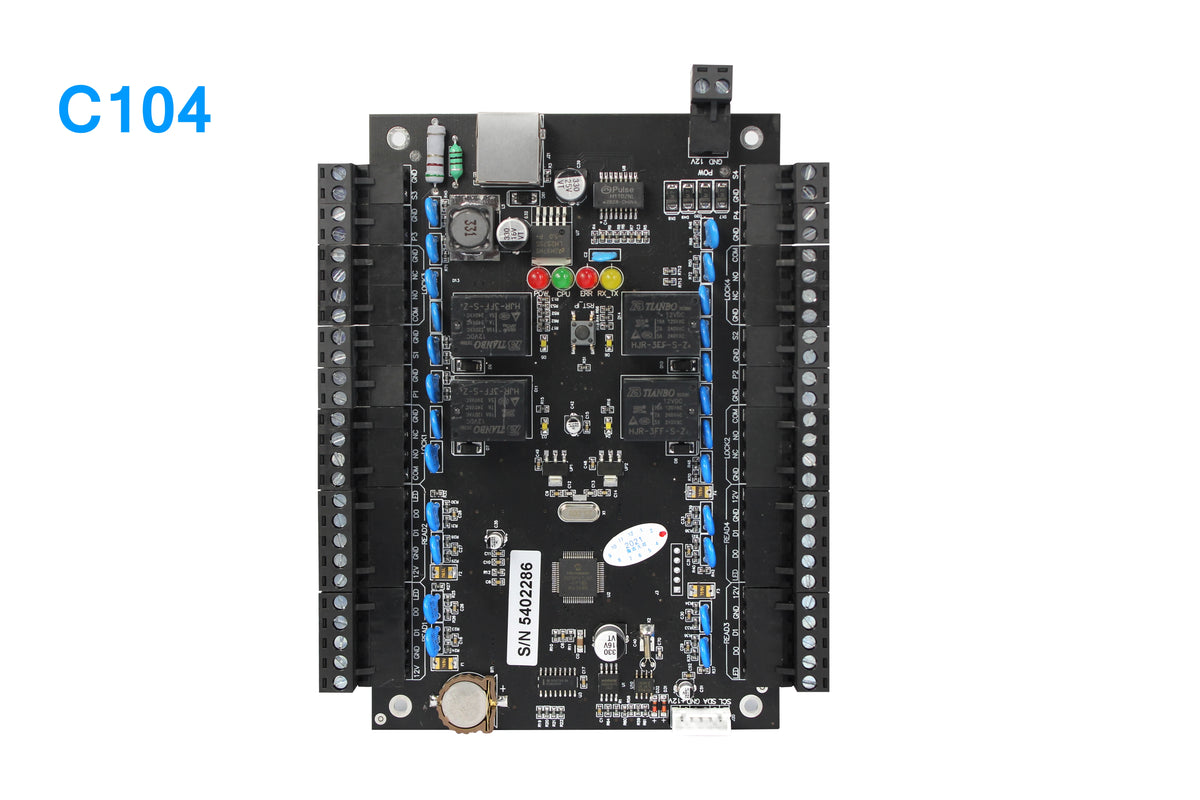

Take full command of your building's entry points with the Asia-Teco C10 Four-Door Network Access Control Board. Designed for scalable security installations, this powerful panel supports 1, 2, or 4 doors over a standard TCP/IP LAN network — making it ideal for offices, warehouses, schools, and multi-tenant facilities. Manage up to 30,000 users and store up to 100,000 access records with ease. Made in Mainland China.

Key Features

• TCP/IP LAN Communication: Seamlessly integrates into your existing network infrastructure for centralized, remote access management.

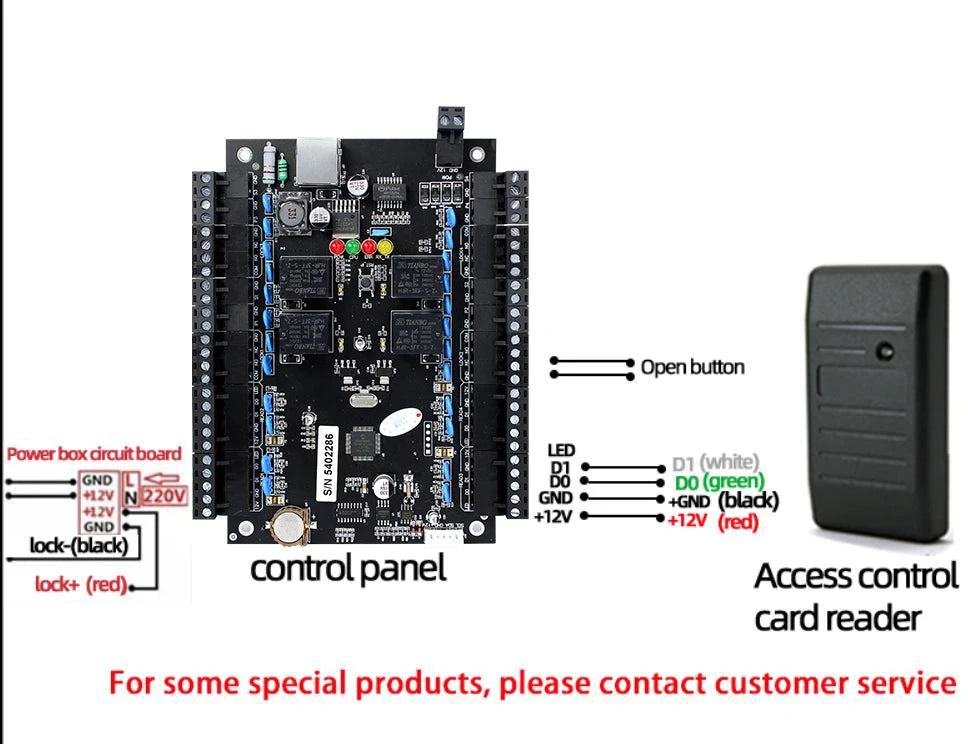

• Wiegand 26/34 Input: Compatible with the industry-standard Wiegand protocol, supporting a wide range of RFID card readers and credentials.
• Large Storage Capacity: Holds up to 30,000 user records and 100,000 event logs — built-in flash memory retains all data for up to 10 years without power.
• Optocoupler-Protected Inputs: All input interfaces feature optocoupler protection for superior system stability and long-term reliability.
• 8 Time Zone Groups: Configure up to 8 independent access time zones, each with its own unique verification rules and schedules.
• Multiple Verification Modes: Supports Card Only, Card + Password, Password Only, Double Card, First Card Opening, Door Timer, and Timed Alarm modes.
• Fail Secure Mode: Ensures doors remain locked during power interruptions, maintaining the integrity of your security perimeter.

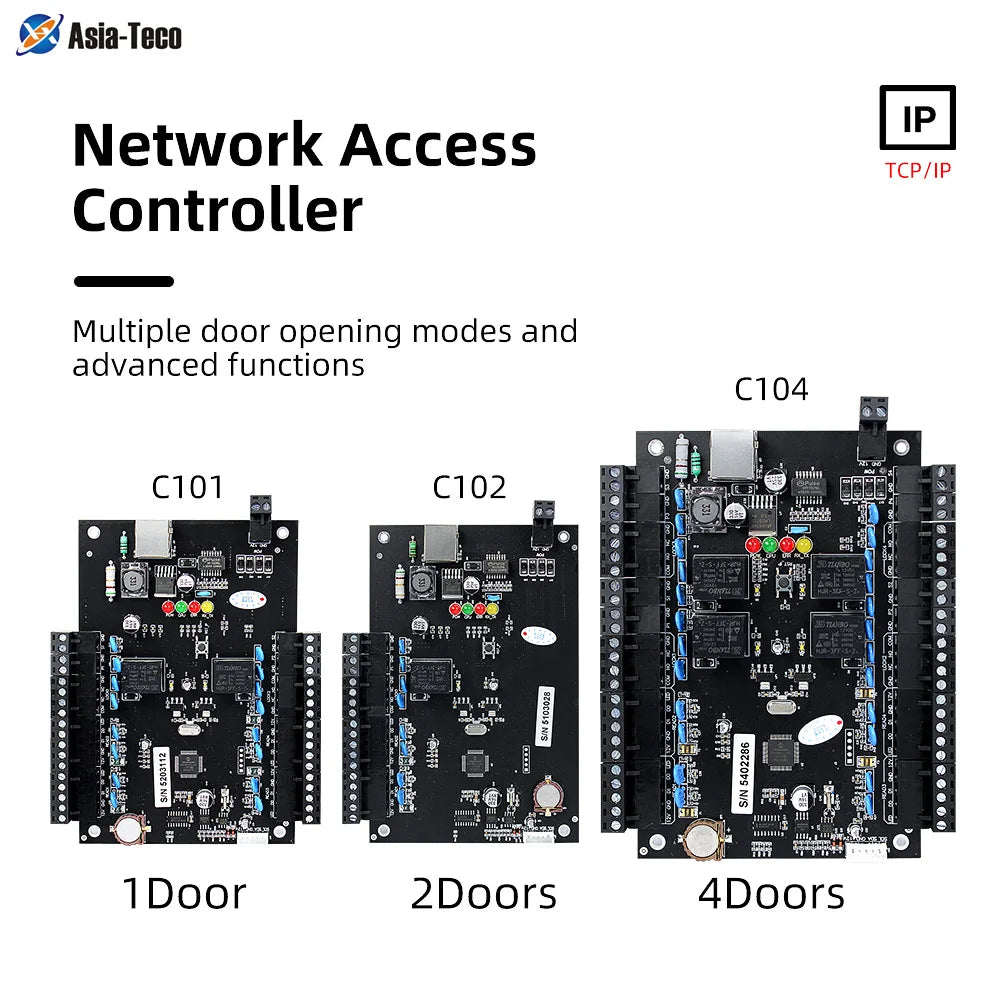

• Scalable Design: One panel manages 1, 2, or 4 doors — grow your access control system without replacing hardware.
• Software Included: Comes with management software for easy configuration, user enrollment, and reporting.
• DC 12V Power Input: Standard low-voltage power supply for straightforward installation.

Technical Specifications

Who Is This For?

This access control board is the perfect solution for security integrators, IT managers, facility managers, and business owners who need a reliable, network-based door control system. Whether you're securing a single office suite or a multi-door commercial complex, the C10 panel delivers enterprise-level functionality at an accessible price point.

For best practices in physical access control and building security, refer to the guidance provided by the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: How many doors can the Asia-Teco C10 access control board manage?

A: The C10 panel is designed to manage 1, 2, or up to 4 doors from a single board, making it a flexible and cost-effective solution for growing security systems.

Q: What communication protocol does this access control panel use?

A: It uses standard TCP/IP LAN communication, allowing it to connect directly to your existing network for centralized, software-based management from any networked computer.

Q: Is data retained if there is a power outage?

A: Yes. The C10 uses built-in flash memory that can retain all user data and access records for up to 10 years without any power supply, ensuring your configuration is never lost.

Q: What RFID readers are compatible with this panel?

A: The board supports the Wiegand 26/34 input protocol, which is the industry standard for RFID card readers. This means it is compatible with a very wide range of readers and RFID card types available on the market.

Q: What happens to the doors if the system loses power?

A: The C10 operates in Fail Secure mode, which means all connected doors will remain locked in the event of a power failure, maintaining your security perimeter at all times.
