4-Channel I2C DC Motor Driver Module – Smart Car Controller
4-Channel I2C DC Motor Driver Module – Smart Car Controller

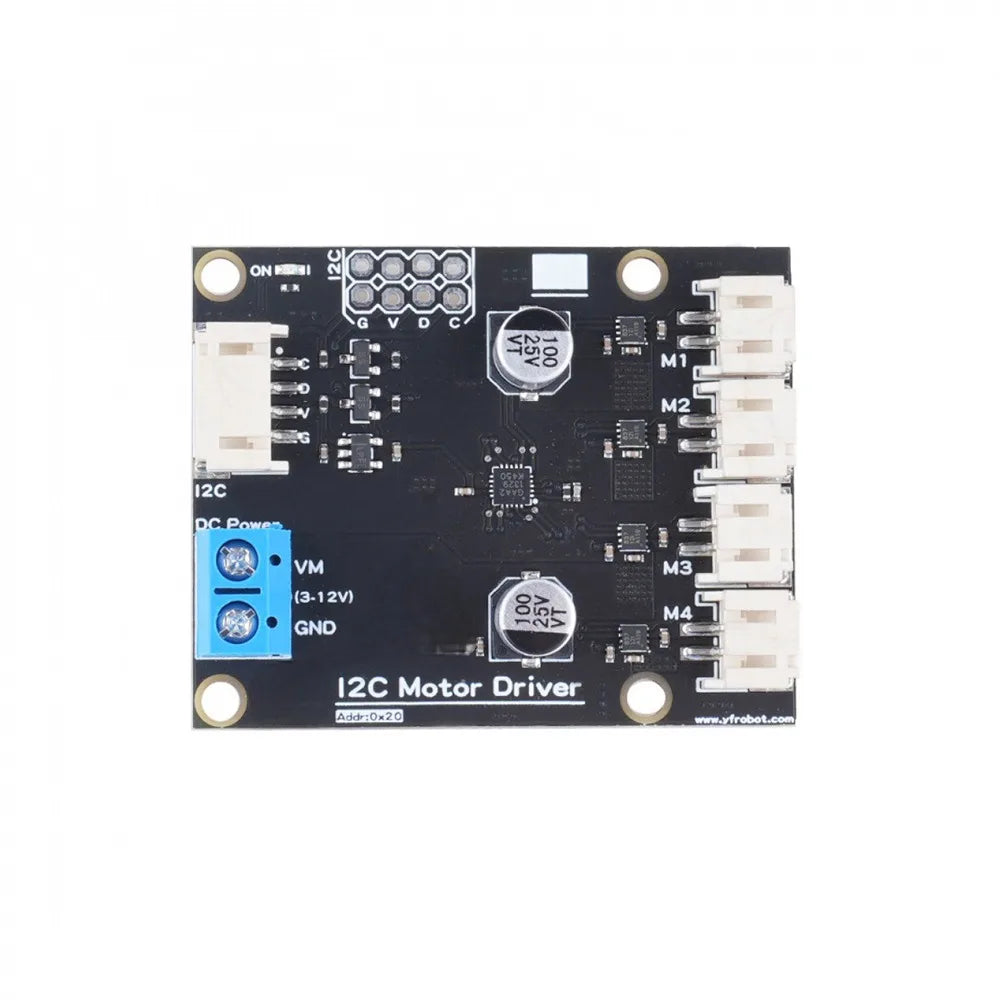

4-Channel I2C DC Motor Driver Module for Smart Cars & Robotics
Take your robotics and smart car projects to the next level with this compact 4-Channel I2C DC Motor Driver Module. Designed for makers, hobbyists, and engineers alike, this board uses simple IIC (I2C) communication to let your microcontroller independently drive up to four DC motors — all over just two wires. Whether you're building an autonomous robot, a line-following car, or a custom motorized platform, this module delivers reliable, clean motor control in a small, mountable footprint.
Key Features

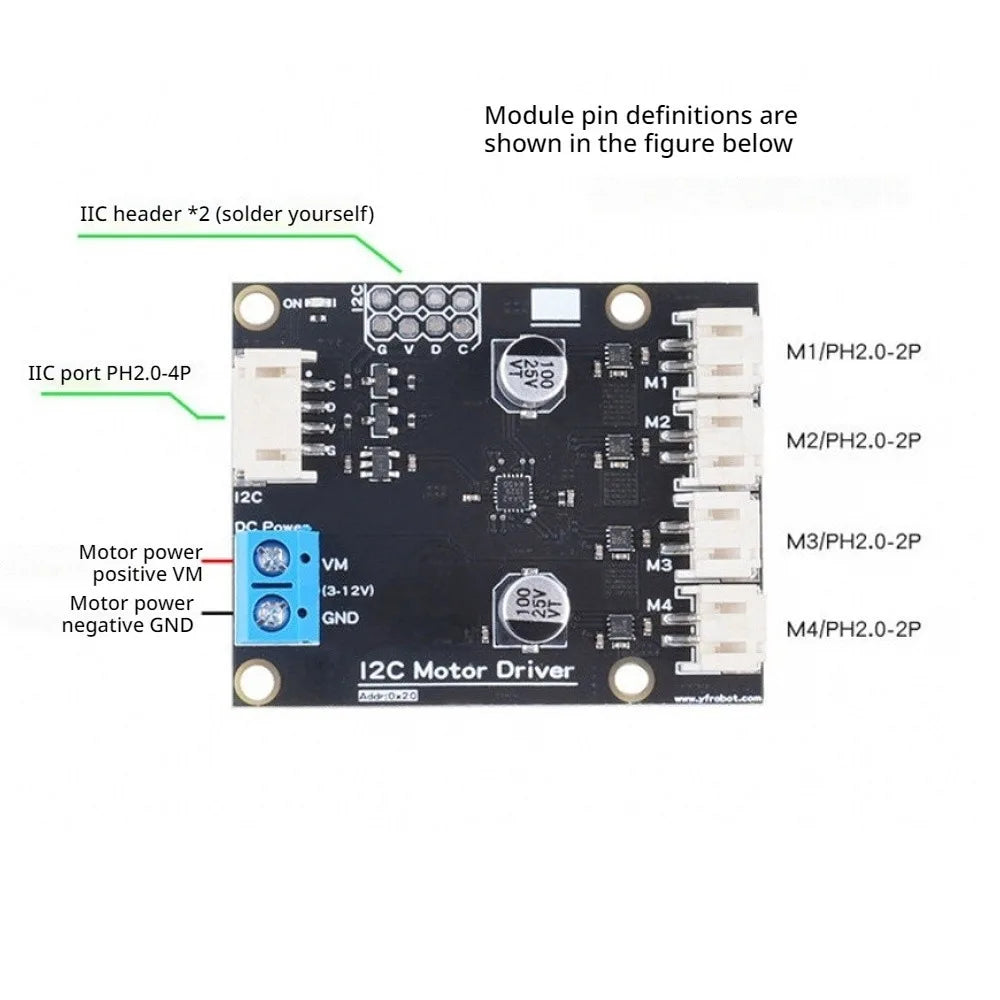

- 4 Independent Motor Channels — Control up to four DC motors simultaneously with individual speed and direction settings.
- I2C / IIC Communication — Streamlined two-wire interface compatible with Arduino, Raspberry Pi, ESP32, and most popular microcontrollers.
- 5V Logic Voltage — Works seamlessly with standard 5V microcontroller logic levels.
- 3–12V Drive Voltage — Flexible power input accommodates a wide range of DC motors (recommended: under 11V for best performance).
- 1.5A Peak Motor Current per Channel — Provides solid drive capability for small to medium DC motors.
- Standard Mounting Holes — 35mm × 35mm hole spacing makes integration into enclosures and chassis quick and easy.
- No Battery or Wireless Module Included — Focused, purpose-built driver board without unnecessary extras.
Technical Specifications
| Logic Voltage | 5V |
| Communication Type | I2C (IIC) |
| Drive Voltage | 3–12V (recommended ≤ 11V) |
| Motor Current | 1.5A (peak per channel) |

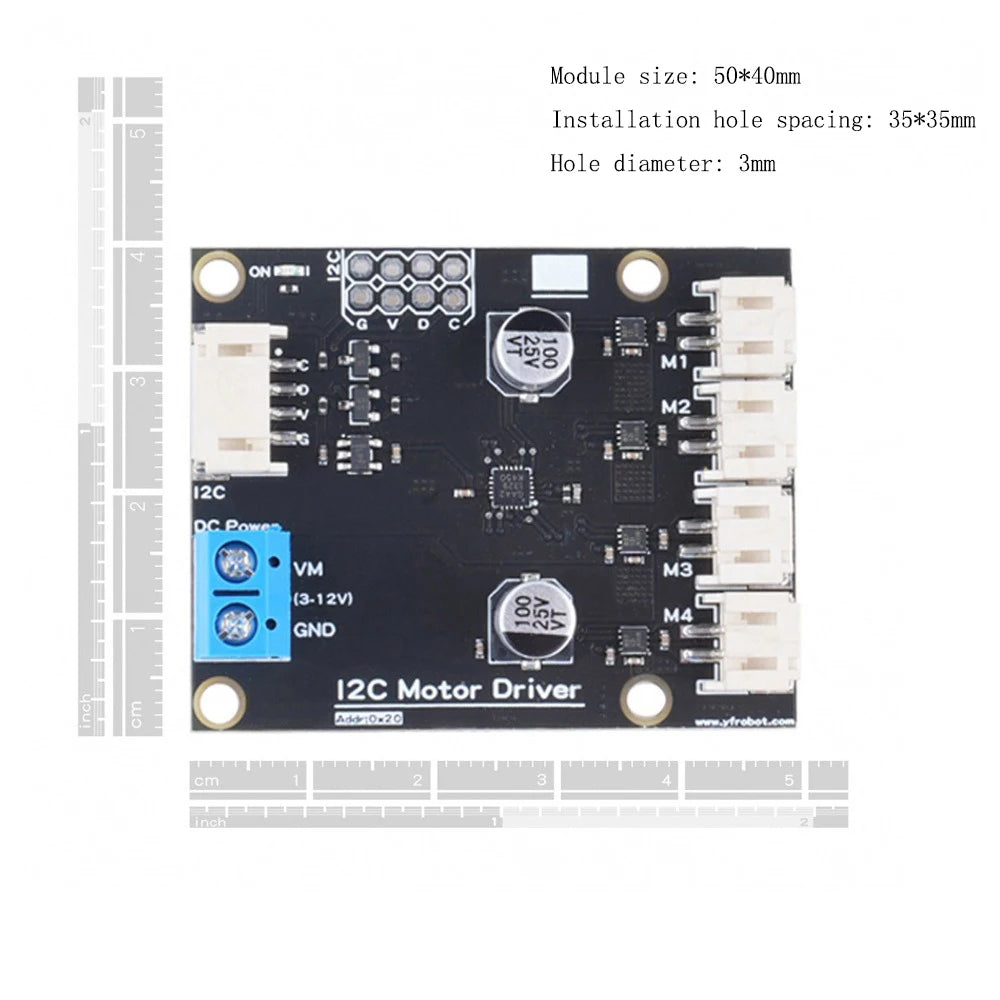

| Mounting Hole Spacing | 35mm × 35mm |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× 4-Channel I2C DC Motor Driver Module
Please Note
- Due to lighting and screen differences, the item's color may vary slightly from the photos.
- Please allow 1mm–1cm differences due to manual measurement.
Helpful Resources
For guidance on safe electronics practices and component handling, visit the U.S. Consumer Product Safety Commission (CPSC). For electronics standards and measurement best practices, explore resources at NIST – National Institute of Standards and Technology.
Frequently Asked Questions
Q: Is this 4-channel I2C motor driver module compatible with Arduino and Raspberry Pi?
A: Yes! This module uses standard I2C (IIC) communication with 5V logic, making it directly compatible with Arduino boards, Raspberry Pi, ESP32, STM32, and most other popular microcontrollers that support I2C.
Q: What type of motors can I use with this DC motor driver module?
A: This board is designed for brushed DC motors operating at 3–12V (recommended under 11V) with a peak current of up to 1.5A per channel. It is ideal for small to medium DC motors used in robotics, smart cars, and motorized platforms.
Q: How many motors can I control at once with this module?
A: You can independently control up to 4 DC motors simultaneously — each with its own speed and direction — using just the two-wire I2C interface from your microcontroller.
Q: Does the module require any additional components to operate?
A: You will need a compatible microcontroller (e.g., Arduino or Raspberry Pi), DC motors, and an appropriate power supply (3–12V for the motor drive side, 5V for logic). No battery or wireless module is included with this board.
