4-Channel 40W UPS Power Module Battery Charging Board + Indicator
4-Channel 40W UPS Power Module Battery Charging Board + Indicator

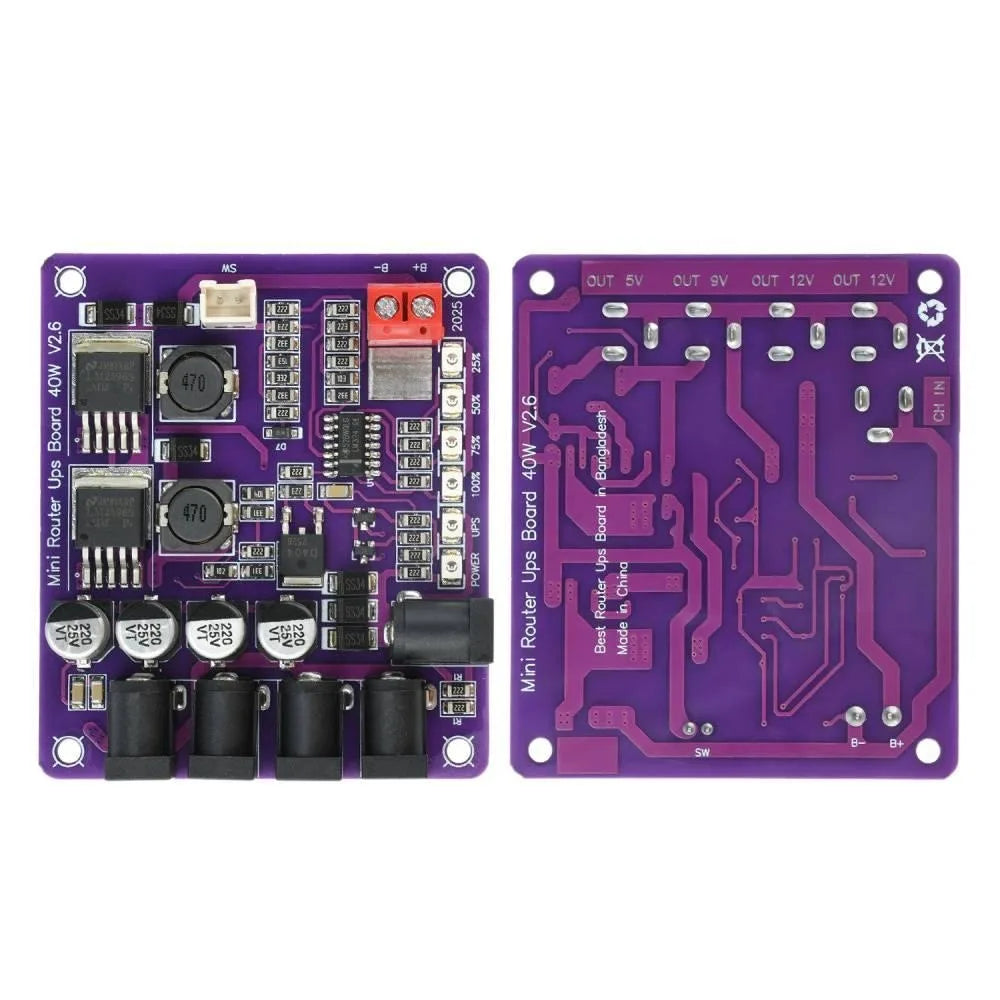

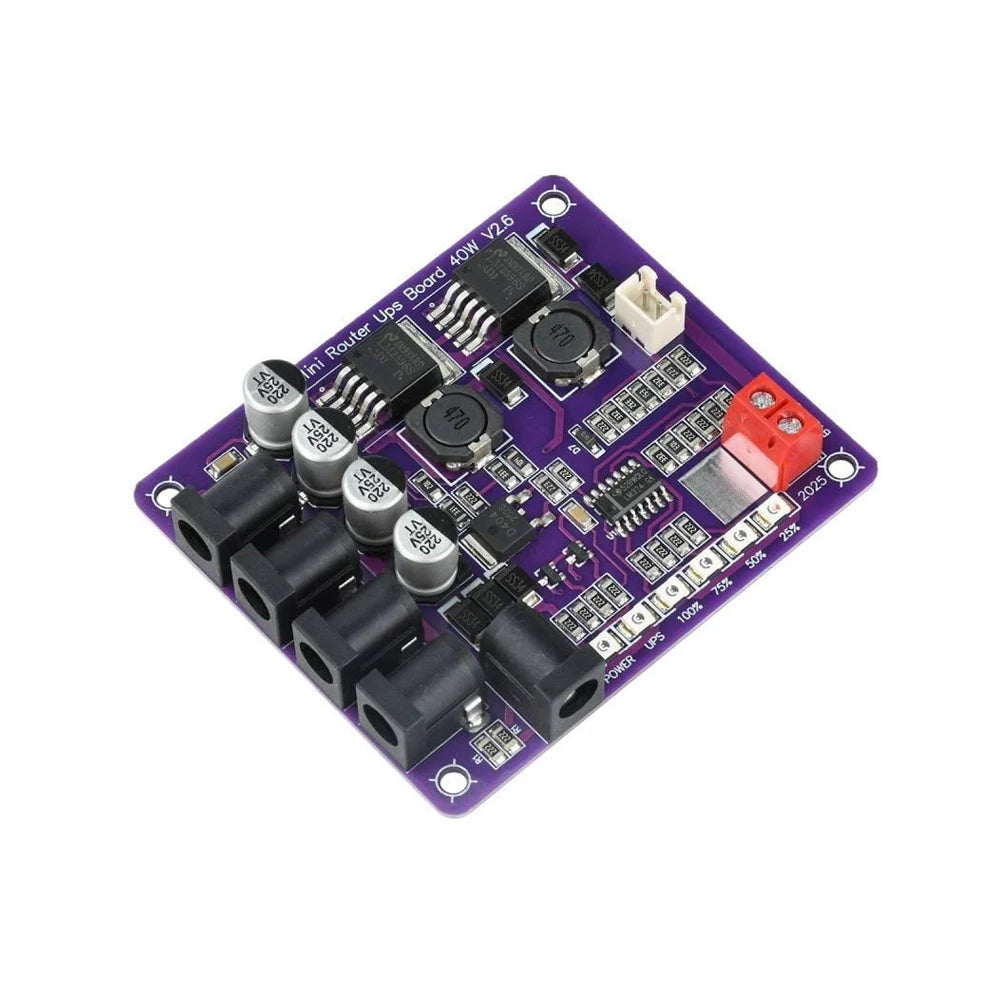

4-Channel Output UPS Power Module — 40W Uninterruptible Power Supply with Battery Percentage Indicator
Keep your electronics running without interruption with this compact and capable 40W UPS Power Module. Designed for DIY electronics, Raspberry Pi setups, routers, smart home hubs, and other low-voltage devices, this board provides four independent output channels, automatic battery switchover on power loss, and a real-time charge percentage display — all in a surface-mount form factor measuring just 73.5 × 63mm.
Made in Mainland China.
Key Features

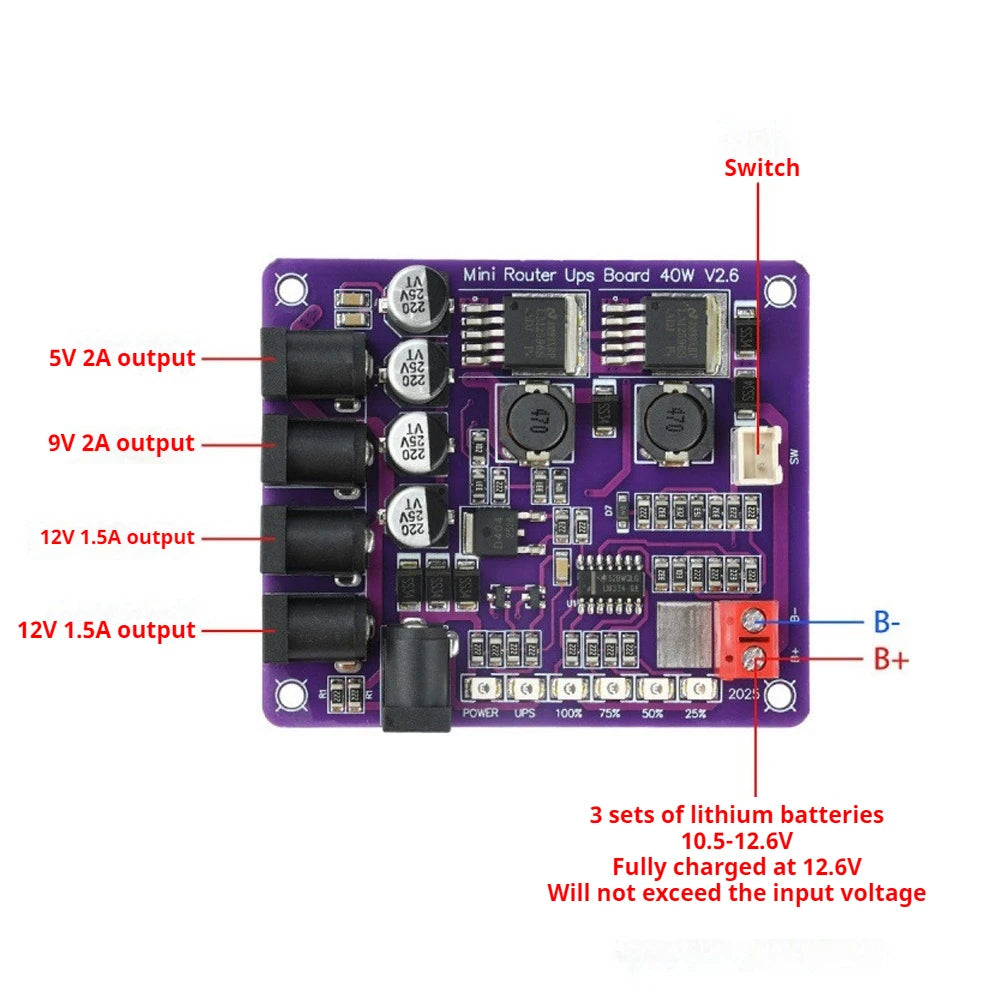

- 4 Independent Output Channels — Power multiple devices simultaneously with two 12V/1.5A ports, one 9V/2A port, and one 5V/2A port.
- Automatic Failover Switching — Fully surface-mount components enable seamless, near-instant switchover to battery power during an outage, ensuring continuous operation.
- High Power Output — Up to 40W continuous output with a peak capacity of 47.5W to handle demanding loads.
- Multi-Layer Protection — Built-in short-circuit, overvoltage, output overvoltage, and reverse polarity protection for worry-free operation.
- Battery Percentage Indicator — Four-stage LED indicator (100%, 75%, 50%, 25%) provides clear, at-a-glance battery status monitoring.
- High Output Accuracy — ±0.05V voltage tolerance with 99% output accuracy for stable, reliable power delivery.
Technical Specifications
| Parameter | Value |
|---|---|
| Port 1 Output | 12V / 1.5A |
| Port 2 Output | 12V / 1.5A |
| Port 3 Output | 9V / 2A |
| Port 4 Output | 5V / 2A |
| Input Power | DC 12.6V – 13.0V (2A–5A) |
| Max Output Power | 40W (peak 47.5W) |
| Output Voltage Tolerance | ±0.05V |
| Output Accuracy | 99% |
| Battery Type | 3S LiPo 18650 (11.1V nominal) |
| Battery Full Charge Voltage | 12.6V |
| Battery Undervoltage Cutoff | 10.5V |
| Battery Indicator Levels | 100%, 75%, 50%, 25% |
| Protection | Short circuit, overvoltage, reverse polarity, output overvoltage |
| Dimensions | 73.5 × 63mm |
What's in the Box

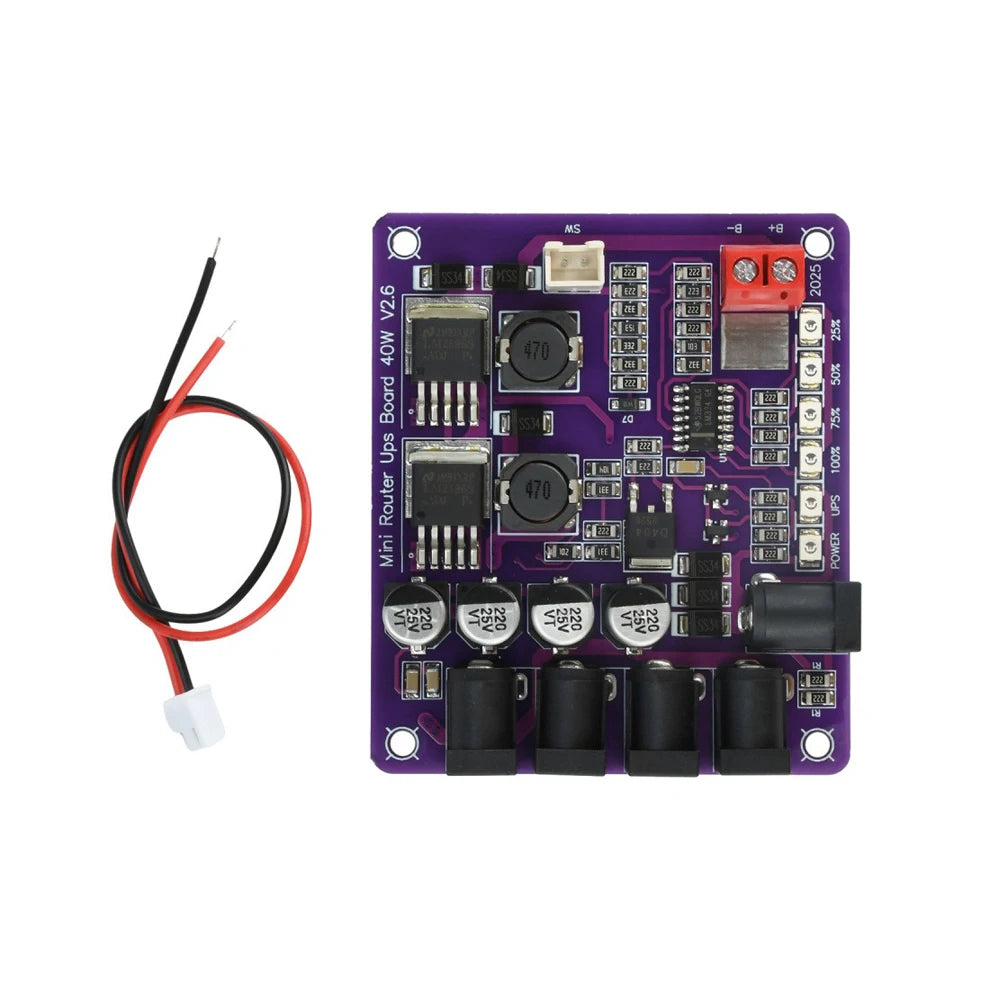

- 1× UPS Power Module Board
- 1× Cable
Please Note: Colors may vary slightly due to monitor settings. Allow 1mm–10mm tolerance due to manual measurement. Battery (18650 cells) is not included.
For general guidance on electrical safety when working with DIY electronics and power supplies, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What type of battery does this UPS power module use?
A: This UPS charging board is designed for a 3S LiPo 18650 battery pack (11.1V nominal). The module charges the battery to a full 12.6V and cuts off power at 10.5V to protect the cells from deep discharge. Note that batteries are not included.
Q: Can I power multiple devices at the same time with this board?
A: Yes. The module features four independent output channels — two at 12V/1.5A, one at 9V/2A, and one at 5V/2A — allowing you to run multiple devices simultaneously, such as a router, microcontroller, and peripheral, all from a single board.
Q: How quickly does the module switch to battery power during an outage?
A: The board uses automatic battery power switching with fully surface-mount components, enabling a near-instant failover so connected devices experience minimal to no interruption during a power failure — ideal for always-on applications like network equipment or monitoring systems.
Q: What protections are built into this UPS module?
A: The module includes short-circuit protection, high voltage (overvoltage) protection, reverse polarity protection, and output overvoltage protection, making it safe and resilient for a wide range of DIY electronics projects.
