36BL 25.2V 50W Internal Rotor Brushless Motor with Neodymium Magnets

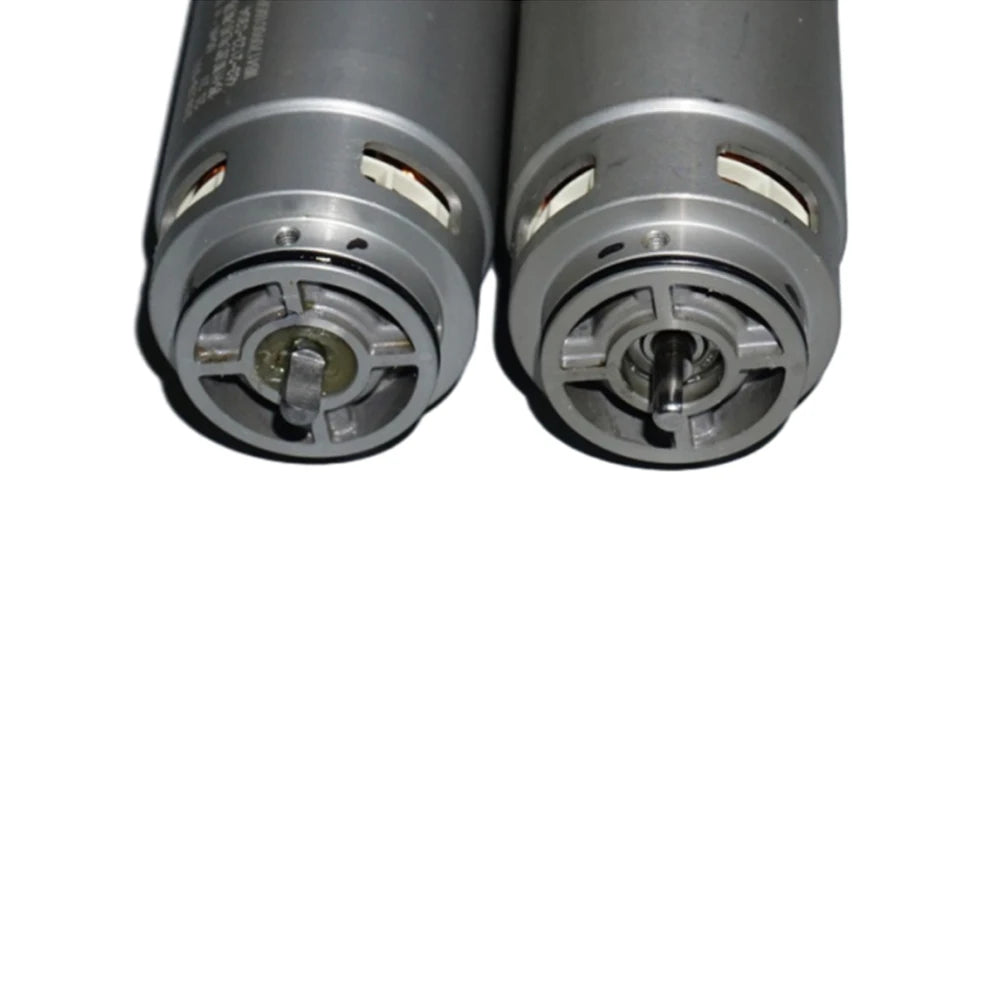

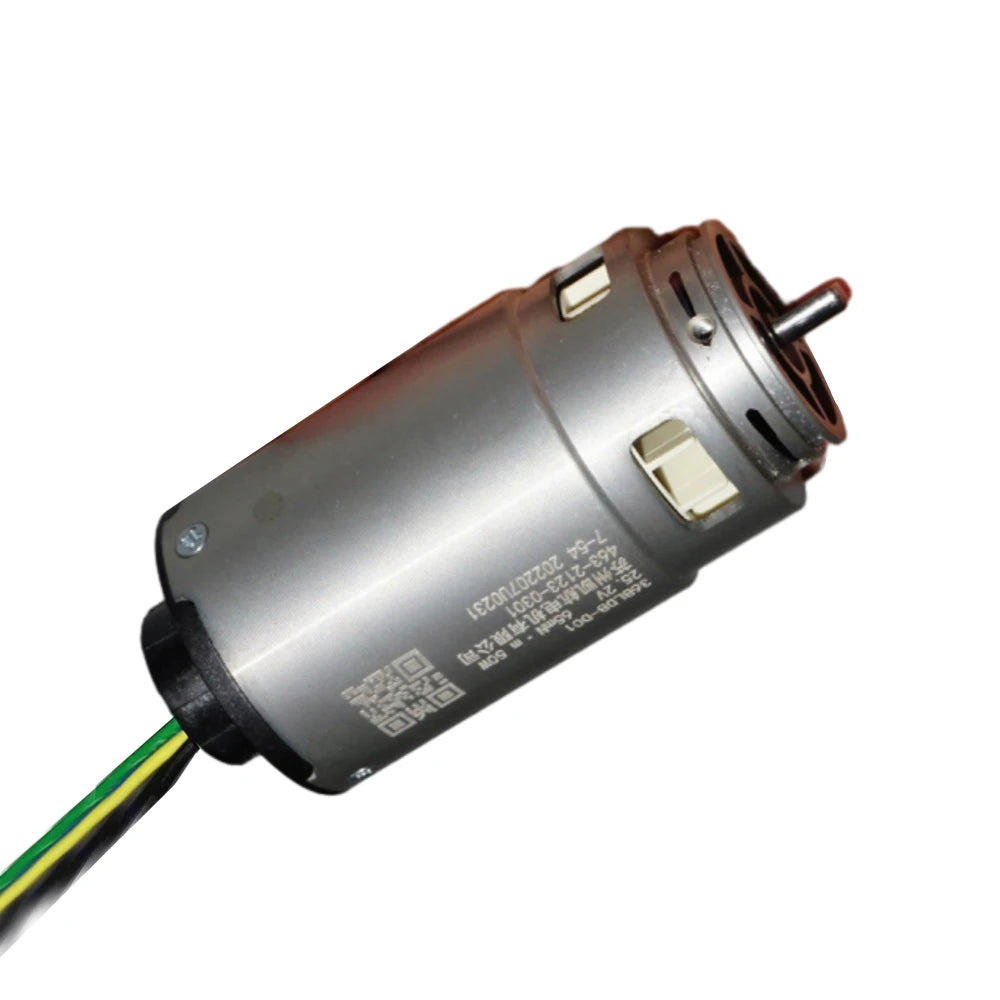

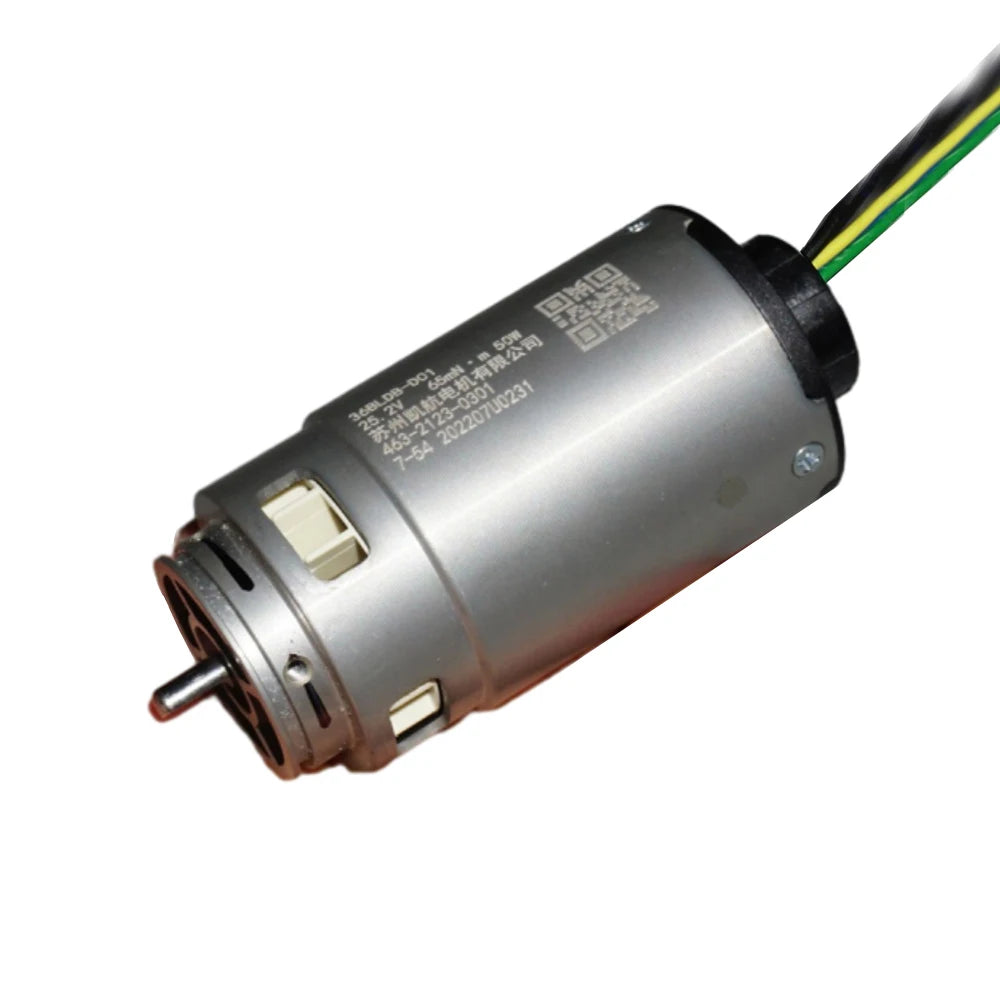

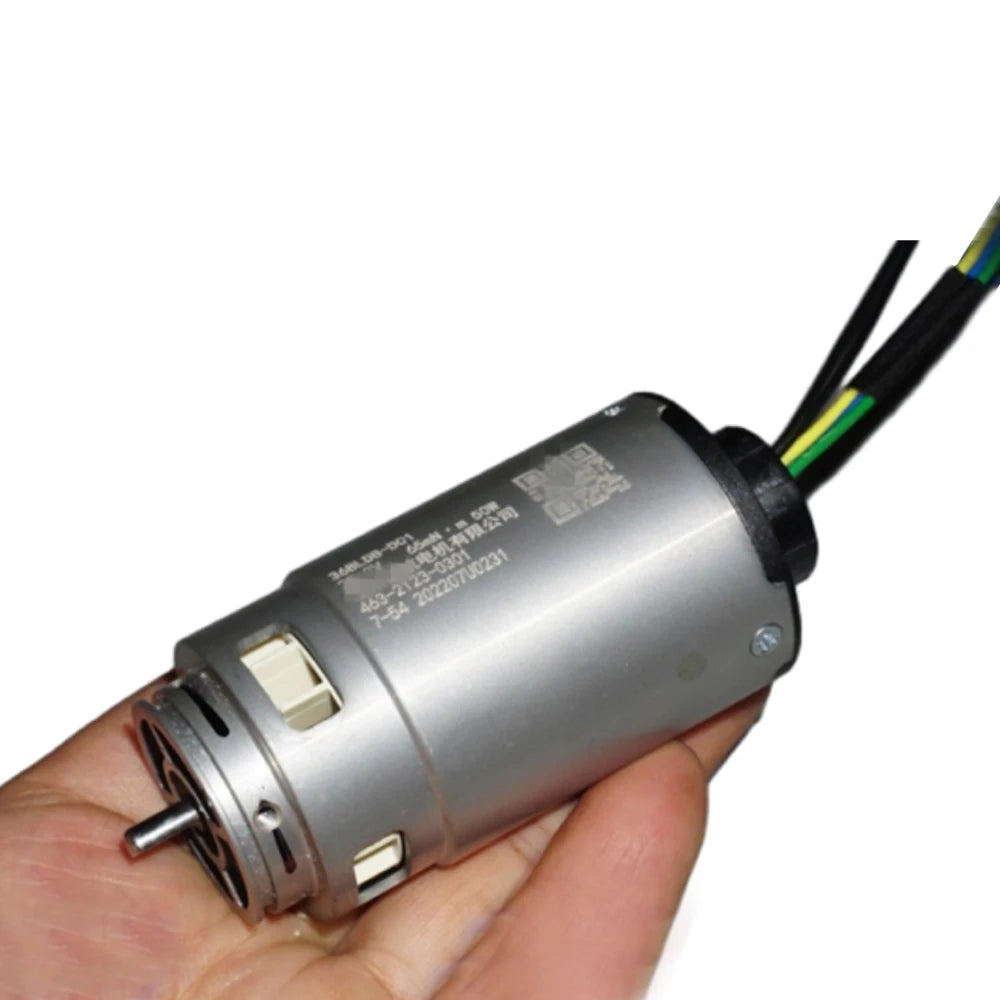

Upgrade your next project with this high-performance 36BL internal rotor brushless motor. Engineered with a precision-machined aluminium alloy shell, super-strong 3.5mm neodymium magnets, and front and rear ball bearings, this motor delivers exceptional torque and smooth, reliable operation across a wide voltage range. Whether you're building an automation system, robotics project, or custom power tool, this motor is built to perform.
Made in Mainland China.
Key Specifications
- Motor Model: 36BL Inner Rotor Brushless Motor
- Rated Voltage: 25.2V
- Output Power: 50W
- Operating Voltage Range: 12V – 24V (measured with brushless ESC)

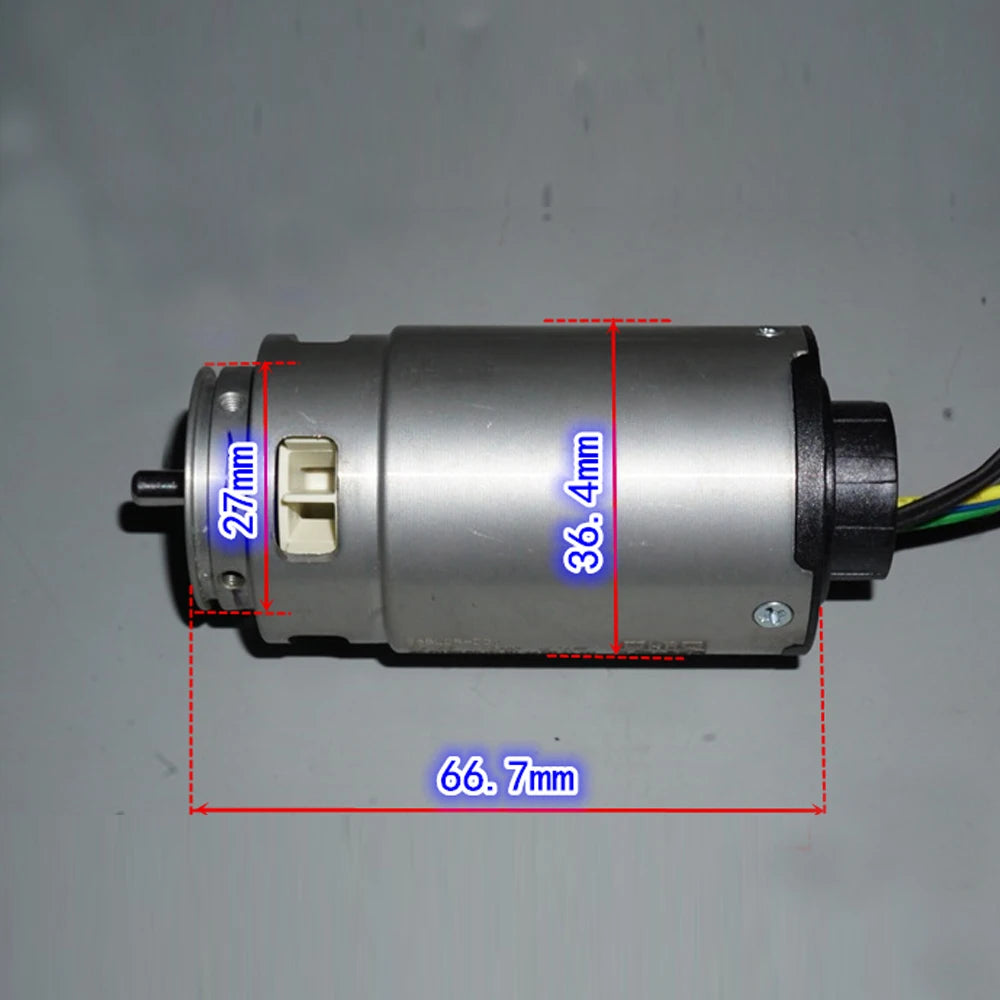

- Motor Diameter: ~36mm
- Motor Weight: ~205 grams
- Magnet Type: Super Thick 3.5mm Neodymium (Strong Magnetic Force)
- Shell Material: Aluminium Alloy
- Bearings: Front & Rear Ball Bearings
- Built-in Cooling Fan: Yes
Performance Data
- At 12V: No-load current 0.2A | No-load max speed 3,400 RPM
- At 24V: No-load current 0.25A | No-load max speed 6,900 RPM
Important Notes

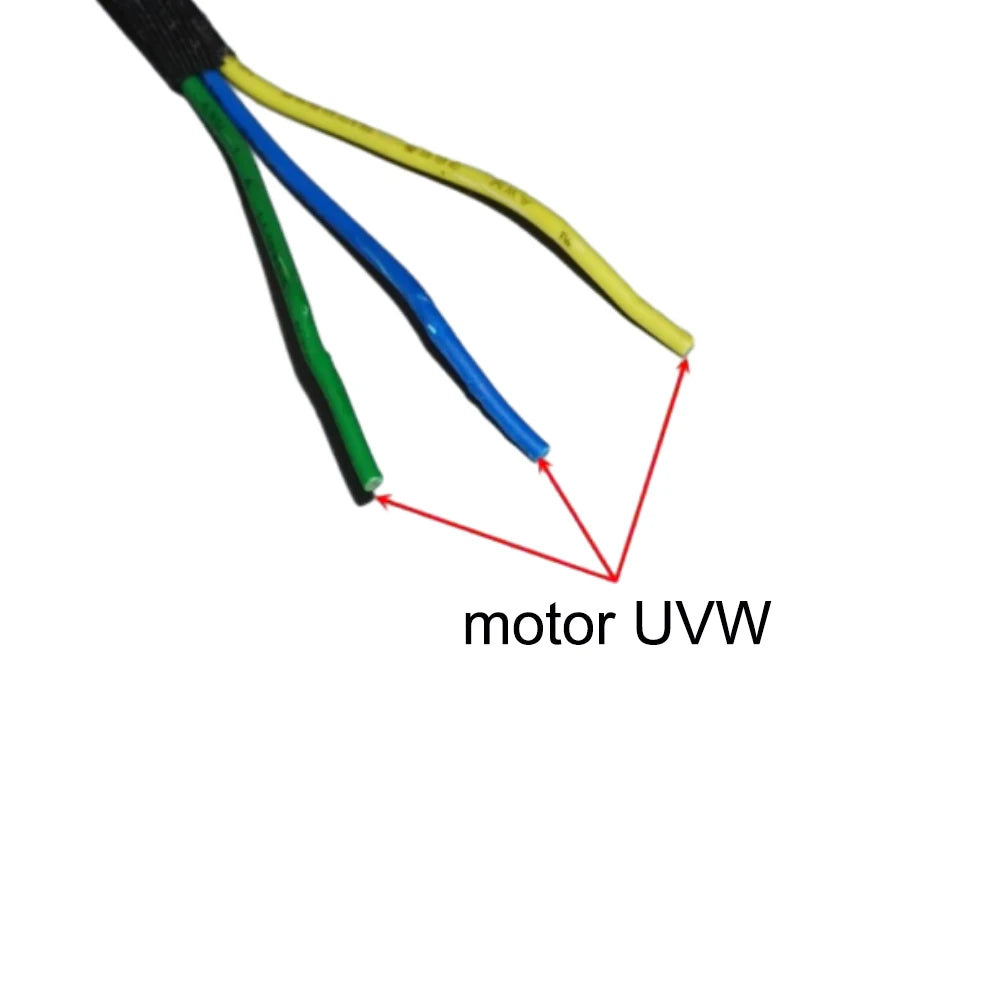

- This motor does not include a brushless drive circuit. A compatible brushless ESC (electronic speed controller) or Hall-type brushless driver is required and must be sourced separately.
- Driver compatibility varies — test with your specific controller before full integration.
- Color may appear slightly different due to display/screen variation.
- Please allow ±1–10mm variance due to manual measurement.
What's in the Box?
- 1× 36BL Brushless Motor
Why Choose This Brushless Motor?
Brushless motors offer significant advantages over traditional brushed designs — longer service life, reduced maintenance, lower electromagnetic interference, and higher efficiency. The neodymium magnet core of this 36BL motor ensures a strong magnetic field for consistent torque even at lower voltages, while the aluminium alloy housing provides effective heat dissipation during extended operation.
For more information on motor types and electrical motor standards, visit NIST – Electrical Standards & Technology.
Frequently Asked Questions
Q: What voltage range can the 36BL brushless motor operate at?
A: The motor is rated at 25.2V but has been tested and confirmed to run on brushless ESC at 12V–24V. At 12V it reaches up to 3,400 RPM (no load), and at 24V it reaches up to 6,900 RPM (no load).
Q: Does this brushless motor come with a driver or ESC?
A: No. This motor does not include a brushless drive circuit. You will need to supply a compatible brushless ESC or Hall-type brushless driver separately. Compatibility can vary by controller, so testing before integration is recommended.
Q: What makes the neodymium magnets in this motor special?
A: This motor uses super-thick 3.5mm neodymium magnets, which are among the strongest permanent magnets available. This results in a more powerful magnetic field, contributing to the motor's high torque output and overall efficiency.
Q: Is this motor suitable for robotics or DIY automation projects?
A: Yes. The compact 36mm diameter, light weight (~205g), wide operating voltage range, and high torque make this motor an excellent choice for robotics, automation systems, custom power tools, and other DIY electromechanical applications.
