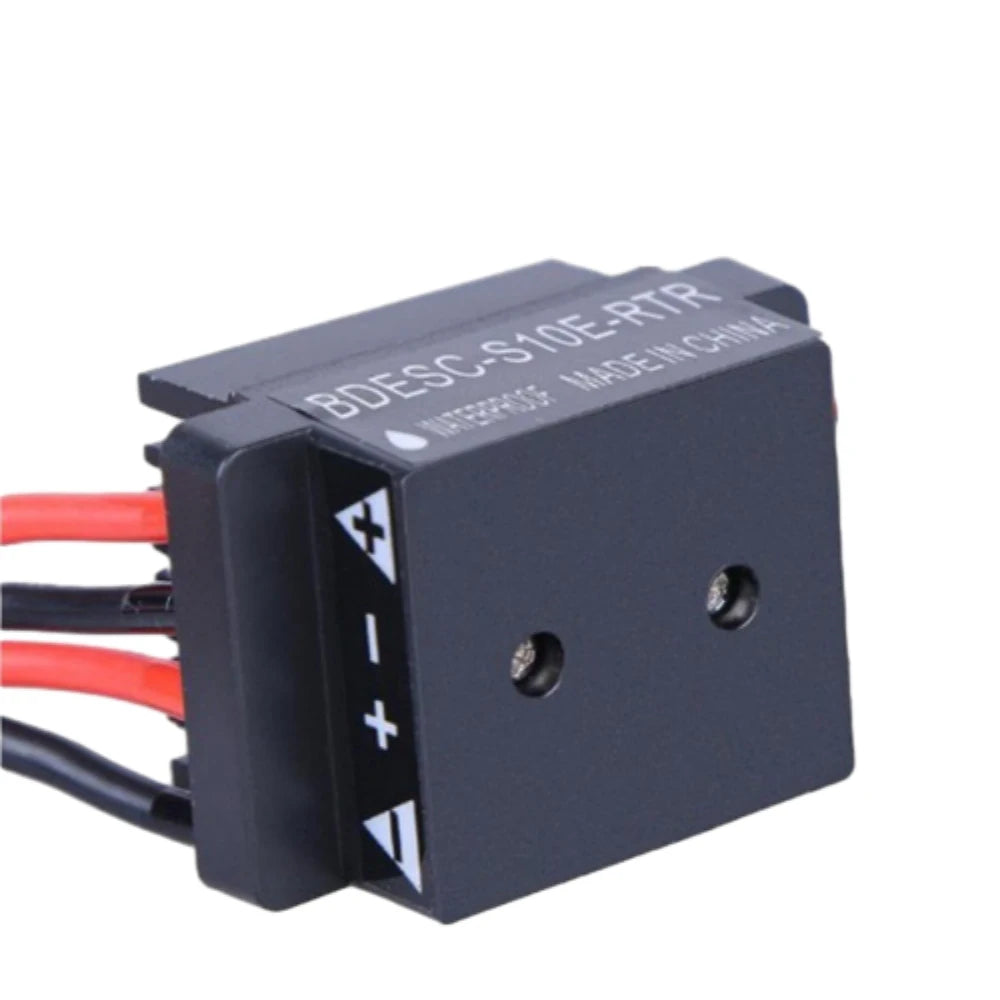

320A Brushed Electronic Speed Controller (ESC) for RC Cars & Boats
Take your RC car or boat builds to the next level with this high-performance 320A Brushed Electronic Speed Controller (ESC). Designed for serious hobbyists and RC enthusiasts, this dual-direction ESC delivers massive current capacity, automatic center-finding, and a built-in BEC output — all in a compact, waterproof-ready package. Compatible with 3S lithium battery packs as well as NiMH and NiCd battery types, it offers remarkable versatility for a wide range of RC vehicles and watercraft models. Made in Mainland China.
Key Features
- Automatic Center Finding: Automatically locates the neutral/center position at startup, making calibration quick and hassle-free for hobbyists of all skill levels.
- High Current Capacity: Handles 320A forward, 160A reverse, and 270A braking current — built for high-performance RC vehicles and boats.
- Advanced BEC Output: Integrated 5.6V / 2A Battery Eliminator Circuit (BEC) provides stable, regulated power directly to your receiver and steering servo.
- Wide Battery Compatibility: Supports 4–6 cell NiMH/NiCd packs (4.8V–7.2V) and 3S lithium battery packs (7.4V–11.1V) for maximum flexibility.

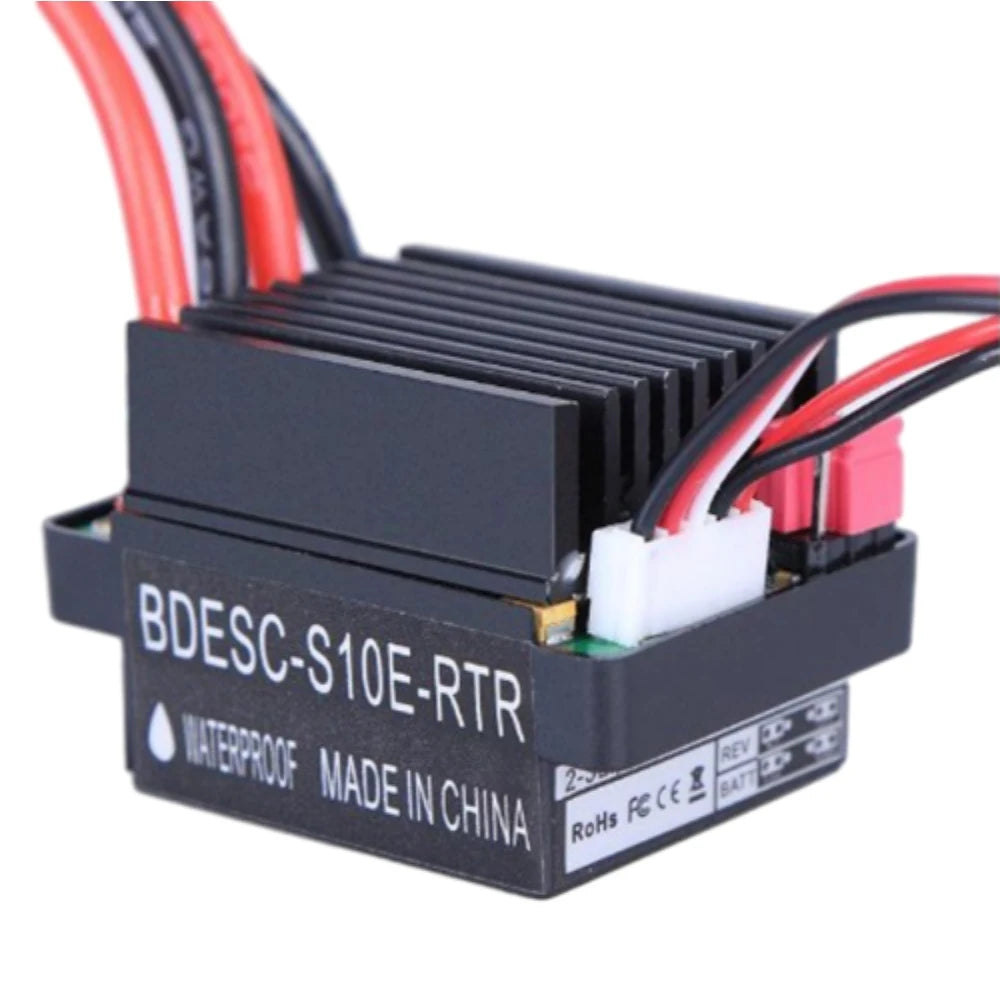

- Efficient Cooling System: Onboard aluminum cooling fins help dissipate heat during extended, high-intensity runs — keeping your ESC running at peak performance.
- Waterproof Function: Built with waterproof protection, making it suitable for RC boat applications and wet outdoor environments.
- Bi-Directional Control with Braking: Full two-way speed regulation with integrated electronic braking for precise throttle management.
Specifications
- Type: 320A Two-Way Brushed Electronic Speed Controller with Braking (Waterproof)
- Battery Support: 4–6 cell NiMH/NiCd (4.8V–7.2V); 3S Lithium (7.4V–11.1V)
- Current Ratings: Forward 320A | Reverse 160A | Brake 270A
- BEC Output: 5.6V / 2A
- Dimensions: 43mm × 29mm × 27mm (including heat sink)
- Material: Rubber housing with aluminum heat sink fins
Operation Guide

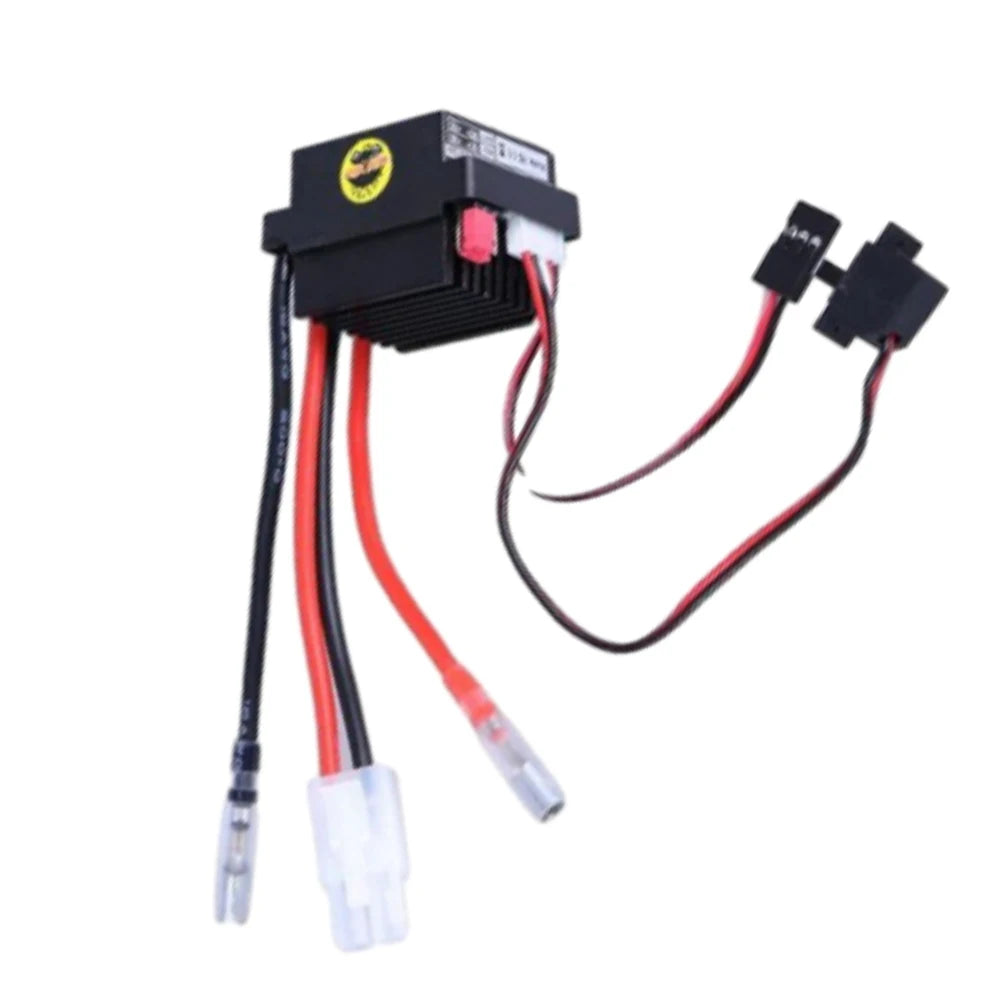

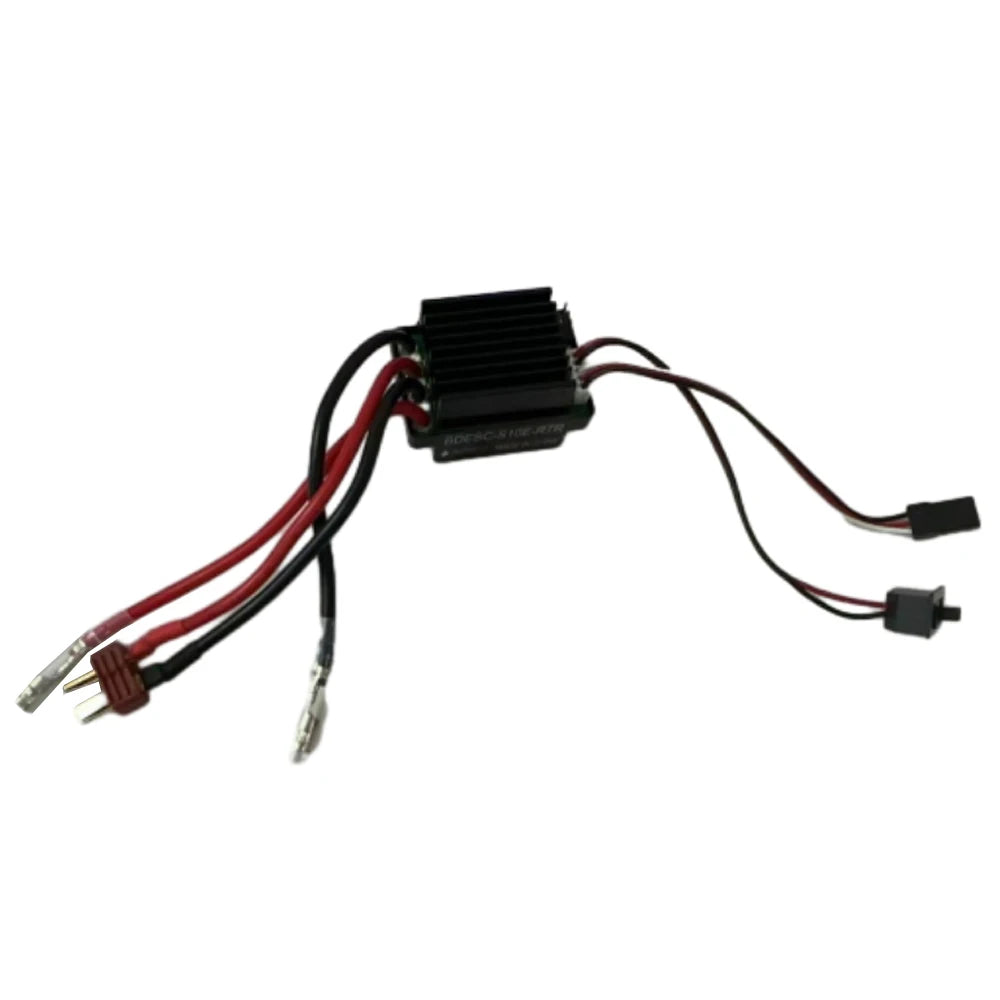

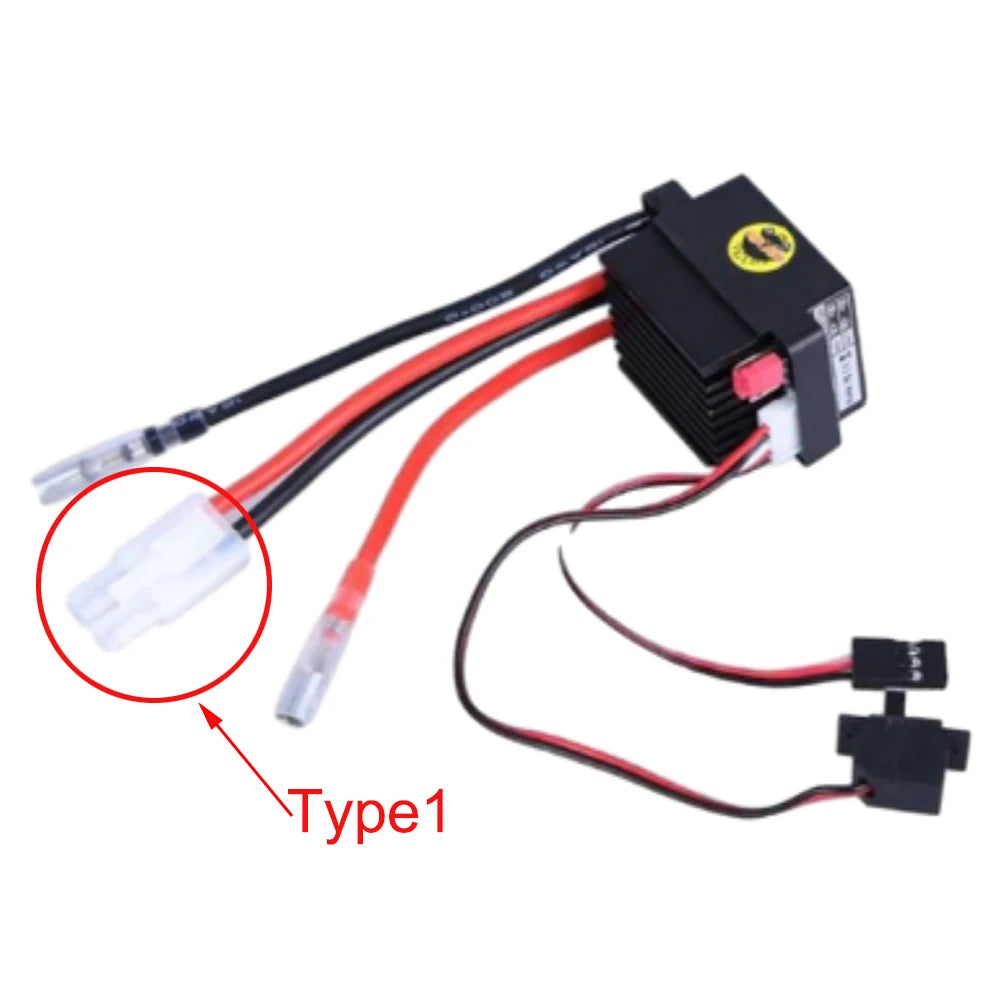

- Connect the battery correctly — red wires are positive (+) and black wires are negative (−). Compatible with standard DC battery plugs, Deans (T-plug) connectors.
- Connect the motor output leads (red and black) to your 540-type brushed motor's corresponding terminals.
- Turn on the ESC power switch. The motor will emit a "beep." Then power on your transmitter. A "Do–Mi" tone sequence confirms the RC signal has been successfully linked.
- Important: When using a lithium battery pack, ensure the jumper/hat settings are correctly configured according to the battery type to prevent damage to the ESC.
What's in the Box
- 1× 320A Brushed Electronic Speed Controller (ESC)
Notes
- Colors may appear slightly different due to lighting conditions and monitor settings.
- Please allow ±1mm–1cm measurement variance due to manual measuring methods.
For general RC hobby safety guidance and electronics handling best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is this 320A brushed ESC compatible with 3S lithium battery packs?
A: Yes! This ESC fully supports 3S lithium battery packs (7.4V–11.1V), as well as 4–6 cell NiMH and NiCd battery packs (4.8V–7.2V). Just make sure the jumper/hat settings on the ESC are configured to match your chosen battery type before use.
Q: Can I use this ESC for both RC cars and RC boats?
A: Absolutely. This brushed ESC is designed for use with both RC cars and RC boat models. Its waterproof function makes it particularly well-suited for aquatic applications, while the high 320A forward current handles the demands of high-performance RC vehicles on land as well.
Q: What type of motor is this ESC designed for?
A: This is a brushed motor ESC — it is specifically designed for use with brushed DC motors such as the common 540-type brushed motor used in many RC cars and boats. It is NOT compatible with brushless motors.
Q: Does this ESC include a BEC, and what does that mean for my RC setup?
A: Yes, it includes an integrated BEC (Battery Eliminator Circuit) outputting 5.6V at 2A. This means the ESC powers your RC receiver and steering servo directly from the main battery pack — eliminating the need for a separate receiver battery and simplifying your build.
