30A RC PWM Forward/Reverse Control Relay Module — HC-30ASP
Take precise command of your RC model motors with the HC-30ASP 30A RC PWM Relay Module. Built around two heavy-duty 30A relays, this compact module translates standard RC PWM signals into reliable forward and reverse motor control — perfect for RC cars, boats, crawlers, and custom DC motor projects operating between 10V and 60V.
Key Features
- Dual 30A Relays — Handles demanding motor loads up to 30A per relay for robust, dependable switching.
- Wide Voltage Range — Compatible with input voltages from 10V to 60V DC (maximum board voltage 80V); suits a broad range of battery packs.
- Standard PWM Signal Input — Accepts RC-standard positive pulse width signals from 0.8ms to 2.2ms; activates when signal is <1.3ms or >1.7ms for clear, noise-resistant triggering.
-
Two Model Options:

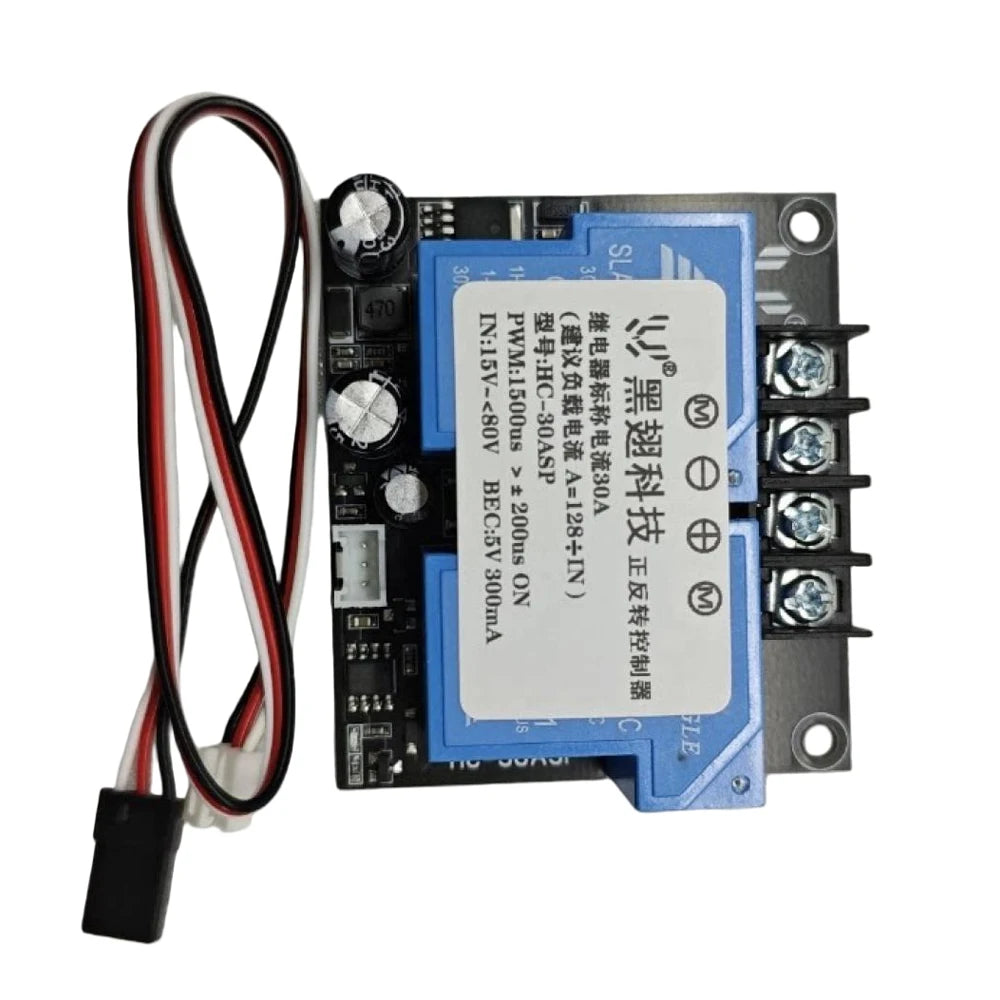

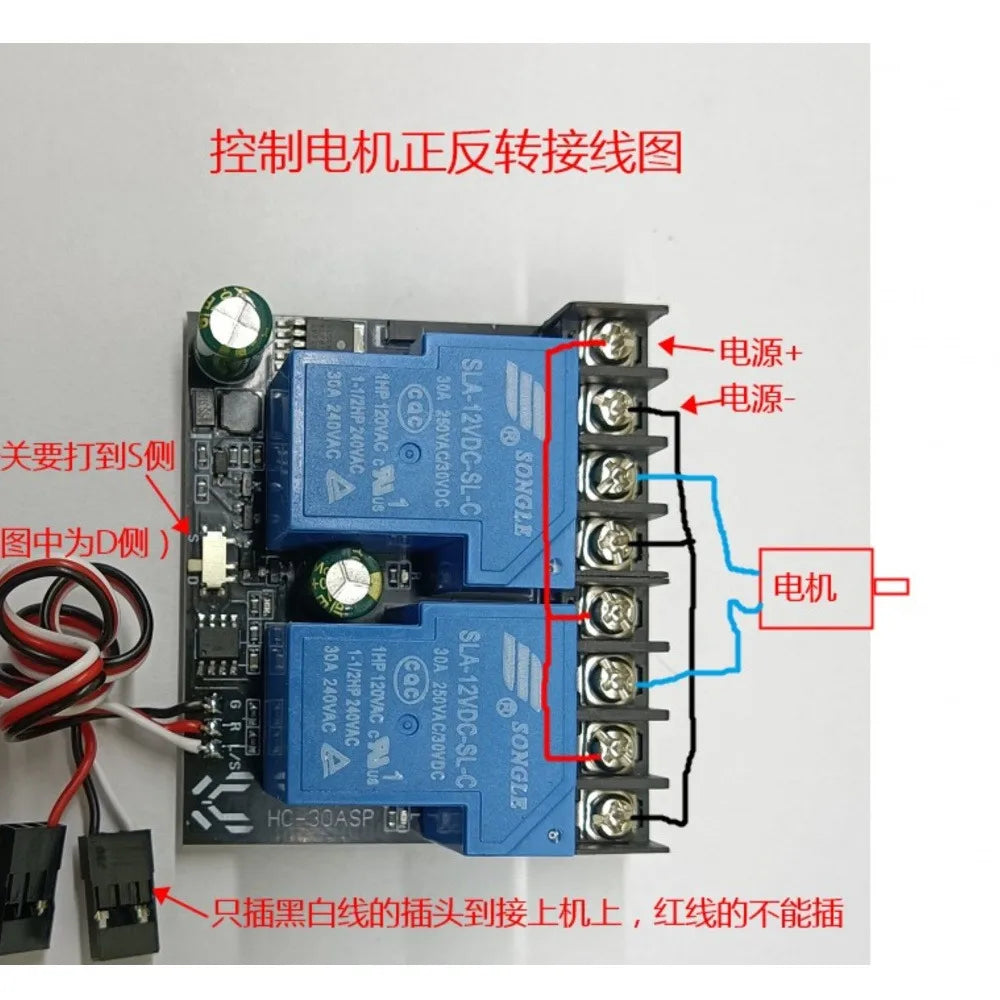

- 4-Interface Model — Straightforward forward/reverse motor control. Center terminals (+/−) connect to your battery; side M terminals connect to the motor.
-
8-Interface Model — Two switchable working modes via onboard switch:

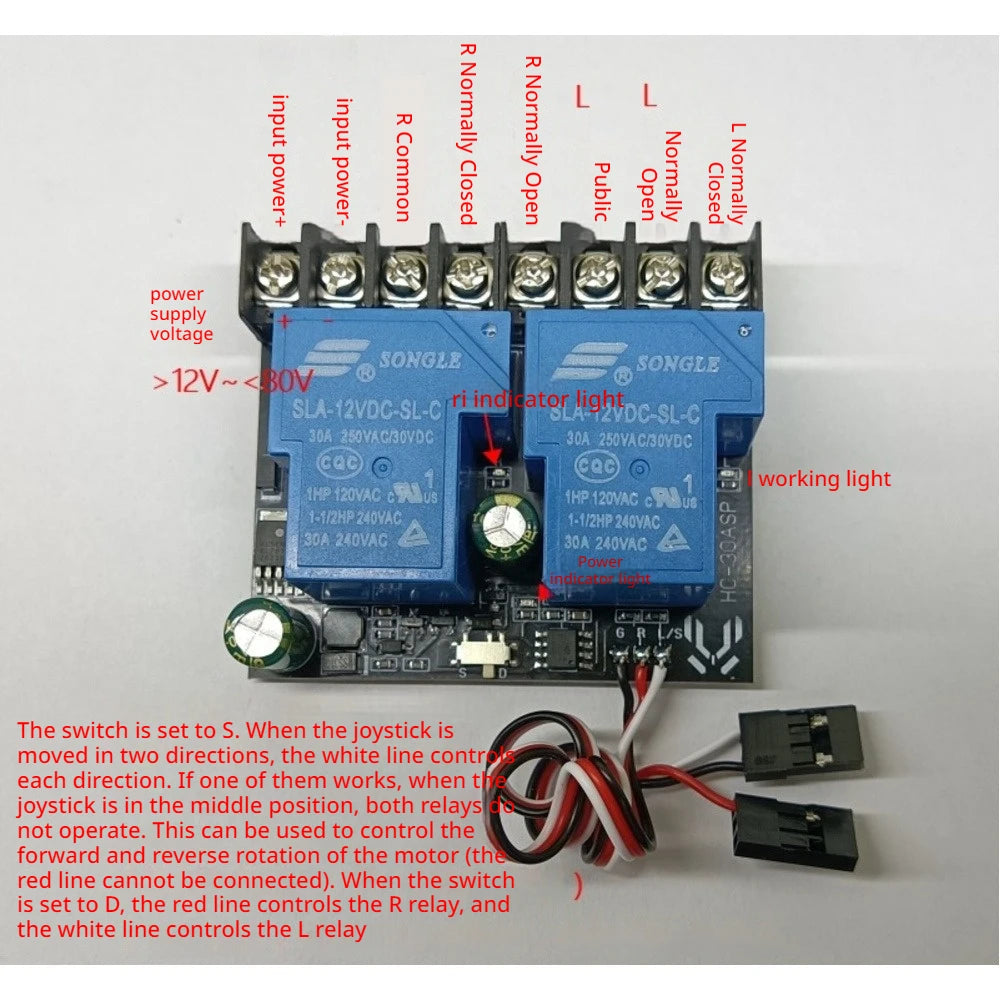

- D Mode: Two independent signal lines each control one relay independently.
- S Mode: Single white signal line toggles between L and R relays for forward/reverse motor direction switching.

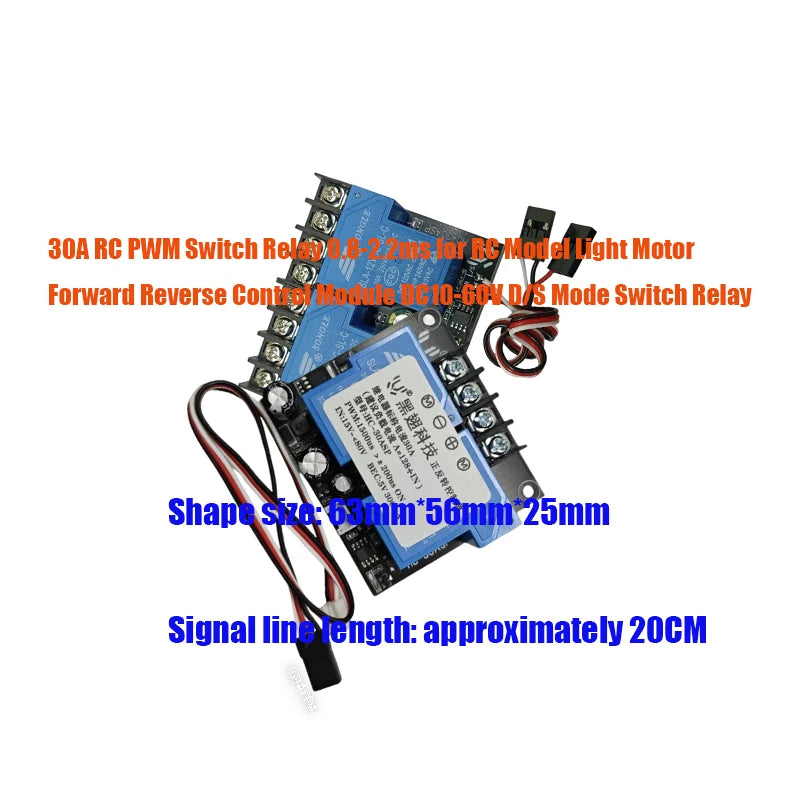

- Compact Form Factor — Measures just 63mm × 56mm × 25mm; easy to integrate into tight RC chassis builds.
- Convenient Signal Lead — Approximately 20cm signal line included for easy receiver connection.
Specifications
| Relay Rating | 30A × 2 |
| Input Voltage | 10V – 60V DC (max board voltage 80V) |
| PWM Signal Range | 0.8ms – 2.2ms |
| Activation Threshold | <1.3ms or >1.7ms |
| Dimensions | 63mm × 56mm × 25mm |
| Signal Line Length | ~20cm |
| Country of Origin | Made in China |
What's in the Box
- 1× HC-30ASP Switch Relay Module
Important Notes
- Due to lighting and screen variations, the actual item color may differ slightly from product images.
- Please allow 1mm–1cm variance due to manual measurement.
Learn More About Electrical Safety
For best practices when working with DC electrical components, visit the OSHA Electrical Safety Resource for guidance on safe wiring and handling of electrical equipment.
Frequently Asked Questions
Q: What is the maximum current this RC PWM relay module can handle?
A: The HC-30ASP relay module uses two 30A relays, so each relay channel can handle up to 30A. Ensure your motor's current draw stays within this rating for reliable, long-term operation.
Q: What battery voltage range is compatible with this relay module?
A: The module supports input voltages from 10V to 60V DC. The absolute maximum board voltage is 80V, but the recommended maximum battery voltage is 60V for safe and stable performance.
Q: What is the difference between the 4-interface and 8-interface models?
A: The 4-interface model is designed exclusively for simple forward and reverse motor control using one PWM signal. The 8-interface model adds a mode switch: D mode lets two signal lines independently control two relays, while S mode uses a single signal line to toggle the motor direction — giving you more flexibility for complex RC builds.
Q: Which RC receivers is this module compatible with?
A: This module is compatible with any standard RC receiver that outputs a PWM signal in the 0.8ms to 2.2ms range — which covers the vast majority of hobby-grade RC transmitter/receiver systems (e.g., 2.4GHz RC controllers used for cars, boats, and crawlers).
