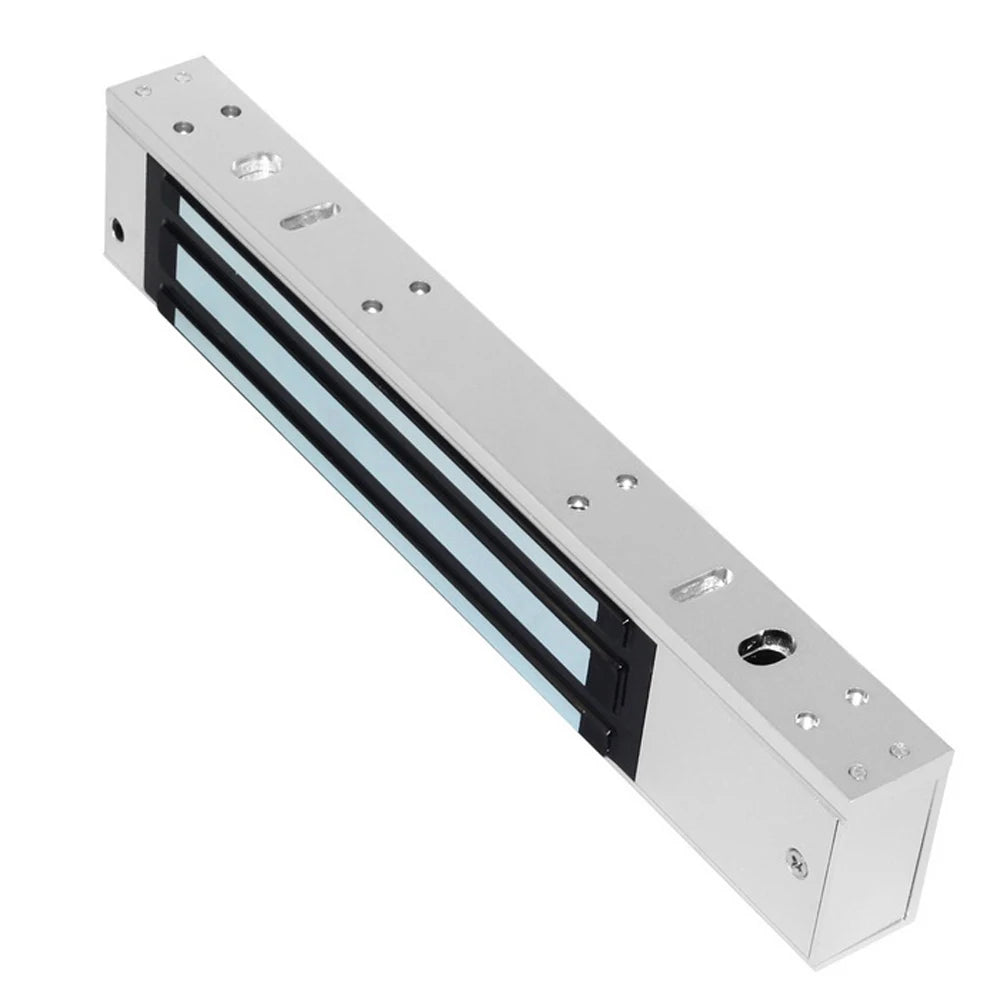

280KG / 600lbs Electromagnetic Door Lock — DC 12V Single Door Access Control
Secure any entry point with confidence using this heavy-duty 280KG (600lbs) Electromagnetic Door Lock. Designed for commercial and residential access control applications, this DC 12V electric magnetic lock delivers rock-solid holding force with a sleek, corrosion-resistant aluminum housing. Compatible with a wide range of door types and access control systems, it's a reliable solution for offices, apartments, warehouses, and more.
Made in Mainland China.
Key Features
- Powerful 280KG (600lbs) Holding Force — Magnetic power secures the door firmly while energized, providing strong, dependable access control.

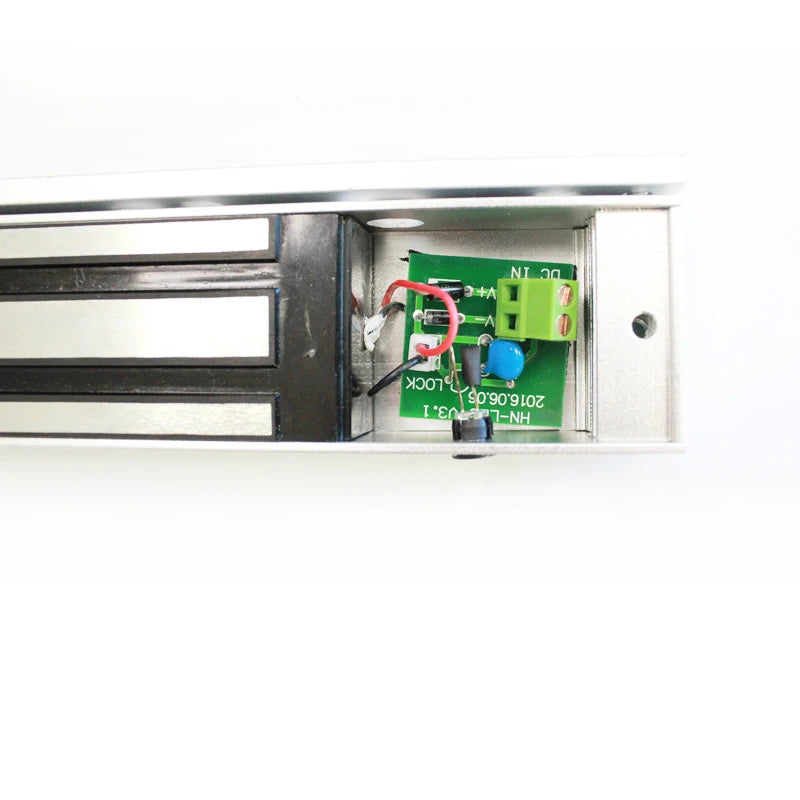

- Built-In Reverse Current Protection (MOV) — Internal metal oxide varistor protects the circuit and extends the lifespan of your lock and connected devices.
- High-Strength Anodized Aluminum Shell — Hard anodized processing makes the housing tough, scratch-resistant, and corrosion-resistant for long-lasting performance.
- Broad Door Compatibility — Fits wooden, metal, glass, fireproof, and other standard door types.
- Flexible Access Control Integration — Can be operated via push button, remote controller, keypad, card reader, or other standard access control accessories.
- Power-On to Lock Mode — Lock engages when power is applied; door releases instantly when power is cut, ideal for fail-safe setups.
- Wide Operating Range — Rated for temperatures from -10°C to 55°C (14°F to 131°F) and humidity from 0% to 95%.
Technical Specifications
| Holding Force | 280 kg / 600 lbs |
| Operating Voltage | DC 12V |
| Current Draw | 380–430 mA |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Humidity | 0% to 95% |
| Working Mode | Power-On to Lock |
| Shell Material | Hard Anodized Aluminum |
| Model Number | LK09 280Kg Magnetic Lock |

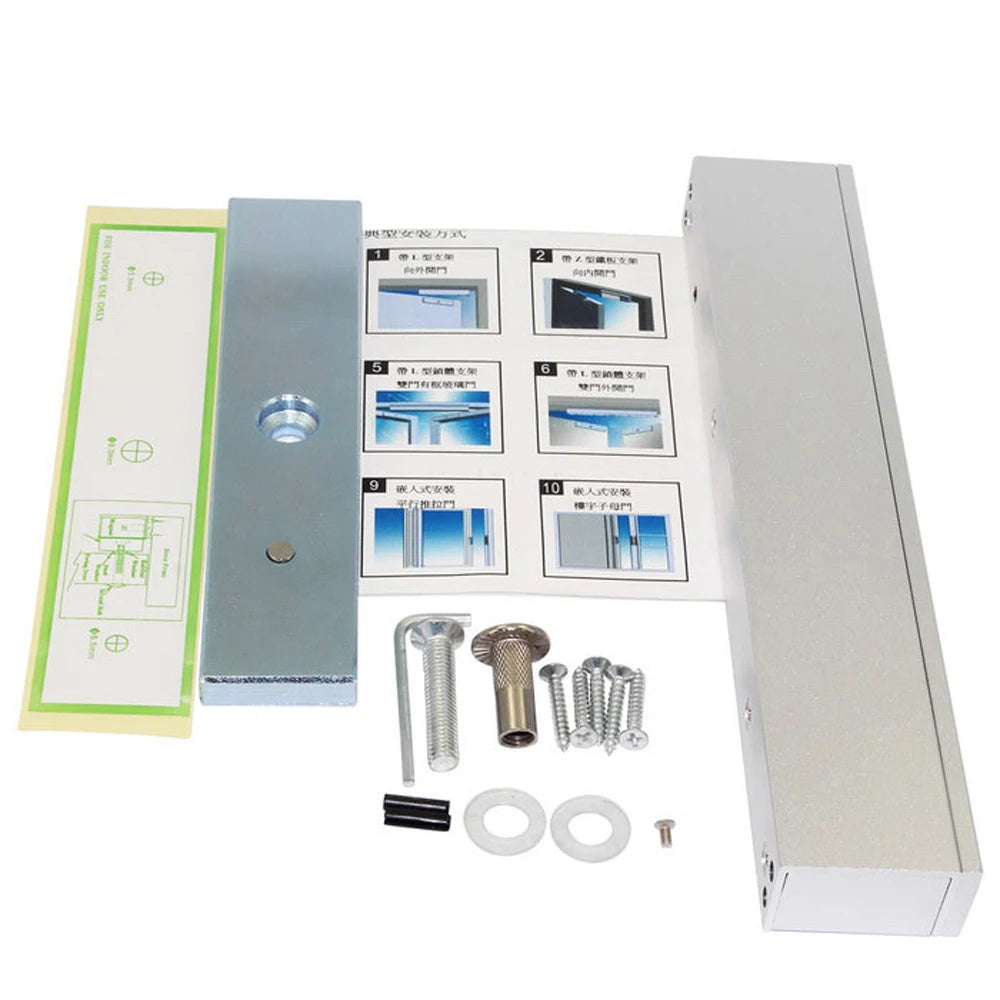

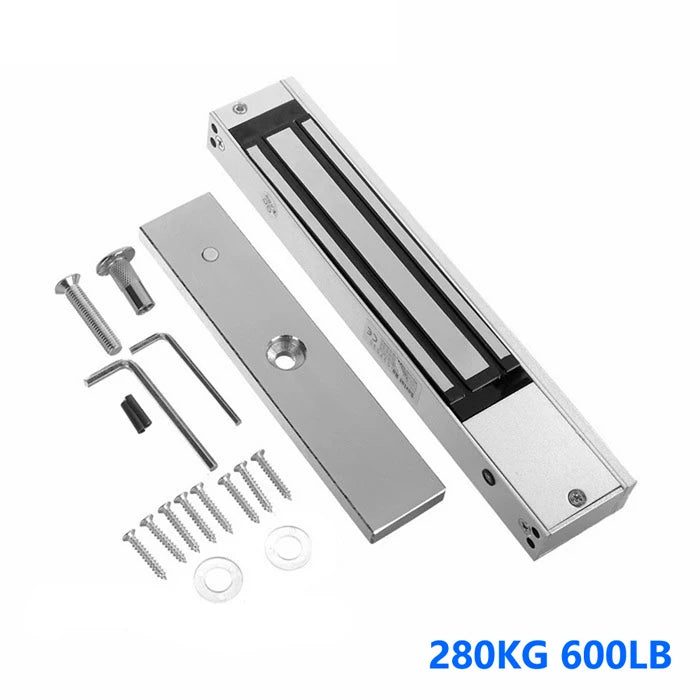

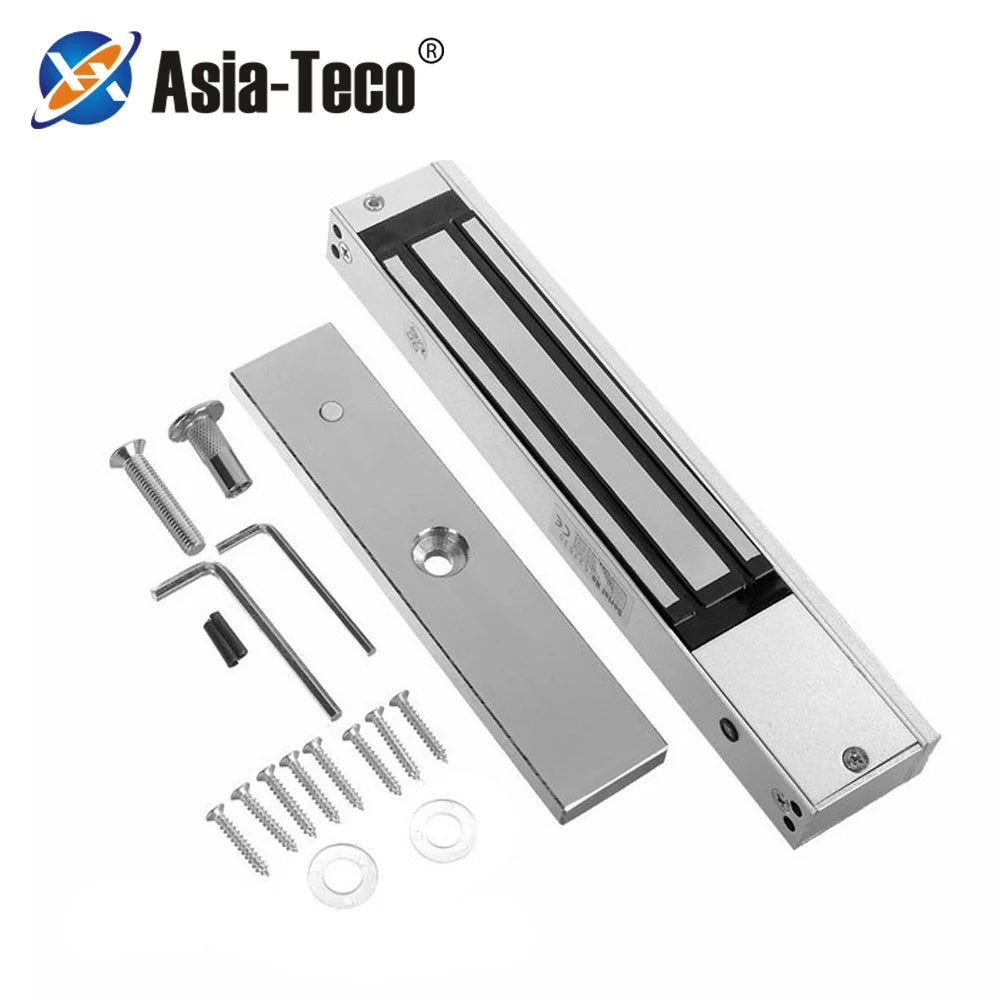

What's in the Box
- 1× Electromagnetic Magnetic Lock
- 1× Armature Plate
- 1× Installation Hardware Kit
- 1× Mounting Pad
Learn More About Access Control & Door Security
For guidance on electronic security systems and best practices for securing entryways, visit the U.S. Consumer Product Safety Commission (CPSC) Home Safety Guide.
Frequently Asked Questions
Q: What types of doors is this electromagnetic lock compatible with?
A: This 280KG electromagnetic door lock is compatible with a wide range of door types, including wooden doors, metal doors, glass doors, and fireproof doors. As long as the armature plate can be mounted flush against the lock body, it will work effectively.
Q: How does a power-on electromagnetic lock work in a power outage?
A: This lock operates in "power-on to lock" (fail-safe) mode, meaning it holds the door shut when electricity is supplied. In the event of a power outage, the magnetic field is released and the door can be opened freely — an important safety feature for emergency egress compliance.
Q: Can I connect this lock to my existing access control system?
A: Yes. This DC 12V electromagnetic lock is designed to integrate seamlessly with standard access control systems including keypad controllers, card readers, push-button exits, remote controllers, and more. Simply wire it into your control panel's 12V output circuit.
Q: What does the built-in MOV (reverse current protection) do?
A: The Metal Oxide Varistor (MOV) protects the lock's internal electronics and your connected access control equipment from voltage spikes that occur when power to the electromagnet is cut. This helps extend the overall life of the lock and prevents damage to your system.
Q: What is the current draw of this electromagnetic lock?
A: The lock draws between 380–430 mA at DC 12V during normal operation. Be sure your power supply can handle this load, especially if you are running multiple locks or other access control devices on the same supply.
