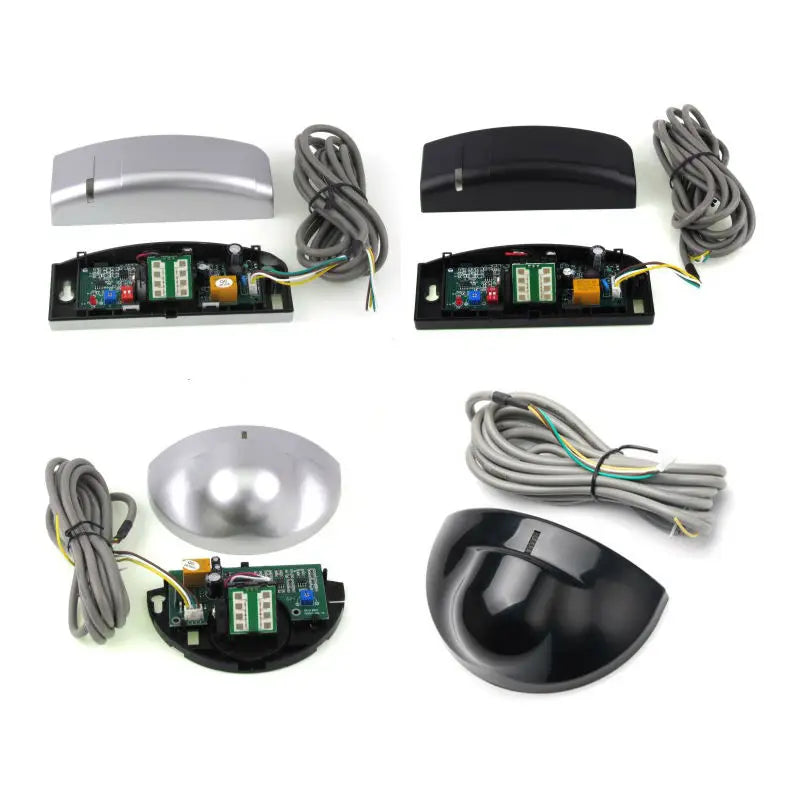

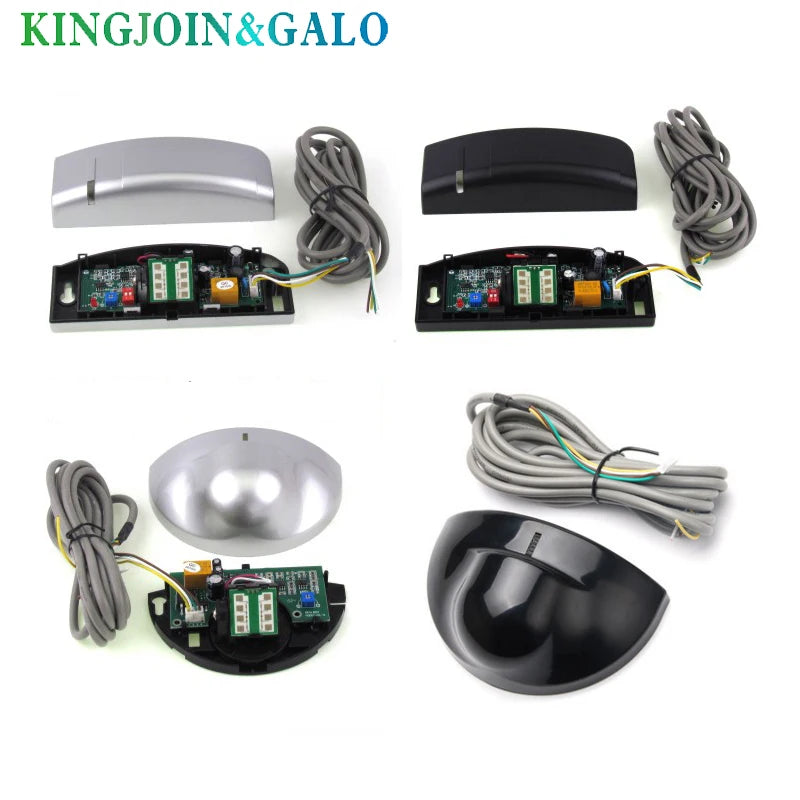

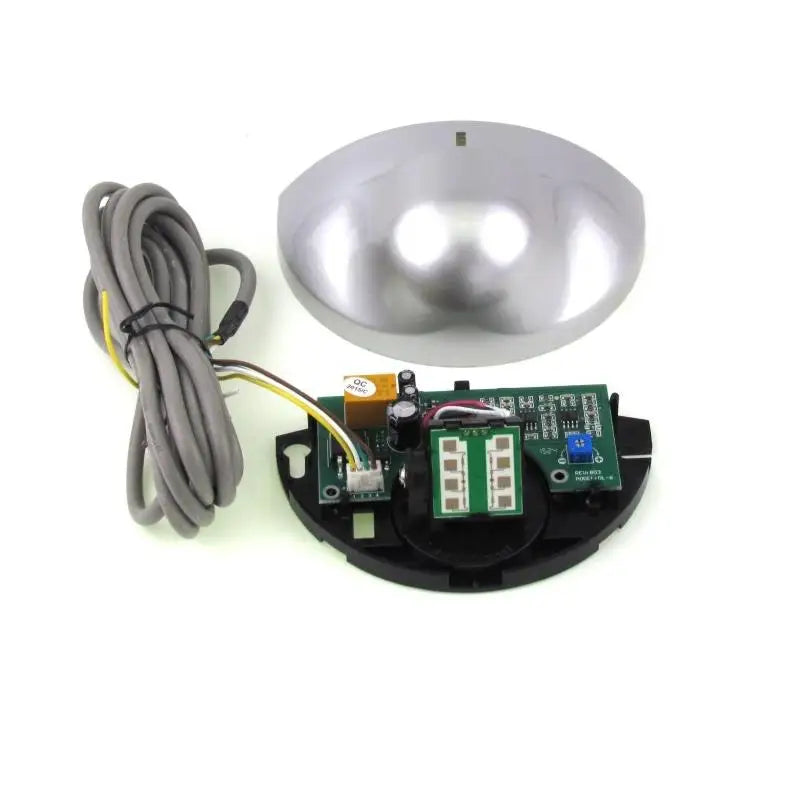

24.125GHz Microwave Motion Sensor for Automatic Sliding Doors
24.125GHz Microwave Motion Sensor for Automatic Sliding Doors
24.125GHz Microwave Motion Sensor for Automatic Sliding Doors
Upgrade your automatic sliding glass door system with this precision-engineered 24.125GHz microwave motion sensor. Designed for reliable, hands-free door activation, this sensor delivers fast 0.5-second detection and a wide 4 × 2 m detection zone — making it ideal for commercial entryways, retail stores, offices, and public buildings. CE-certified and built with durable ABS material with an IP54 weather-resistance rating, this sensor is built to perform consistently in demanding environments.
Key Features
- 24.125GHz Microwave Technology — Advanced radar-based motion detection for accurate, interference-resistant performance
- Wide Detection Zone — 4 m × 2 m coverage range ensures no pedestrian is missed
- Fast Response — 0.5-second detection time for smooth, seamless door operation
- Flexible Mounting — Install at up to 4 m height; adjustable 0–90° vertically and ±30° horizontally
- Broad Voltage Compatibility — Operates on AC 42V to DC 60V (standard DC 12V–36V)
- Low Power Draw — Only 2W consumption for energy-efficient continuous operation
- IP54 Rated — Splash-proof and dust-resistant for indoor and semi-outdoor use
- CE Certified — Meets European safety and electromagnetic compatibility standards
- Compact & Durable — ABS housing, dimensions: 12 × 8 × 5 cm
- Wired Connection — Stable, direct wiring for consistent, uninterrupted signal
Technical Specifications
| Sensor Type | Microwave (24.125GHz) |
| Detection Range | 4 m × 2 m |
| Detection Time | 0.5 seconds |
| Mounting Height | Up to 4 meters |
| Mounting Angle | 0–90° (vertical), ±30° (horizontal) |
| Operating Voltage | AC 42V – DC 60V (standard DC 12V–36V) |
| Power Consumption | 2W |
| Signal Density | <5 mW/m²; Sending power <20 dBm EIRP |
| IP Rating | IP54 |
| Material | ABS Plastic |
| Dimensions | 12 × 8 × 5 cm |
| Connection Type | Wired |
| Certification | CE |
| Country of Origin | Made in China |
Ideal Applications
- Automatic sliding glass door systems in retail, hospitality, and commercial buildings
- Supermarket and shopping mall entrances
- Office lobby automatic doors
- Semi-outdoor entryways requiring IP54 protection
For more information on radar-based sensor technology and safety standards, visit the NIST Electromagnetic Compatibility Resources. For general electrical safety guidelines, see the U.S. Consumer Product Safety Commission — Electrical Safety.
Frequently Asked Questions
Q: What type of doors is this 24.125GHz microwave motion sensor compatible with?
A: This microwave motion sensor is designed primarily for automatic sliding glass door systems. It works with most standard commercial automatic door controllers that accept wired sensor inputs operating within the AC 42V–DC 60V voltage range.
Q: How does microwave motion detection differ from infrared (PIR) sensors?
A: Unlike passive infrared (PIR) sensors that rely on heat signatures, a microwave sensor like this 24.125GHz unit emits and detects radar signals. This allows it to detect movement through certain materials and perform reliably in varying temperature conditions, making it more consistent for high-traffic entryways.
Q: Is this sensor suitable for outdoor installation?
A: With an IP54 rating, this sensor is protected against dust ingress and water splashing from any direction, making it well-suited for covered outdoor entryways, semi-outdoor lobbies, and indoor installations. It is not recommended for fully exposed outdoor environments with heavy rain.
Q: What is the detection zone coverage of this sensor?
A: The sensor provides a detection zone of 4 meters wide by 2 meters deep. It can be mounted at heights of up to 4 meters and adjusted vertically (0–90°) and horizontally (±30°) to fine-tune the detection area for your specific door setup.
