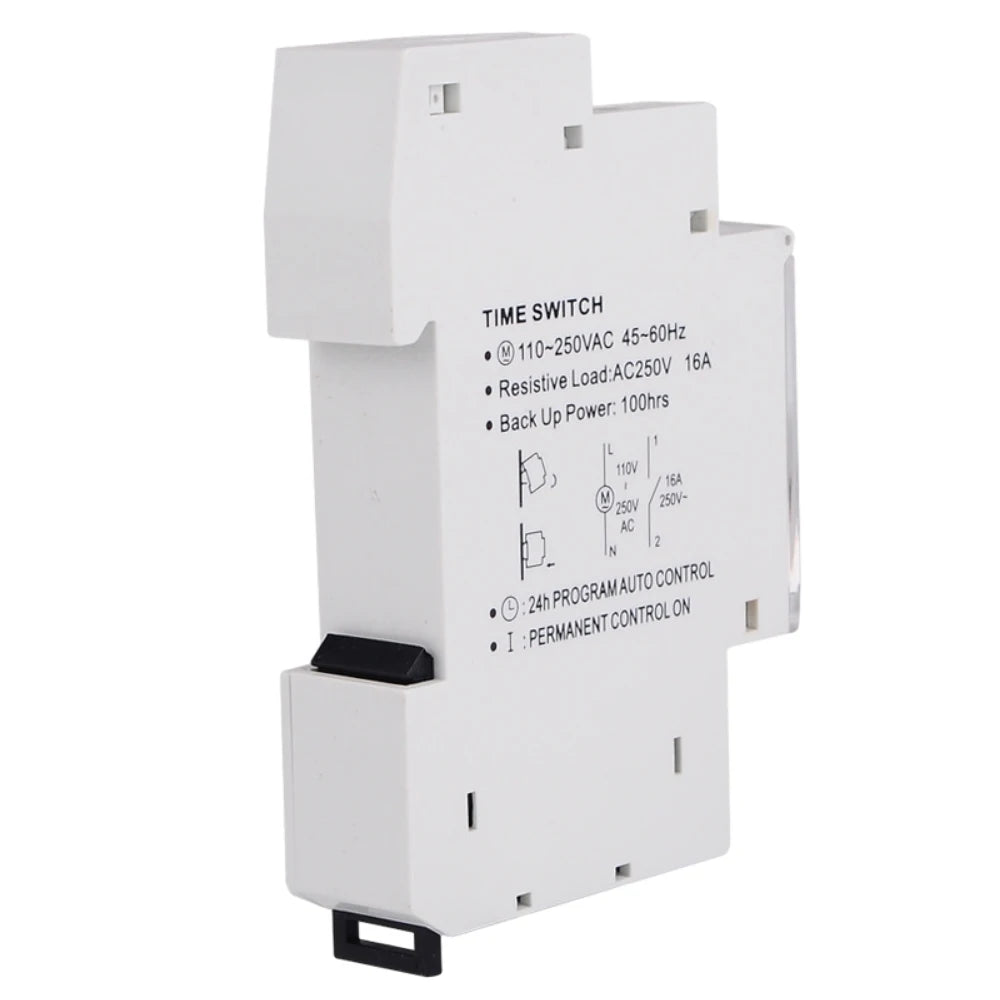

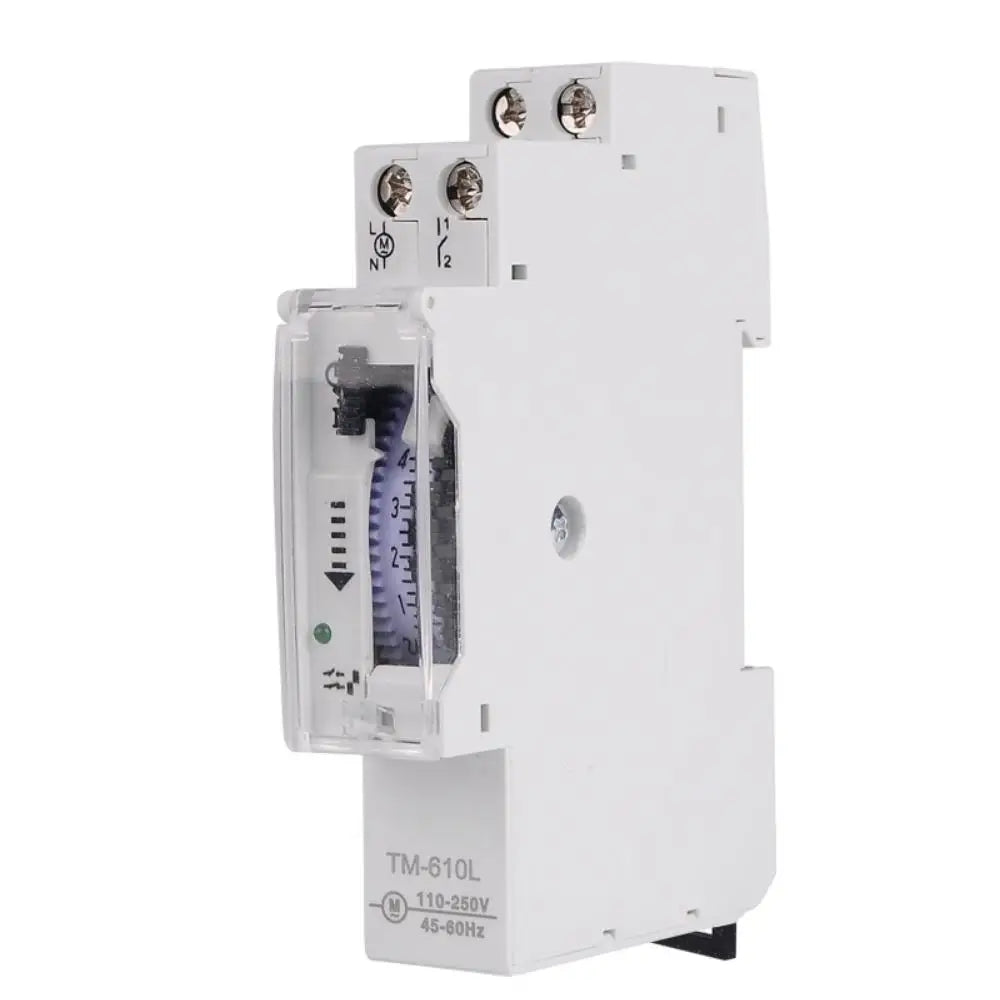

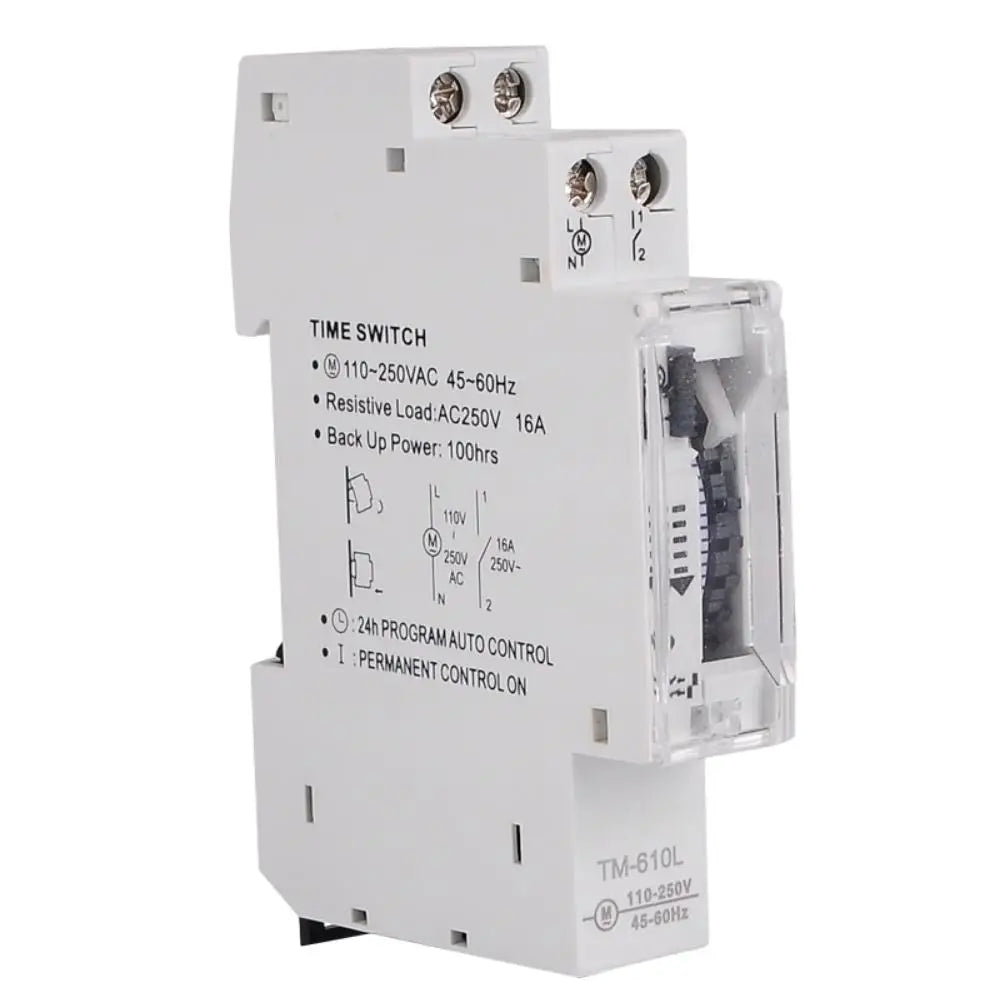

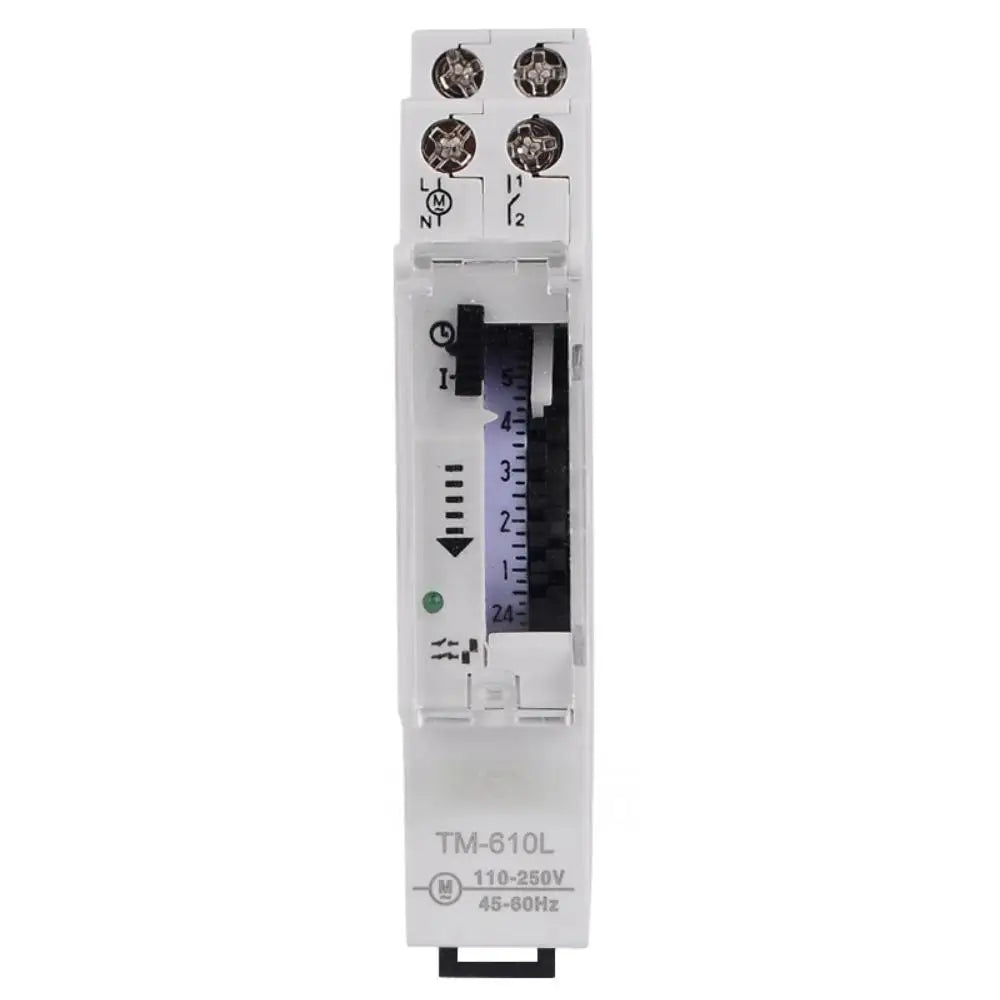

TM610L 24-Hour Analog DIN Rail Timer Switch — 110–250VAC Universal Input
Take full control of your electrical loads with the TM610L Analog Timer Switch. Designed for DIN rail installation and compatible with a wide universal voltage range of 110–250V AC, this quartz-movement timer lets you automate lighting, appliances, HVAC equipment, and more — up to 96 ON/OFF operations per day in precise 15-minute intervals. The built-in indicator light gives you instant visual confirmation of the current output status.
Whether you're managing a commercial panel, workshop, or home electrical setup, this timer switch delivers reliable, easy-to-read analog scheduling in a compact, standard DIN rail form factor. Made in Mainland China.
Key Features
- Universal Voltage Input: 100–240V AC, 50/60Hz — works worldwide
- Quartz Movement: Accurate, low-drift analog clock mechanism
- 15-Minute Minimum Interval: Up to 96 ON/OFF operations in a 24-hour cycle
- 100-Hour Backup Power: Retains schedule settings during power outages
- Indicator Light: Instant visual status feedback on output state
- DIN Rail Mounting: Standard snap-in installation for electrical panels and enclosures
- Broad Load Compatibility: Supports resistive, lamp, and inductive loads
- Wide Operating Temperature: -10°C to +50°C
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TM610L (with Indicator Light) |
| Rated Voltage | 100–240V AC, 50/60Hz |
| Movement Type | AC-type, Quartz |
| Power Consumption | 110VAC: 1W / 220VAC: 2W |
| Backup Power | 100 Hours |
| Resistive Load | AC 250V, 16A |
| Lamp Load | 10A |
| Inductive Load | 12A |
| Max Load | 110VAC: 750W / 220VAC: 1500W |
| Minimum Setting Unit | 15 Minutes |
| Full Timing Range | 24 Hours |
| ON/OFF Operations | Up to 96 per day |
| Mounting | DIN Rail |
| Ambient Temperature | -10°C to +50°C |
| Material | Plastic Housing |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× TM610L Analog Timer Switch
Important Notes
- Colors may appear slightly different due to lighting and screen variation.
- Please allow 1mm–1cm variance due to manual measurement.
- Always consult a qualified electrician when installing in electrical panels or enclosures.
For general electrical safety guidelines when working with timer switches and panel-mounted devices, visit the U.S. Consumer Product Safety Commission (CPSC). For workplace electrical installation safety, see OSHA Electrical Safety.
Frequently Asked Questions
Q: What voltage ranges does the TM610L analog timer switch support?
A: The TM610L features universal input compatibility, supporting 100–240V AC at 50/60Hz. This makes it suitable for use in North America (110–120V) as well as Europe, Asia, and other regions (220–240V) without any manual switching.
Q: How many ON/OFF schedules can I set per day with this DIN rail timer switch?
A: The TM610L supports up to 96 ON/OFF operations per 24-hour cycle, with a minimum scheduling interval of 15 minutes. This gives you granular control over daily automation schedules for lighting, pumps, HVAC, and more.
Q: Will the timer retain its schedule during a power outage?
A: Yes. The TM610L includes up to 100 hours of internal backup power to maintain its time and schedule settings even when mains power is interrupted, so your automation resumes accurately once power is restored.
Q: What types of loads can the TM610L timer switch handle?
A: The timer supports resistive loads up to AC 250V/16A, lamp loads up to 10A, and inductive loads up to 12A. Maximum wattage is 750W at 110VAC and 1500W at 220VAC, making it suitable for a broad range of residential and light commercial applications.
Q: How is the TM610L timer switch installed?
A: It mounts directly onto a standard DIN rail, which is the most common rail standard used in electrical distribution panels and enclosures. No special tools are required — simply snap it onto the rail and wire accordingly. Always follow local electrical codes and consult a qualified electrician if needed.
