2216 Brushless Motor — High-Thrust Power for RC Fixed-Wing Drones & Airplanes
Upgrade your RC fixed-wing drone or airplane with the 2216 Brushless Motor, available in 880KV, 1000KV, and 1400KV configurations. Whether you're building a high-speed racer or a long-range cruiser, this motor delivers excellent static thrust and efficient power output across a wide range of 2S–4S LiPo battery setups. Available in both CW (clockwise) and CCW (counter-clockwise) shaft thread options to suit any multi-prop configuration.
Made in Mainland China.
Key Features
- Three KV Options: Choose from 880KV, 1000KV, or 1400KV to match your aircraft's performance requirements

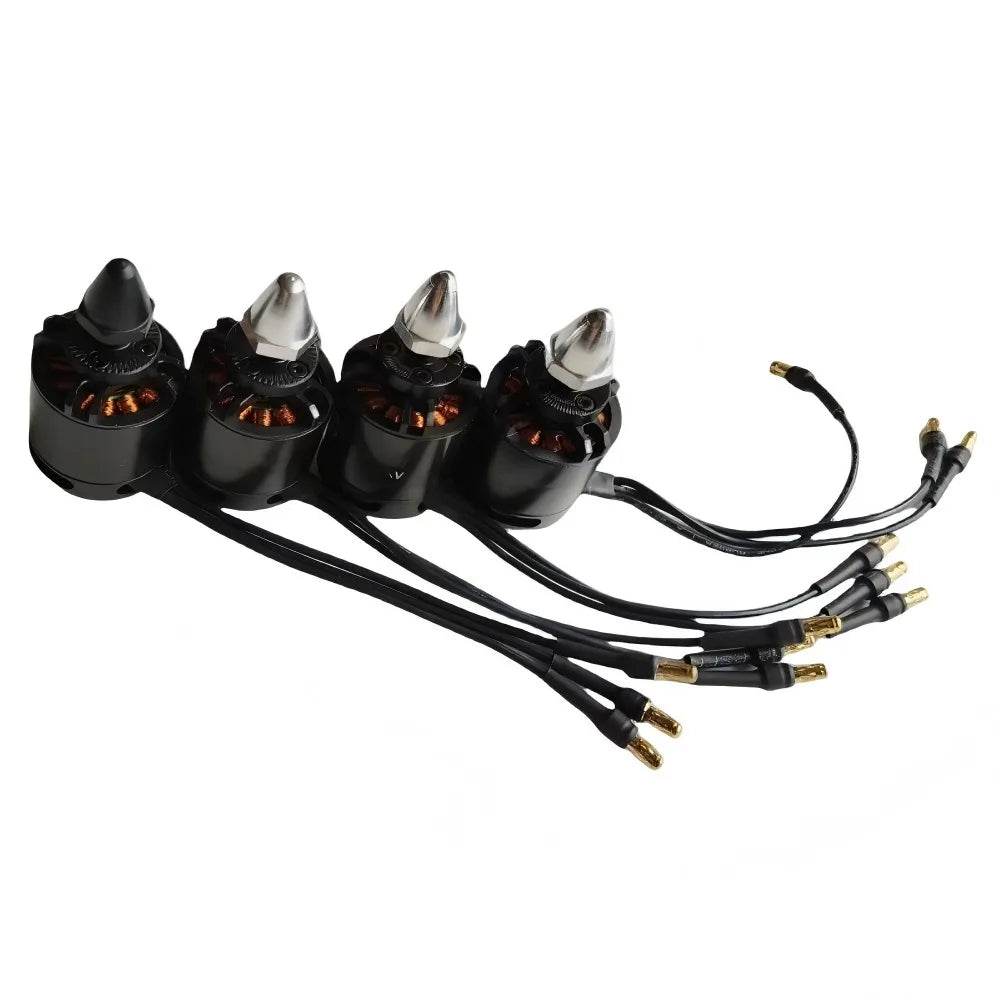

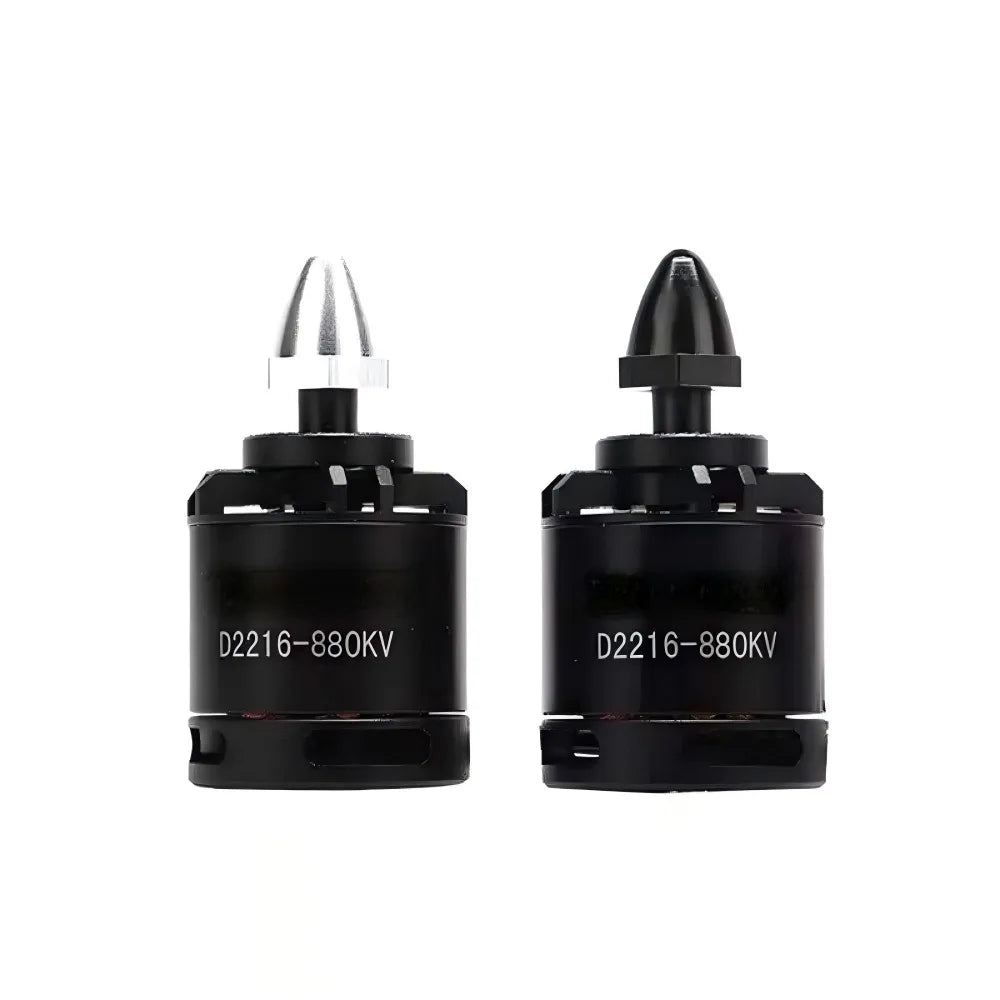

- CW & CCW Versions: CW features a standard thread with silver nut; CCW features a reverse thread with black nut — easy to identify at a glance
- Wide LiPo Compatibility: Supports 2S–4S LiPo batteries for flexible power configurations
- High Static Thrust: Produces up to 1,360g of static thrust for powerful, responsive flight
- Efficient Design: Optimized windings deliver strong output wattage with competitive g/W efficiency ratings
- Versatile Application: Ideal for RC airplanes, fixed-wing drones, and RC aircraft builds
Performance Test Data
880KV
| Voltage | Prop | Load Current | Static Thrust | Output Power | Efficiency |
|---|---|---|---|---|---|
| 11.1V | 1147 | 12.9A | 832g | 143W | 5.8g/W |
| 14.8V | 1038 | 15.6A | 1065g | 231W | 4.6g/W |
1000KV
| Voltage | Prop | Load Current | Static Thrust | Output Power | Efficiency |
|---|---|---|---|---|---|
| 11.1V | 1047 | 22.0A | 1180g | 244W | 4.8g/W |
| 14.8V | 9045 | 21.2A | 1320g | 314W | 4.2g/W |
1400KV
| Voltage | Prop | Load Current | Static Thrust | Output Power | Efficiency |
|---|---|---|---|---|---|
| 11.1V | 1047 | 29.5A | 1360g | 327W | 4.2g/W |
| 11.1V | 9045 | 17.6A | 980g | 195W | 5.0g/W |
Specifications
- Motor Size: 2216
- KV Options: 880KV / 1000KV / 1400KV
- Battery Support: 2S–4S LiPo
- Shaft Thread: CW (Silver Nut) / CCW (Black Nut)
- Application: RC Airplane, Fixed-Wing Drone, RC Aircraft
- Battery Included: No
- Origin: Made in Mainland China
Package Includes
- 1 × 2216 Brushless Motor (CW or CCW, your chosen KV)
Note: Due to lighting and screen differences, the item's color may vary slightly from photos. Please allow 1mm–1cm differences due to manual measurement.
For guidance on safe operation of RC aircraft and drone electronics, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety information.
Learn more: MotorStorm: RC
Frequently Asked Questions
Q: What is the difference between the 880KV, 1000KV, and 1400KV versions of the 2216 brushless motor?
A: KV rating refers to the RPM per volt applied. The 880KV version is best suited for larger propellers and more efficient, slower-speed flight with higher thrust at lower RPM. The 1000KV offers a balance of thrust and speed for general fixed-wing use. The 1400KV spins faster for smaller props and higher-speed aircraft builds. Choose based on your propeller size, aircraft weight, and desired flight characteristics.
Q: What is the difference between CW and CCW motor versions?
A: CW (Clockwise) motors feature a standard thread with a silver nut, while CCW (Counter-Clockwise) motors use a reverse thread with a black nut. On multi-motor setups, using opposing rotation directions helps cancel out torque and improves stability. Always match the motor rotation direction to your propeller's pitch direction for secure prop retention.
Q: What LiPo battery configurations are compatible with the 2216 brushless motor?
A: The 2216 brushless motor supports 2S through 4S LiPo battery packs. A 3S (11.1V) battery is commonly used for balanced performance, while a 4S (14.8V) setup provides higher thrust output for more demanding fixed-wing drone and RC airplane applications. Always ensure your ESC is rated for your chosen battery voltage and motor current draw.
Q: Is a battery or ESC included with the motor?
A: No — the package includes only the 2216 brushless motor. You will need to source a compatible LiPo battery (2S–4S) and an ESC (Electronic Speed Controller) rated for the motor's maximum current draw separately.
