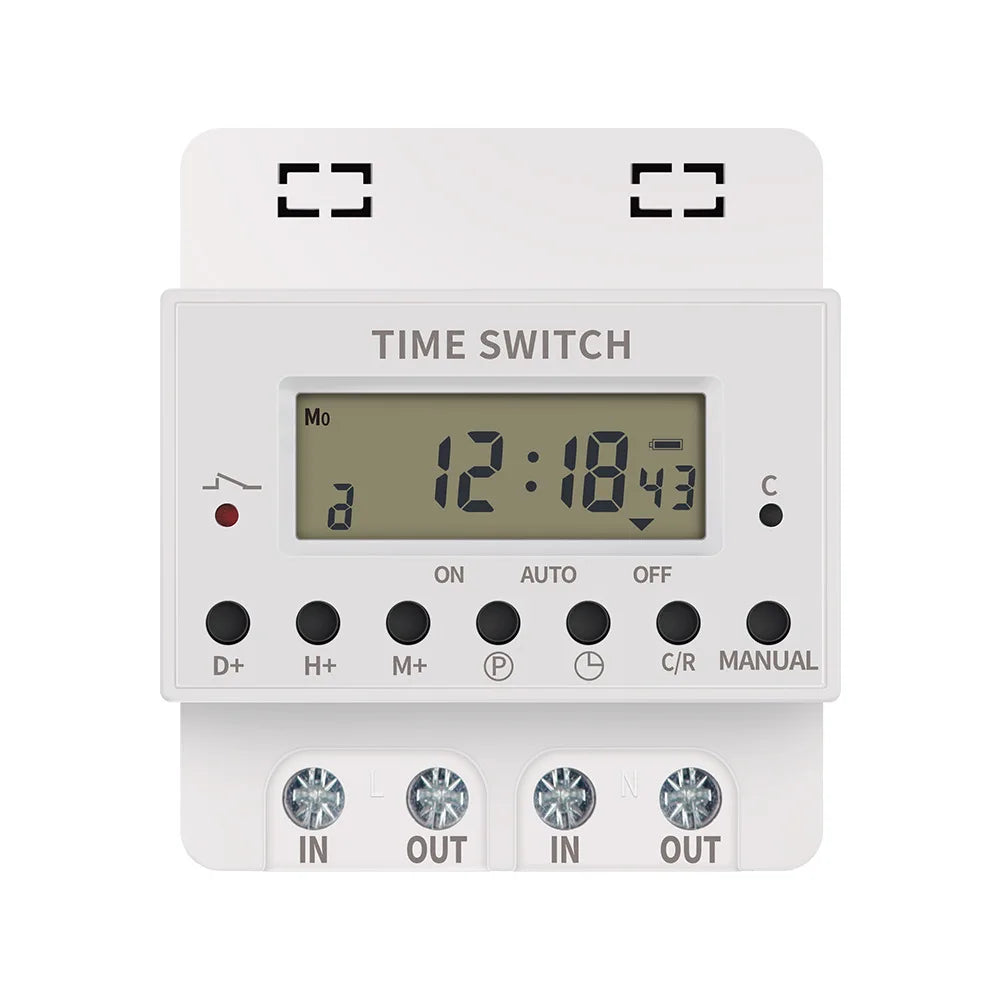

220V Programmable Timing Switch with LCD Display & 28 Group Settings

Take full control of your electrical devices with this powerful 220V Programmable Timing Switch Relay. Featuring a clear LCD display and support for up to 28 ON/OFF programming groups (daily and weekly), this time controller makes automating lights, pumps, heaters, fans, signage, and industrial equipment effortless and precise.

Key Features

  • 28 Programmable Groups: Set up to 28 independent ON/OFF schedules per day or per week — perfect for complex automation needs.

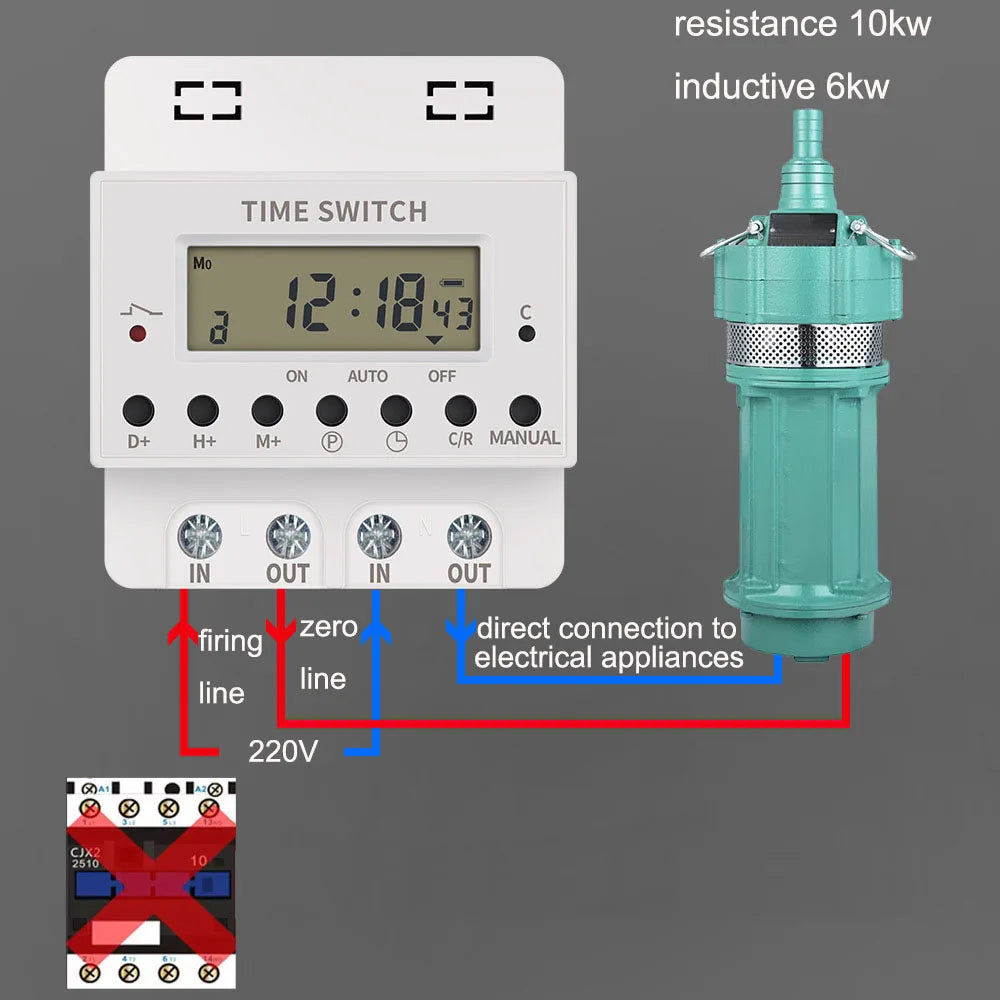

  • High Load Capacity: Handles resistive loads of 60A / 80A / 100A and inductive loads of 60–80A, making it suitable for a wide range of commercial and industrial applications.

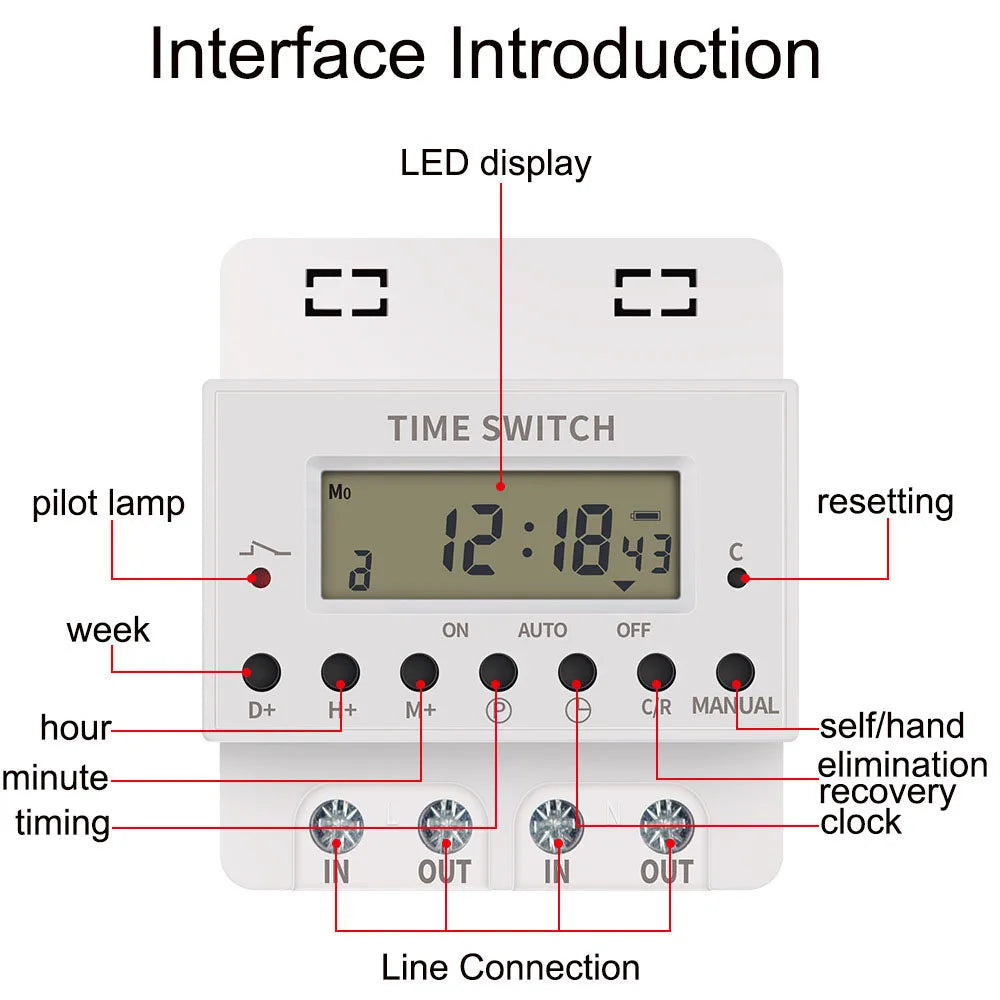

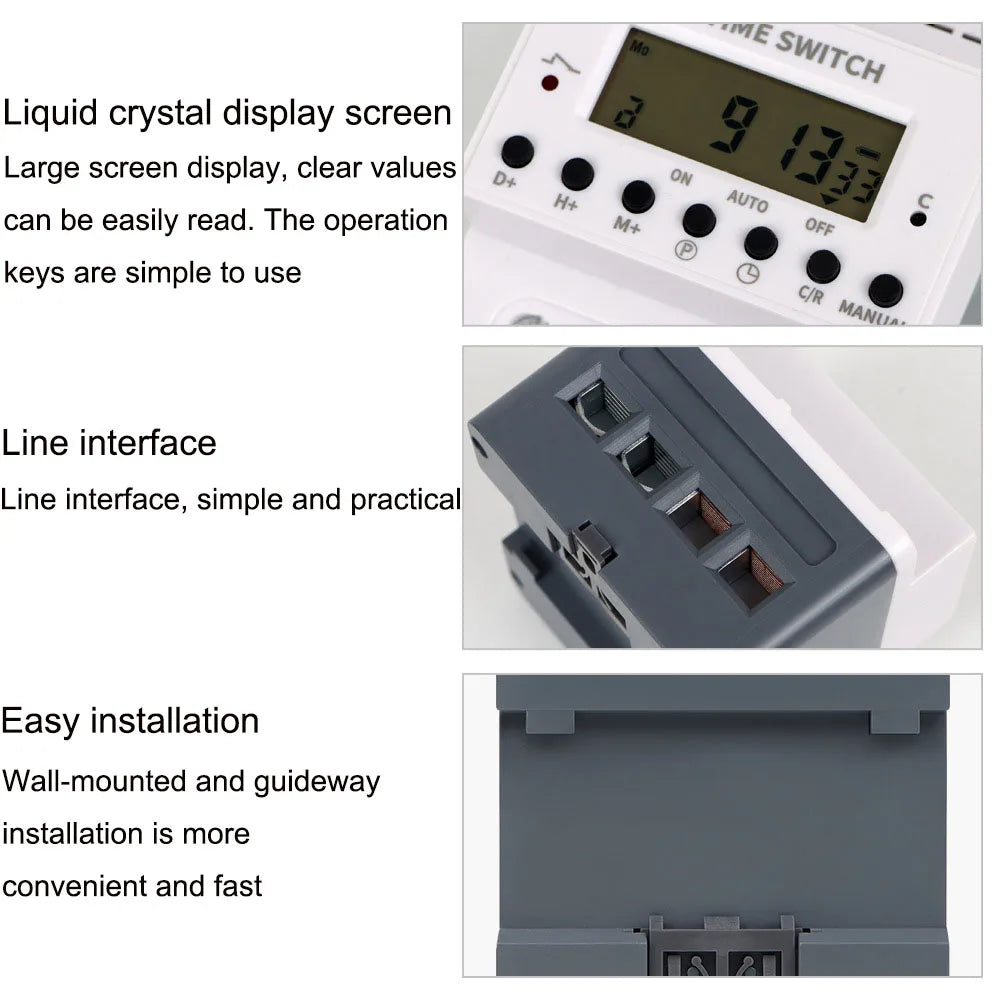

  • Clear LCD Display: Easy-to-read screen shows current time and programmed settings at a glance.
  • Exceptional Time Accuracy: Time error of less than 1 second per day (at 25°C), ensuring your schedules stay on track.
  • Wide Timer Range: Program intervals anywhere from 1 minute to 168 hours for maximum scheduling flexibility.
  • Broad Operating Range: Performs reliably in ambient temperatures from -30°C to 80°C and relative humidity up to 95%.
  • Low Power Consumption: Draws less than 1.5VA, keeping your energy costs minimal.

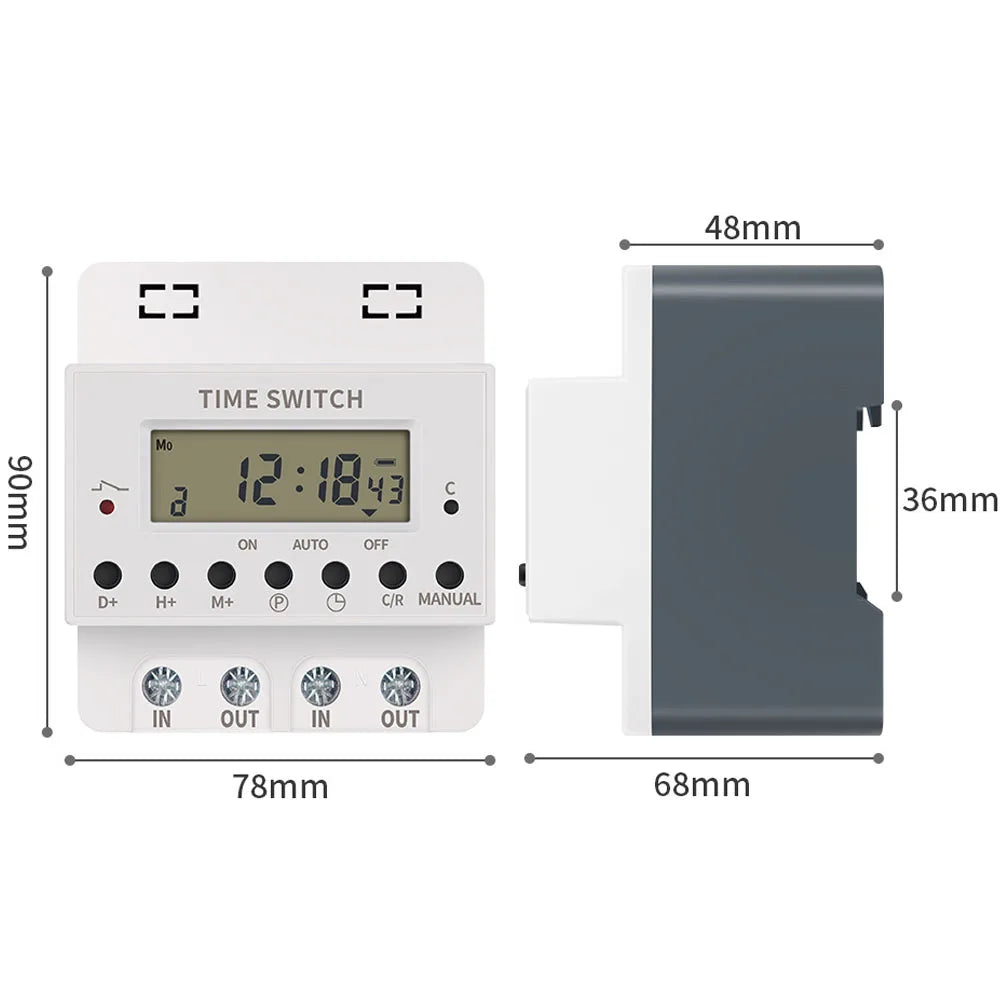

  • Compact & Durable: Sturdy plastic housing measuring just 90 × 78 × 68 mm fits neatly into standard electrical enclosures.

Specifications

Power Supply 220V / 50Hz
Resistive Load Capacity 60A / 80A / 100A
Inductive Load 60–80A
Power Consumption <1.5VA
Timer Range 1 minute – 168 hours
Programming Groups 28 ON/OFF (daily/weekly)
Time Accuracy <1 second/day at 25°C
Ambient Temperature -30°C to 80°C
Relative Humidity <95%
Dimensions 90 × 78 × 68 mm
Material Plastic
Country of Origin Made in China

What's in the Box?

  • 1× 220V Programmable Timing Switch Relay

Important Notes

  • Due to lighting and screen differences, the product color may vary slightly from images.
  • Please allow 1mm–1cm variance due to manual measurement.
  • Ensure installation is carried out by a qualified electrician in accordance with local electrical codes and safety standards.

For guidance on safe electrical installation and energy efficiency, visit the U.S. Department of Energy – Smart Controls & Automation.

Frequently Asked Questions

Q: Can this 220V programmable timing switch handle both daily and weekly schedules?

A: Yes! The timing switch supports up to 28 ON/OFF programming groups that can be configured on a daily or weekly basis, giving you complete flexibility to automate virtually any schedule.

Q: What types of loads is this timing switch relay compatible with?

A: This relay is compatible with resistive loads up to 60A, 80A, or 100A, and inductive loads of 60–80A. It is suitable for use with lighting systems, water pumps, HVAC equipment, motors, signage, and other industrial or commercial electrical devices.

Q: How accurate is the built-in timer?

A: The time error is less than 1 second per day at 25°C, making this one of the most accurate programmable timing switches available for its class — ideal for precision-critical automation tasks.

Q: Is this timing switch suitable for outdoor or harsh environments?

A: The unit operates within an ambient temperature range of -30°C to 80°C and up to 95% relative humidity. However, it should be installed inside a weatherproof electrical enclosure if used near outdoor or high-moisture environments.
