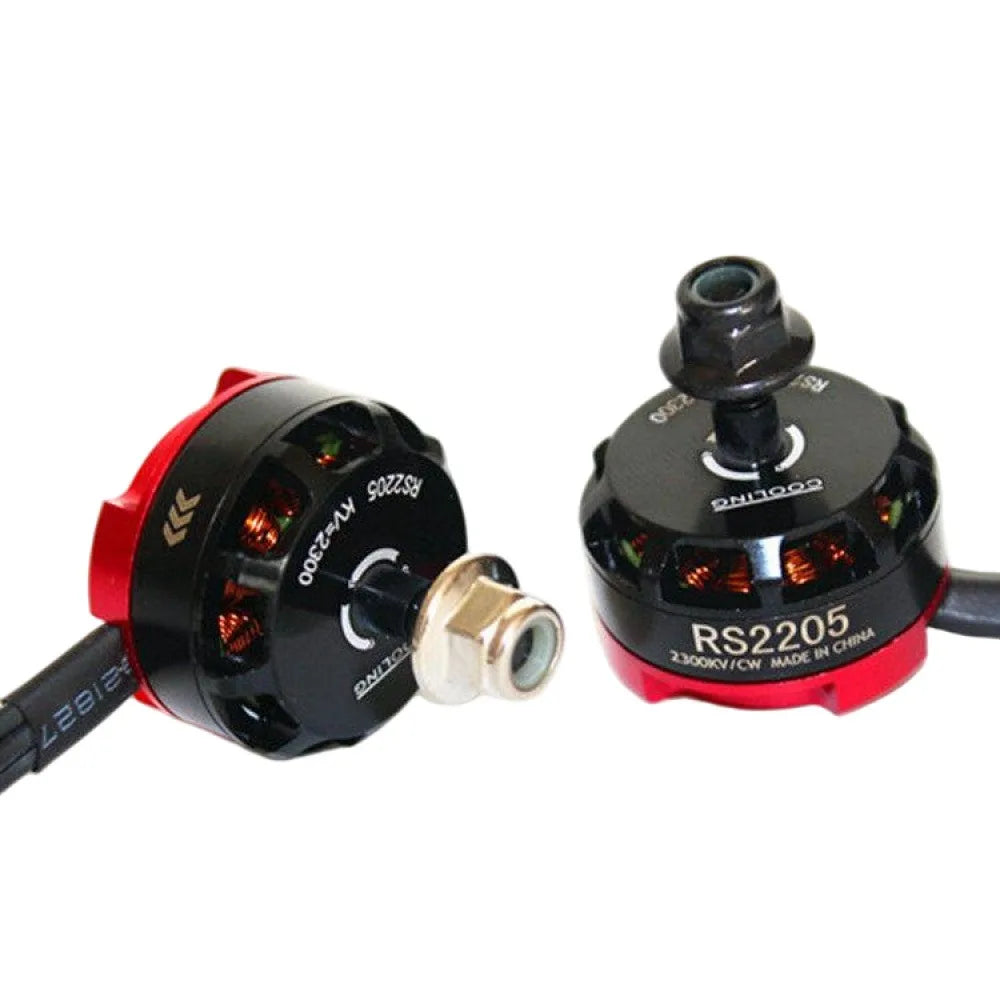

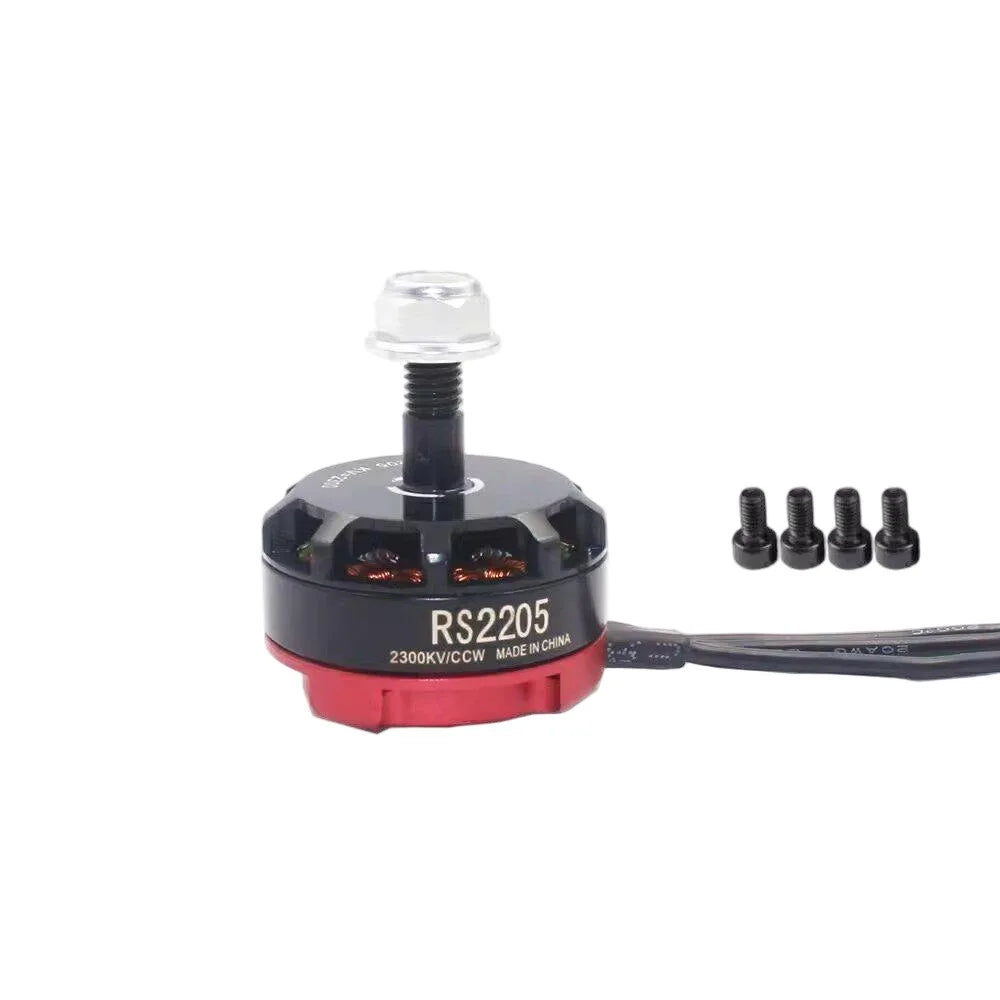

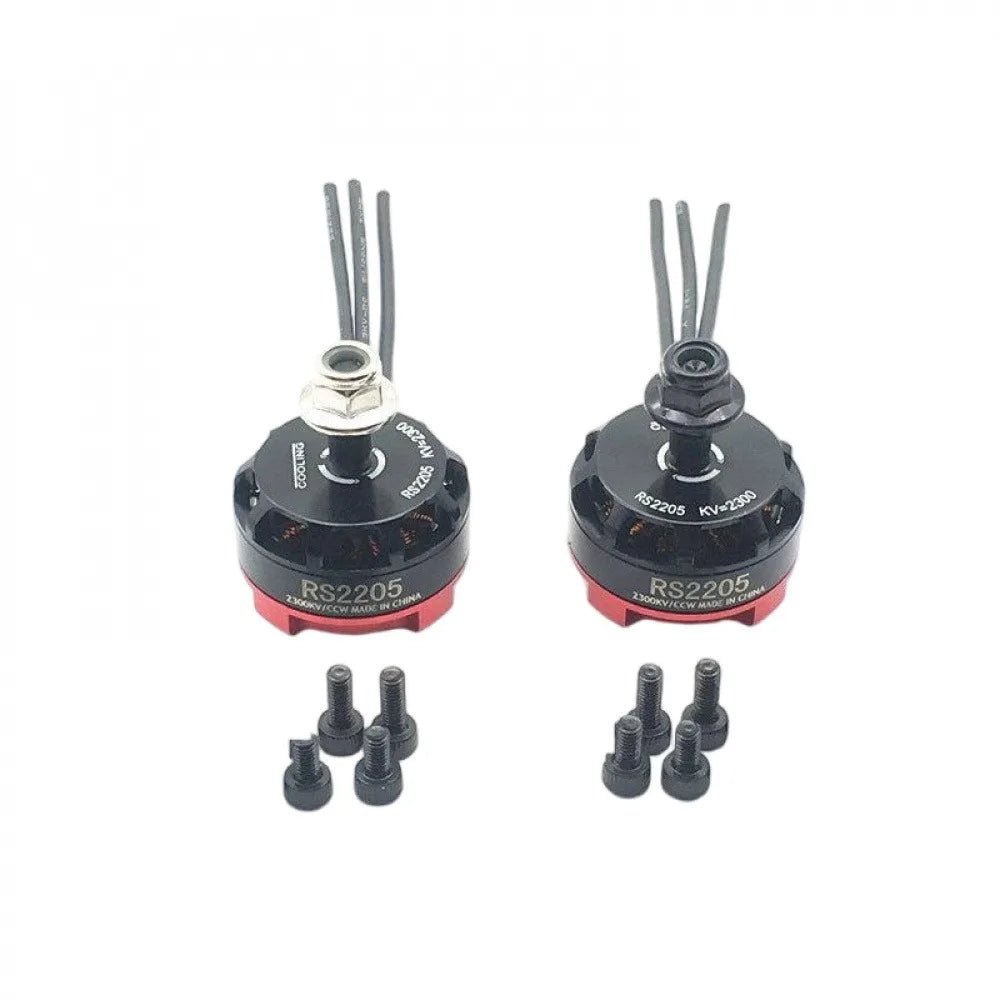

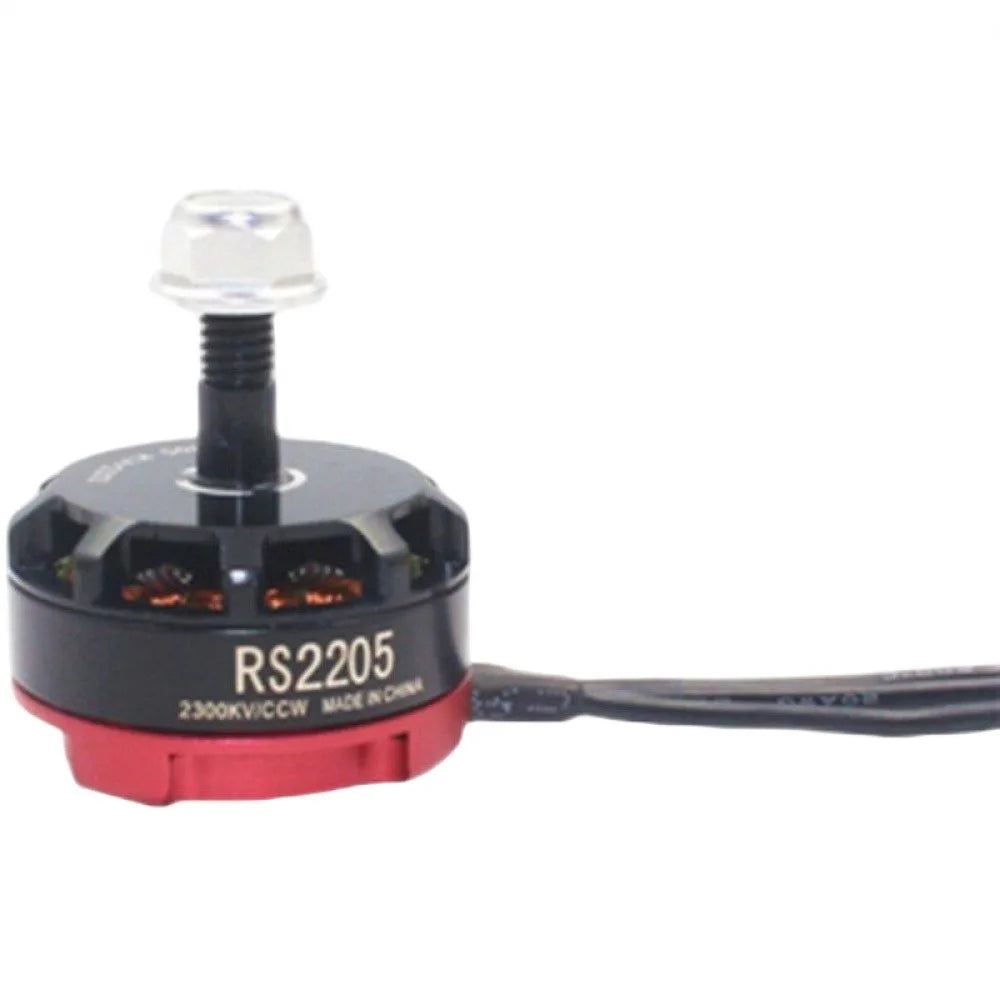

2205 2300KV Brushless Motor — Built for FPV Racing Performance
Upgrade your FPV racing quadcopter or multirotor with this high-speed 2205 2300KV Brushless Motor. Featuring a robust 12N14P (12 stator, 14 pole) design and compatibility with 3S–4S LiPo batteries, this motor delivers exceptional thrust, efficiency, and responsiveness for competitive drone racing and freestyle flying. Available in matched CW (clockwise) and CCW (counter-clockwise) pairs to keep your build balanced and stable at full throttle. Made in Mainland China.
Key Features
- Model: 2205
- KV Rating: 2300KV — optimized for high-speed 5-inch builds
- Stator Configuration: 12N14P (12 stators, 14 poles)
- Supported Voltage: 3S–4S LiPo (11.1V – 16.8V)
- Recommended ESC: 20A
- Rotation: CW (forward/right rotation) & CCW (reverse/left rotation) — used in pairs
- Compatibility: 5-inch FPV racing quadcopters, multirotors, freestyle drones
- Output Power: 735–746W range
Why Choose This Brushless Motor?
The 2205 2300KV configuration is a proven sweet spot for 5-inch FPV racing drones. The higher KV value means faster RPM per volt, translating into rapid throttle response and punchy acceleration — exactly what you need on the race track or in freestyle flying sessions. The 12N14P winding design ensures smooth power delivery and efficient heat management, even under sustained full-throttle conditions.
Whether you're building a new racing quad from scratch or replacing a worn motor on an existing rig, this motor's CW/CCW pairing ensures proper propeller spin direction on all four arms for stable, controlled flight.
Technical Specifications
| Model | 2205 |
| KV Value | 2300KV |
| Configuration | 12N14P |
| Working Voltage | 3S–4S LiPo (11.1V – 16.8V) |
| Recommended ESC | 20A |
| Rotation | CW & CCW |
| Output Power | 735–746W |
| Battery Included | No |
| Origin | Mainland China |
What's in the Box?
- 1x Brushless Motor (CW or CCW — select your preferred rotation)
Note: Due to monitor color calibration differences, the actual product color may vary slightly from images. Please allow ±1–10mm variance due to manual measurement.
For more information on safe drone operation and regulations, visit the FAA's official drone safety resources. For general consumer product safety guidance, see CPSC.gov.
Frequently Asked Questions
Q: What size propellers are recommended for the 2205 2300KV brushless motor?
A: The 2205 2300KV motor is optimized for 5-inch propellers on FPV racing quadcopters. Running 5-inch tri-blade or bi-blade props on a 3S–4S LiPo setup will get the best balance of thrust and efficiency from this motor's 2300KV rating.
Q: Do I need to buy both CW and CCW versions for a quadcopter build?
A: Yes. A standard quadcopter uses two CW (clockwise) and two CCW (counter-clockwise) motors — one of each rotation on diagonal arms. This opposing spin cancels torque and keeps the drone stable. Be sure to order the correct pairing for your build.
Q: What ESC is compatible with this 2205 2300KV brushless motor?
A: A 20A ESC is recommended for this motor. For racing builds running higher throttle bursts on 4S LiPo, consider using a 25A–30A ESC for additional headroom and reliability during peak loads.
Q: Is this motor suitable for freestyle or only racing drones?
A: The 2205 2300KV brushless motor is well-suited for both FPV racing and freestyle flying. Its high KV value and 12N14P winding provide the rapid response and punchy throttle characteristics that freestyle pilots also appreciate for dynamic aerial maneuvers.
