200KG Dual Arm Automatic Swing Gate Opener Motor System
200KG Dual Arm Automatic Swing Gate Opener Motor System
200KG Automatic Dual Arm Swing Gate Opener – Powerful, Smart & Weather-Resistant

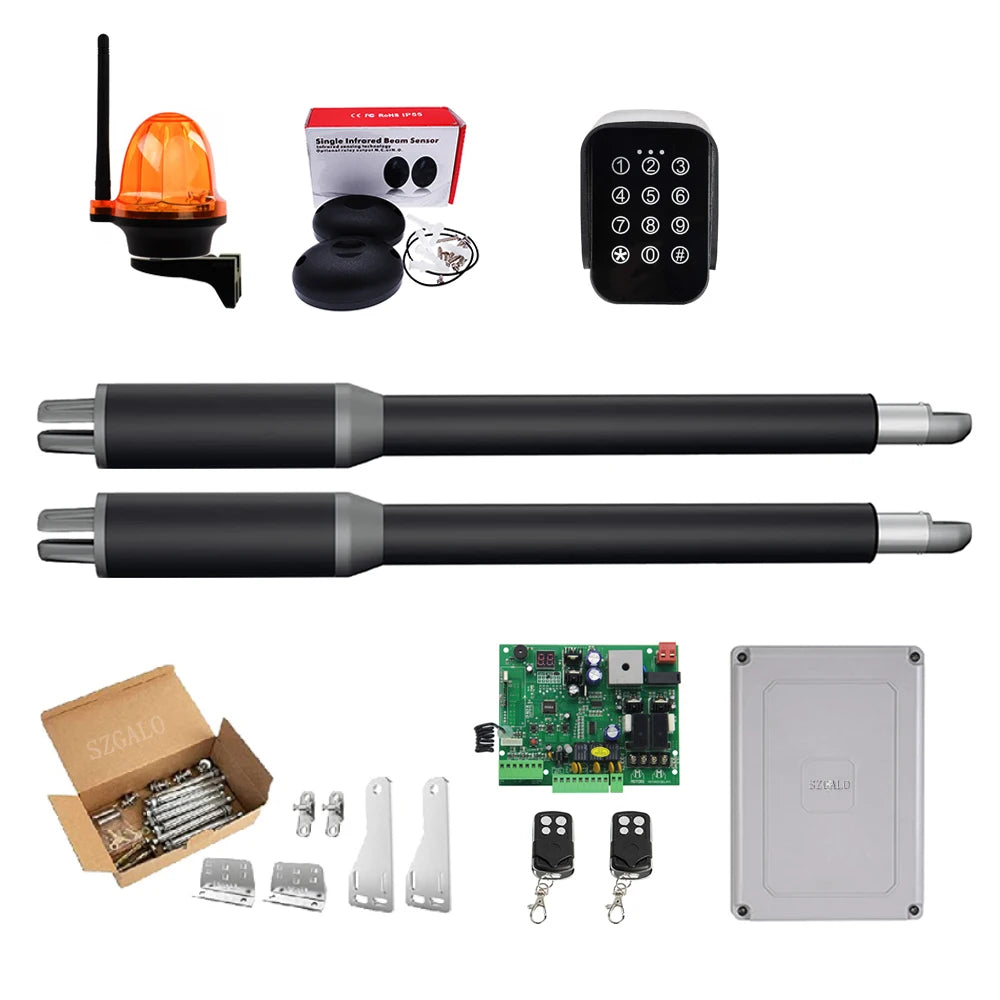

Take control of your driveway or property entrance with this heavy-duty 200KG Automatic Dual Arm Swing Gate Operator (Model PKM-C05L). Engineered for residential and commercial gates weighing up to 200 kg per leaf and spanning up to 2 meters in length, this robust actuator system delivers smooth, reliable automated gate operation at the touch of a button — or even via your smartphone.
Why Choose This Swing Gate Opener?
- High Capacity: Handles single-leaf gates up to 150–200 kg, making it ideal for heavy wrought iron or steel gates.
- Wide Opening Angle: Opens gates up to 110° for maximum clearance and convenience.
- Smart Home Compatible: Integrates with the Tuya smart home platform, so you can control and monitor your gate remotely via app.
- Fail-Secure Mode: Equipped with a Fail Secure with Signal security mode to keep your property protected even during power interruptions.
- IP55 Weather Protection: Rated IP55 for dust and water resistance, built to perform in harsh outdoor conditions year-round.
- Extreme Temperature Range: Operates reliably from -45°C to +50°C — suitable for virtually any climate.
- CE Certified: Meets European safety and performance standards for peace of mind.
- 24V DC Motor: Energy-efficient 40W DC motor with 200 RPM rotational speed ensures quiet, consistent performance.
- Dual Voltage Support: Compatible with 220VAC (±10%) and 110VAC (±10%) power supplies for global versatility.
Technical Specifications
| Model | PKM-C05L |
| Max Single-Leaf Weight | 150–200 KG |
| Max Single-Leaf Length | 2 meters |
| Max Gate Open Angle | 110° |
| Arm's Extended Speed | 1.6 cm/s |
| Arm's Max Travel | 300 mm |
| Motor Voltage | 24V DC, 40W |
| Input Power | 220VAC ±10% / 110VAC ±10% |
| Rotational Speed | 200 RPM |
| Continuous Running Time | 5 minutes |
| Protection Class | IP55 |
| Security Mode | Fail Secure with Signal |
| Operating Temperature | -45°C to +50°C |
| System Gross Weight | 13 KG |
| Smart Platform | Tuya |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Perfect For
- Residential driveway swing gates
- Commercial property entrances
- Farm or estate gates
- Heavy wrought iron or solid steel double gates
Safety & Standards
For guidance on residential gate operator safety requirements and standards, visit the U.S. Consumer Product Safety Commission (CPSC). Installing a quality, certified gate operator is an important step toward a safer and more convenient home entrance.
Frequently Asked Questions
Q: What is the maximum gate weight this dual arm swing gate opener can handle?
A: This automatic swing gate opener can handle a single gate leaf weighing between 150 and 200 KG, making it one of the most heavy-duty residential and commercial gate motor actuator systems available. The dual arm configuration supports both leaves of a double swing gate simultaneously.
Q: Is this swing gate motor system compatible with smart home platforms?
A: Yes — this gate opener is compatible with the Tuya smart home platform. You can control, monitor, and schedule gate operations remotely using the Tuya app on your smartphone, making it an ideal choice for modern smart home setups.
Q: Can this gate opener work in extreme outdoor temperatures and weather?
A: Absolutely. The system is rated IP55 for dust and water resistance, and its operating temperature range spans from -45°C to +50°C. This makes it suitable for use in a wide variety of climates, from freezing winters to hot summers.
Q: What power supply does this gate actuator motor system require?
A: The system supports both 220VAC (±10%) and 110VAC (±10%) input power, making it compatible with electrical standards in the USA, Europe, and many other regions worldwide. The motor itself runs on a 24V DC, 40W motor internally.
Q: What happens to the gate if there is a power outage?
A: This system uses a Fail Secure with Signal security mode. In the event of a power interruption, the gate defaults to a secure locked position, helping to maintain the security of your property at all times.
