2.4G Wireless 8-Channel Dual Joystick RC Control Module DIY Kit

2.4G Wireless 8-Channel Dual Joystick RC Control Module — DIY Kit

Take your DIY robotics, RC cars, boats, and automation projects to the next level with this 2.4G Wireless 8-Channel Multi-Mode Remote Control Module. Featuring a full dual-hand joystick design with fully proportional control, this kit is engineered for hobbyists, makers, and electronics enthusiasts who demand precision, flexibility, and reliable wireless performance.

Key Features

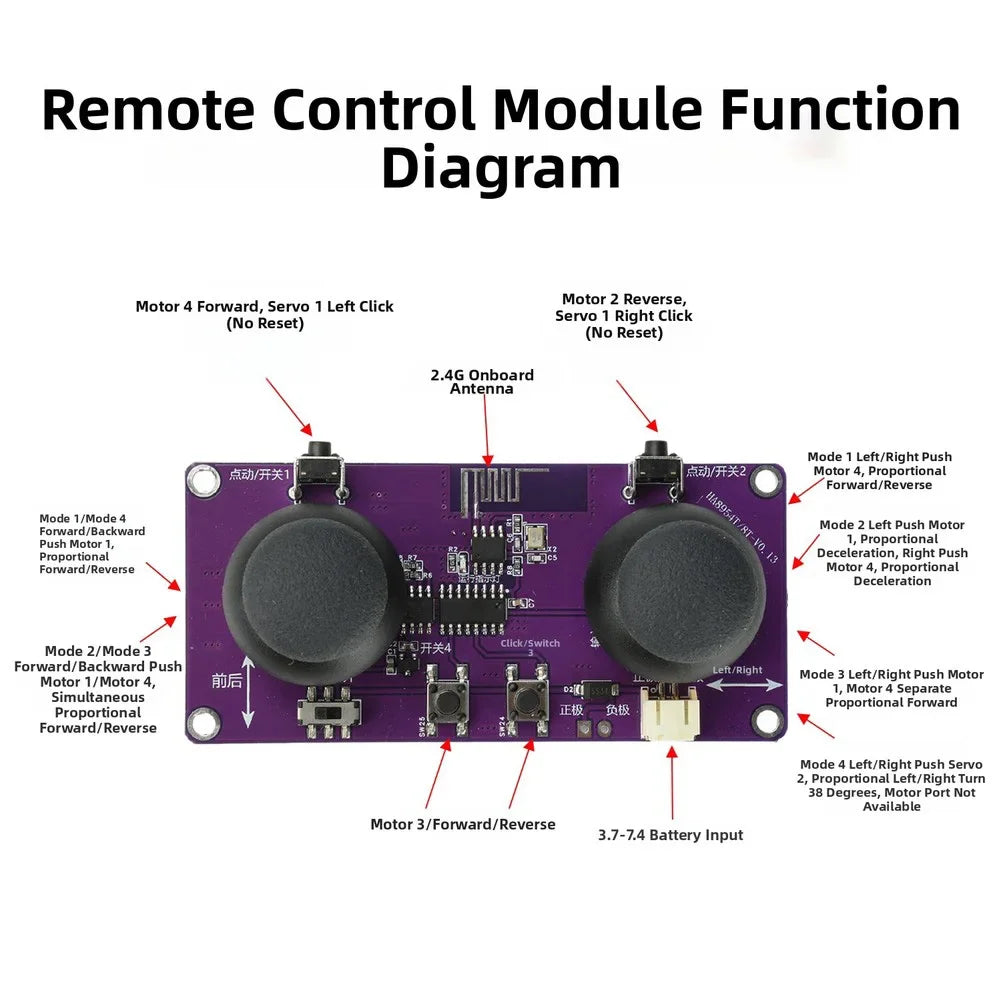

• 8-Channel Versatility: Simultaneously control up to eight independent channels, making it ideal for complex DIY builds, multi-function RC vehicles, robotic arms, and more.
• Full Proportional Dual Joystick Control: Both joysticks deliver smooth, accurate proportional feedback — no on/off switching, just fluid, precise maneuvering for cars, boats, drones, and custom rigs.
• 2.4GHz Interference-Free Operation: Onboard 2.4G antenna with auto-pairing ensures a clean, dedicated connection up to approximately 50 meters in open environments. Multiple units can operate side-by-side without signal cross-talk.
• DIY-Friendly Modular Design: Designed as a fully customizable kit — assemble, modify, and integrate into your own builds with ease. Great for skill-building and creative projects alike.
• Built-In DC 5V Step-Down Power Supply: Powers servos directly from the module's onboard regulator. Operating voltage: DC 7.4V. Max continuous current: 2A (peak 3A). Compatible with conventional motors up to 280 ohms.
• Metal & Plastic Construction: Durable mixed-material build in a compact 9 × 4.2 × 1 cm form factor — Purple Black finish.

Specifications

Package Contents

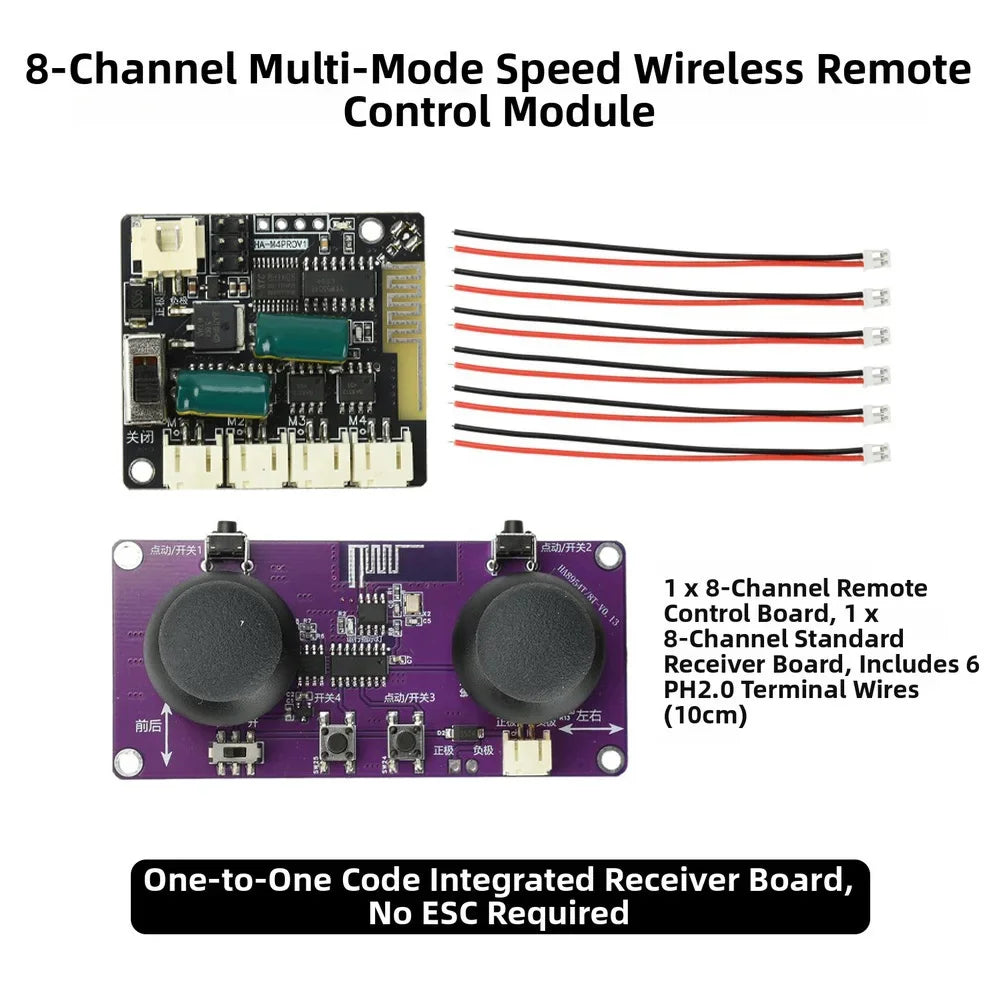

• 1 × 2.4G Wireless 8-Channel Remote Control Module

Important Notes

• This module does not support coreless motors or any high-power motor type.
• Operating current must remain below 2A; peak load must not exceed 3A.
• Does not include a battery or charging function — requires an external DC 7.4V power source.
• Actual color may vary slightly from images due to monitor brightness and lighting conditions.
• Please allow ±1–3 mm measurement tolerance.

Helpful Resources

For safe practices when working with electronic DIY components and low-voltage circuits, visit the U.S. Consumer Product Safety Commission (CPSC) for guidance on electrical safety standards.

Frequently Asked Questions

Q: What types of projects is this 2.4G 8-channel RC module best suited for?

A: This wireless control module is ideal for DIY RC cars, RC boats, robotic arms, conveyor systems, camera sliders, and any custom build requiring multi-channel proportional control. Its 8-channel design supports complex simultaneous functions from a single transmitter.

Q: Can I use multiple 2.4G control modules at the same time without interference?

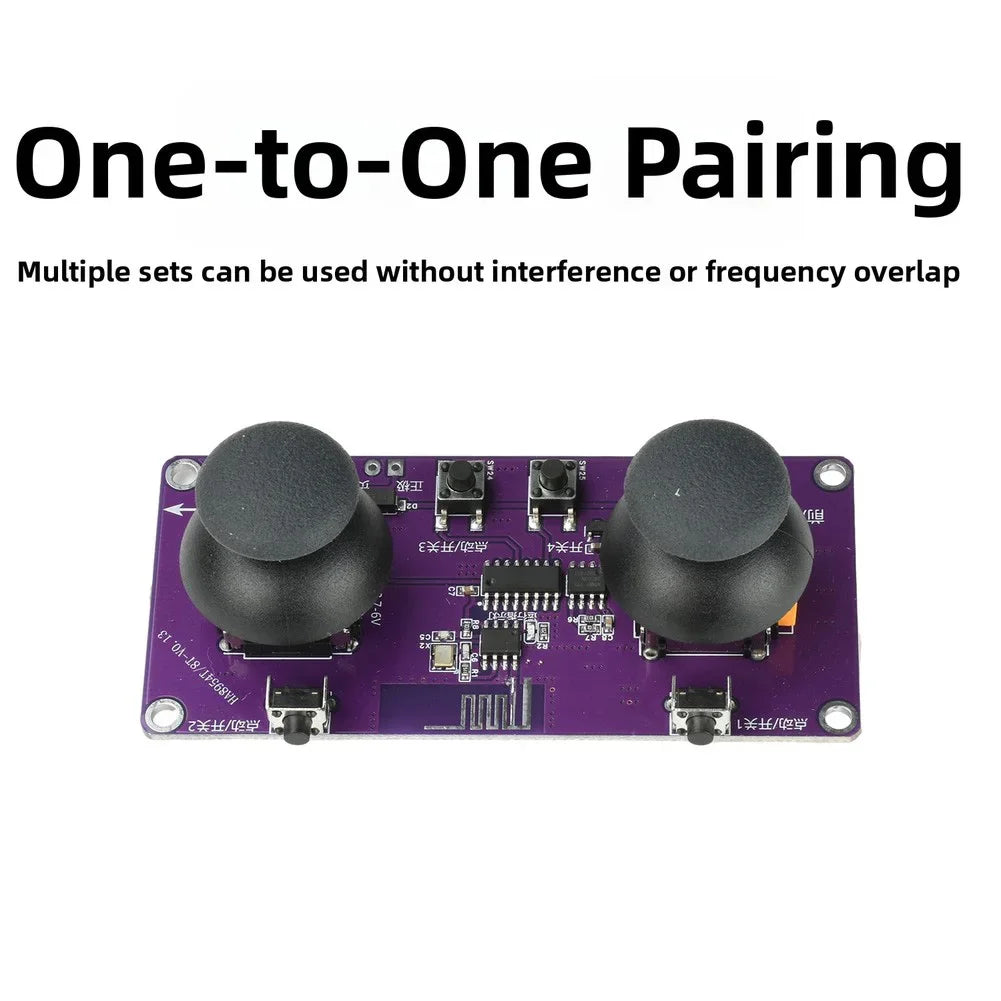

A: Yes. The auto-pairing feature on each module creates a dedicated 2.4GHz link between transmitter and receiver. Multiple sets can operate in the same area without cross-channel interference, making it great for group workshops or multi-robot setups.

Q: What motors are compatible with this control module?

A: The module supports conventional motors rated up to 280 ohms. It does not support coreless motors or high-power motors. Maximum continuous current draw must stay below 2A (peak 3A). Always verify your motor's specifications before connecting.

Q: What power source does this module require?

A: The module requires an external DC 7.4V power supply (battery not included). It has a built-in DC 5V step-down regulator to power servos directly, but it does not feature an onboard charging circuit.
