16A Large Screen Display Metering Socket — Multifunctional Voltage & Current Protector
Keep your household appliances safe from electrical fluctuations with this 16A Multifunctional Metering Protector Socket. Featuring a large LED display that shows real-time voltage and current readings, this smart socket automatically cuts power when it detects overvoltage, undervoltage, or overcurrent — then restores power automatically once conditions return to normal. Easy to install and built for long-term durability, it's an essential safeguard for any home or workspace.
Key Features

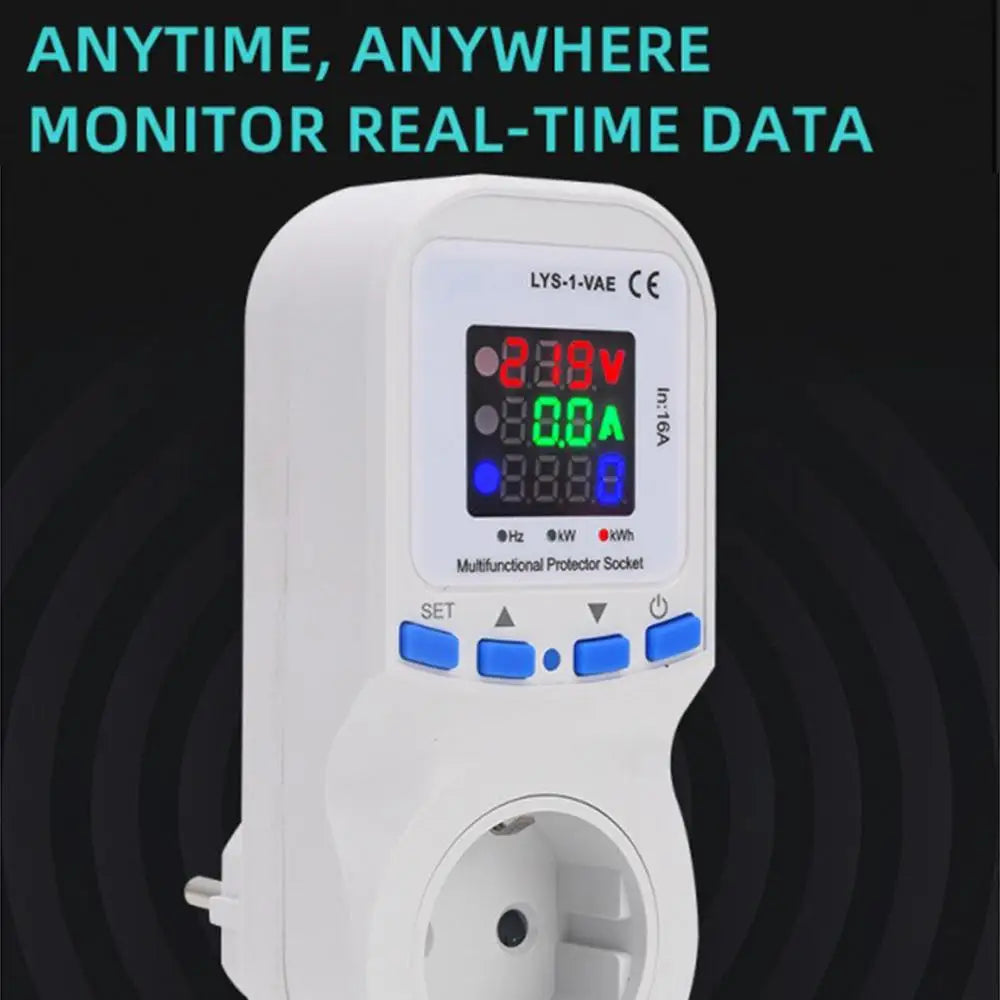

- Large LED Display: Three-digit LED screen shows live voltage and current values at a glance — doubles as a built-in voltmeter and ammeter.
- Automatic Protection & Recovery: Cuts power instantly when overvoltage, undervoltage, or overcurrent is detected, then automatically reconnects when the circuit returns to normal range.
- Fully Adjustable Settings: Over-voltage threshold: 230V–300V | Under-voltage threshold: 140V–210V | Over-current threshold: 1–16A | Delay time: 1–500 seconds — all user-adjustable to suit your specific needs.
- Rated Voltage: 220V–240V, 50/60Hz — compatible with standard EU-type sockets.
- Premium ABS Construction: Made from high-quality ABS and precision electronic components for high hardness, wear resistance, and long service life.
- Plug-and-Play Convenience: Simple installation with no tools or wiring required — just plug in and configure your thresholds.
Specifications
| Material | ABS + Electronic Components |
| Rated Voltage | 220V–240V, 50/60Hz |
| Load Current | 1–16A (adjustable) |
| Over-Voltage Range | 230V–300V (adjustable) |
| Under-Voltage Range | 140V–210V (adjustable) |
| Delay Time | 1–500 seconds (adjustable) |
| EU LVD Voltage | Low Voltage: Below 50Vac or 75Vdc |
| Country of Origin | Made in China |
What's in the Box
- 1× Multifunctional Metering Protector Socket
Important Notes
- Due to screen and lighting variations, the actual product color may differ slightly from images shown.
- Please allow 1mm–1cm variance due to manual measurement.
Electrical Safety Resource
For guidance on home electrical safety and protecting your appliances, visit the U.S. Consumer Product Safety Commission — Electrical Safety.
Frequently Asked Questions
Q: What does this metering protector socket protect against?
A: This socket protects your connected appliances from three common electrical hazards: overvoltage (voltage exceeding your set threshold, up to 300V), undervoltage (voltage dropping below your set threshold, as low as 140V), and overcurrent (current exceeding the 1–16A adjustable limit). When any of these events occur, the socket automatically cuts power to prevent appliance damage.
Q: Does the socket reconnect power automatically after a fault?
A: Yes. Once the voltage or current returns to within the normal range, the socket will automatically restore power after the user-defined delay time (1–500 seconds). This delay is adjustable, giving you full control over how quickly reconnection occurs.
Q: Can I use this socket with all my 220V–240V home appliances?
A: This socket is compatible with standard 220V–240V, 50/60Hz circuits and supports up to 16A load current. It is suitable for most common household appliances such as refrigerators, washing machines, air conditioners, and televisions. Always ensure your appliance's rated current does not exceed the socket's 16A maximum load.
Q: How do I adjust the voltage and current protection thresholds?
A: The overvoltage, undervoltage, and overcurrent thresholds are all user-adjustable directly on the device via its control buttons. The large LED display makes it easy to see the values as you configure them. No additional tools or electrician expertise are required for setup.
