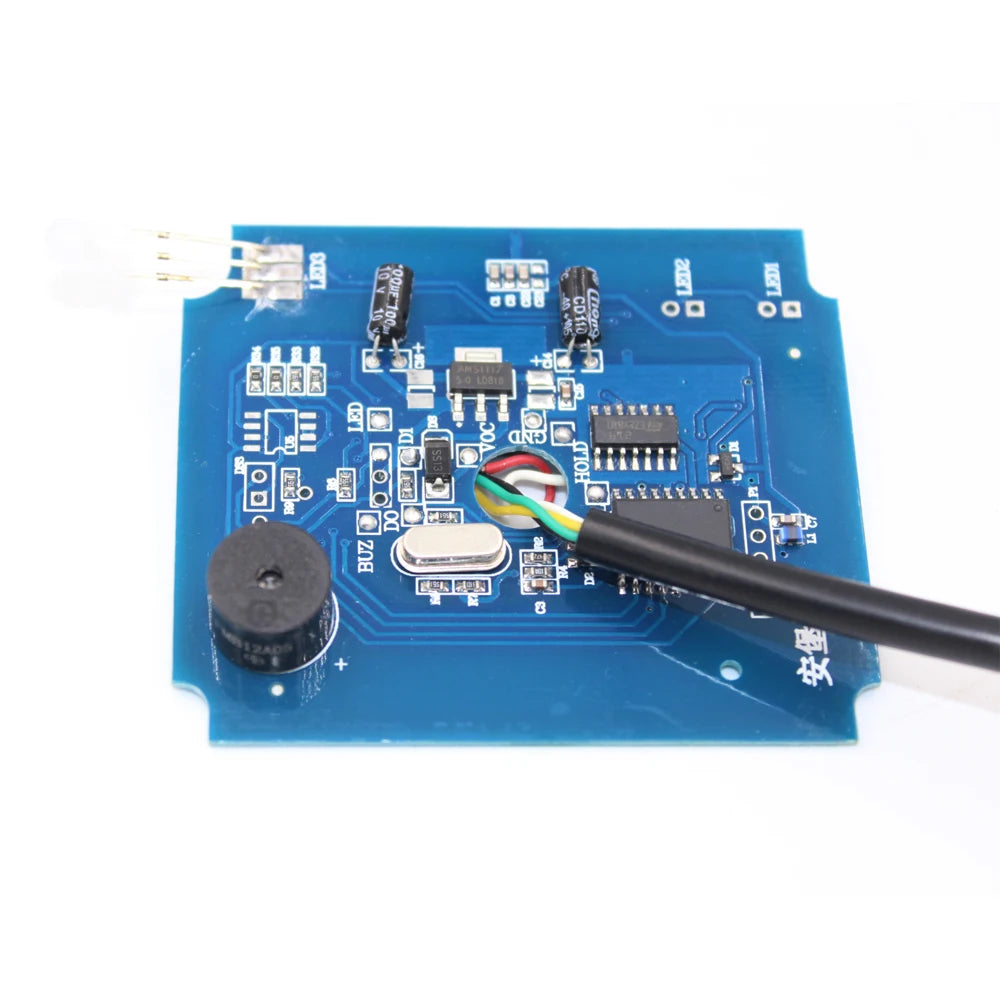

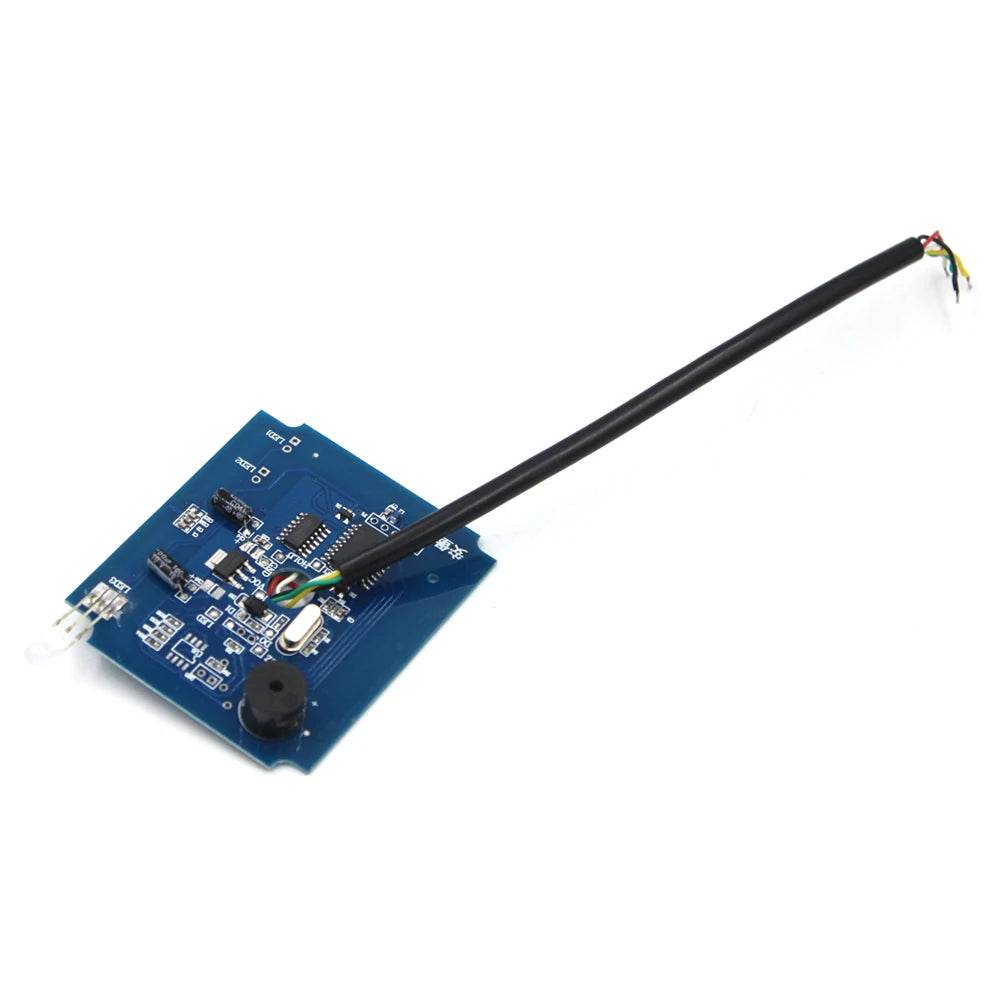

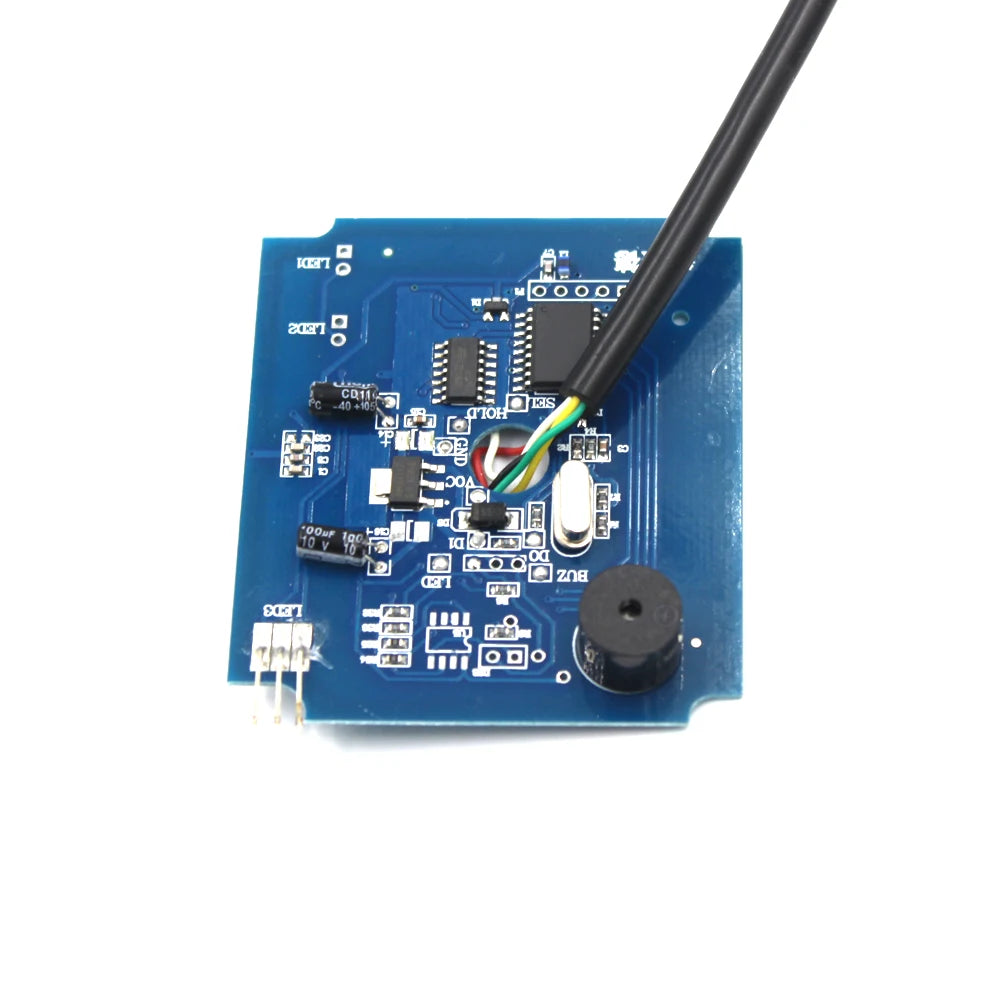

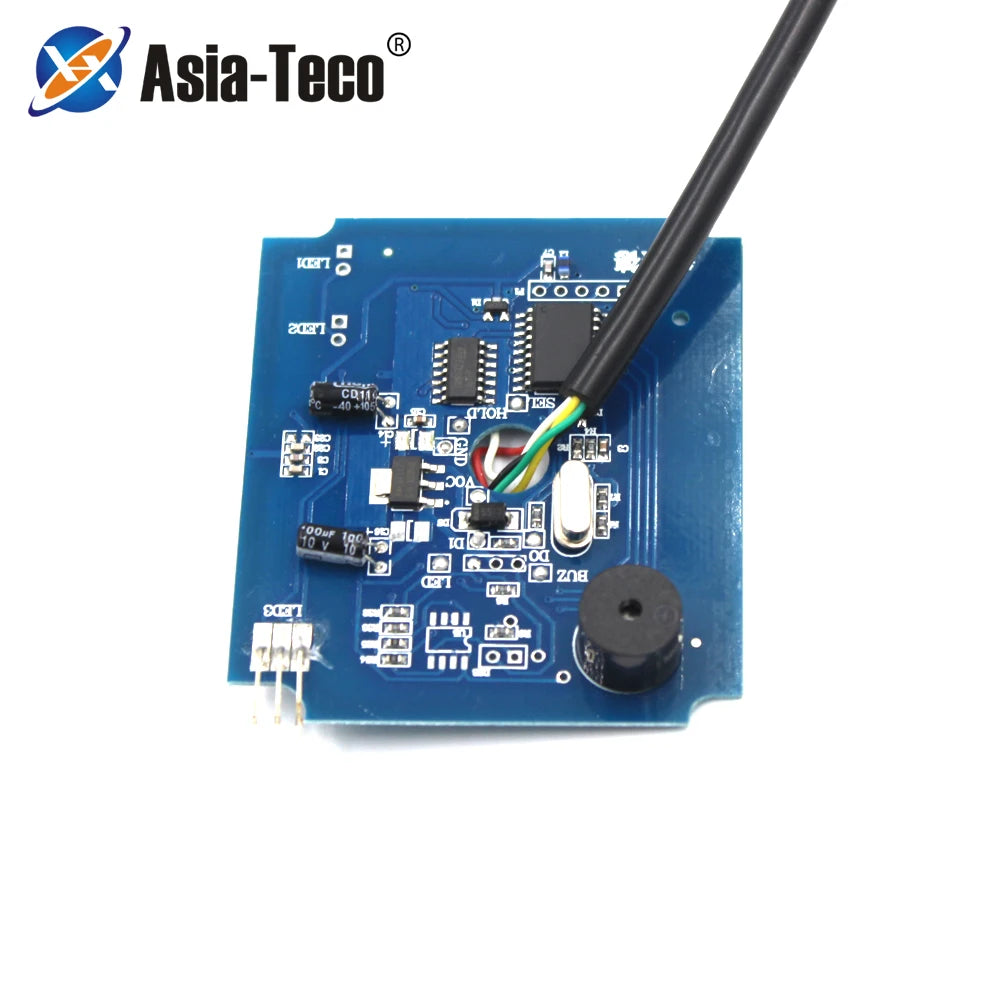

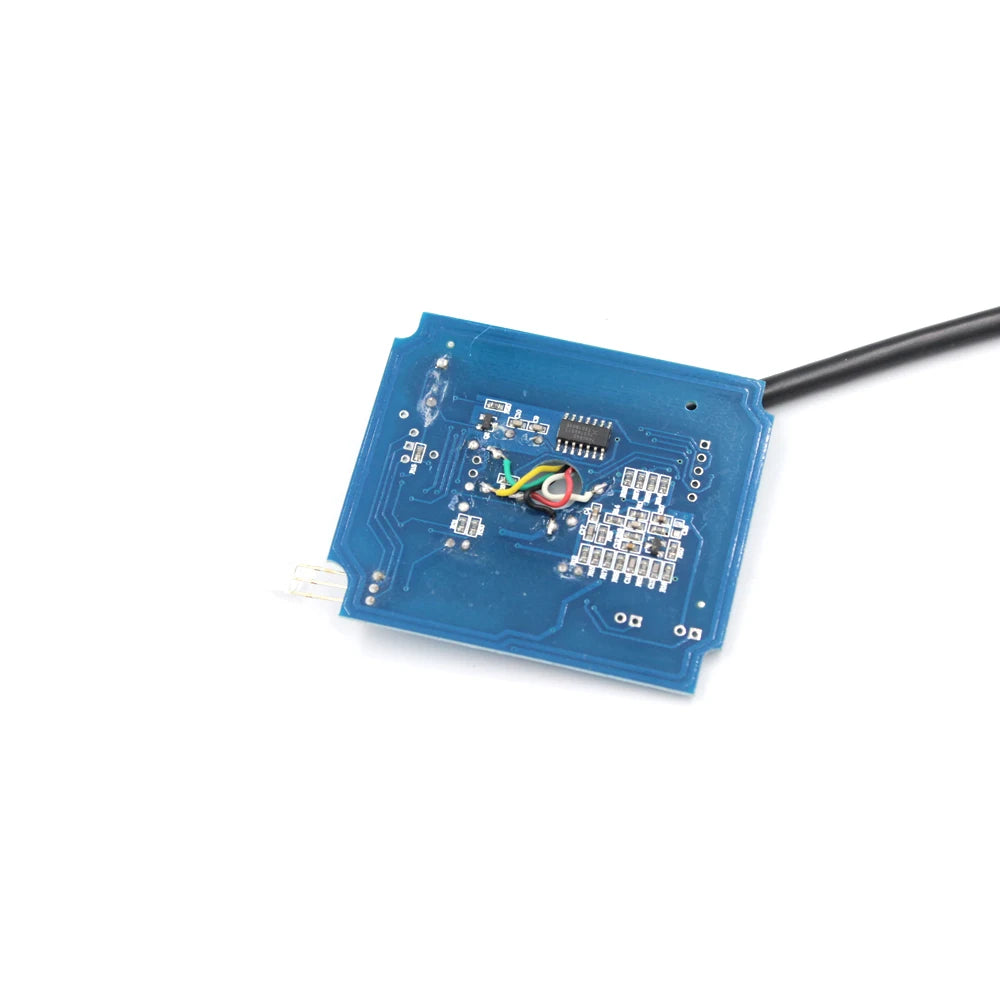

Asia-Teco LK-009 | 13.56MHz Embedded RFID Access Control Module
Upgrade your building's entry security with the Asia-Teco LK-009 Standalone RFID Access Control Board. Operating at 13.56MHz, this embedded module integrates seamlessly into building intercom systems and supports up to 15,000 users — making it ideal for apartments, office complexes, warehouses, and gated communities. Compact, reliable, and easy to configure, the LK-009 delivers professional-grade proximity access management without the need for a PC or network connection. Made in Mainland China.
Key Features
- High-Capacity User Database: Stores up to 15,000 individual user cards for large-scale deployments.
- 13.56MHz IC Card Compatible: Works with standard 13.56MHz RFID proximity cards for fast, contactless entry.
- Standalone Operation: No software or network required — fully self-contained embedded module.
- Building Intercom Integration: Designed to embed directly into intercom and door access systems.
- Wide Operating Temperature: Reliable performance from -20°C to +60°C for indoor and outdoor installations.
- Low Power Consumption: Runs on DC 12V with less than 100mA current draw, minimizing energy costs.
- Close-Range Card Read: Card detection distance of 1–10cm for secure, intentional access.
- LED Status Indicators: Green and red LED feedback for clear visual confirmation of card enrollment and access events.
Technical Specifications
| Model | LK-009 |
| Brand | Asia-Teco |
| Working Voltage | DC 12V |
| Working Current | < 100mA |
| User Capacity | 15,000 |
| Card Frequency | 13.56MHz IC Card |
| Card Read Distance | 1–10 cm |
| Ambient Temperature | -20°C to +60°C |
| Weight | 80g |
| Country of Origin | Mainland China |
How to Set Up Master Cards
- Step 1: Power off the unit. Connect the S1 jumper cap to pins 2–3. Restore power — the green LED will flash three times.
- Step 2: Consecutively present two blank cards (the first becomes the "Add Card", the second the "Delete Card"). The red LED will flash rapidly in short bursts to confirm.
- Step 3: Power off again. Reconnect the jumper cap to pins 1–2. Restore power. Master card setup is complete.
How to Add or Delete Users
- Add a User: In standby mode, present the "Add Card", then present the user's card(s) one by one, then present the "Add Card" again to exit.
- Delete a User: In standby mode, present the "Delete Card", then present the user card(s) to be removed, then present the "Delete Card" again to exit.
- Delete All Users: In standby mode, present the "Delete Card", then the "Add Card", then the "Delete Card" again to wipe all user records.
Who Is This For?
This access control board is perfect for security integrators, building managers, facility engineers, and DIY smart-home enthusiasts who need a dependable, high-capacity RFID entry module that embeds cleanly into existing intercom wiring — without expensive software licenses or cloud subscriptions.
For general guidance on physical access control best practices in buildings, refer to the Cybersecurity & Infrastructure Security Agency (CISA). For electrical safety standards when installing low-voltage access control systems, consult OSHA's Electrical Safety guidelines.
Frequently Asked Questions
Q: What type of RFID cards are compatible with the LK-009 access control board?
A: The Asia-Teco LK-009 is compatible with standard 13.56MHz IC proximity cards. This is a widely available card format used across most modern building access and intercom systems. Make sure your cards match the 13.56MHz frequency before purchase.
Q: Can this RFID access control module be used outdoors?
A: The LK-009 supports an ambient operating temperature range of -20°C to +60°C, making it suitable for installation in environments subject to cold winters or warm summers. However, it is recommended to house the module in a weatherproof enclosure if exposed directly to rain or moisture.
Q: How many users can be stored on the LK-009 access control board?
A: The LK-009 has a built-in user capacity of up to 15,000 individual RFID cards, making it well-suited for large residential buildings, office complexes, or multi-tenant facilities.
Q: Does the LK-009 require a computer or internet connection to manage users?
A: No. The LK-009 is a fully standalone embedded module. All user management (adding and deleting cards) is performed directly using master cards and the onboard jumper configuration — no PC, software, or internet connection is needed.
