13.56MHz IC Embedded Access Control Module – 15,000 User Capacity

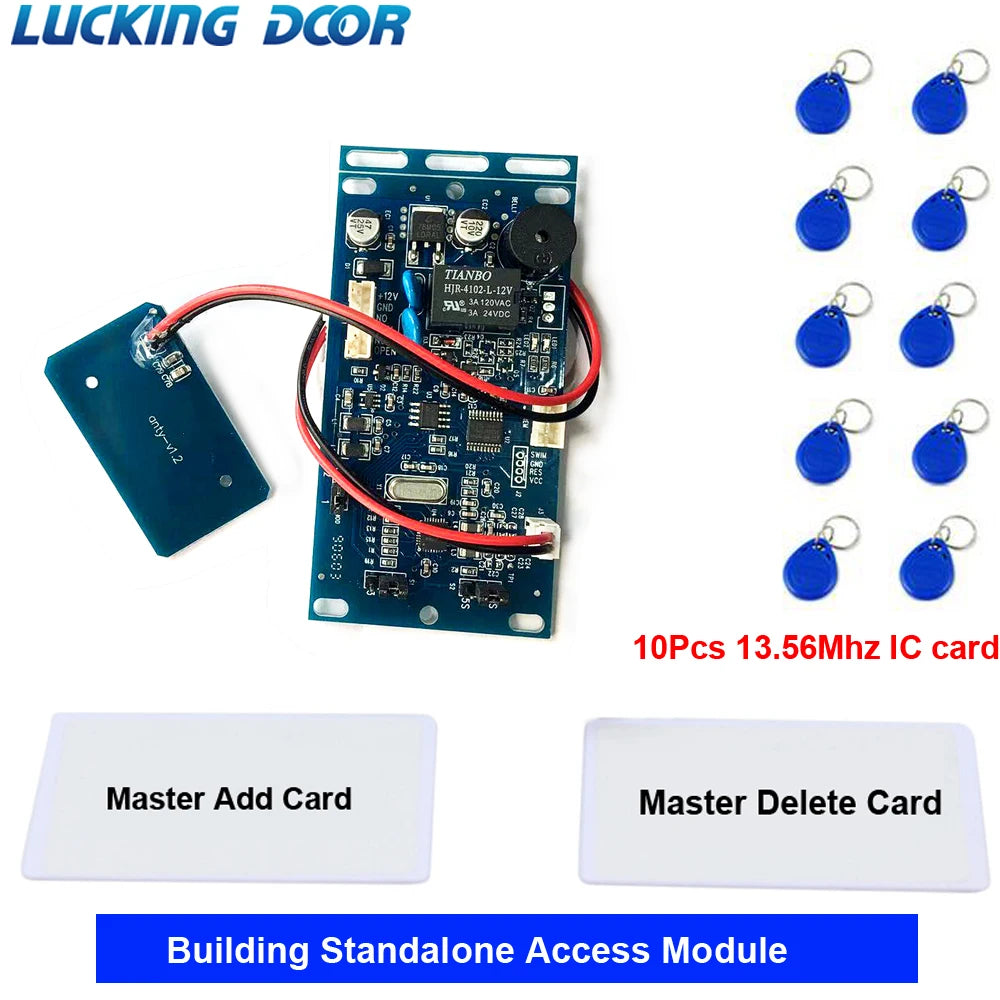

Upgrade your building's entry management with this compact yet powerful 13.56MHz IC Mifare (MF) Embedded Access Control Module by LUCKING DOOR. Designed for seamless integration into intercoms, door panels, and standalone access systems, this module supports up to 15,000 individual users — making it ideal for apartments, office buildings, residential complexes, and commercial facilities.
With a card read distance of up to 10 cm and robust operating temperature range from -20°C to 60°C, this board delivers reliable, contactless proximity access control in virtually any environment. Its low-current operation (under 100 mA at DC 12V) keeps energy consumption minimal without compromising performance.
Made in Mainland China.
Key Features
- Card Technology: 13.56MHz IC (Mifare) proximity cards
- User Capacity: Up to 15,000 registered users
- Card Read Distance: 1–10 cm for convenient, contactless access
- Working Voltage: DC 12V
- Working Current: <100 mA (low power consumption)
- Ambient Temperature: -20°C to 60°C
- Module Weight: 80 g (lightweight for easy installation)
- Model Number: H2002C
- Brand: LUCKING DOOR
- No high-concern chemicals — safe for indoor use

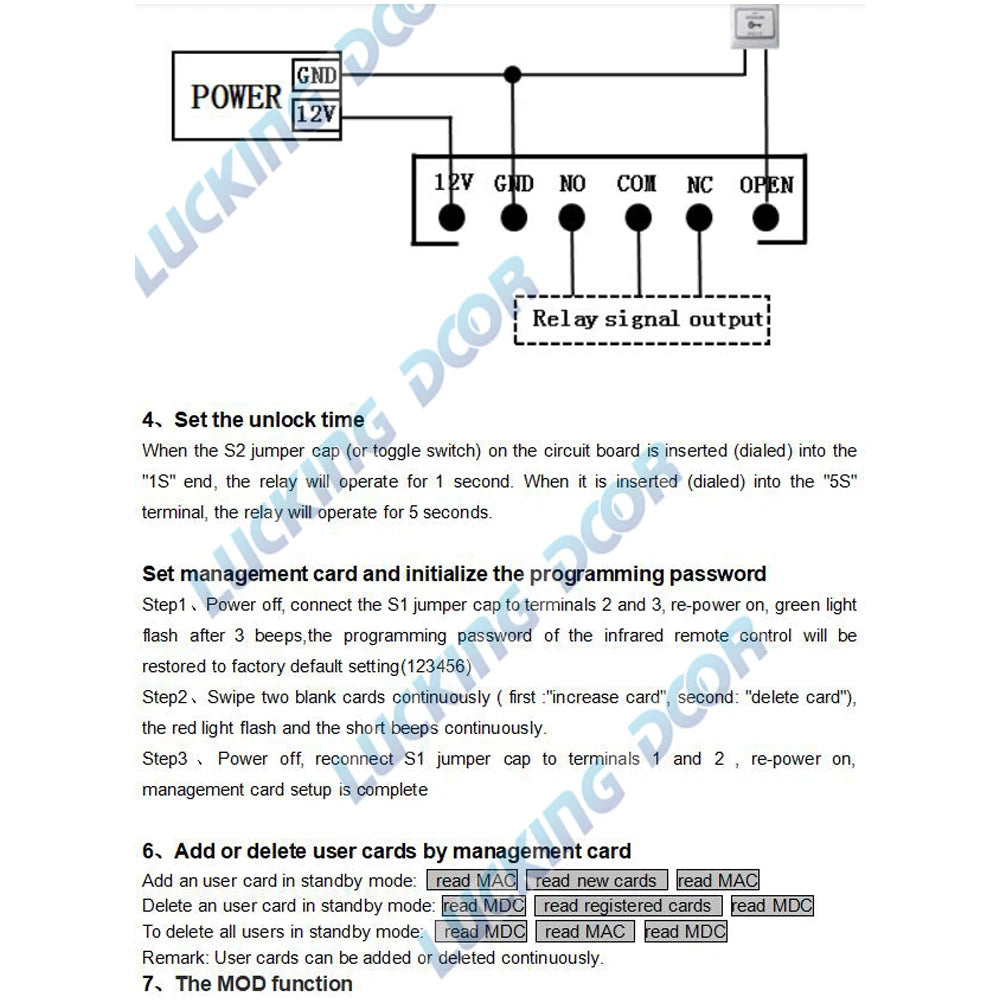

How to Set Up the Card System
Initial Card Configuration
- Power off the unit. Connect the S1 jumper cap to pins 2–3, then restore power. Wait for the green LED to flash three times.
- Swipe two consecutive blank cards (first card = "add card," second card = "delete card"). The red LED will flash in short bursts to confirm.
- Power off again. Reconnect the jumper cap to pins 1–2, then restore power. The card setup is complete.
Adding & Deleting Users
- Add a User: In standby mode, swipe the "Add Card," then swipe the user's card(s) one by one, then swipe the "Add Card" again to exit.
- Delete a User: In standby mode, swipe the "Del Card," then swipe the user's card to remove, then swipe the "Del Card" again to exit.
- Delete All Users: In standby mode, swipe the "Del Card," then the "Add Card," then the "Del Card" to exit and clear all registered users.

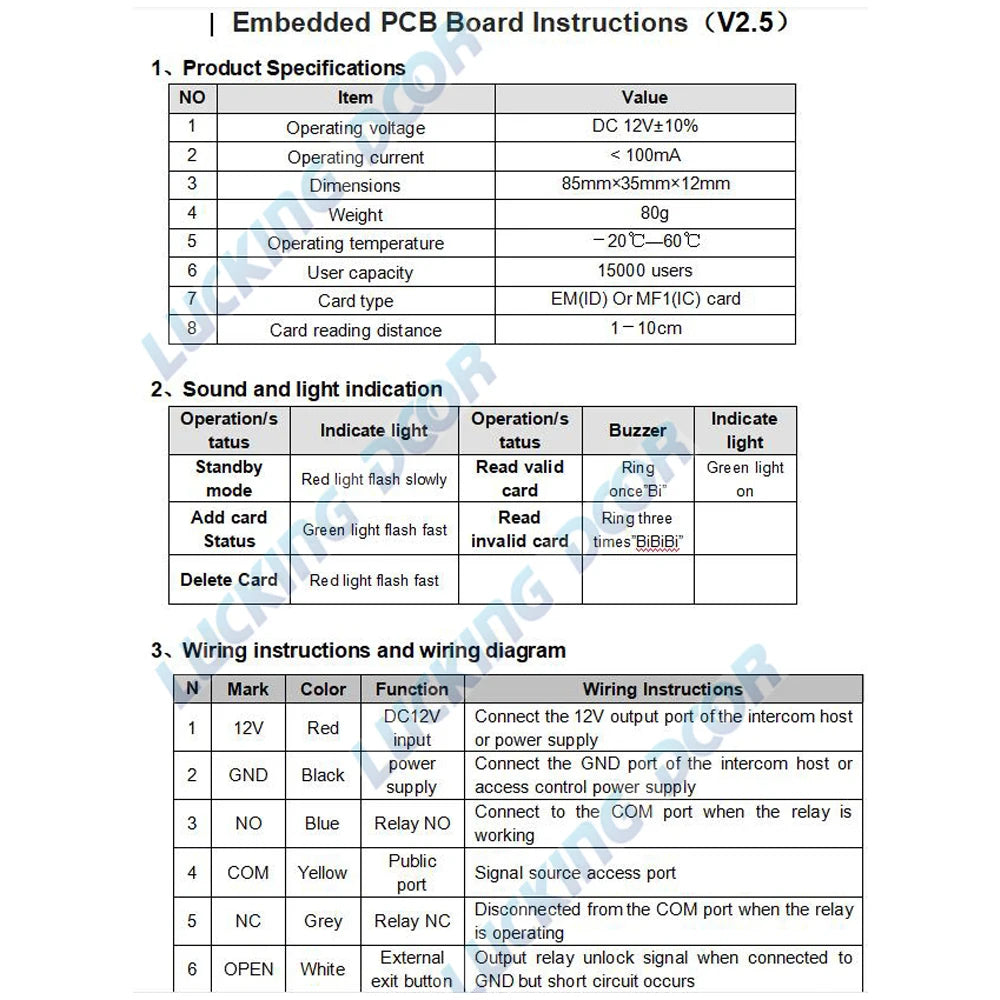

Specifications at a Glance
| Brand | LUCKING DOOR |
| Model | H2002C |
| Card Frequency | 13.56 MHz (IC / Mifare) |
| User Capacity | 15,000 |
| Read Distance | 1–10 cm |
| Voltage | DC 12V |
| Current | <100 mA |
| Operating Temp. | -20°C to 60°C |
| Weight | 80 g |
| Origin | Mainland China |
Learn More About Access Control Standards
For guidance on physical security and access control best practices, visit the NIST Cybersecurity & Physical Security Resources.
Frequently Asked Questions
Q: What type of cards are compatible with this 13.56MHz IC access control module?
A: This module is compatible with standard 13.56MHz IC (Mifare) proximity cards and key fobs. It does not support 125kHz EM/RFID cards — please ensure your cards match the 13.56MHz IC frequency before purchasing.
Q: How many users can be stored on the LUCKING DOOR H2002C access control board?
A: The H2002C module supports up to 15,000 individual users, making it suitable for large residential buildings, apartment complexes, and commercial properties with high foot traffic.
Q: Can this module be integrated into an existing building intercom or door system?
A: Yes. This is an embedded module designed for integration into building intercom panels and standalone door access systems operating at DC 12V. It connects via standard wiring and requires a DC 12V power supply with a current draw under 100 mA.
Q: What is the card read distance for this proximity access control module?
A: The card read distance is 1 to 10 cm, providing a convenient contactless experience while maintaining security by requiring close proximity to the reader.
