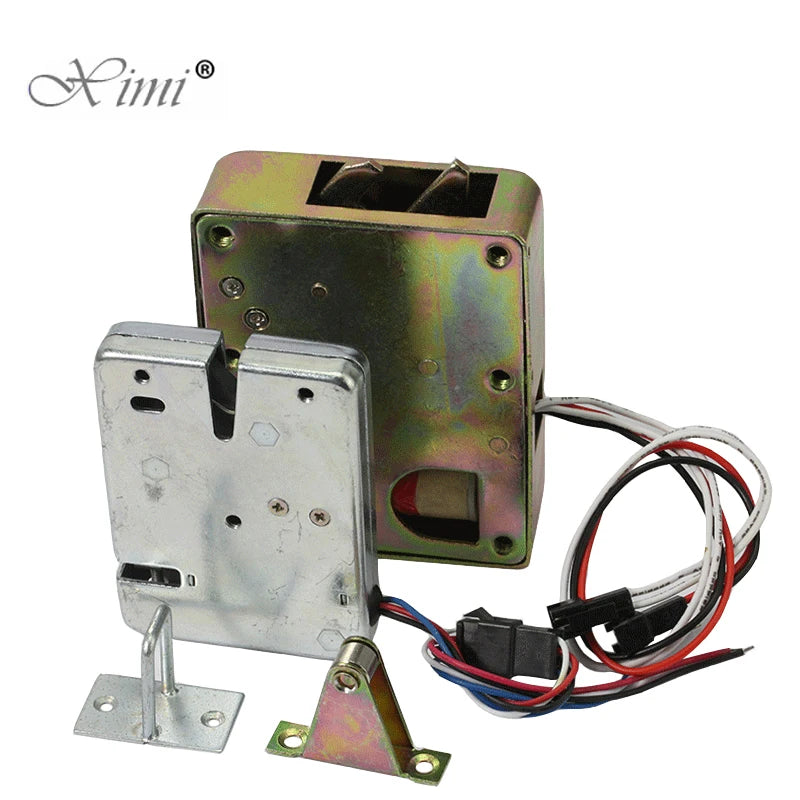

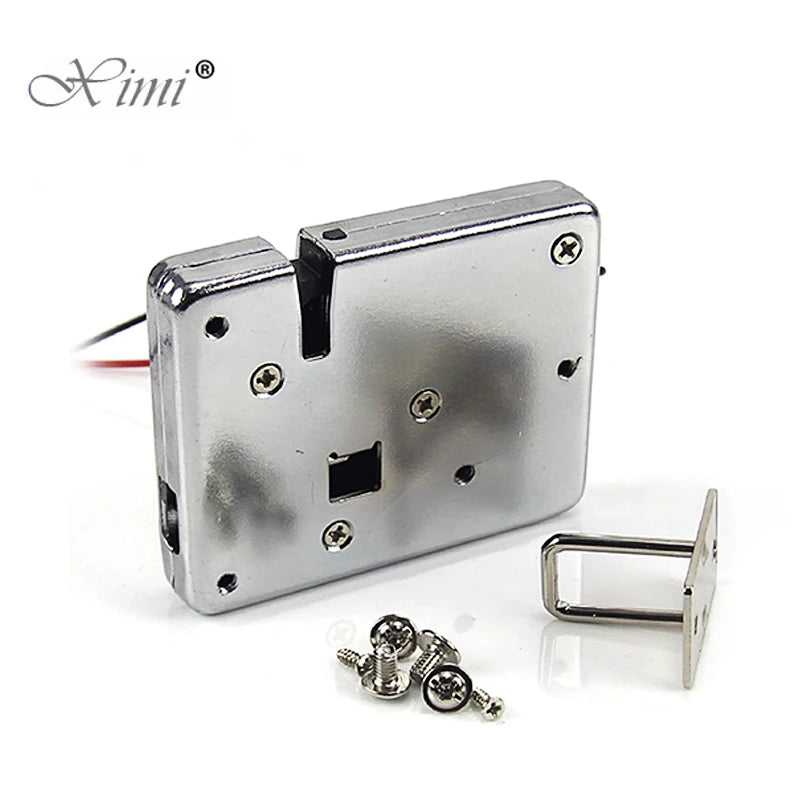

12V Mini Electric Bolt Lock — Compact Security for Cabinets, Lockers & More
Upgrade your access control setup with this compact 12V Mini Electric Bolt Lock. Designed for drawers, cabinets, office furniture, vending machines, safe boxes, and windows, this fail-secure (normally open) electric bolt lock delivers reliable, automated locking wherever you need it. Simply connect it to a stable DC power supply — the bolt retracts when energized, granting access instantly and locking securely when power is removed.
Key Features
- Fail-Secure (Normally Open / Power-to-Open): The bolt extends automatically when power is cut, keeping your cabinet or locker locked at all times unless actively powered open.
- Wide Compatibility: Fits small cabinets, drawers, lockers, office case furniture, vending cabinets, windows, and safe boxes.
- Compact & Lightweight: Available in two size options — 95×75×26mm and 80×60×14mm — weighing only 0.3 kg for easy installation in tight spaces.

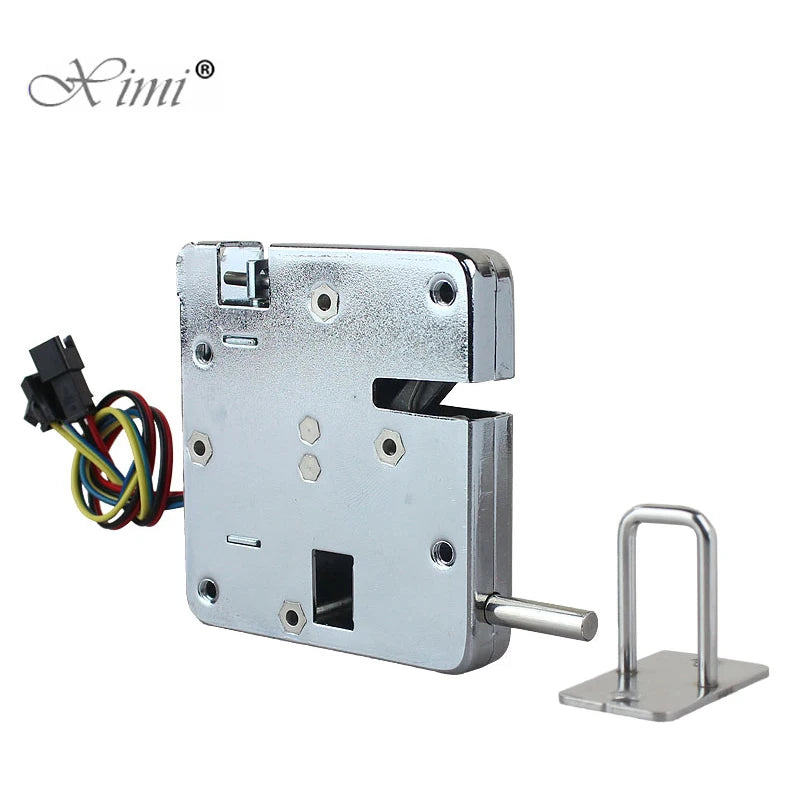

- 10mm Bolt Extension: Provides a solid mechanical locking point for secure closure.
- Low Power Consumption: Operates at 7–12V DC with a current draw of ≤2A, making it energy-efficient and easy to integrate with standard access control systems.

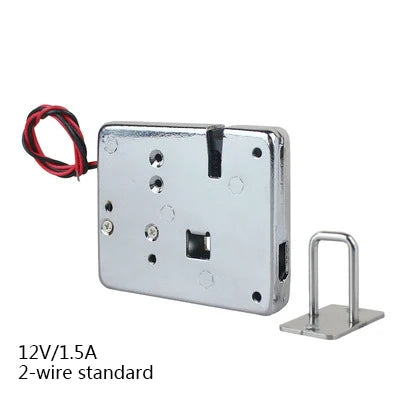

- Easy Wiring: Simple two-wire connection to any compatible access control board, keypad, RFID reader, or timer relay.
Technical Specifications
| Brand | ximiir |
| Model Number | XM-7145 / XM-7146 |
| Voltage | 7–12V DC |
| Current | ≤ 2A |
| Fail-Secure Type | Power to Open (Normally Open) |
| Bolt Extension | 10 mm |
| Lock Size | 95×75×26mm / 80×60×14mm |
| Weight | 0.3 kg |
| Country of Origin | Made in China |
⚠️ Important Usage Note
To protect the longevity of the electric lock, keep the unlocking (energized) time within 0–10 seconds. Prolonged energization can cause the lock to overheat and may result in damage. Always use an appropriate timer relay or access control controller to manage activation time.
Ideal Applications
- Office cabinet and drawer access control
- Vending machine and locker security
- Safe box and cash drawer automation
- Home and commercial furniture locking
- Window and enclosure access systems
Learn More About Access Control Standards
For guidance on physical security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What does "Power to Open" or "Normally Open" mean for this electric bolt lock?
A: "Power to Open" (also called Normally Open or NO) means the bolt is extended and locked by default when there is no power. When you apply 12V DC power, the bolt retracts to allow the cabinet or drawer to open. This is a fail-secure design — if power is lost, the lock stays engaged.
Q: What types of cabinets or furniture is this electric bolt lock compatible with?
A: This 12V mini electric bolt lock is designed for small cabinets, office drawers, vending cabinets, lockers, safe boxes, windows, and similar furniture. The two available size options (95×75×26mm and 80×60×14mm) provide flexibility for different installation spaces.
Q: Can I connect this lock to a keypad, RFID reader, or access control board?
A: Yes. This electric bolt lock works seamlessly with most standard access control systems including keypads, RFID card readers, fingerprint controllers, and timer relays — any system that outputs a 7–12V DC signal at ≤2A is compatible.
Q: How long can the lock stay energized (unlocked)?
A: It is strongly recommended to keep the energized (open) duration to 0–10 seconds. Exceeding this time can cause the lock body to overheat, which may reduce its lifespan or cause damage. Use a timed relay or controller to manage this automatically.
