2-Pack 12V Linear Actuator 1000N 30" Stroke Kit IP54 Controller
2-Pack 12V Linear Actuator 1000N 30" Stroke Kit IP54 Controller
2-Pack 12V Electric Linear Actuator Kit — 1000N / 220 lbs | 30-Inch Stroke | IP54 Rated
Upgrade your automation projects with this SucceBuy 2-piece 12V Linear Actuator Kit. Delivering a robust 1000N (220 lbs) actuation force and an impressive 30-inch (760 mm) stroke length, this kit is engineered for smooth, reliable, and precise linear motion across a wide range of applications — from motorized TV lifts and adjustable sofa mechanisms to automated doors, curtain systems, and industrial equipment.
Why Choose This Linear Actuator Kit?
- Generous 30-Inch Stroke: With 760 mm of travel distance, this actuator covers a wide range of motion, making it ideal for furniture lifting, height-adjustment platforms, and automation systems that require extended reach.
- Powerful 1000N Output: A rated load of 220 lbs (1000N) makes this kit well-suited for medium-duty tasks including motorized table lifts, electric recliner mechanisms, TV cabinet risers, and automated door systems.
- Complete Kit — Everything Included: No need for extra purchases. The package includes 2 linear actuators, a motor controller, 4 mounting brackets, a wireless remote control, and a full set of mounting accessories for quick, straightforward installation.
- IP54 Dust & Splash Protection: The IP54 protection rating shields the actuator from dust ingress and water splashes, ensuring stable performance in light-humidity environments, garages, workshops, or semi-outdoor settings. (Note: Water must not penetrate the motor interior — avoid submersion or direct water exposure.)
- Whisper-Quiet Operation: Operating below 60 dB, the actuator integrates seamlessly into home furniture and living spaces without disruptive noise.

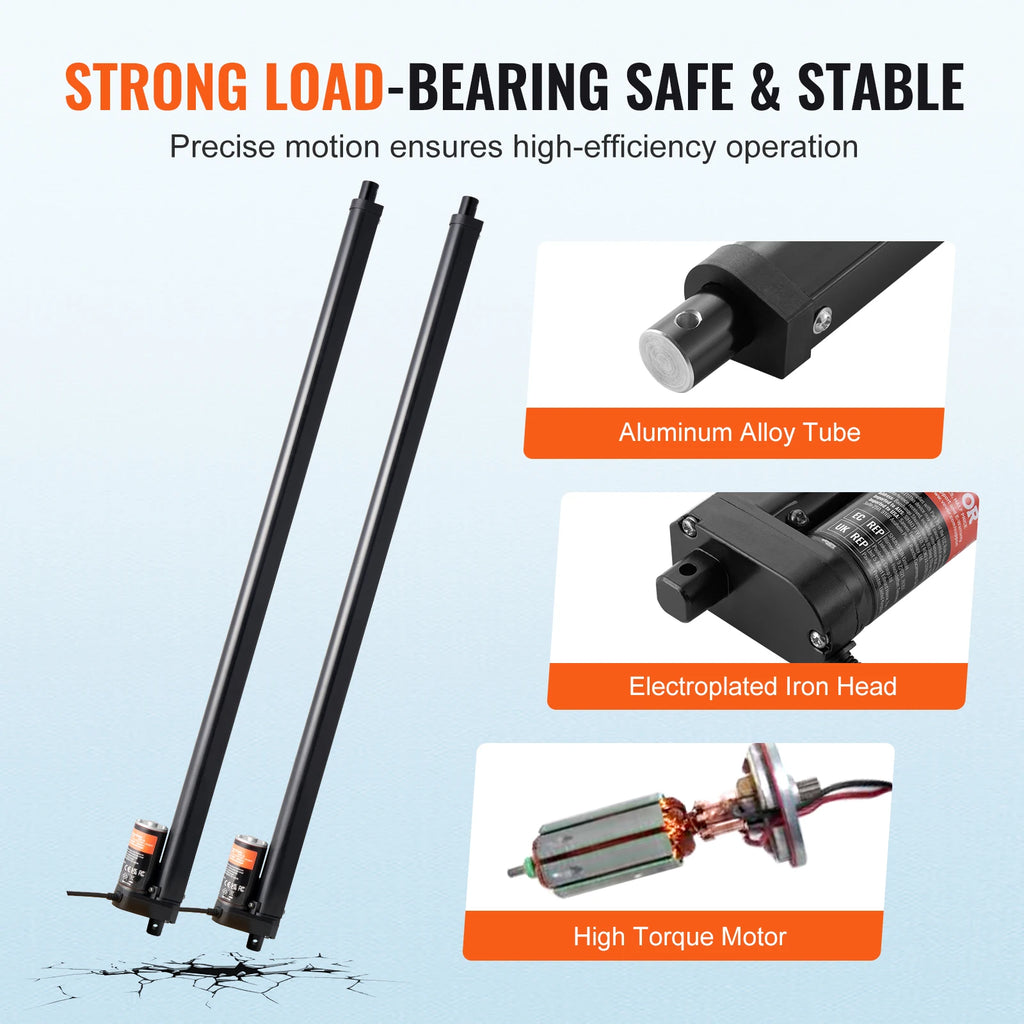

- High-Quality Construction: Precision-engineered with durable, high-grade materials for long-term reliability under frequent-use conditions. CE certified for peace of mind.
- Versatile Automation: Perfect for TV lifts, sofa recliner systems, adjustable tables, motorized curtain rails, electric door systems, medical equipment stands, and more.
Technical Specifications
| Quantity | 2 Actuators per Kit |
| Input Voltage | 12V DC (AC 100–240V adapter compatible) |
| Rated Load / Actuation Force | 1000N / 220 lbs |
| Stroke Length | 760 mm / 30 inches |
| Travel Speed | 9 mm/s (0.35 in/s) |
| Retracted Length | 885 mm (34.84 in) |
| Extended Length | 1645 mm (64.84 in) |
| Duty Cycle | 25% |
| Noise Level | < 60 dB |
| Protection Rating | IP54 |
| Certification | CE |
| Country of Origin | Made in China |

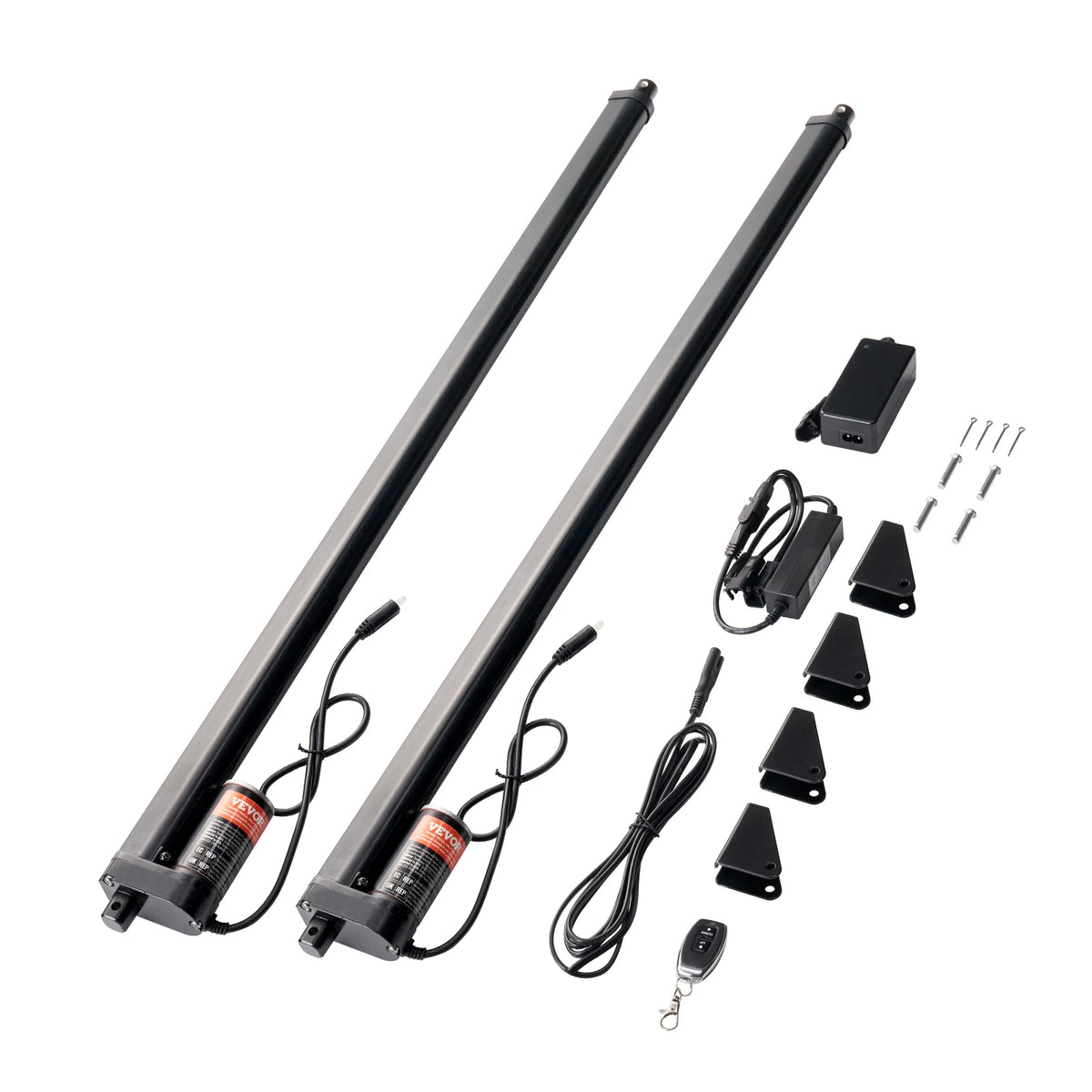

What's in the Box?
- 2 × 12V Linear Actuators (30-inch / 760 mm stroke)
- 1 × Motor Controller
- 4 × Mounting Brackets
- 1 × Wireless Remote Control
- 1 × Mounting Accessories Set
Common Applications
- TV lift cabinets & pop-up media consoles
- Motorized sofa & recliner adjustments
- Sit-stand desk & height-adjustable tables
- Automated curtain & blind systems
- Electric gate & door systems
- Industrial automation & mechanical equipment
For general electrical safety guidelines for motorized equipment, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What voltage does this 12V linear actuator kit require?
A: The actuators operate on 12V DC. The included controller is compatible with AC 100–240V input, making it suitable for standard household outlets in the US and internationally.
Q: Is the IP54-rated linear actuator safe to use outdoors?
A: The IP54 rating means the actuator is protected against dust and water splashes from any direction, making it suitable for semi-outdoor environments such as covered patios, garages, or workshops. However, it is not waterproof and should not be submerged or exposed to heavy rain or direct water flow, as water entering the motor can cause damage.
Q: Can I use these linear actuators for a TV lift or adjustable standing desk?
A: Yes. With a 1000N (220 lbs) actuation force and a 30-inch stroke length, these actuators are well-suited for motorized TV lifts, height-adjustable tables, and other furniture automation applications requiring reliable, smooth linear motion.
Q: What is the duty cycle, and what does it mean for my application?
A: The duty cycle is 25%, which means the actuator should operate for no more than 25% of any given time period to avoid overheating. For example, if it runs for 1 minute, allow it to rest for at least 3 minutes before the next cycle. This is typical for furniture and home automation applications.
Q: Does the kit include a remote control for wireless operation?
A: Yes. The kit includes a wireless remote control, motor controller, 4 mounting brackets, and all necessary mounting accessories, so you have everything needed for a complete installation right out of the box.
