Secure Your Cabinets with Smart Electric Locking

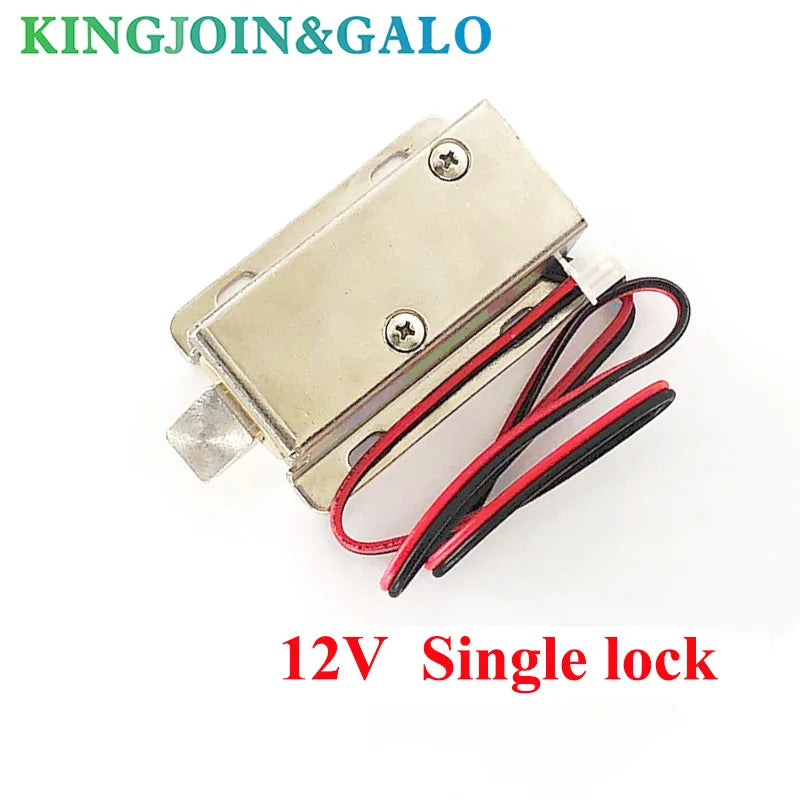

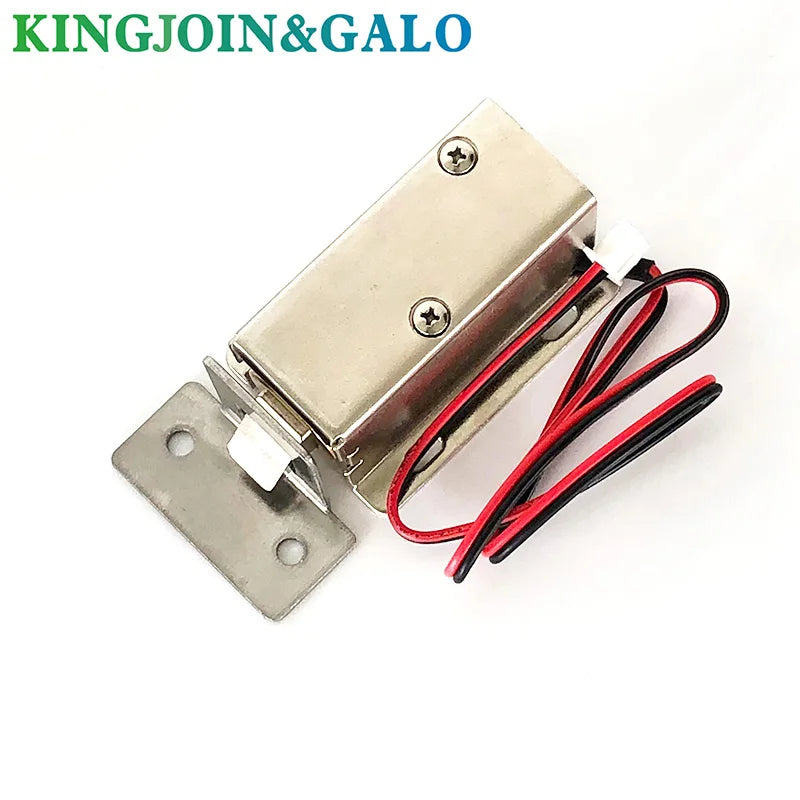

The KINGJOIN&GALO 12V Electric Solenoid Cabinet Lock delivers reliable, electronically controlled security for file cabinets, storage cabinets, safe boxes, and more. With a compact, low-profile design and adjustable lock bolt orientation, installation is straightforward and flexible — making it an ideal upgrade for both home and office cabinet security.
Key Features
- Adjustable Lock Bolt Orientation: Rotate the lock tongue in any direction using a standard cross-head screwdriver — no complex tools needed.
- Wide Voltage Compatibility: Operates on DC 9V, 12V, or 24V power supplies for flexible installation options.
- Fast Unlock Response: Unlocks in under 1 second when powered on (power-on unlock time <10 seconds).
- Wireless Remote Compatible: Can be paired with a wireless remote control for convenient keyless access.
- Access Control Integration: Easily connects to standard access control systems, intercoms, or keypad entry devices.
- Wide Operating Temperature Range: Rated from -40°C to +50°C, suitable for a variety of environments.
- CE Certified: Meets CE safety and quality standards.
- Compact Size: Measures just 54 × 41 × 27mm, fitting neatly inside most cabinet panels with minimal footprint.
Specifications
| Voltage | DC 9V / 12V / 24V |
| Working Current | 700–1000mA |
| Power Consumption | 7.5W |
| Unlock Time | 1 second (power-on <10 seconds) |
| Electrify Mode | Power-off lock (fail-secure) |
| Dimensions | 54 × 41 × 27mm |
| Lock Tongue Size | 10mm |
| Working Temperature | -40°C to +50°C |
| Certification | CE |
| Brand | KINGJOIN&GALO |
| Country of Origin | Made in China |

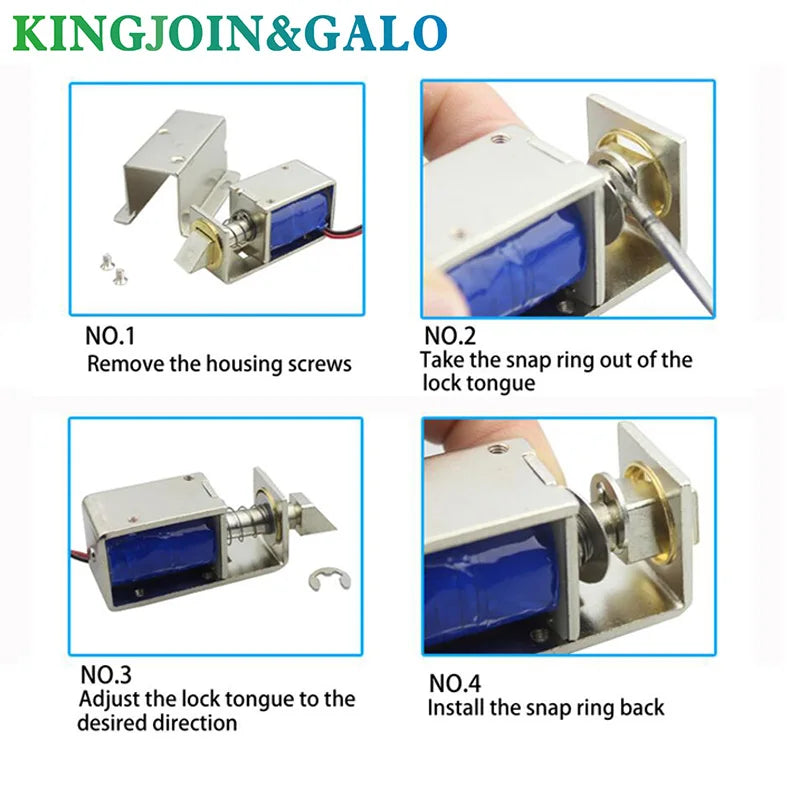

How to Adjust the Lock Bolt Orientation
- Use a cross-head screwdriver to remove the cover screws and lift off the cover.
- Fully retract the lock bolt.
- Use pliers to grip the bolt and rotate it to your desired orientation.
- Replace the cover and secure the screws.
Ideal Applications
- File cabinets & office drawer locks
- Storage cabinets & lockers
- Safe boxes & secure enclosures
- Smart home automation projects
- Access control system integrations
For general guidance on electronic access control and physical security standards, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety information on hardware products.
Frequently Asked Questions
Q: What voltage does this electric solenoid cabinet lock require?
A: This cabinet lock is compatible with DC 9V, 12V, and 24V power supplies. It is most commonly used with a standard 12V DC adapter, making it easy to integrate into existing setups.
Q: Can this solenoid lock be connected to an existing access control or remote system?
A: Yes — this electric cabinet lock supports both wireless remote control connections and standard access control system wiring, giving you flexible control options for keyless entry or centralized security management.
Q: Is this lock fail-secure or fail-safe?
A: This lock operates in a power-off lock (fail-secure) mode, meaning the bolt remains locked when power is cut, ensuring the cabinet stays secured during a power outage.
Q: How difficult is it to install this solenoid cabinet lock?
A: Installation is straightforward. The compact 54 × 41 × 27mm body fits into most cabinet panels, and the adjustable bolt orientation means you can customize the lock direction with just a screwdriver and pliers — no specialist tools required.
