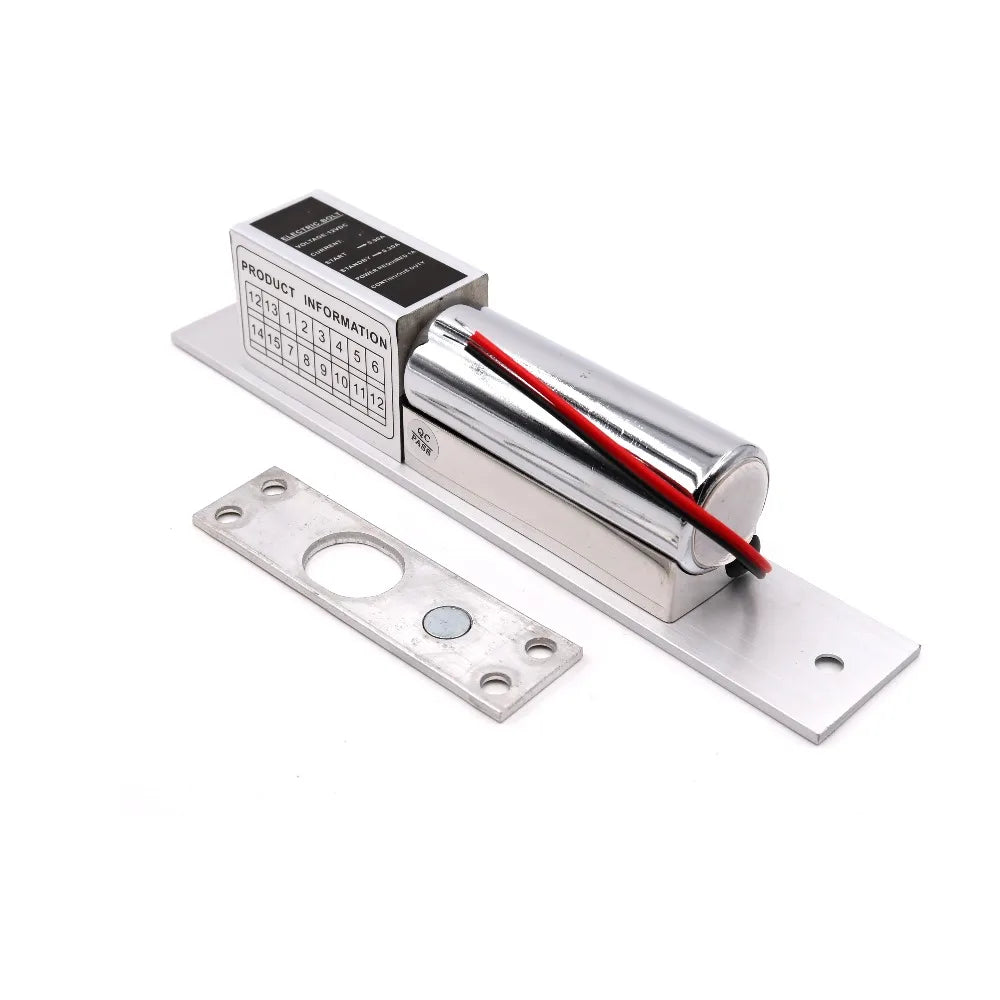

Secure Your Doors with the LIHTNE L30 Electric Drop Bolt Lock
The LIHTNE L30 12V Electric Drop Bolt Lock is a high-performance electronic deadbolt designed for modern door access control systems. Built with a high-strength aluminum lock body and a stainless steel bolt, this lock delivers dependable security for wooden doors, glass doors, metal doors, fireproof doors, and more. Whether you're upgrading a home entryway or securing a commercial space, the L30 is engineered for reliability and long-term durability.
Key Features
- Optimized Structure Design: New structural improvements deliver greater stability and enhanced security performance.
- Ultra-Low Power Consumption: Energy-efficient design extends the life of your access control system and reduces operating costs.
- High-Strength Construction: Aluminum alloy lock body paired with a stainless steel bolt for maximum holding force — up to 500 kg (1,102 lbs).
- Tested to 500,000 Cycles: Rigorously tested for long-lasting, maintenance-free performance.
- Fail-Safe (NC Mode): Automatically unlocks when power is removed — ideal for emergency egress compliance and safety-first installations.
- Low-Temperature Rated: Functions reliably in cold environments, making it suitable for exterior or climate-variable installations.
- Adjustable Time Delay: Configurable lock delay of 0, 3, 6, or 9 seconds to suit your access control workflow.
Technical Specifications
| Brand | LIHTNE |
| Model | L30 |
| Working Voltage | DC 12V / 1A |
| Current Draw | 120mA (Standby) / 450mA (Start) |
| Holding Force | 500 kg / 1,102 lbs |
| Net Weight | 550g |
| Time Delay Options | 0 / 3 / 6 / 9 seconds |
| Mode | Fail-Safe, NC (Normally Closed) |
| Compatible Doors | Wooden, Glass, Metal, Fireproof & More |
Versatile Door Compatibility
The L30 drop bolt lock is designed to integrate seamlessly into a wide variety of access control setups. Compatible with keypads, RFID readers, intercoms, and push-button exit systems, this lock is the reliable backbone of any electronic entry solution.
Safety & Standards
For guidance on electronic access control systems and building security best practices, refer to the U.S. Consumer Product Safety Commission (CPSC) for general product safety information.
Frequently Asked Questions
Q: What type of doors is the LIHTNE L30 electric drop bolt lock compatible with?
A: The LIHTNE L30 electric drop bolt lock is compatible with a wide range of door types including wooden doors, glass doors, metal doors, and fireproof doors. Its versatile design makes it suitable for both residential and commercial access control applications.
Q: What does "fail-safe NC mode" mean for this electric deadbolt lock?
A: Fail-safe NC (Normally Closed) mode means the lock will automatically unlock when electrical power is removed or interrupted. This is an important safety feature for emergency egress — ensuring doors can be opened in the event of a power outage, making it compliant with many building safety requirements.
Q: What voltage and current does the LIHTNE L30 electric drop bolt lock require?
A: The L30 operates on DC 12V / 1A. It draws 120mA in standby mode and 450mA during the initial engagement (start). It is designed to integrate easily with standard 12V access control power supplies.
Q: How strong is the holding force of this electric deadbolt lock?
A: The LIHTNE L30 provides a holding force of up to 500 kg (approximately 1,102 lbs), thanks to its high-strength aluminum lock body and stainless steel bolt construction. It has also been tested to 500,000 operation cycles for proven long-term durability.
