12V Small Electric Lock – Cabinet, Drawer & RFID Access Control
Take control of your cabinets, drawers, and enclosures with this compact, versatile 12V electric lock. Designed for seamless integration with RFID access control systems and wireless remote controls, this CE-certified solenoid lock is ideal for home, office, and commercial applications where secure, keyless access is required.
Key Features

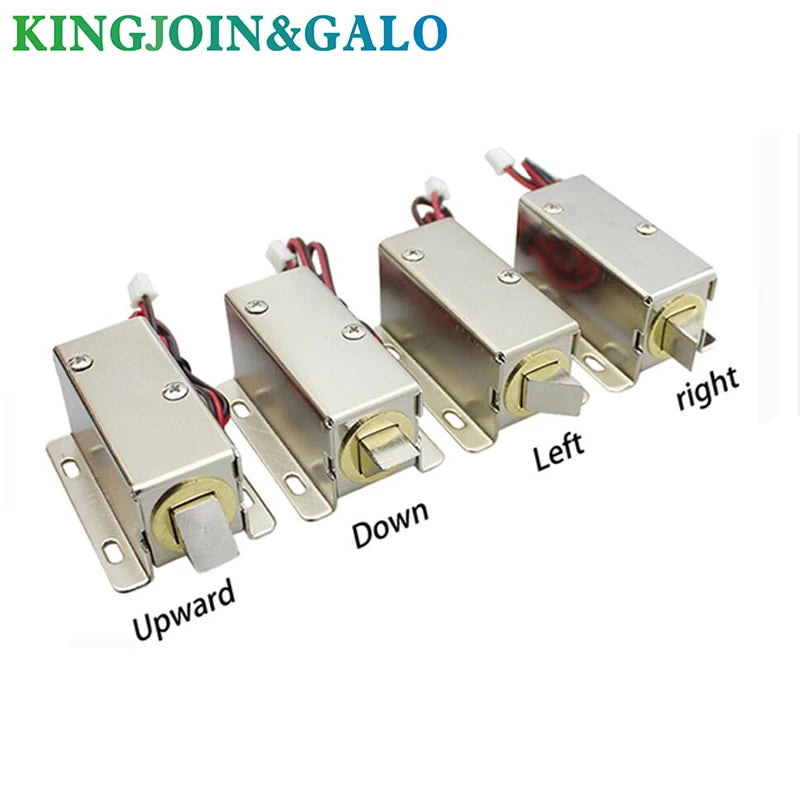

- Adjustable Lock Bolt Orientation – Easily reposition the lock bolt in any direction using a cross screwdriver and pliers, making installation flexible for virtually any cabinet or drawer setup.
- Wide Compatibility – Connects with wireless remote controls and RFID access control systems for versatile, keyless operation.

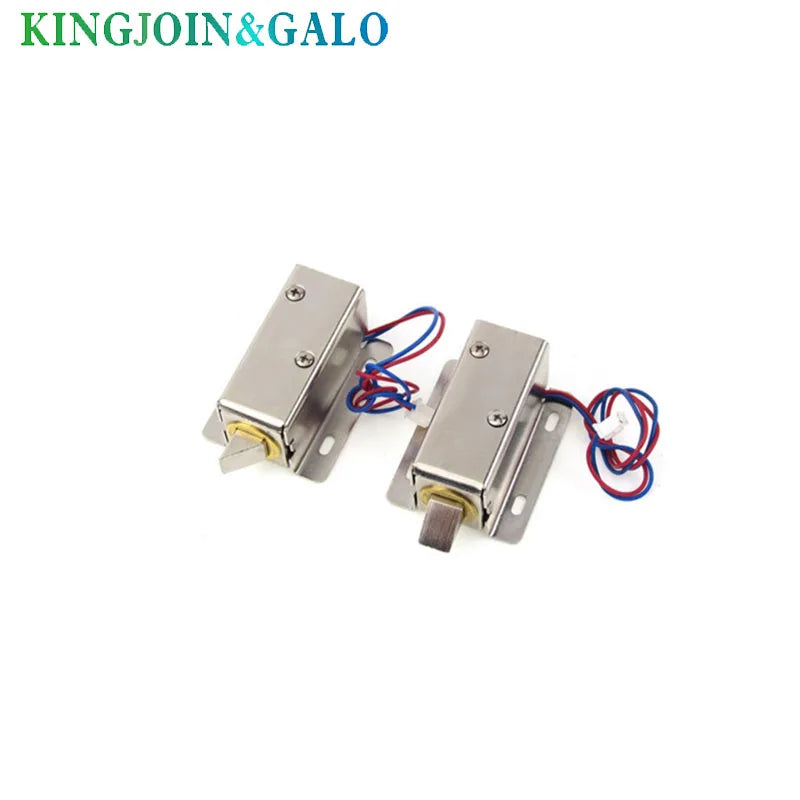

- Compact & Discreet Size – Measuring just 54 × 41 × 27 mm, this small electric lock fits neatly inside cabinets, drawers, lockers, and enclosures without taking up valuable space.
- Fast Unlock Response – Unlocks in approximately 1 second upon receiving a signal, with a maximum powered-lock duration of under 10 seconds.
- Wide Operating Temperature Range – Rated for use from -40°C to +50°C, suitable for both indoor and outdoor enclosure applications.
- CE Certified – Meets European conformity standards for safety and performance.
Technical Specifications
- Voltage: DC 9–12V
- Working Current: 700–1000 mA
- Power Consumption: 7.5W
- Unlock Time: ~1 second (power-on <10 seconds)
- Electrify Mode: Power-off to unlock (fail-secure design)
- Dimensions: 54 × 41 × 27 mm
- Lock Tongue Size: 10 mm
- Operating Temperature: -40°C to +50°C
- Model: GLS

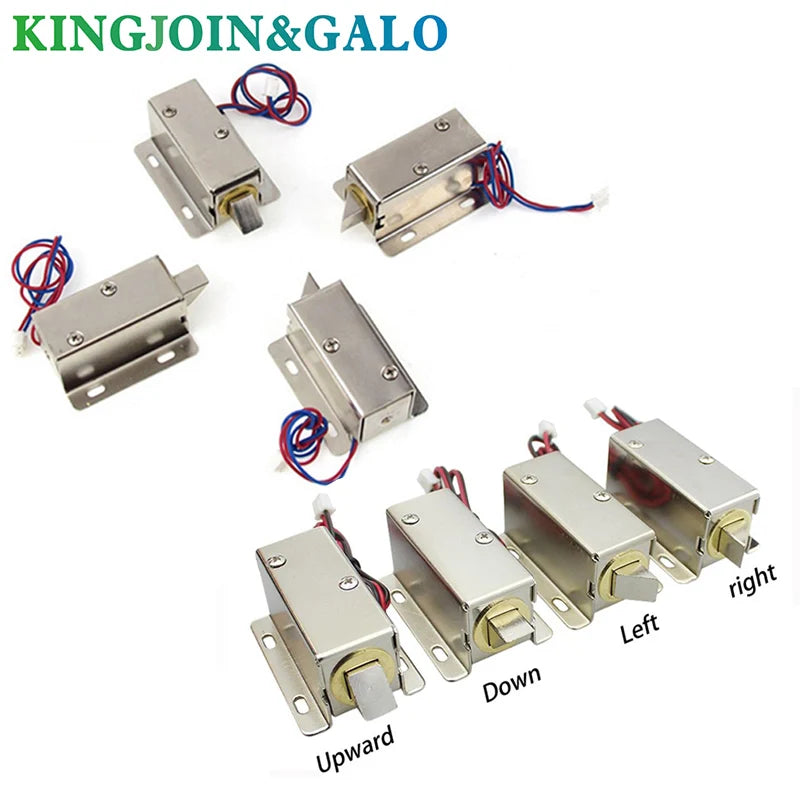

How to Adjust the Lock Bolt Orientation
- Use a cross screwdriver to remove the screws and take off the cover.
- Fully retract the lock bolt.
- Use pliers to grip and rotate the bolt to your desired orientation.
- Replace the cover and secure with screws.
Ideal For
- Office and home cabinets
- Desk and storage drawers
- Lockers and enclosures
- RFID and keypad access control systems
- Wireless remote-controlled entry systems
Made in Mainland China.
For more information on physical security standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Electronic lock
Frequently Asked Questions
Q: What voltage does this small electric cabinet lock require?
A: This electric lock operates on DC 9–12V, making it compatible with standard 12V power supplies commonly used in access control systems. Ensure your power source falls within this range for reliable operation.
Q: Can this lock be used with an RFID access control system?
A: Yes. This 12V electric lock is designed to connect directly with RFID access control systems as well as wireless remote controls, allowing for flexible, keyless entry solutions for cabinets, drawers, and enclosures.
Q: Is the lock bolt direction adjustable after installation?
A: Absolutely. The lock bolt orientation can be adjusted at any time using a cross screwdriver and pliers, giving you the flexibility to mount the lock in virtually any position to suit your specific cabinet or drawer configuration.
