12V DC Electric Rim Lock – Magnetic Door Lock for Access Control

Electric Magnetic Rim Lock – 12V DC | Access Control & Video Intercom Compatible

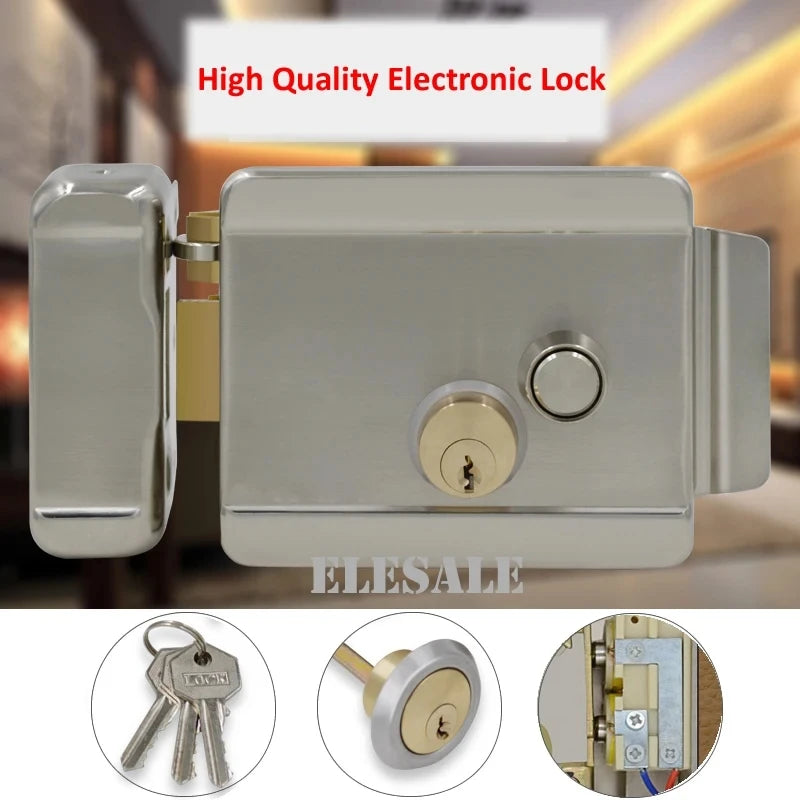

Upgrade your door security with this heavy-duty 12V DC Electric Rim Lock. Built from durable stainless steel and CE & MA certified, this electric control lock integrates seamlessly with access control systems and video intercom/door phone systems. Whether you're securing a home entryway, office, or commercial space, this lock delivers reliable, automatic operation with multiple unlocking methods — keyfobs, inside button, access card reader, or video door phone.

Made in China.

Key Features

• Versatile Unlocking: Operates via keyfob, inside release button, access control system, or video intercom door phone
• Stainless Steel Construction: Corrosion-resistant body built for long-term durability
• Fail-Secure Mode (NO Mode): Remains locked when power is off — maintaining security during outages
• Simple 2-Wire Connection: Easily wires into any standard access control or video intercom system
• Auto-Lock on Close: Bolt automatically engages when the door is shut

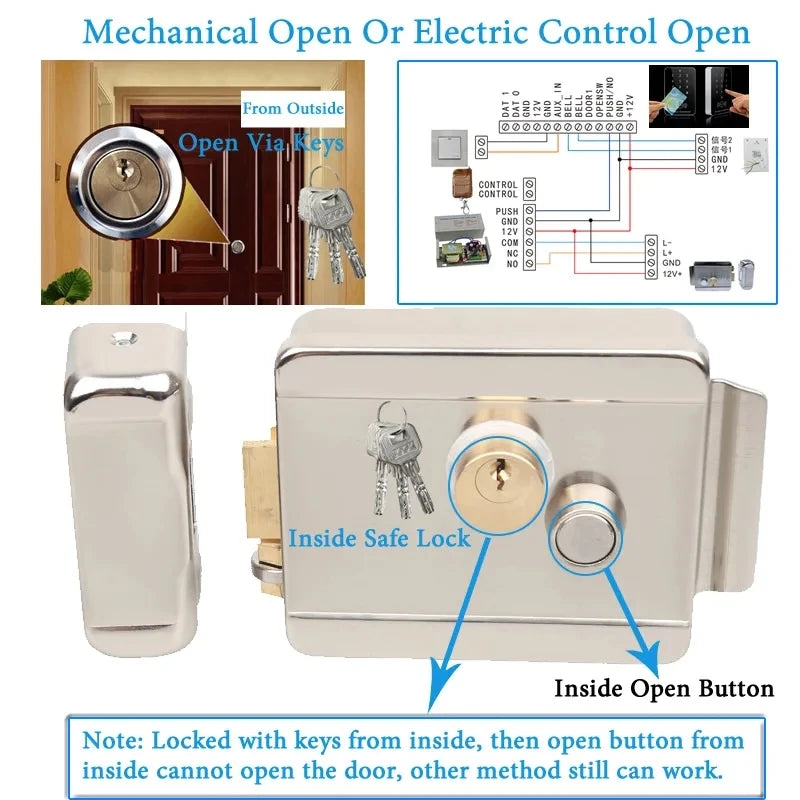

• Safe Lock Mode: Lock from the inside with a key — disables exterior button for maximum security
• Manual Override: Can be opened from inside and outside with keys even when unpowered

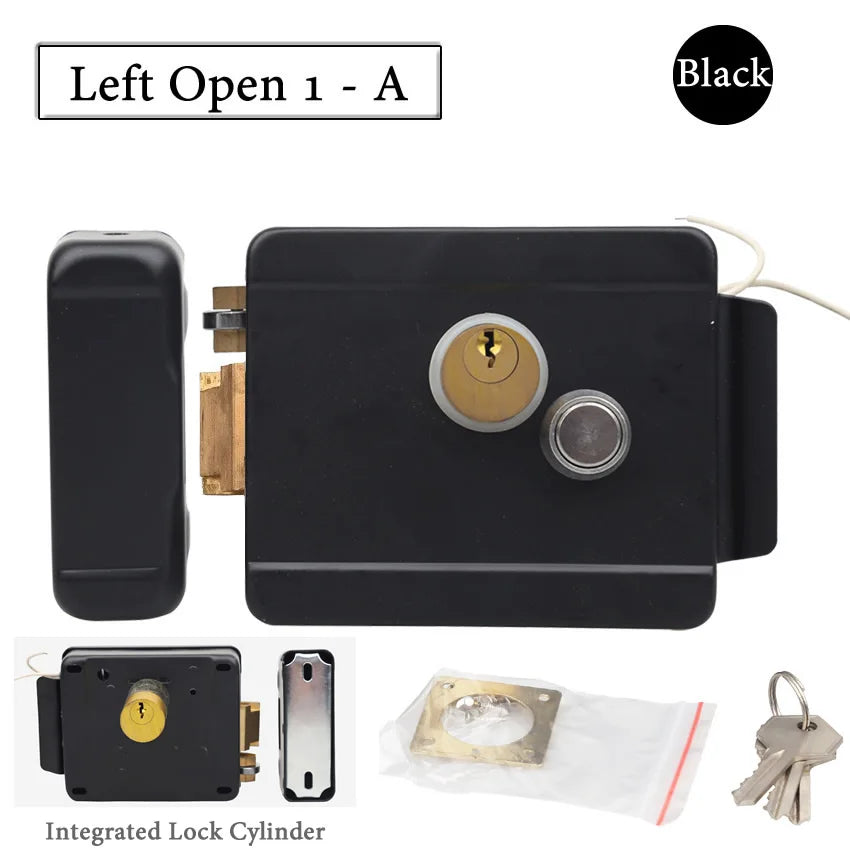

• Right & Left Opening Versions Available: Choose the correct hand orientation for your door

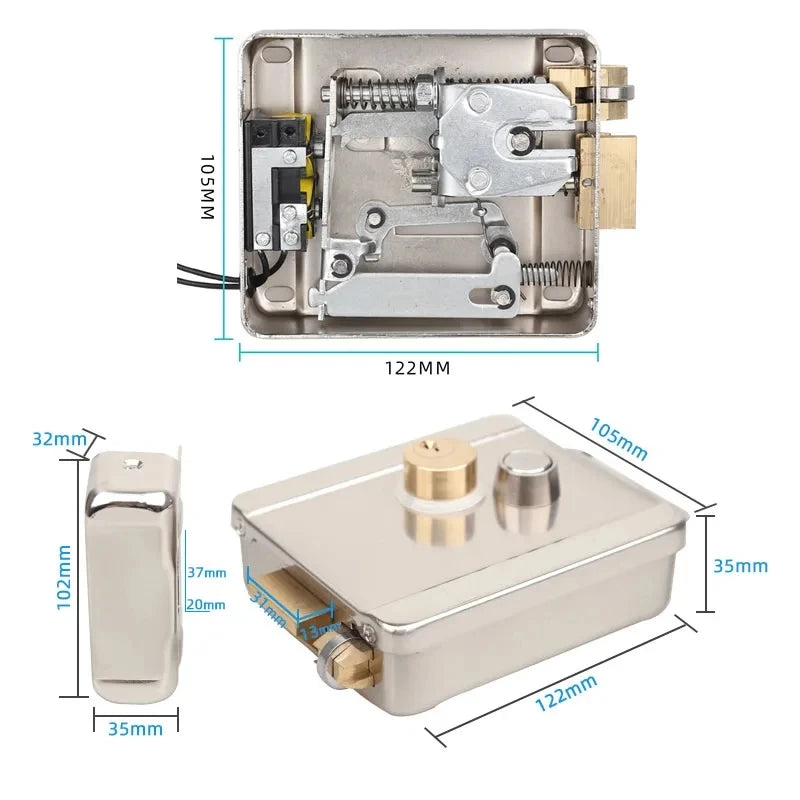

• Wide Door Compatibility: Fits doors 35mm–55mm (1-3/8" to 2") thick; suits wood and iron doors
• CE & MA Certified: Meets recognized safety and quality standards

Technical Specifications

What's in the Box?

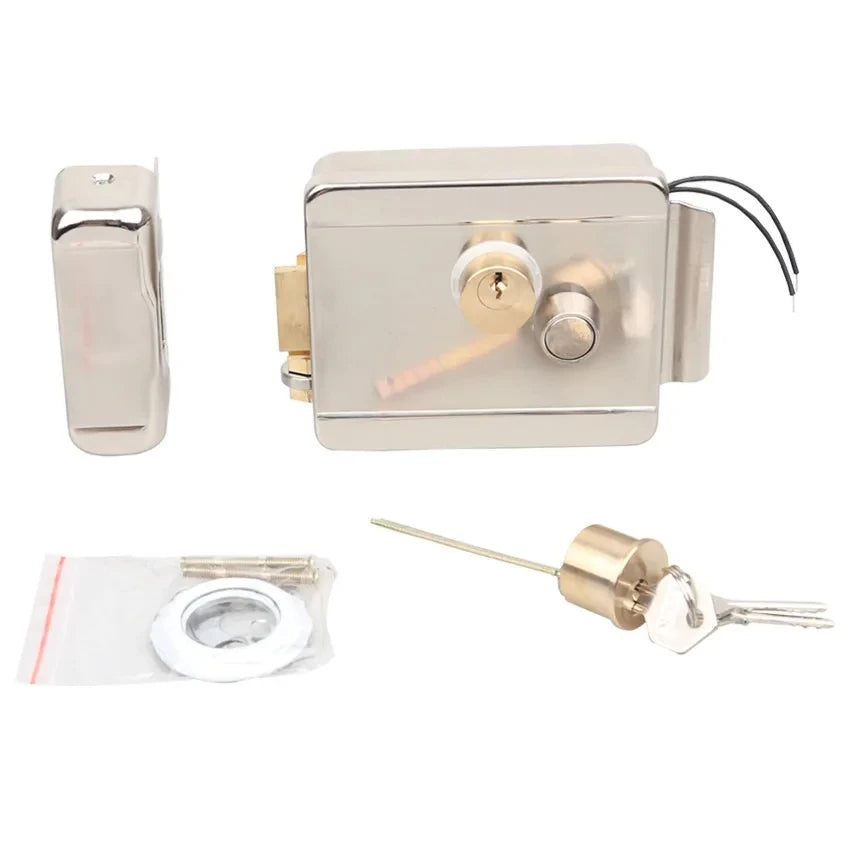

1× Electric Rim Lock and all required mounting accessories — everything you need to get started.

Installation Tips

Installation is straightforward. Connect the 2-wire lead to your access control panel or video intercom terminal. Be sure to choose the correct hand (left-opening or right-opening) before ordering by checking which side your door hinges are on. Fits most standard wood and iron doors with a thickness between 35mm and 55mm.

For more guidance on physical security standards, visit the U.S. Consumer Product Safety Commission (CPSC) for consumer safety resources related to home security hardware.

Frequently Asked Questions

Q: Is this electric rim lock compatible with my video intercom or door phone system?

A: Yes. This 12V DC electric rim lock is designed to work with standard video intercom systems and access control systems using a simple 2-wire connection. Most residential and commercial intercom door phone systems that support an electric strike or rim lock output at 12V DC are compatible.

Q: What happens if the power goes out — will my door stay locked?

A: Absolutely. This lock operates in Fail-Secure (NO Mode), meaning the bolt remains extended and the door stays locked whenever power is disconnected. This is ideal for exterior doors where security must be maintained regardless of power status. The door can still be opened manually with a key from either side during a power outage.

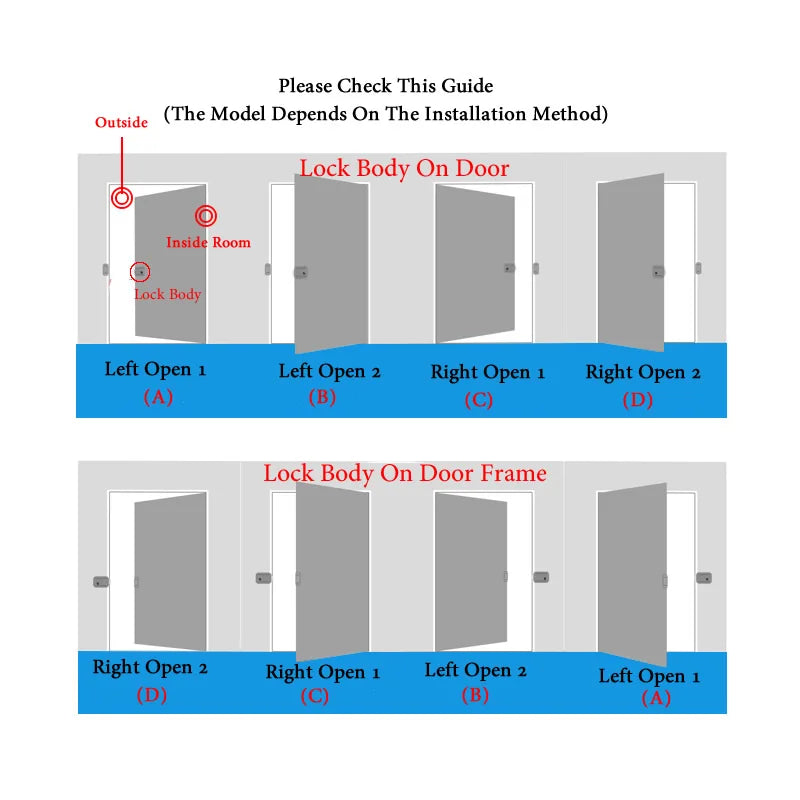

Q: How do I know whether to choose the left-opening or right-opening version?

A: Stand facing the door from the outside. If the hinges are on your left, you need a left-opening lock; if the hinges are on your right, choose the right-opening version. Selecting the correct orientation is essential for proper bolt alignment and operation.

Q: What door thicknesses does this electric rim lock support?

A: This lock is compatible with doors between 35mm (approximately 1-3/8 inches) and 55mm (approximately 2 inches) thick. It is suitable for both wood and iron door types.

Q: Can the outside button be disabled for added security?

A: Yes. When you lock the door from the inside using your key, the exterior button on the lock body is automatically disabled. This Safe Lock Mode prevents anyone outside from triggering the electric release, giving you an extra layer of security when needed.
