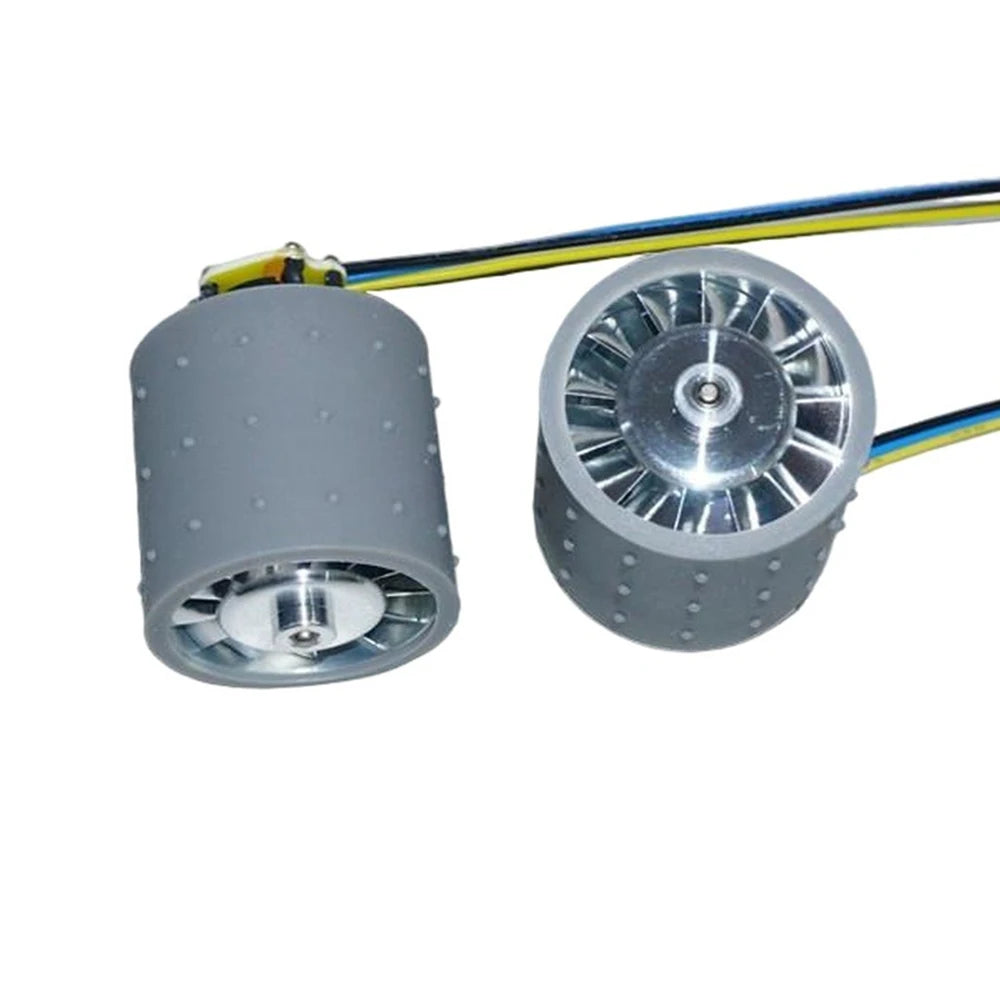

12V 60W 100,000 RPM EDF Turbo Fan — 13-Blade CNC Aluminum Impeller with 3S Brushless Motor
Push your RC aircraft or custom ducted-fan build to the next level with this high-performance 28.8mm Electric Ducted Fan (EDF). Spinning at an incredible 100,000 RPM on a 3S lithium battery, this compact blower delivers extraordinary thrust in a lightweight, all-aluminum package. Whether you're building a micro jet model, a high-speed RC plane, or a custom airflow system, this EDF unit is engineered for serious performance.
Made in Mainland China.
Why Choose This EDF Turbo Fan?
- Blazing 100,000 RPM Speed — Three-phase brushless motor drives the impeller to extreme rotational speeds for maximum thrust output.
- 13-Blade CNC Aluminum Impeller — Precision-machined from aluminum alloy for exceptional balance, durability, and efficient airflow at high RPM.
- Full Aluminum Alloy Construction — Both the impeller and body casing are CNC-machined from aluminum, keeping weight low (just 56g) while maintaining structural rigidity.
- Silicone Shock-Absorbing Sleeve — Built-in silicone protective cover dampens vibration for smoother, quieter operation and extended motor life.
- High-Temperature Resistant Wiring — 12cm heat-rated leads handle the demands of sustained high-power operation without degradation.
- Versatile Voltage Range — Operates from 8V to 12V DC, compatible with standard 3S LiPo battery setups.
Full Specifications
| Speed | 100,000 RPM |
| Rated Voltage | 12V DC (Operating Range: 8V–12V) |
| Power Output | 8V / 20W (2.5A) | 12V / 60W (5A) |
| Compatible Battery | 3S Lithium Battery (not included) |
| Motor Type | Three-phase brushless (requires brushless ESC) |
| Impeller | 13-blade CNC aluminum alloy |

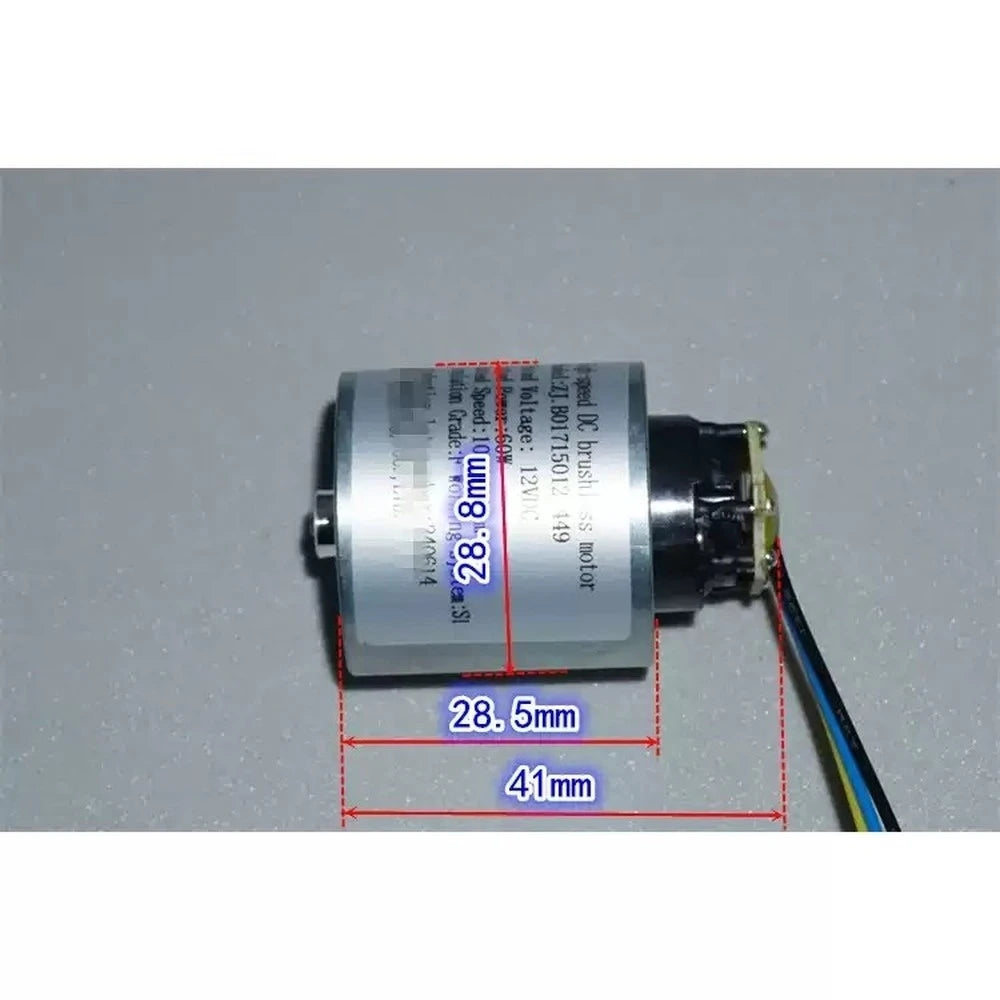

| Converging Channel Inner Diameter | 28.8mm |
| Outer Diameter (with shell) | 31mm |
| Overall Weight | 56g |
| Wire Length | 12cm high-temperature resistant wire |
| Battery Included | No |
| Origin | Mainland China |
Important Usage Notes

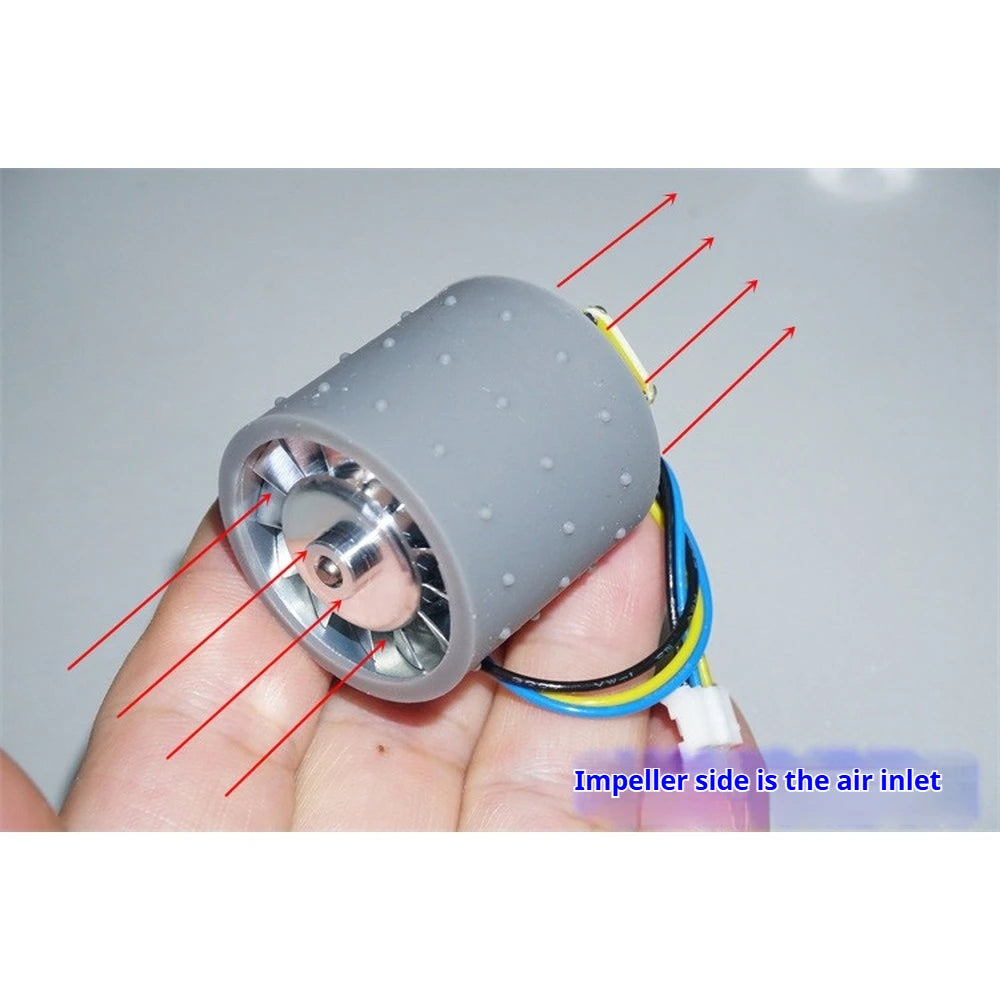

- The air outlet is located at the wire end only — installing the fan in the wrong direction will significantly reduce airflow and may damage the motor.
- It is strongly recommended to attach a suction nozzle at the air outlet to concentrate airflow and prevent heat buildup from air dispersion.
- Requires a compatible brushless electronic speed controller (ESC) — not included.
What's in the Box
- 1× 28.8mm EDF Turbo Fan with 13-Blade CNC Brushless Motor
Note: Due to screen calibration differences, colors may vary slightly from product images. Please allow 1mm–1cm tolerance due to manual measurement.
For general RC hobby safety guidelines and safe battery handling practices, refer to the U.S. Consumer Product Safety Commission — Battery Safety.
Frequently Asked Questions
Q: Does this 28.8mm EDF fan come with a battery or ESC?
A: No — neither a battery nor an electronic speed controller (ESC) is included. You will need a 3S lithium battery and a compatible brushless ESC to operate this EDF turbo fan.
Q: What type of ESC is required for this brushless motor EDF fan?
A: This unit uses a three-phase brushless motor, so it requires a brushless-compatible electronic speed controller (ESC) rated for at least 5A at 12V. Make sure your ESC supports the 3S LiPo voltage range (8V–12V).
Q: What applications is this 100,000 RPM EDF turbo fan suitable for?
A: This high-speed ducted fan is ideal for RC jet aircraft models, micro EDF planes, custom airflow or cooling systems, hobby builds, and any application requiring a compact, high-RPM brushless blower in a 28.8mm form factor.
Q: How do I ensure correct airflow direction when installing this EDF fan?
A: The air outlet is located at the end where the wires exit. Always confirm airflow direction before mounting — reversed installation will reduce thrust and may overheat the motor. Installing a suction nozzle at the outlet is also recommended to maximize efficiency.
