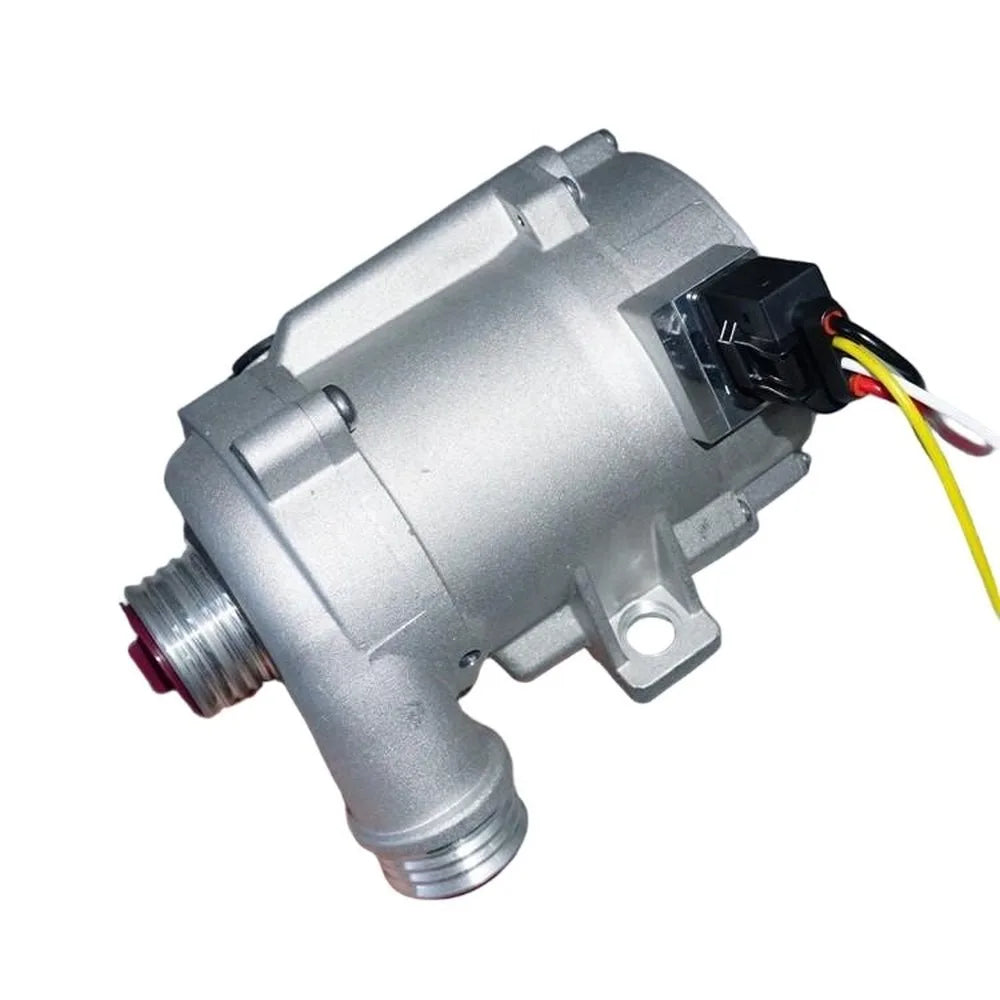

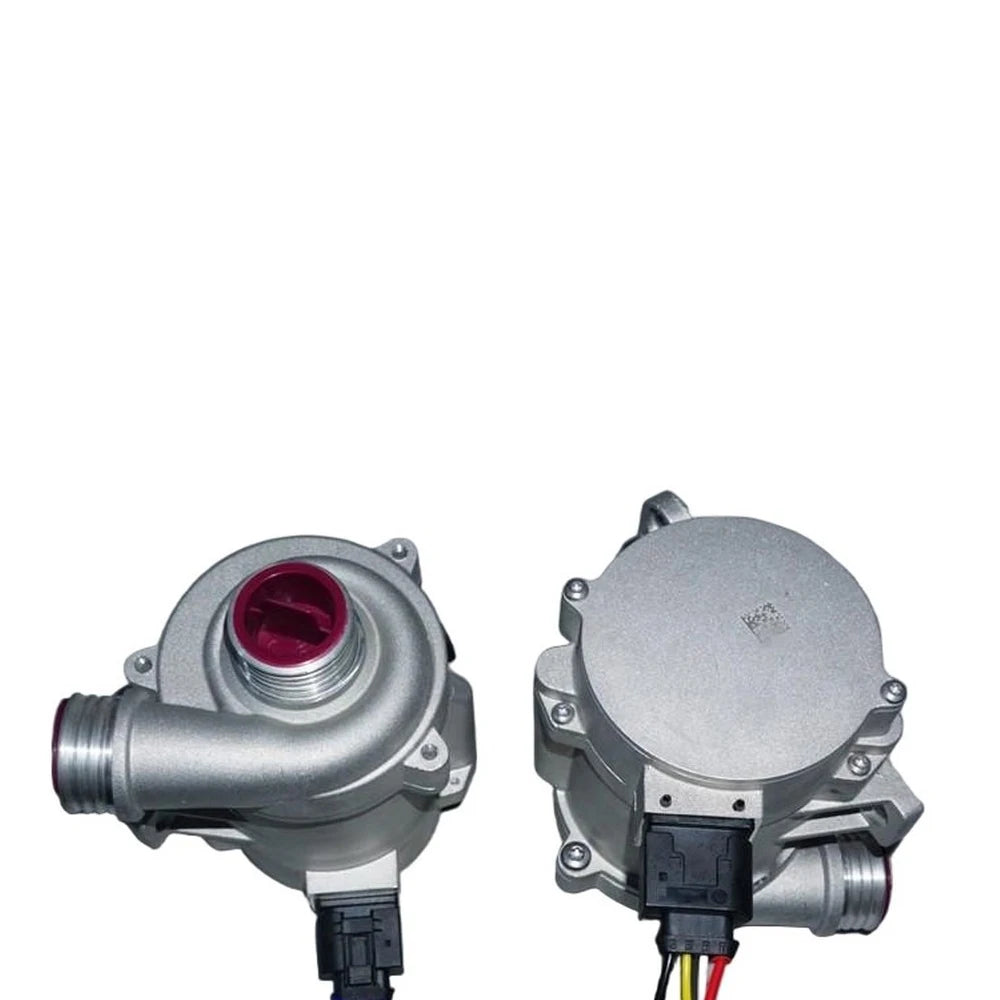

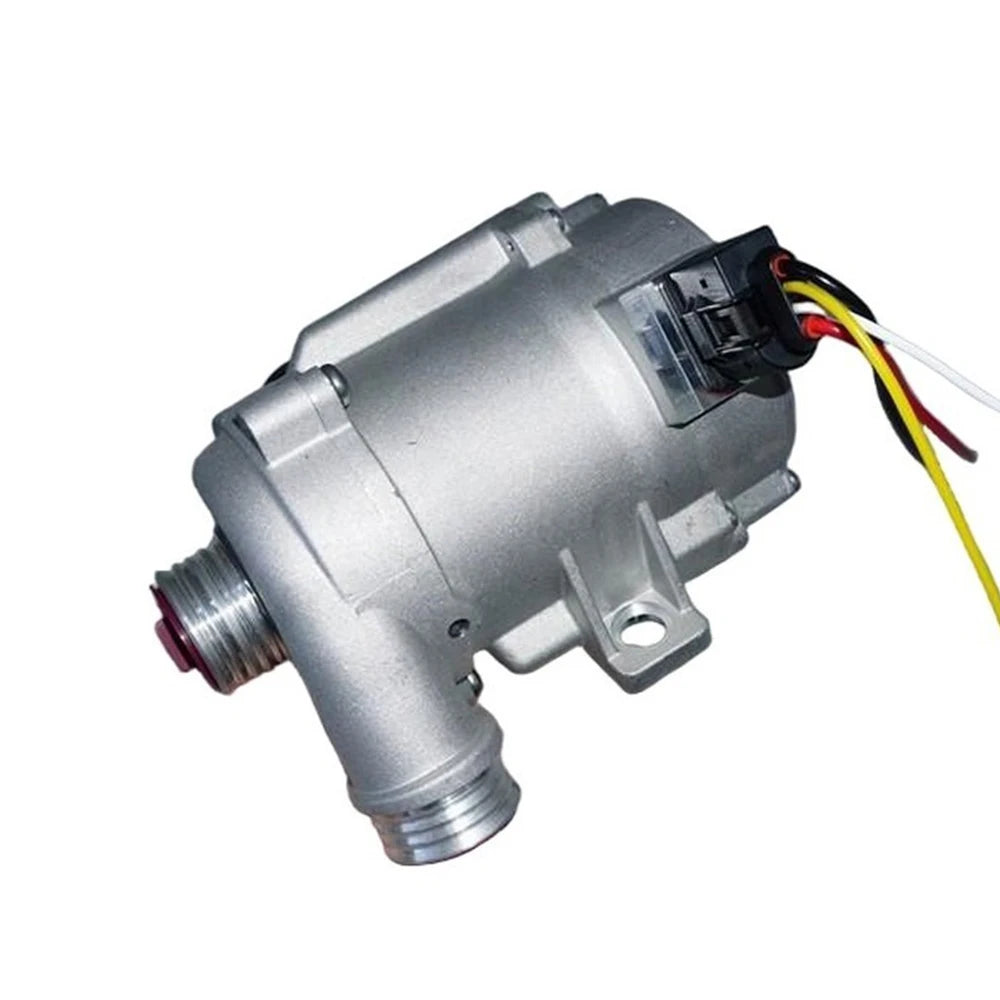

12V 250W High Flow Brushless Centrifugal Water Pump with Built-in Driver & PWM Speed Control
Engineered for demanding automotive and industrial cooling applications, this 12V 250W brushless centrifugal water pump delivers high-flow water circulation with precision PWM speed control. Featuring a built-in driver board, it eliminates the need for external controllers and integrates seamlessly into existing cooling systems. Rated to handle circulating water temperatures up to 100°C, this pump is built to perform where it matters most.
Key Features
- High Power Output: 250W rated power for robust, high-volume water circulation.
- Wide Voltage Range: Operates on 8V–20V DC, compatible with standard 12V automotive and industrial setups.
- Built-in Driver Board: No external controller required — plug in and run.
- PWM Speed Control: 12V 100Hz PWM signal allows precise, variable speed management for optimized flow rates.
- Brushless Motor Design: Longer service life, reduced friction, and quieter operation compared to brushed alternatives.
- High Temperature Tolerance: Designed to withstand circulating water temperatures up to 100°C.
- Centrifugal Impeller Design: Smooth, efficient fluid transfer ideal for closed-loop cooling circuits.
- 2-Second Delayed Start: Connects PWM signal line to the positive pole; starts after a 2-second delay for safe, controlled startup.
- Compact & Reliable: Fully tested and qualified before shipment; weighs just 1.8 kg.
Technical Specifications
| Rated Power | 250W |
| Working Voltage | 8V – 20V DC |
| Rated Current | ~18A (decreases as voltage increases) |
| Pump Type | Centrifugal Impeller Brushless Water Pump |
| Drive Scheme | Built-in Driver Board |
| Speed Control | 12V 100Hz PWM Signal |
| Max Water Temperature | 100°C |
| Unit Weight | 1.8 kg |
| Self-Priming | No — water inlet chamber must be pre-filled |
| Anti-Backflow | Install a one-way check valve at the outlet (recommended) |
| Country of Origin | Made in Mainland China |
Important Usage Notes
- No Self-Priming: The water inlet chamber must be filled with water before operation. The pump will not self-prime from a dry state.
- Polarity Matters: Strictly observe positive and negative polarity when connecting power. Refer to the included product manual for wiring definitions.
- Backflow Prevention: It is strongly recommended to install a one-way check valve at the pump outlet to prevent reverse flow.
- Slight oxidation at the bottom of the rear cover may be present — this is cosmetic only and does not affect performance. All units are fully tested and qualified for shipment.
What's in the Box
- 1× 12V 250W Brushless Centrifugal Water Pump
For more information on safe electrical installations and automotive cooling system best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Does this 12V brushless centrifugal water pump require an external driver or controller?
A: No. This pump features a built-in driver board, so no external controller is needed. Simply connect to a 12V DC power source and provide a 12V 100Hz PWM signal for speed control.
Q: What is the maximum water temperature this pump can handle?
A: This brushless centrifugal pump is rated to withstand circulating water temperatures of up to 100°C, making it suitable for automotive cooling and high-temperature circulation systems.
Q: Can this pump self-prime from a dry state?
A: No — this pump does not have a self-priming function. The water inlet chamber must be fully filled with water before operation. Running the pump dry may cause damage.
Q: What voltage range does this pump support?
A: The pump operates on a DC voltage range of 8V to 20V, making it versatile for 12V automotive systems as well as other DC applications within that range.
Q: How do I control the speed of this centrifugal water pump?
A: Speed is controlled via a 12V 100Hz PWM (Pulse Width Modulation) signal. By varying the duty cycle of the PWM signal, you can adjust the pump's flow rate to match your system's cooling demands.
