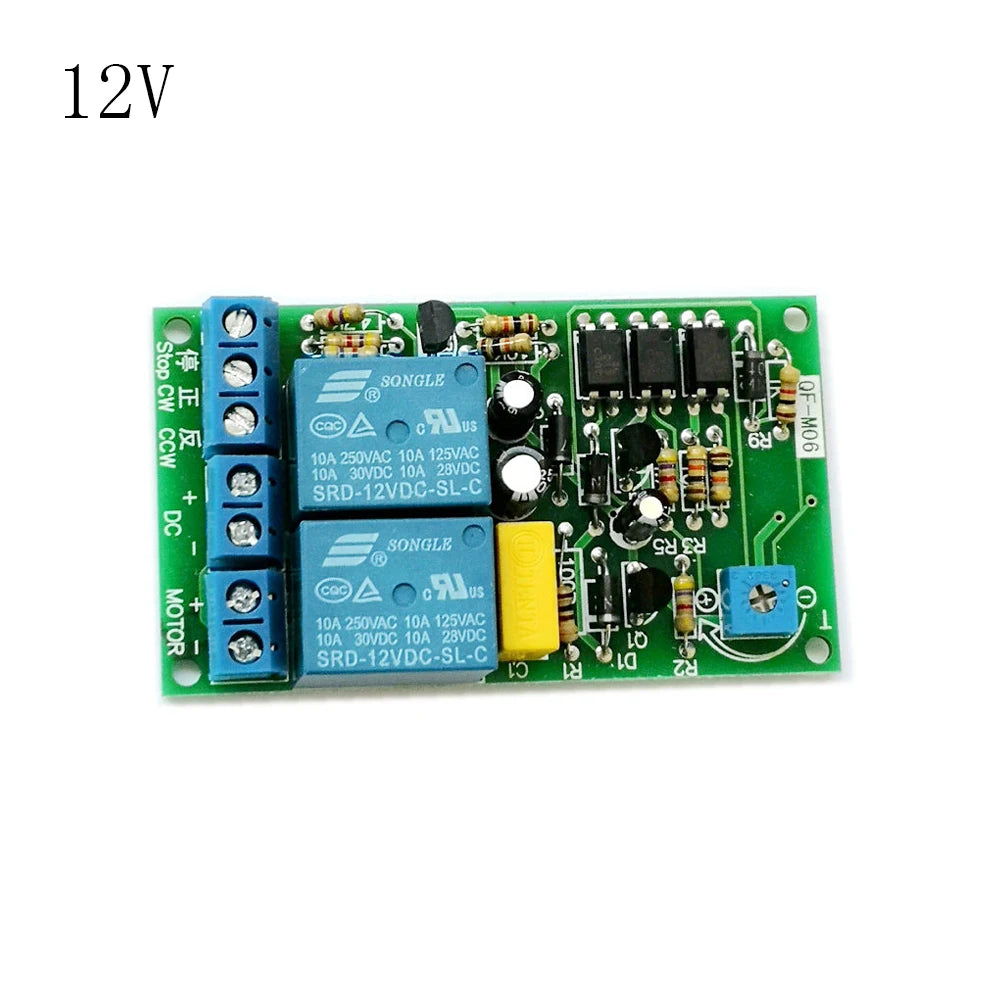

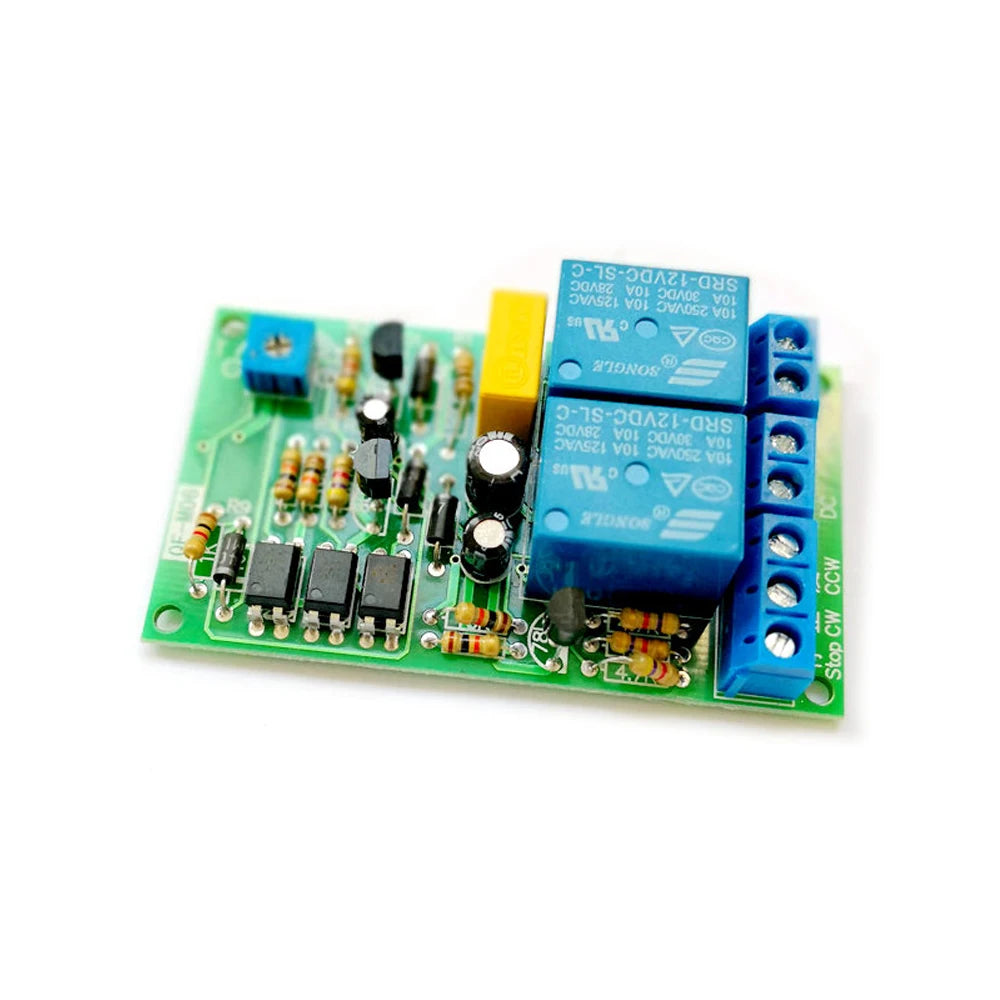

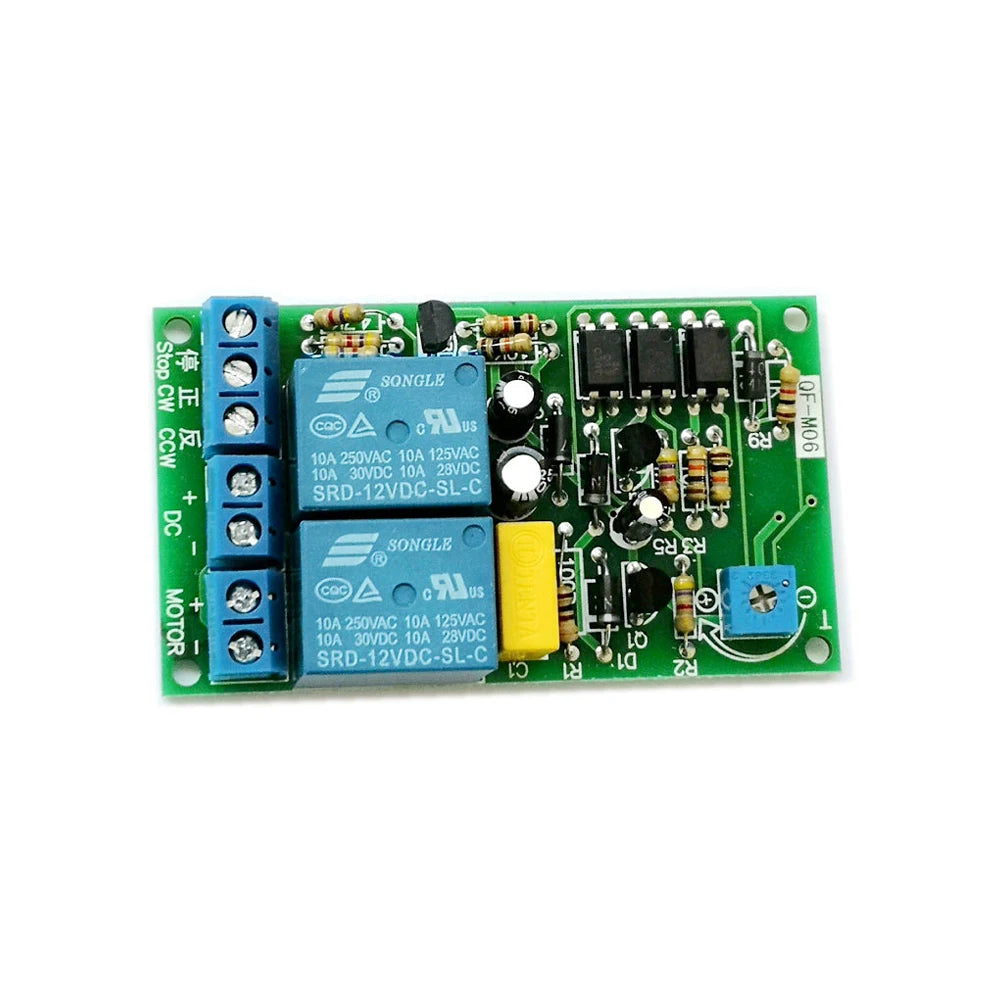

12V/24V DC Motor Drive Module – Forward & Reverse H-Bridge Drive Board with Timeout Auto-Stop
Take precise control of your DC motor projects with this compact and reliable 12V/24V H-Bridge Motor Drive Module. Designed for hobbyists, engineers, and DIY electronics enthusiasts, this drive board supports both forward and reverse motor direction control with a built-in 0–10 minute adjustable timeout range that automatically stops the motor when the set time elapses — protecting your motor and load from over-run damage.
With a fast 30ms response speed, 10A load capacity, and built-in diode reverse-power protection, this module is a smart, safe, and versatile solution for robotics, automation, linear actuators, gate openers, conveyor belts, and countless other DC motor applications. Made in Mainland China.
Key Features
- Dual Voltage Support: Compatible with DC 12V and DC 24V power supplies
- Bidirectional Motor Control: Smooth forward and reverse direction switching via H-Bridge circuit
- Adjustable Timeout (0–10 Minutes): Configurable auto-stop timer prevents motor over-run and reduces energy waste
- 10A Load Capacity: Handles demanding motor loads with ease
- Fast 30ms Response Speed: Near-instant reaction to control signals
- Reverse Power Protection: Built-in diode prevents module damage from accidental reverse polarity
- Compact Form Factor: 70mm × 40mm × 20mm — fits easily in enclosures and project boxes
- Low Idle Current Draw: 50mA at 12V / 30mA at 24V (no motor load)
Specifications
| Input Voltage | DC 12V / DC 24V |
| Idle Current | 12V: 50mA | 24V: 30mA (without motor) |
| Response Speed | 30ms |
| Load Capacity | 10A |
| Timeout Range | 0 to 10 Minutes (adjustable) |
| Reverse Protection | Diode anti-back protection |
| Dimensions | 70mm (L) × 40mm (W) × 20mm (H) |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× Motor Drive Module
Important Notes
- Due to screen color calibration differences, the actual item color may vary slightly from product images.
- Please allow ±1–3cm tolerance due to manual measurement.
Learn More About Electronics Safety
For best practices when working with DC electronics and motor control circuits, visit the U.S. Consumer Product Safety Commission (CPSC) for general consumer electronics safety guidance.
Frequently Asked Questions
Q: What types of DC motors are compatible with this motor drive module?
A: This H-Bridge DC motor drive module is compatible with most standard brushed DC motors operating at 12V or 24V with a load current of up to 10A. It is commonly used in robotics, linear actuators, gate motors, conveyor systems, and automation projects.
Q: How does the timeout auto-stop function work?
A: The adjustable timeout feature allows you to set a run duration between 0 and 10 minutes. Once the timer elapses, the module automatically cuts power to the motor, preventing over-run, overheating, or unnecessary energy consumption — ideal for timed or semi-automated applications.
Q: Does the module protect against accidental reverse wiring?
A: Yes. The built-in diode anti-back protection prevents damage to the module if the power supply is accidentally connected in reverse polarity, adding an extra layer of security for your circuit.
Q: Can this module be used with a microcontroller like Arduino?
A: Yes, this DC motor drive module can be integrated with microcontrollers such as Arduino, ESP32, or similar platforms to enable programmatic control of motor direction, timing, and automation sequences within your electronics project.
