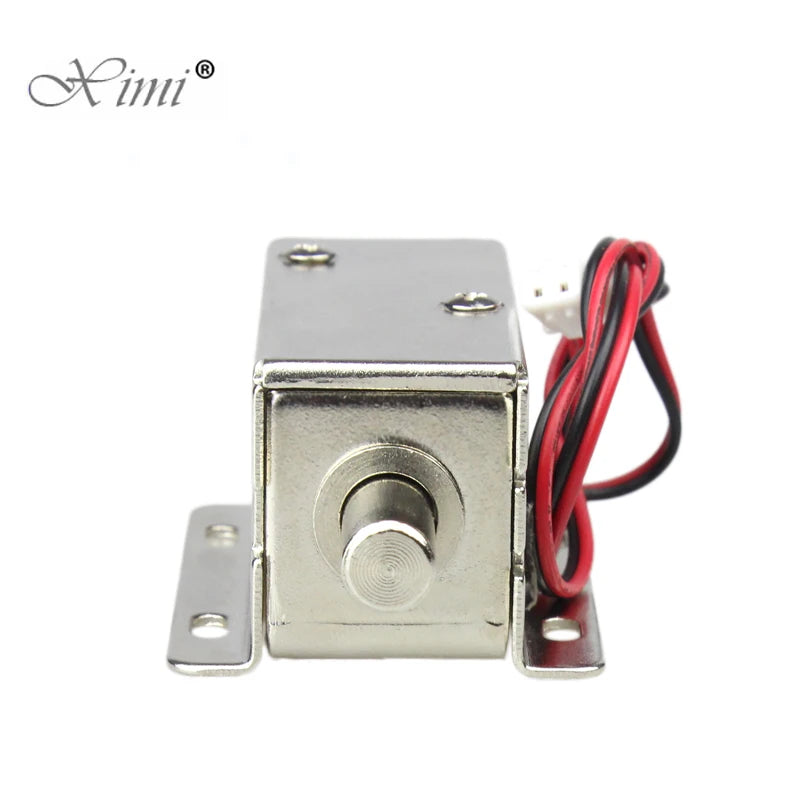

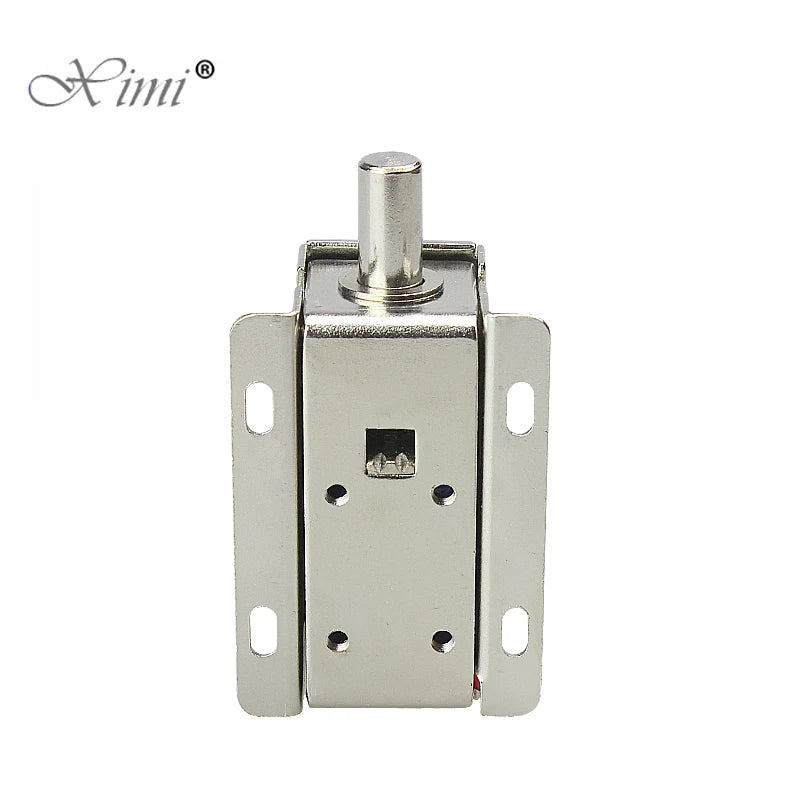

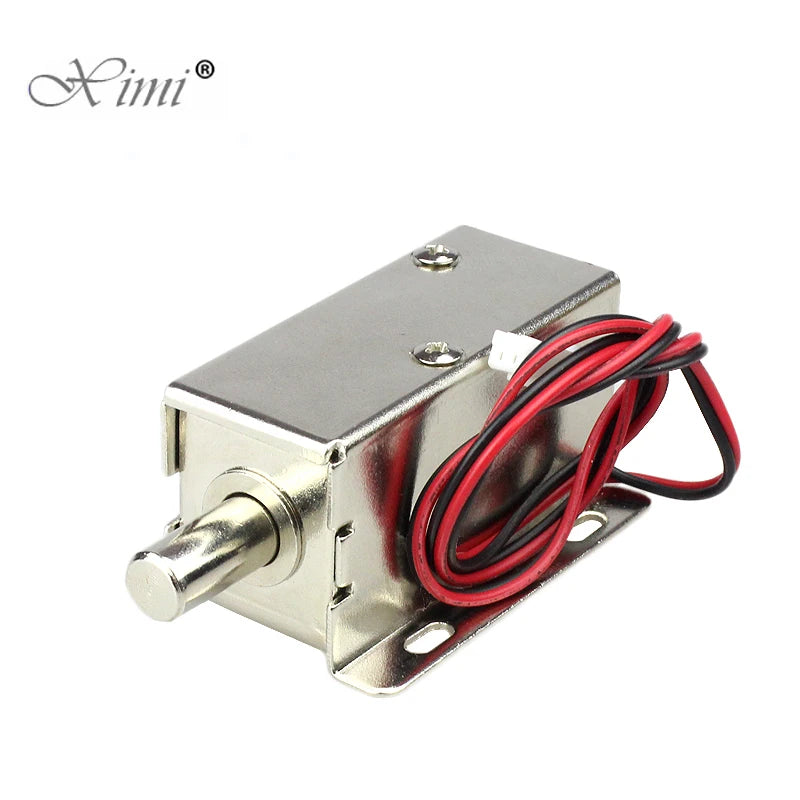

12V/24V DC Mini Electric Bolt Lock — Secure Your Cabinet, Drawer, or Locker
Upgrade your storage security with this compact, reliable electric bolt lock. Designed for drawers, cabinets, lockers, windows, and small safe boxes, this DC-powered solenoid bolt lock offers both Normally Open (NO) and Normally Closed (NC) configurations — giving you the flexibility to tailor access control to your exact needs. Made in Mainland China.
Understanding NO vs. NC Modes

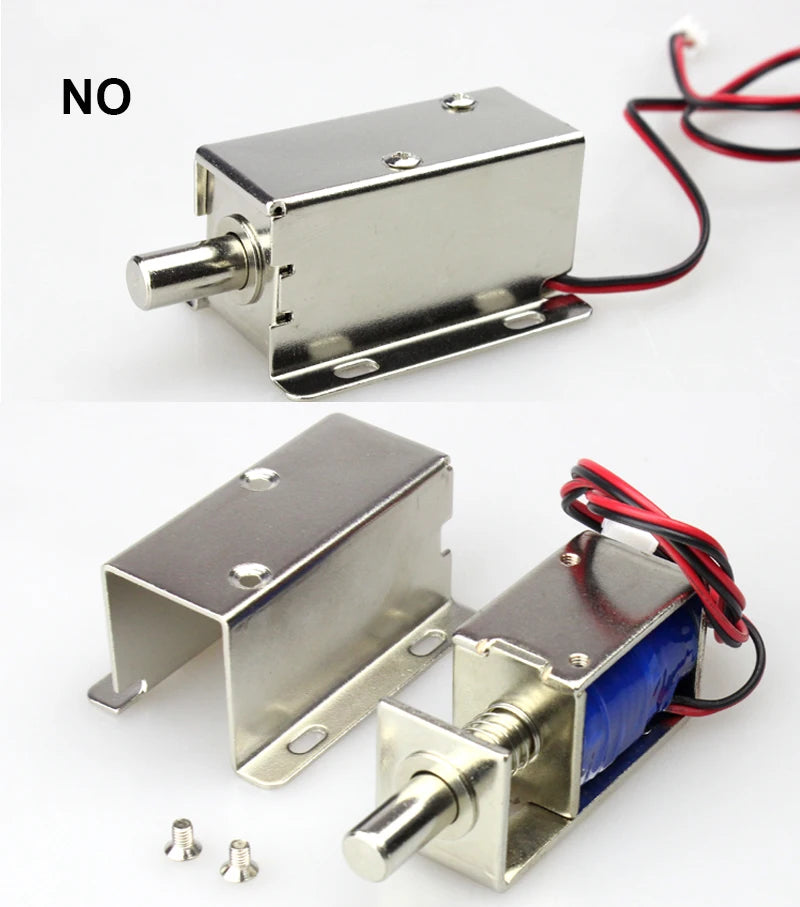

- NO (Normally Open / Fail Secure): Locked when power is OFF — unlocks when power is ON. Ideal for secure applications where the lock remains engaged during a power outage.

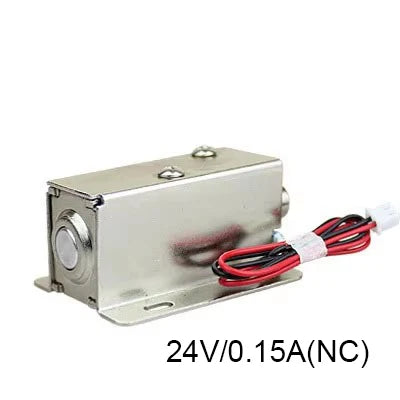

- NC (Normally Closed / Fail Safe): Locked when power is ON — unlocks when power is OFF. Perfect for safety applications where access must be granted if power is lost.
Key Features
- Dual voltage support: DC 12V / 24V — easy integration with most standard power supplies
- Compact metal construction for durability and long service life
- Supports both Fail Safe (NC) and Fail Secure (NO) operation modes
- Extension bolt length: 10 mm
- Compact lock body: 55 × 40 × 28 mm
- Recommended unlocking duration: 0–10 seconds per cycle to prevent overheating

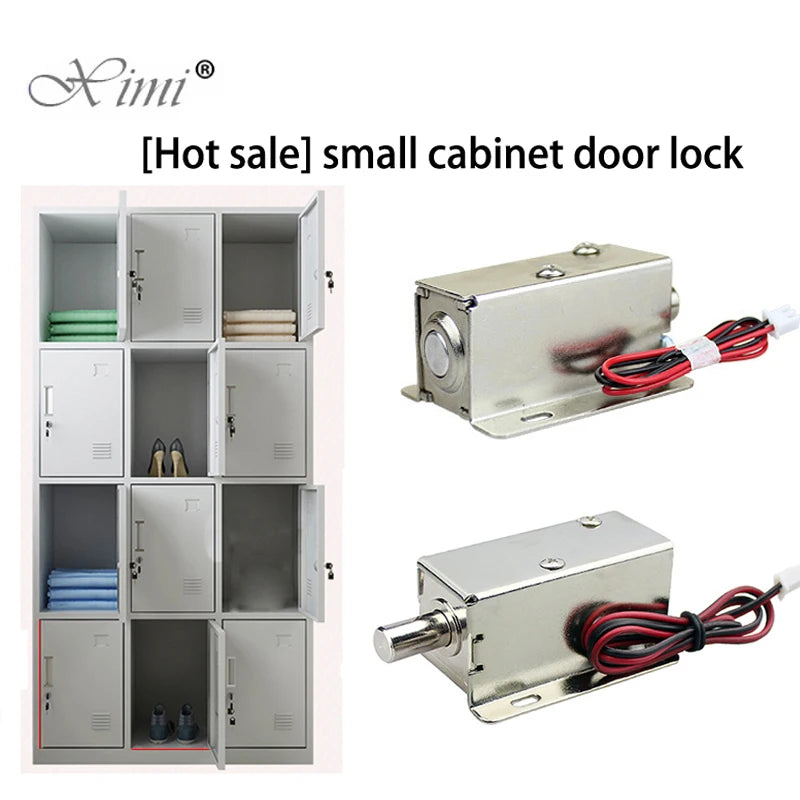

- Suitable for drawers, small cabinets, lockers, windows, and safe boxes
- Simple wiring — connect to a stable DC power supply and control via switch, timer, or controller
Technical Specifications
| Model | XM-13 |
| Voltage | DC 12V / 24V |
| Current | ≥ 1.2A (12V) / 0.3A (24V) |
| Fail Safe Mode | NC — Power to Lock |
| Fail Secure Mode | NO — Power to Open |
| Extension Length | 10 mm |
| Lock Body Size | 55 × 40 × 28 mm |
| Recommended Unlock Duration | 0–10 seconds per cycle |
| Country of Origin | Mainland China |
⚠️ Important Usage Note: Always keep the unlocking cycle within 0–10 seconds. Prolonged energizing can cause the lock to overheat, which may result in damage or reduced lifespan.
For guidance on electrical safety standards for low-voltage control devices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What is the difference between NO and NC on this electric bolt lock?
A: NO (Normally Open / Fail Secure) means the bolt is locked when there is NO power and unlocks when power is applied. NC (Normally Closed / Fail Safe) means the bolt is locked when power IS on and unlocks when power is cut. Choose NO for maximum security during outages, or NC for safety-first access where power loss must allow entry.
Q: Can this mini electric bolt lock work with both 12V and 24V power supplies?
A: Yes — this lock is compatible with both DC 12V and DC 24V power supplies. The current draw is ≥1.2A at 12V and approximately 0.3A at 24V. Simply connect it to a stable DC power source that matches your system's voltage.
Q: What type of cabinets or drawers is this electric bolt lock suitable for?
A: This compact bolt lock (55 × 40 × 28 mm) is designed for small to medium cabinets, desk drawers, lockers, windows, and safe boxes. Its small form factor makes it easy to install in tight spaces without requiring extensive modification.
Q: How long can I keep this lock energized at one time?
A: It is recommended to keep each unlock cycle within 0–10 seconds. Exceeding this duration can cause the lock body to heat up, potentially leading to damage. Use a timer or controller to ensure cycles remain within the safe operating window.
